FEP1_ACTEL Temperatures Check

Summary

Date start 2025:278:23:10:04.316
Date stop 2025:285:13:23:00.016
Model status NOT OK
Load directory /data/acis/LoadReviews/2025/OCT0625/oflsa
Run time Thu Oct 2 10:51:30 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

TMP_FEP1_ACTEL Upper Limit Violations

Date start Date stop Duration (ks) Max Temperature / Limit
2025:285:12:53:02.816 2025:285:13:23:00.000 1.80 46.76 / 46.00

No TMP_FEP1_ACTEL Lower Limit Violations

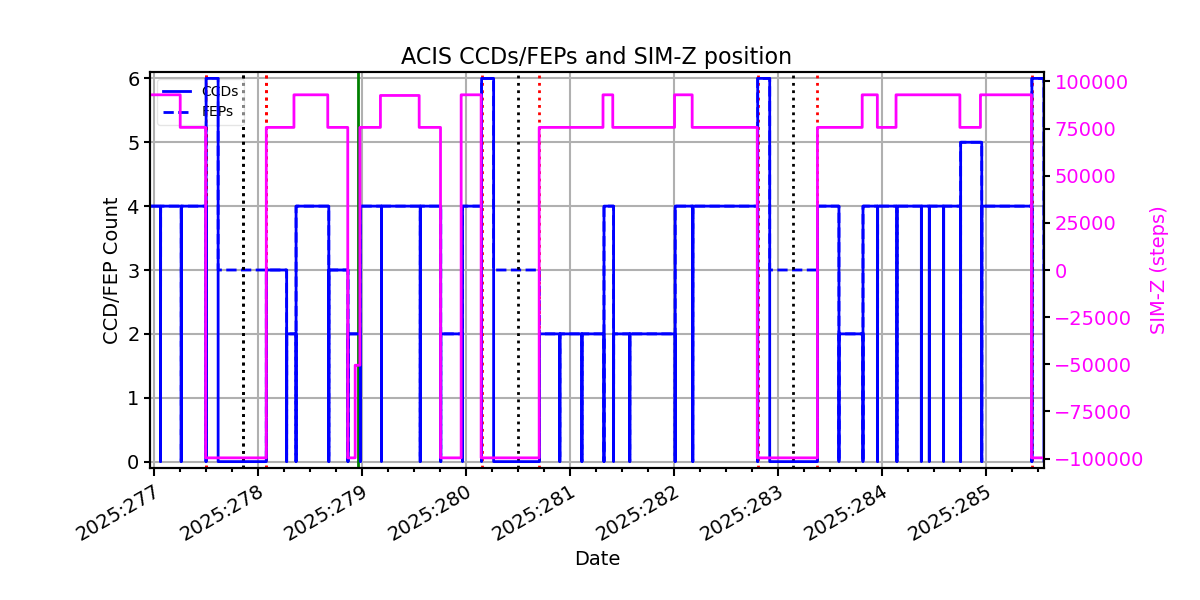

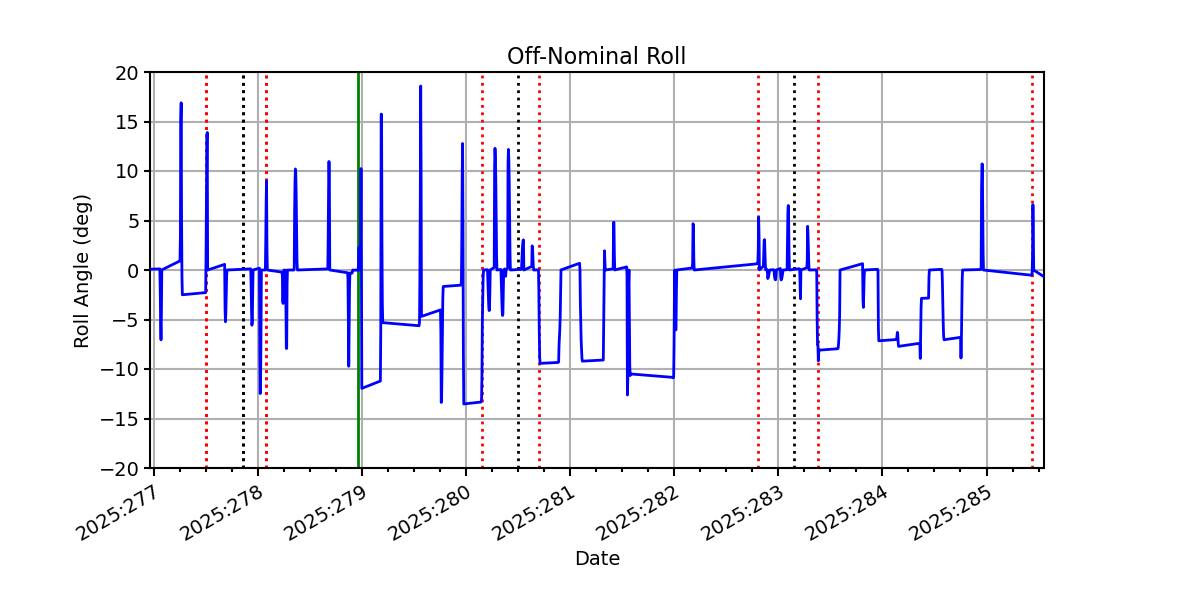

tmp_fep1_actel.png pow_sim.png roll.png

FEP1_ACTEL Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
tmp_fep1_actel -5.67 -5.22 -3.94 -1.99 0.32 2.27 3.87
pitch -10.078 -0.824 -0.004 0.000 0.004 0.944 10.915
tscpos -1 -1 -1 0 0 0 1
roll -2.093 -0.241 -0.007 0.000 0.007 0.207 1.933

Validation Violations

MSID Quantile Value Limit
TMP_FEP1_ACTEL 1 -5.67 2.00
TMP_FEP1_ACTEL 50 -1.99 1.00
TMP_FEP1_ACTEL 99 3.87 2.00
PITCH 1 -10.078 3.00
PITCH 99 10.915 3.00

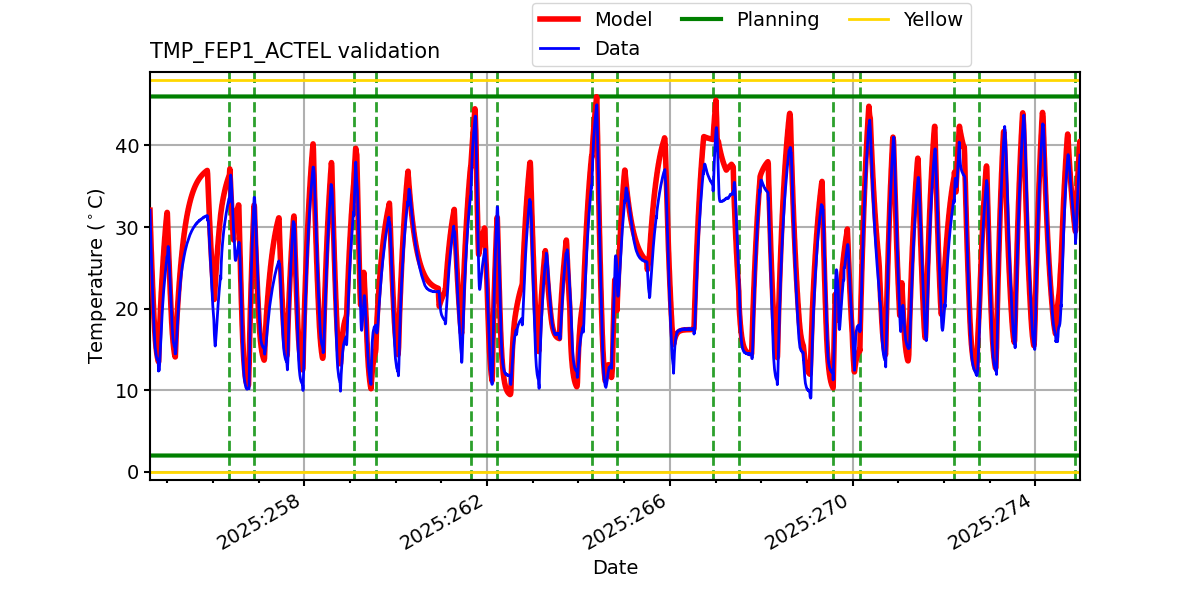

TMP_FEP1_ACTEL

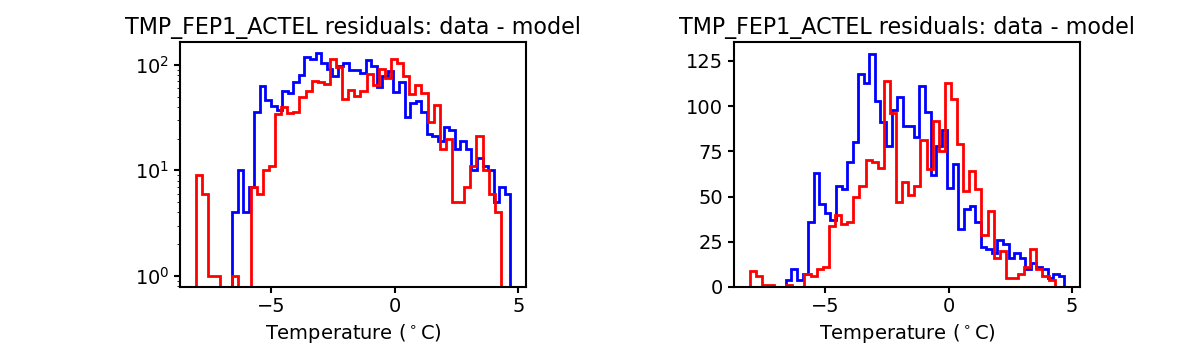

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

tmp_fep1_actel_valid.png tmp_fep1_actel_valid_hist.png

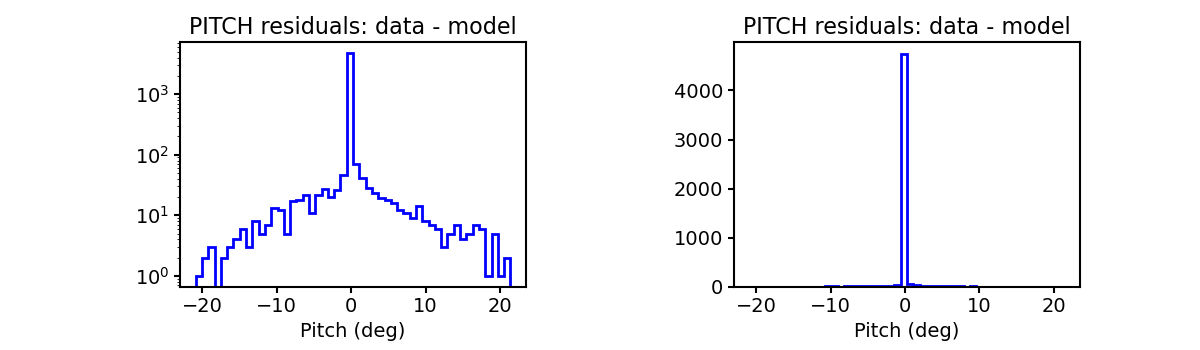

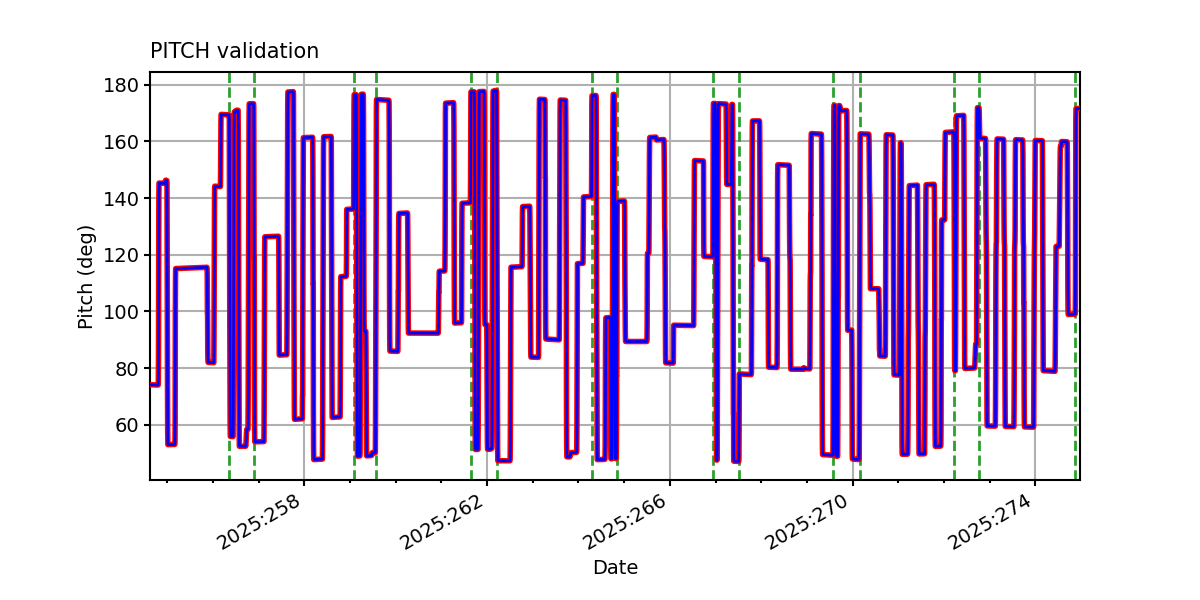

PITCH

pitch_valid.png pitch_valid_hist.png

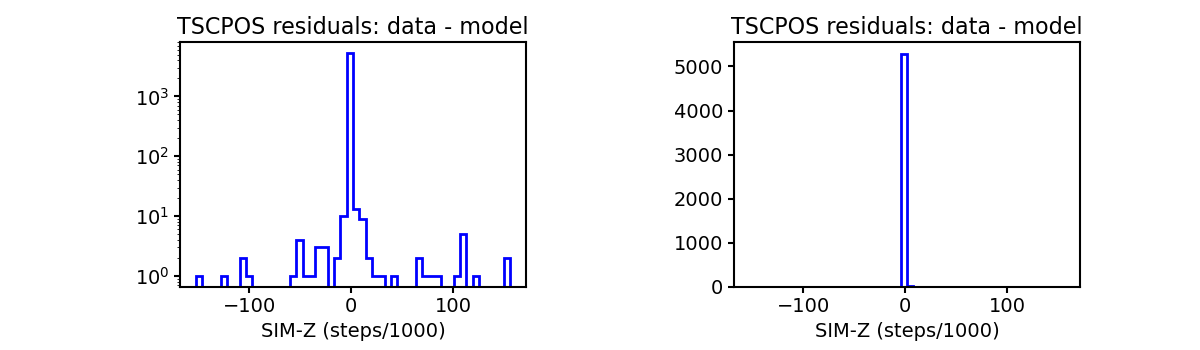

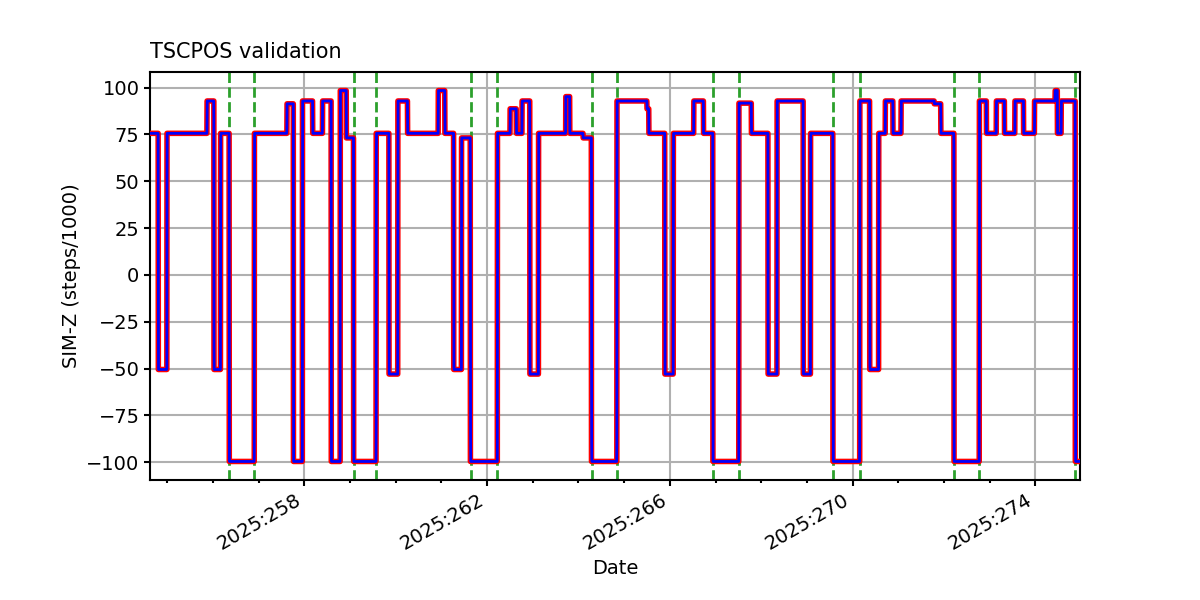

TSCPOS

tscpos_valid.png tscpos_valid_hist.png

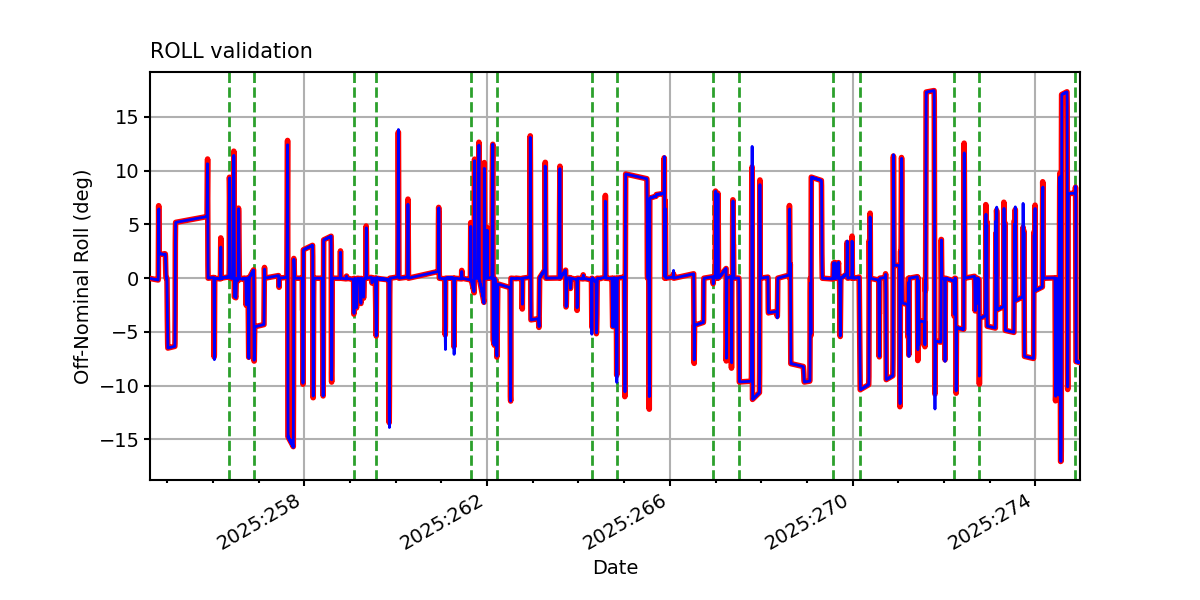

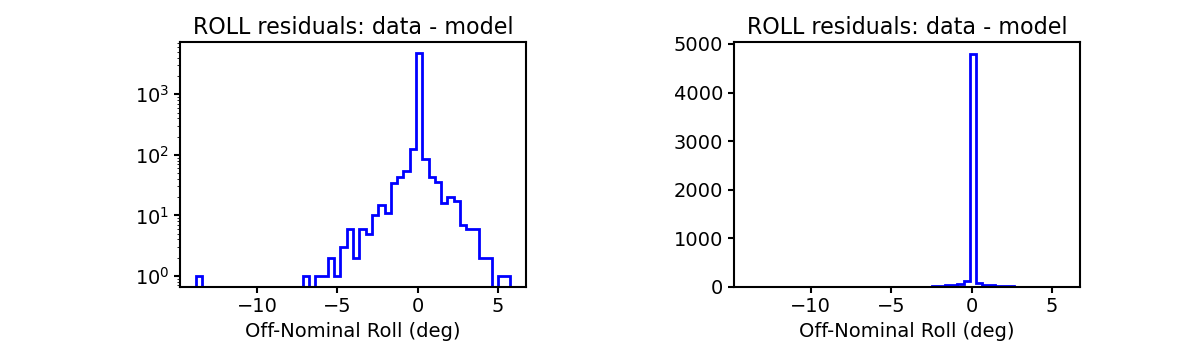

ROLL

roll_valid.png roll_valid_hist.png

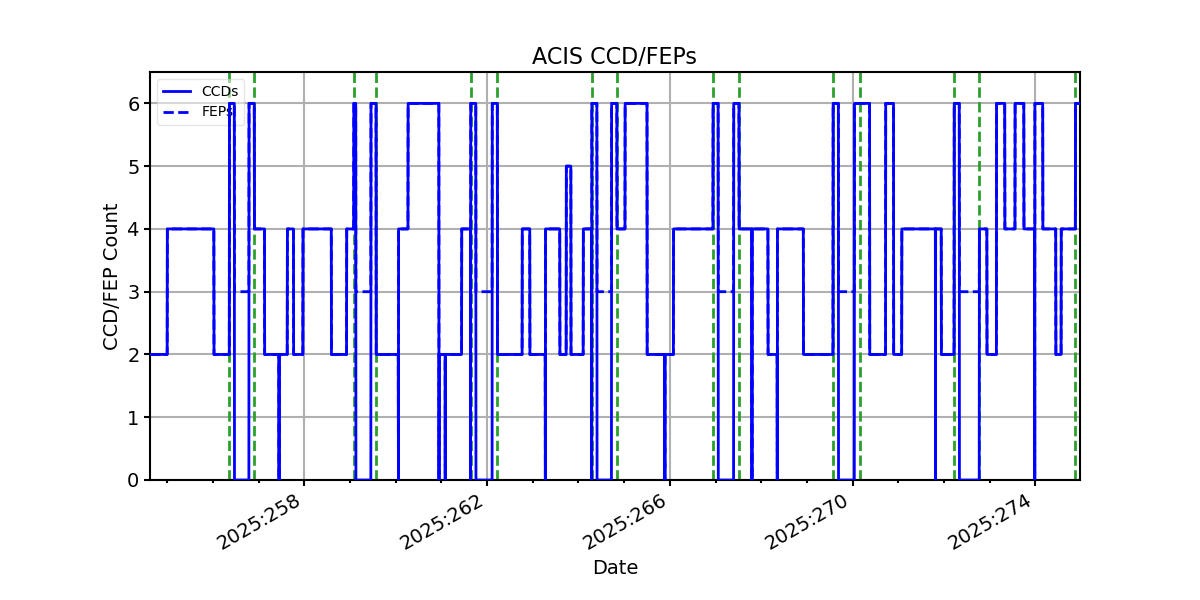

ACIS CCD/FEP Count
