FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:285:13:20:00.016 |
| Date stop | 2025:292:21:47:50.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT1325/oflsa |
| Run time | Thu Oct 9 14:36:15 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:285:13:20:00.016 | 2025:285:13:36:46.816 | 1.01 | 46.75 / 46.00 |
| 2025:289:05:10:14.816 | 2025:289:06:43:10.816 | 5.58 | 47.63 / 46.00 |
| 2025:290:19:53:34.816 | 2025:290:20:48:14.816 | 3.28 | 47.21 / 46.00 |
| 2025:292:12:37:10.816 | 2025:292:13:09:58.816 | 1.97 | 46.57 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -5.50 | -4.58 | -3.71 | -1.94 | -0.06 | 1.96 | 3.69 |
| pitch | -10.319 | -1.135 | -0.004 | -0.000 | 0.004 | 1.070 | 10.563 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.187 | -0.291 | -0.007 | -0.000 | 0.008 | 0.305 | 2.424 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -5.5 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.94 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.69 | 2.00 |
| PITCH | 1 | -10.319 | 3.00 |
| PITCH | 99 | 10.563 | 3.00 |

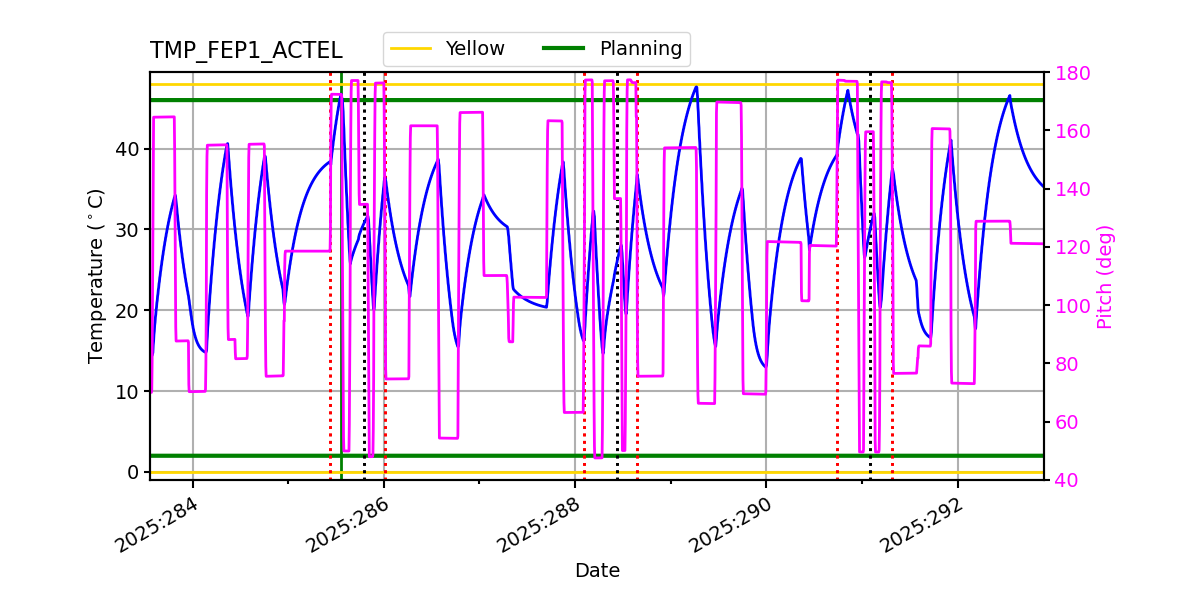

TMP_FEP1_ACTEL

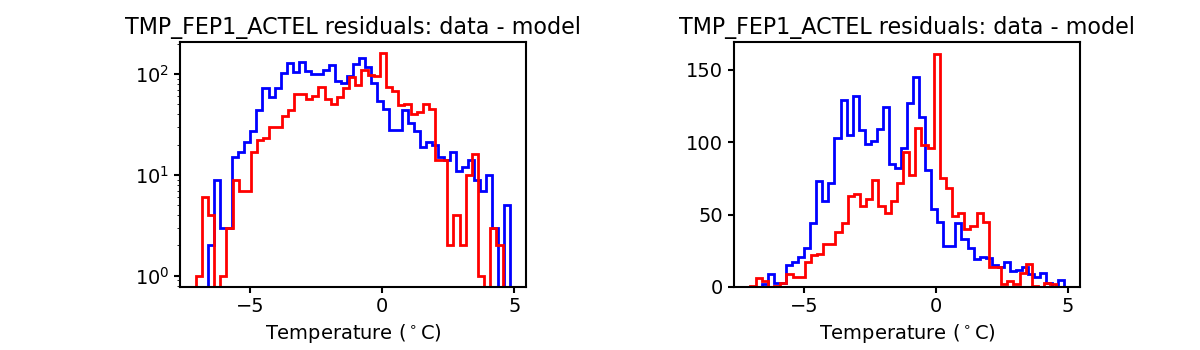

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

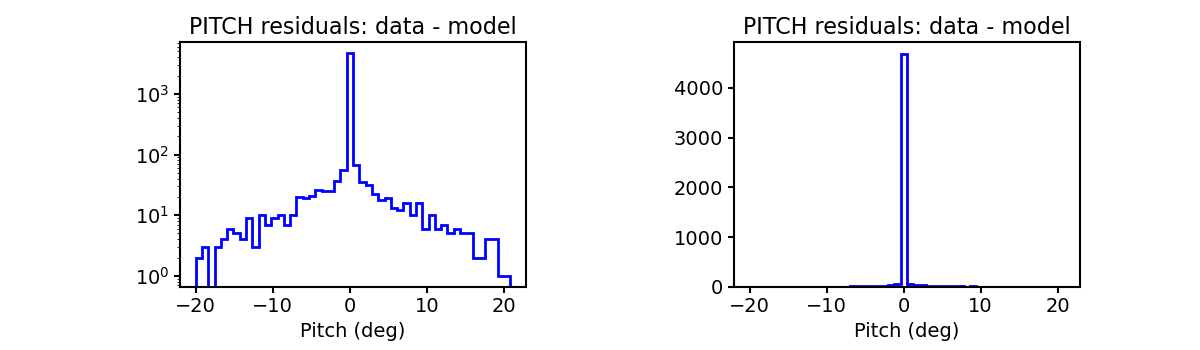

PITCH

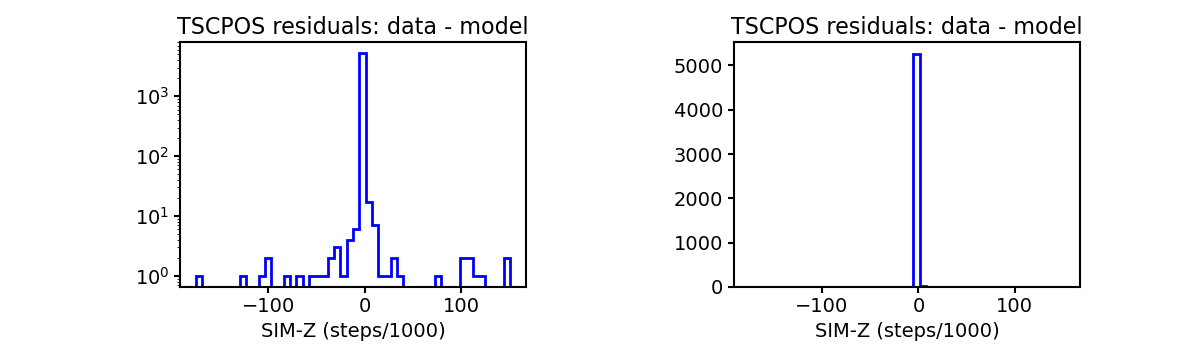

TSCPOS
ROLL

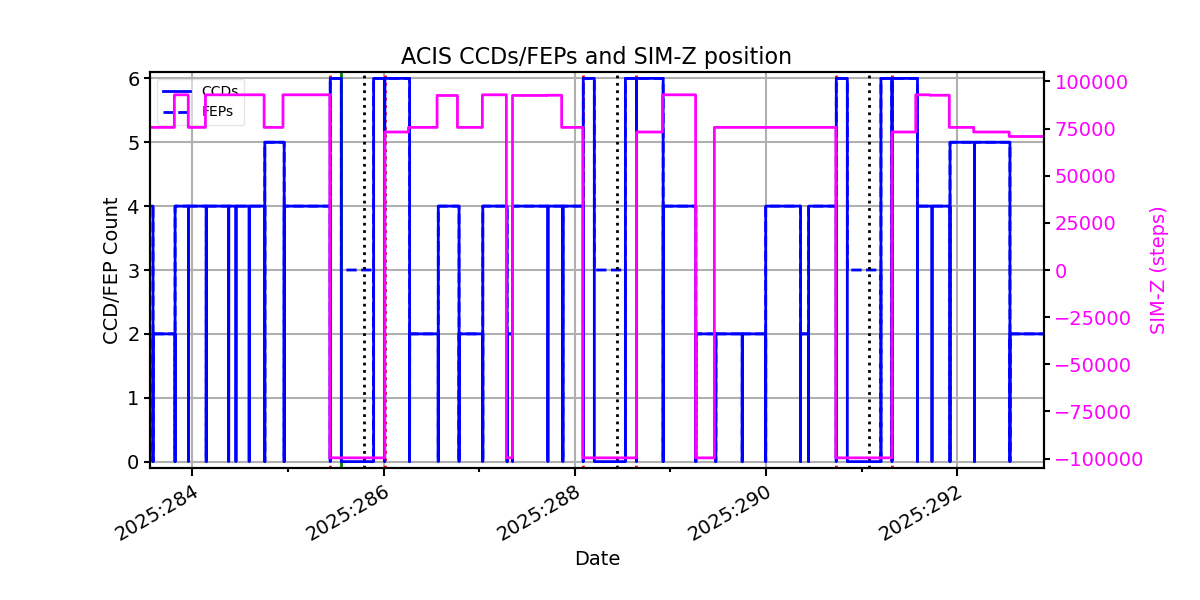

ACIS CCD/FEP Count
