FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:23:08 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

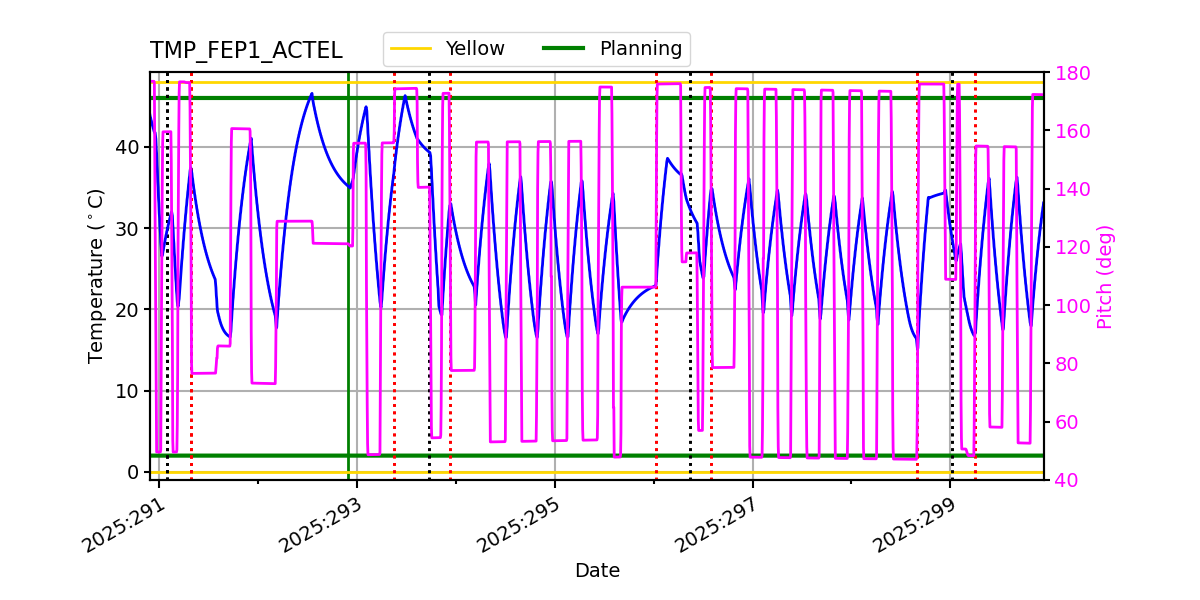

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:293:11:34:46.816 | 2025:293:11:46:34.632 | 0.71 | 46.29 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.42 | -4.67 | -3.57 | -1.71 | 0.00 | 1.50 | 3.49 |
| pitch | -11.161 | -1.258 | -0.004 | -0.000 | 0.004 | 1.276 | 11.847 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.089 | -0.200 | -0.008 | 0.000 | 0.009 | 0.332 | 2.337 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.42 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.71 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.49 | 2.00 |
| PITCH | 1 | -11.161 | 3.00 |
| PITCH | 99 | 11.847 | 3.00 |

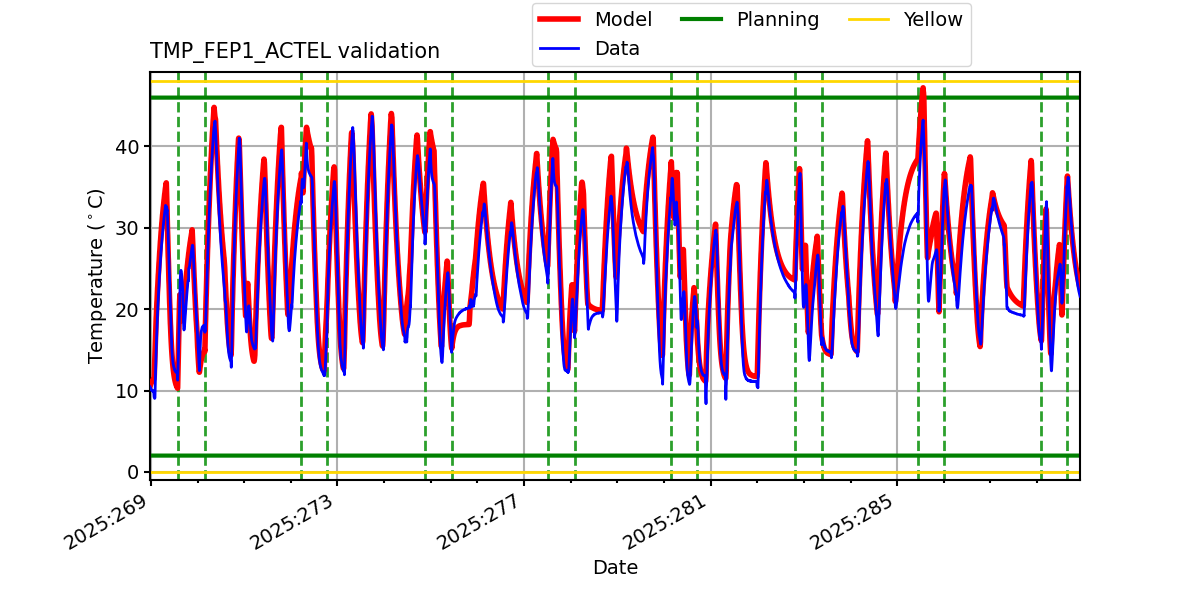

TMP_FEP1_ACTEL

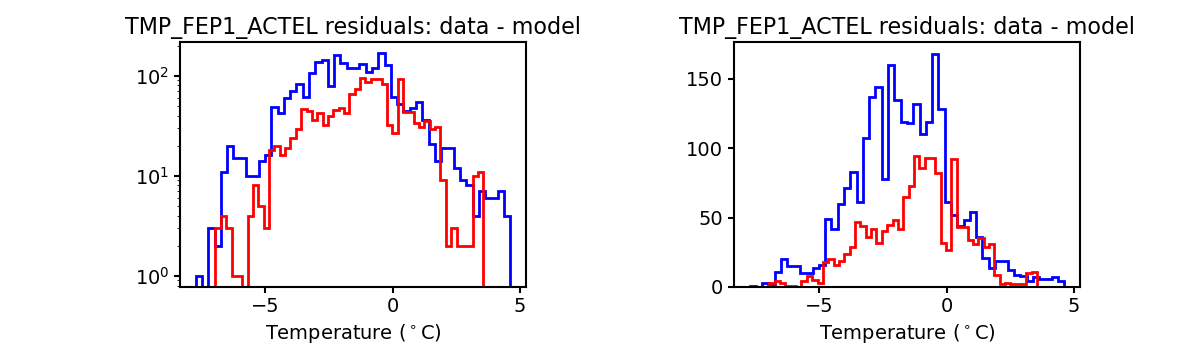

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

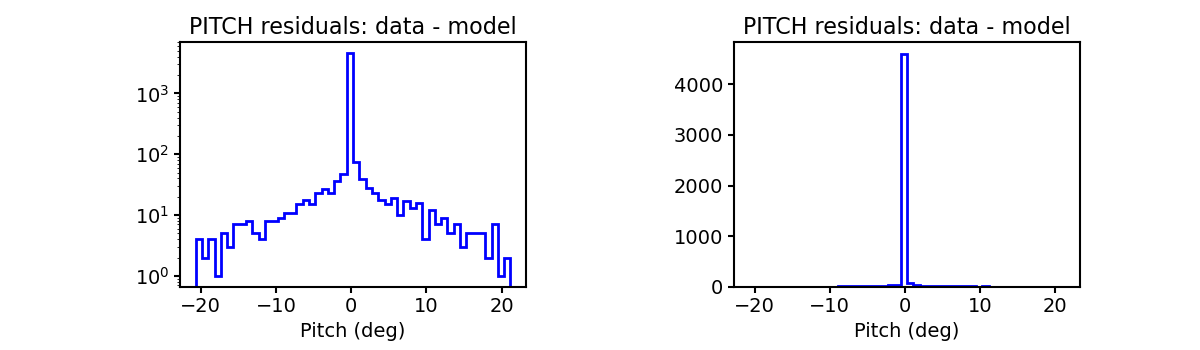

PITCH

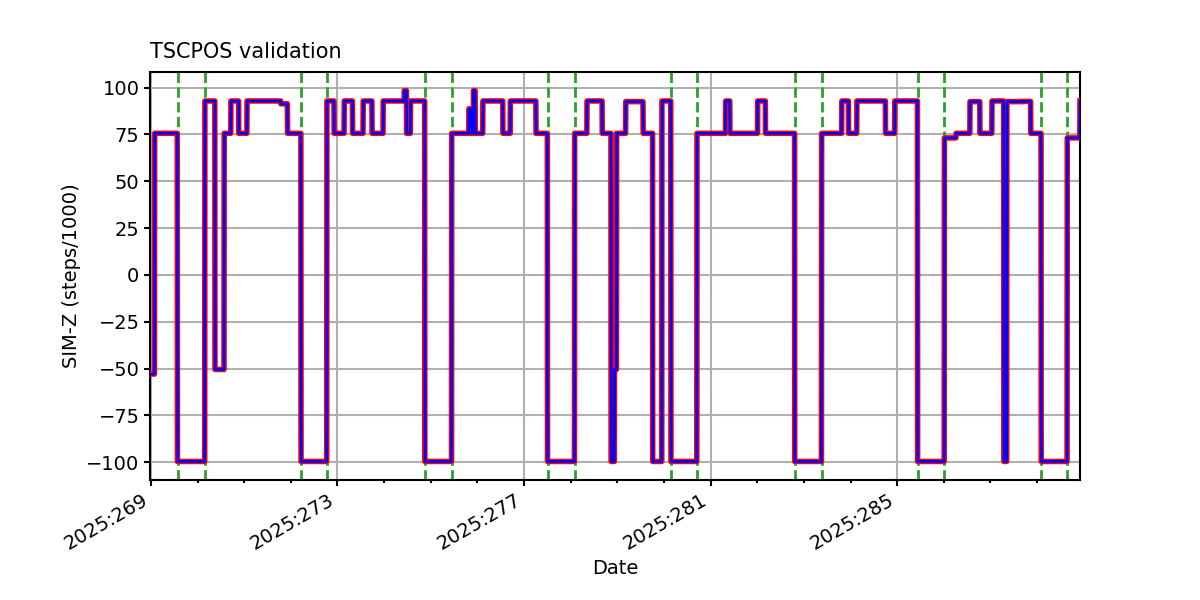

TSCPOS

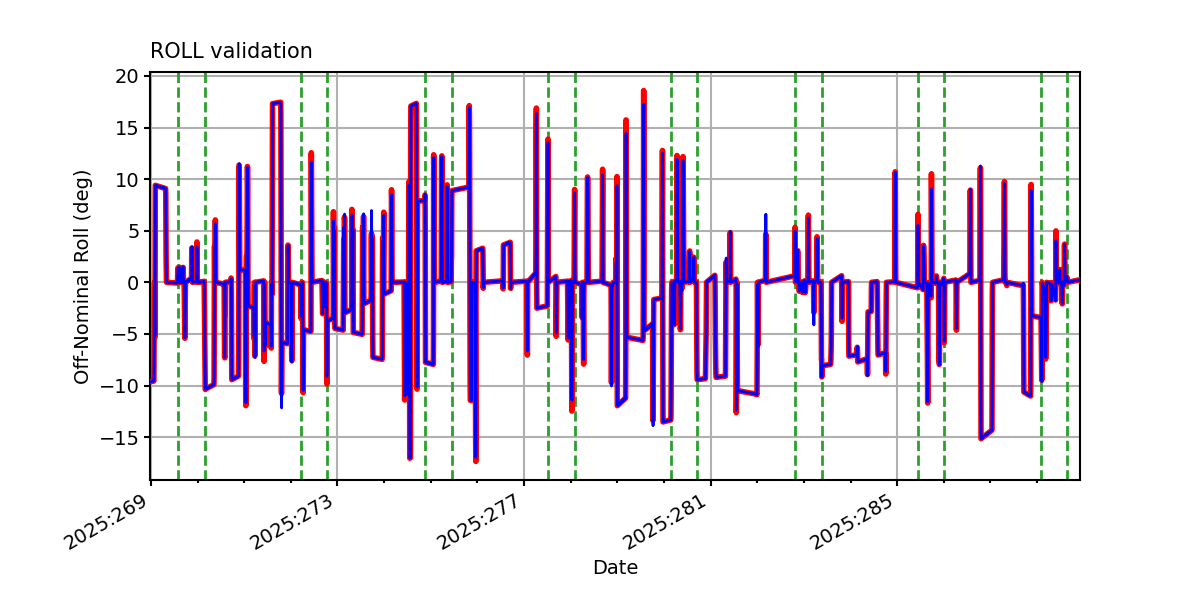

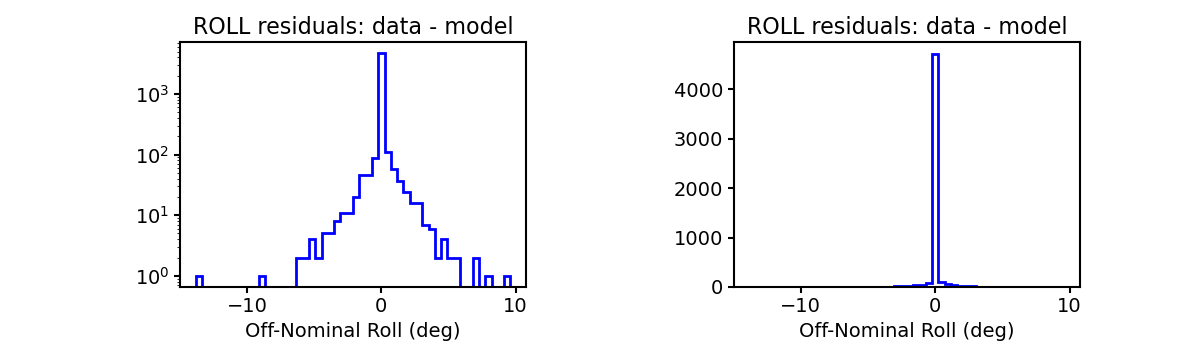

ROLL

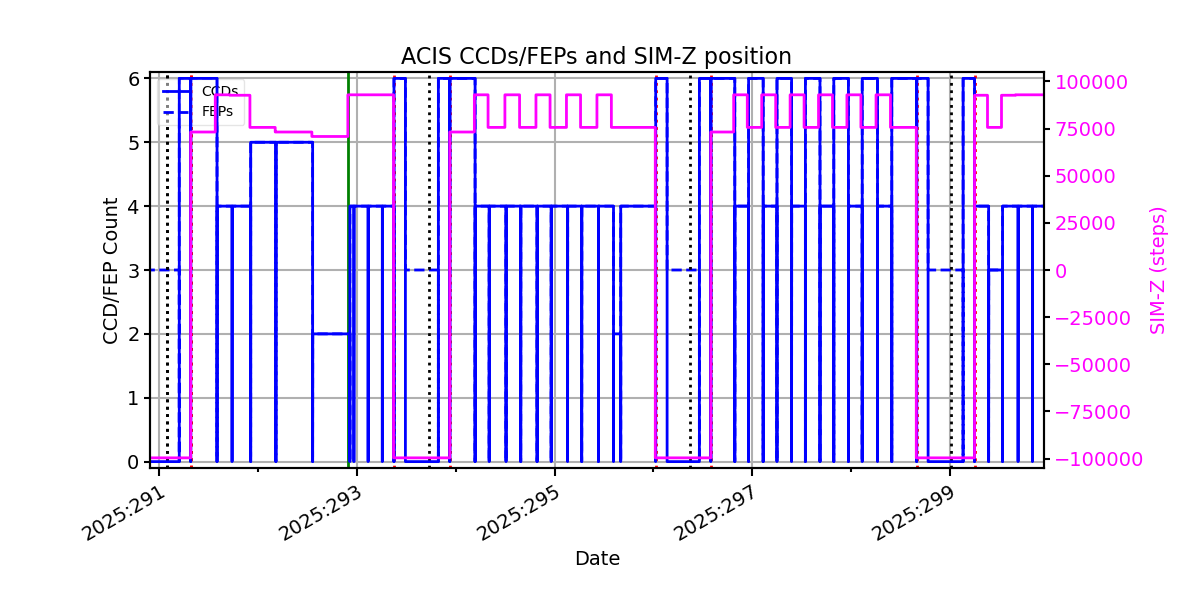

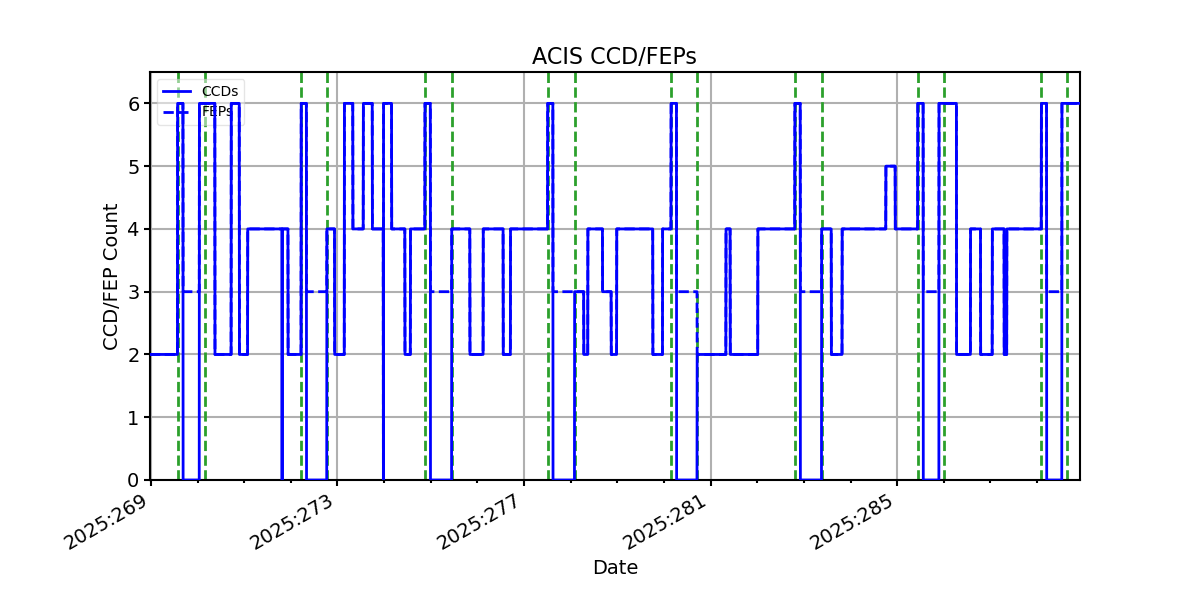

ACIS CCD/FEP Count
