FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:294:18:45:00.016 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2125/oflsa |
| Run time | Sun Oct 19 17:17:14 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

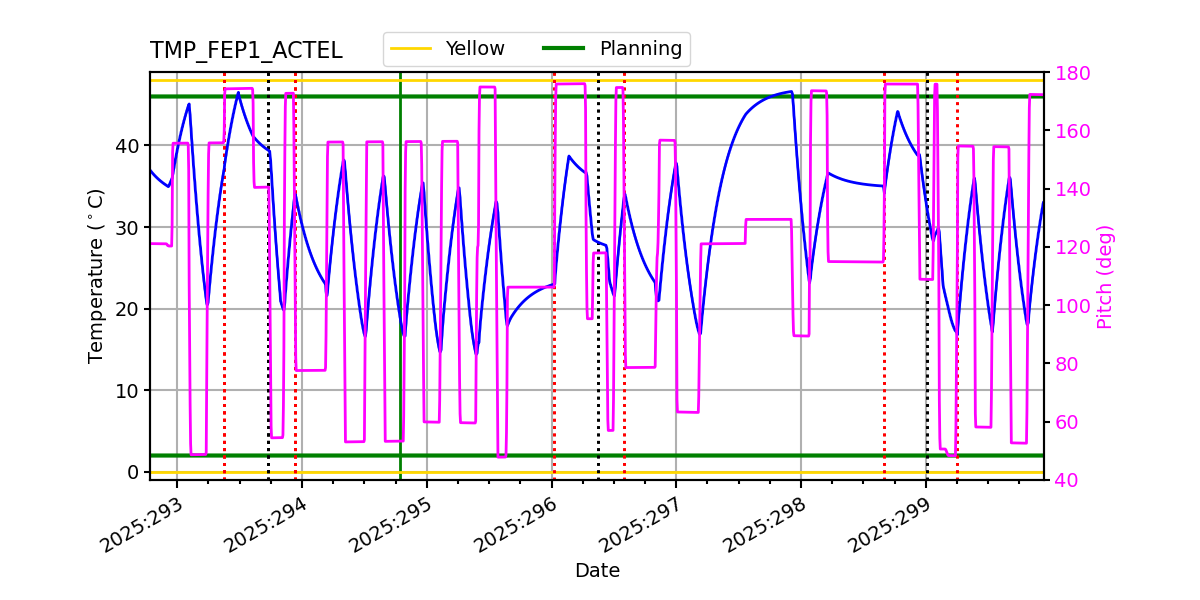

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:297:18:15:42.816 | 2025:297:22:21:42.816 | 14.76 | 46.61 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.41 | -4.76 | -3.84 | -1.84 | -0.12 | 1.24 | 3.19 |
| pitch | -10.791 | -1.196 | -0.004 | -0.000 | 0.004 | 0.927 | 11.876 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.976 | -0.117 | -0.008 | 0.000 | 0.009 | 0.298 | 2.326 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.41 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.84 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.19 | 2.00 |
| PITCH | 1 | -10.791 | 3.00 |
| PITCH | 99 | 11.876 | 3.00 |

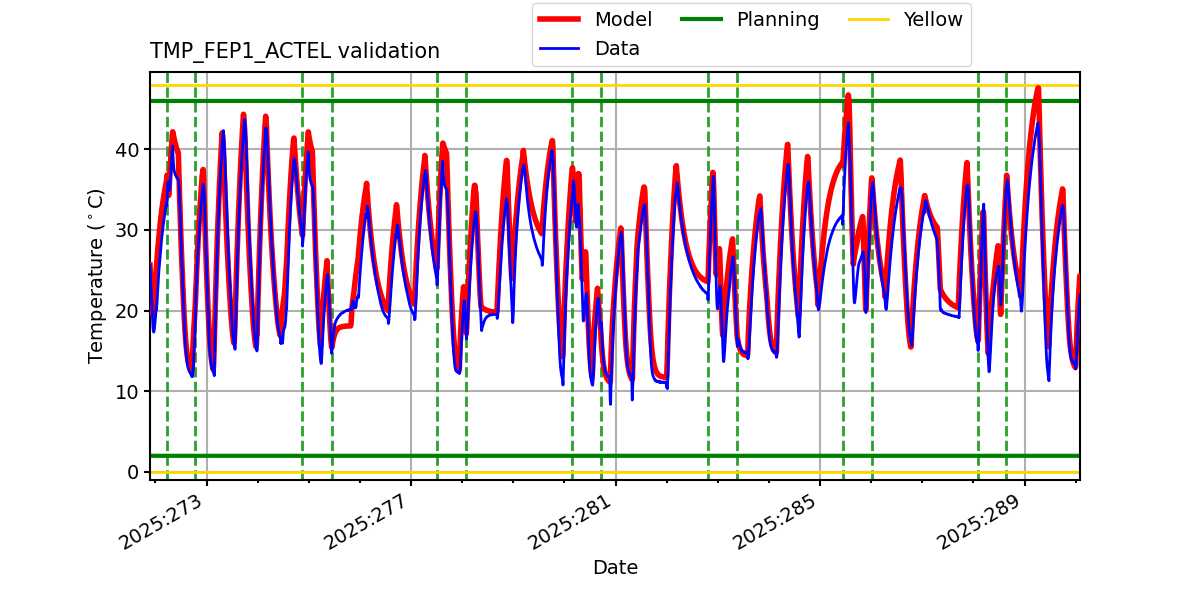

TMP_FEP1_ACTEL

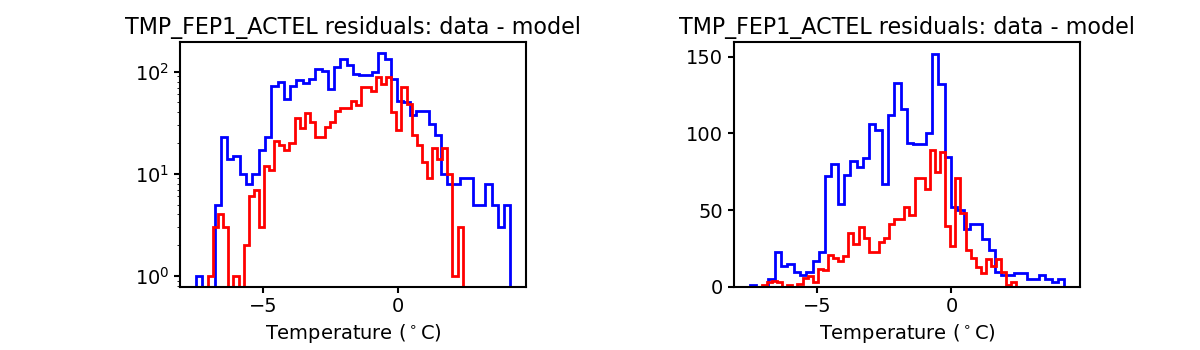

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

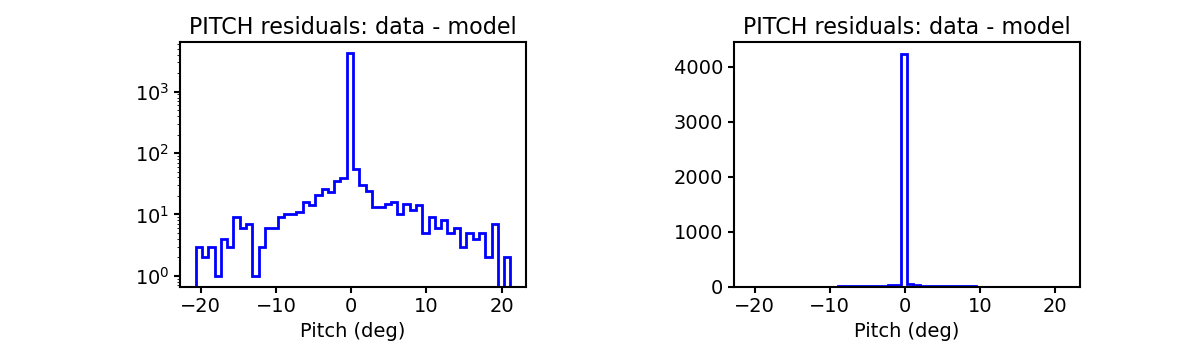

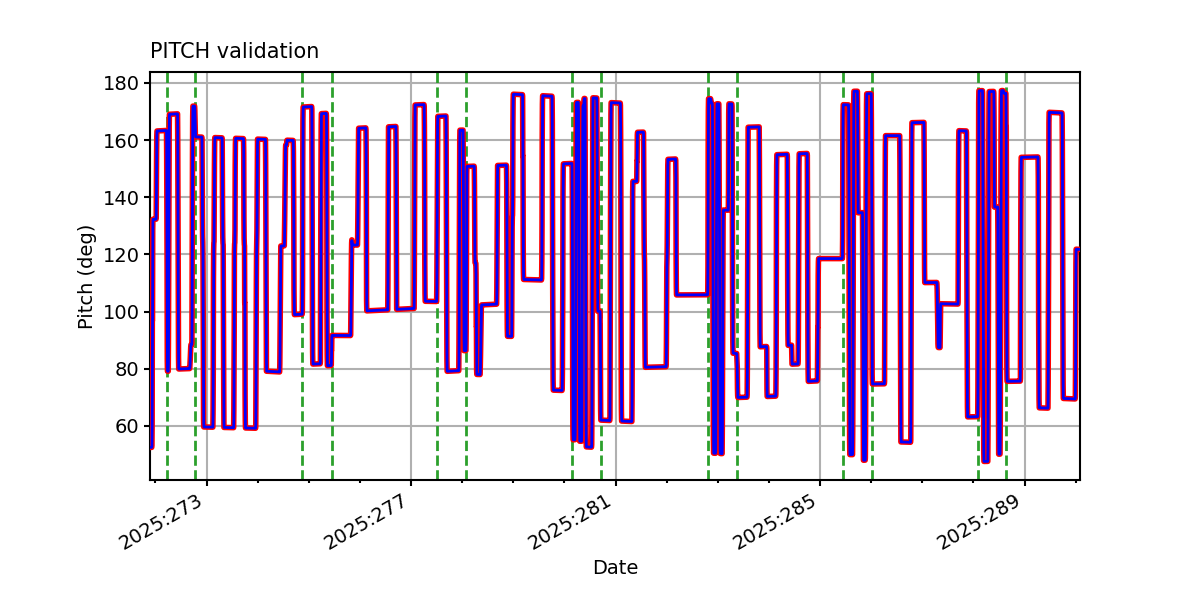

PITCH

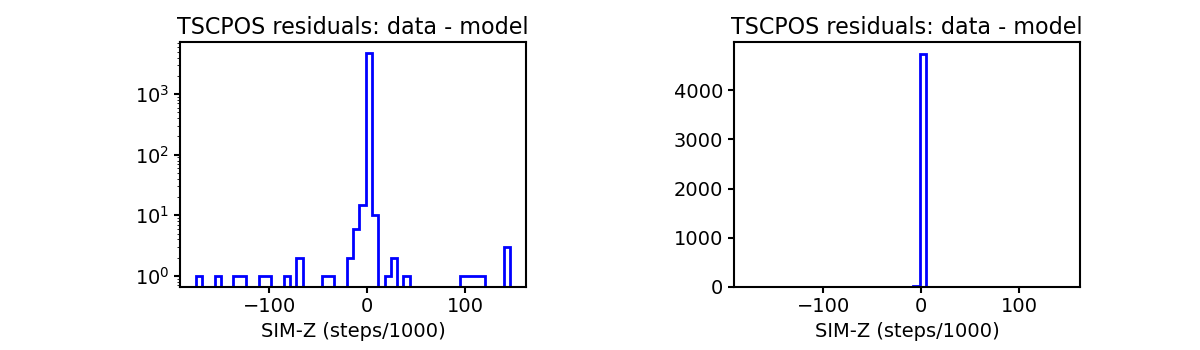

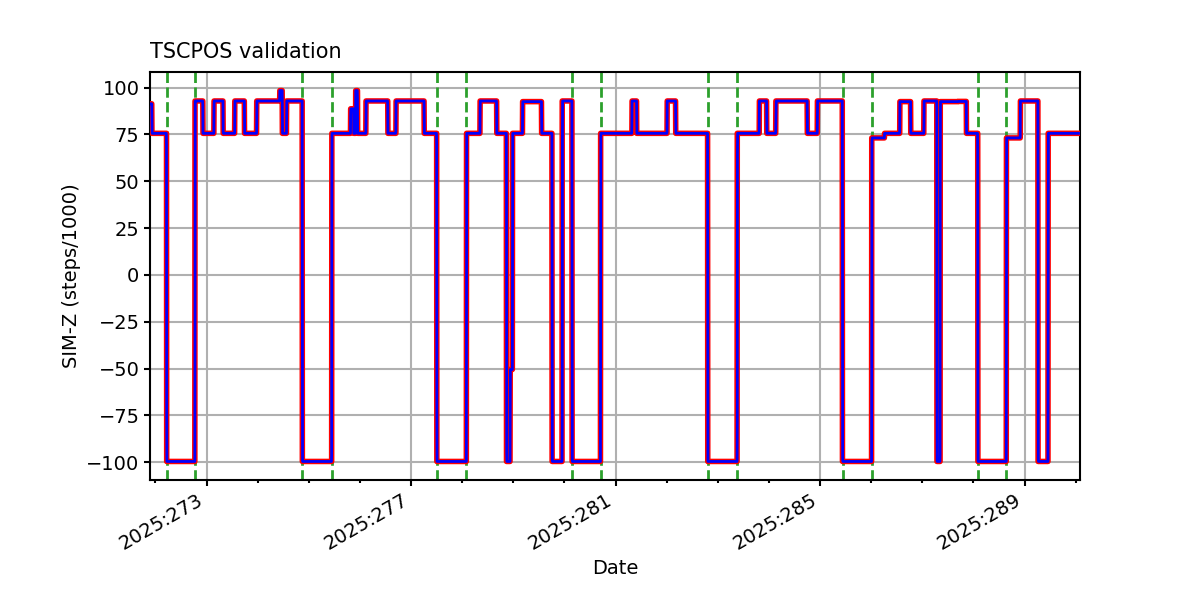

TSCPOS

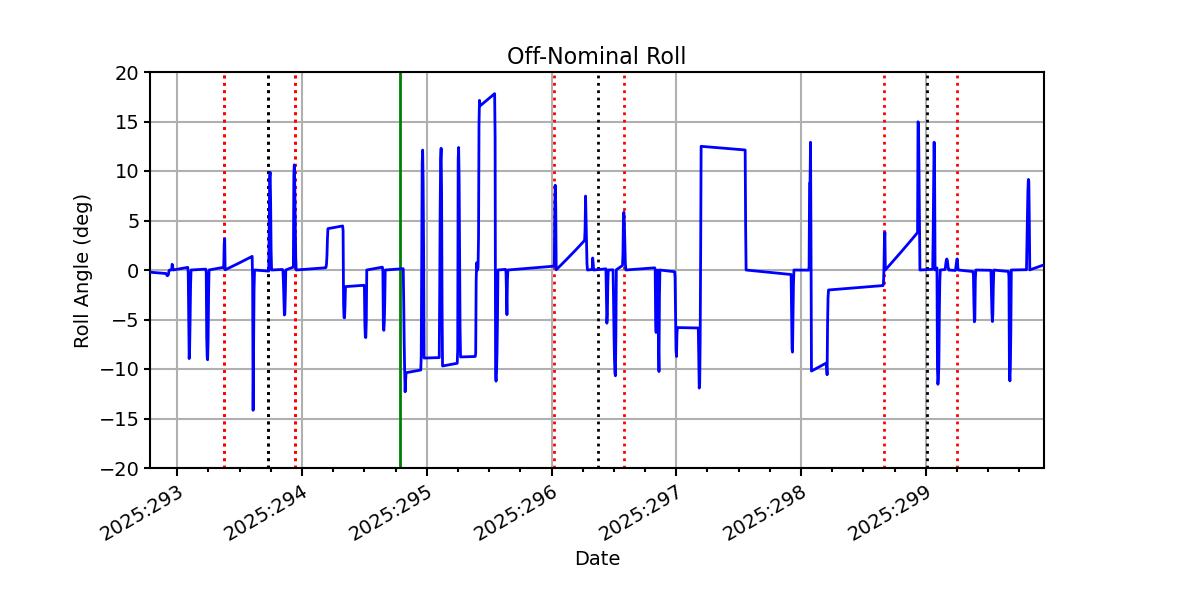

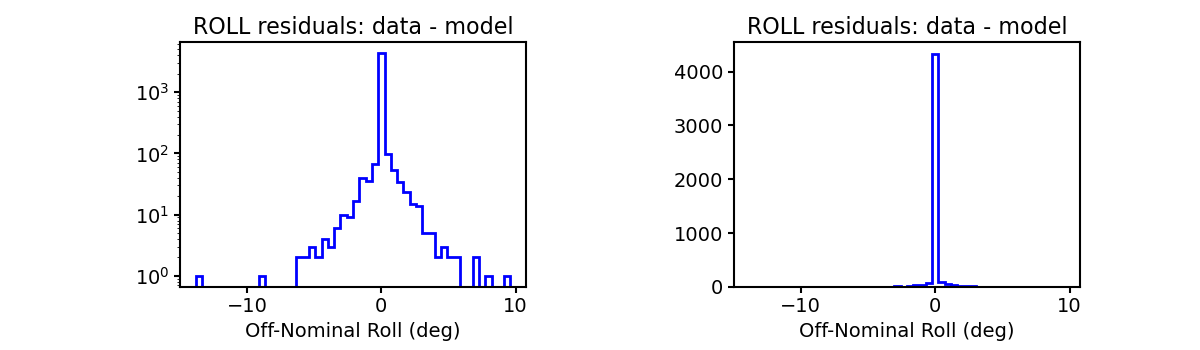

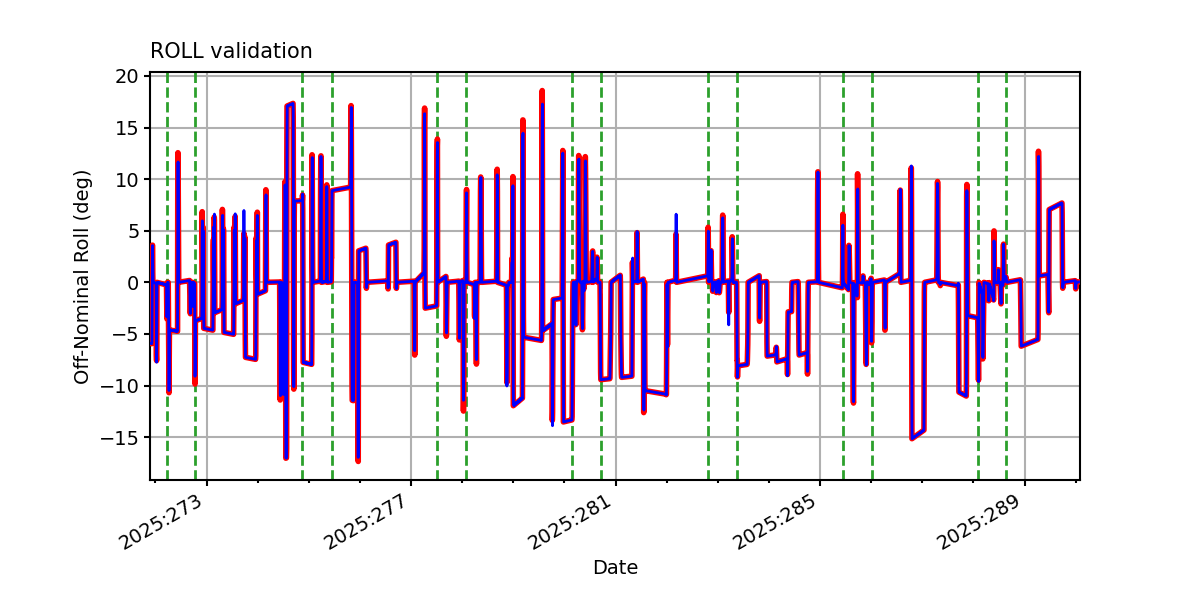

ROLL

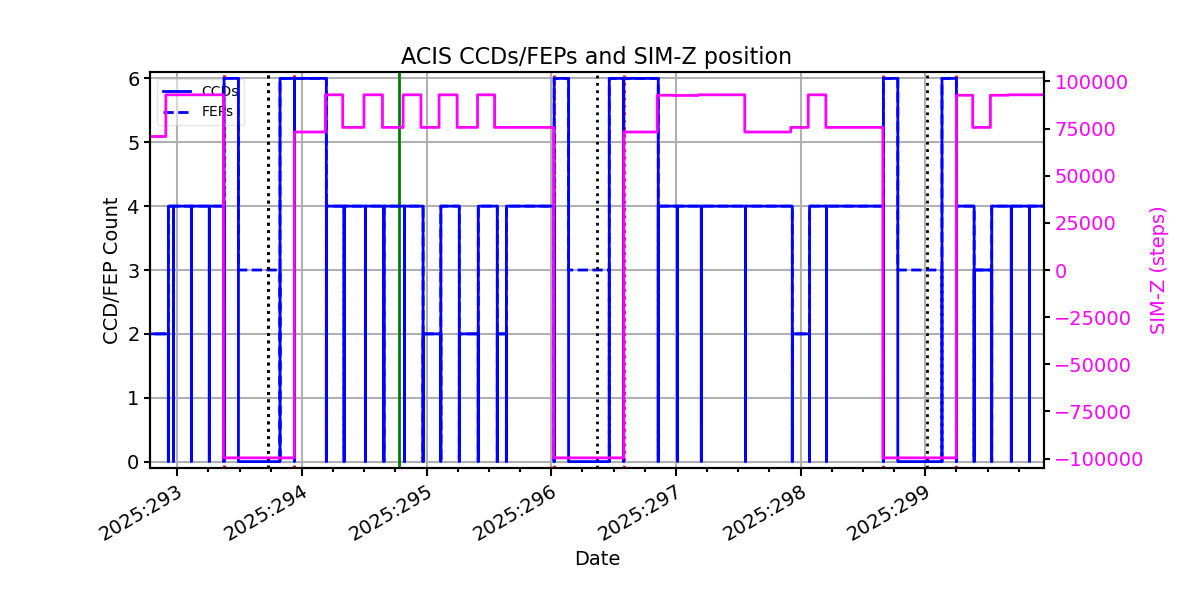

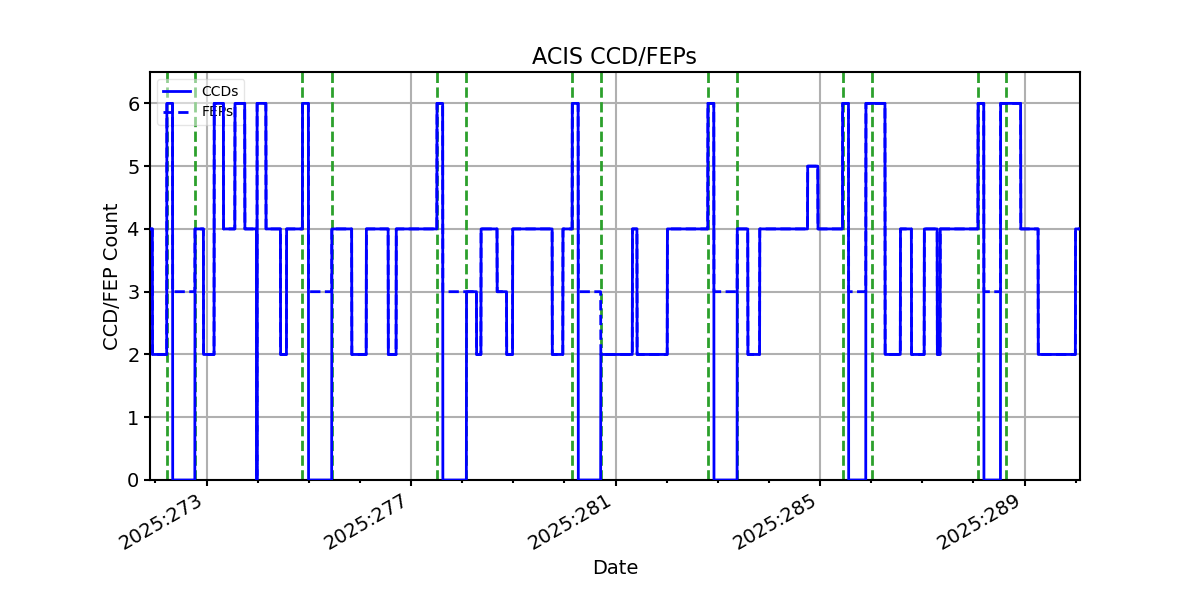

ACIS CCD/FEP Count
