FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:299:22:49:08.316 |
| Date stop | 2025:306:17:02:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2725/oflsa |
| Run time | Wed Oct 22 21:31:16 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:303:01:16:14.816 | 2025:303:03:22:07.694 | 7.55 | 48.02 / 46.00 |
| 2025:304:01:39:42.427 | 2025:304:01:46:46.816 | 0.42 | 46.15 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.45 | -5.00 | -4.04 | -2.02 | -0.25 | 1.00 | 2.36 |
| pitch | -11.079 | -1.019 | -0.004 | -0.000 | 0.004 | 0.766 | 12.415 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.701 | -0.087 | -0.007 | 0.000 | 0.008 | 0.203 | 2.081 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.45 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.02 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.36 | 2.00 |
| PITCH | 1 | -11.079 | 3.00 |
| PITCH | 99 | 12.415 | 3.00 |
TMP_FEP1_ACTEL

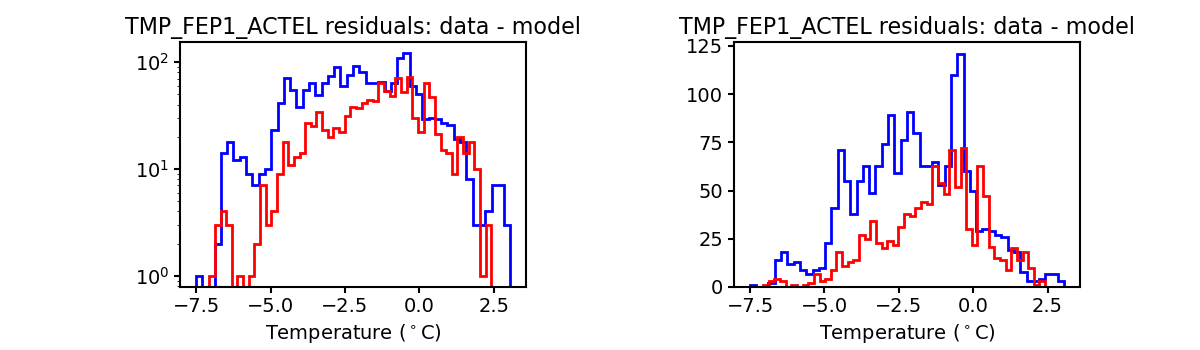

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

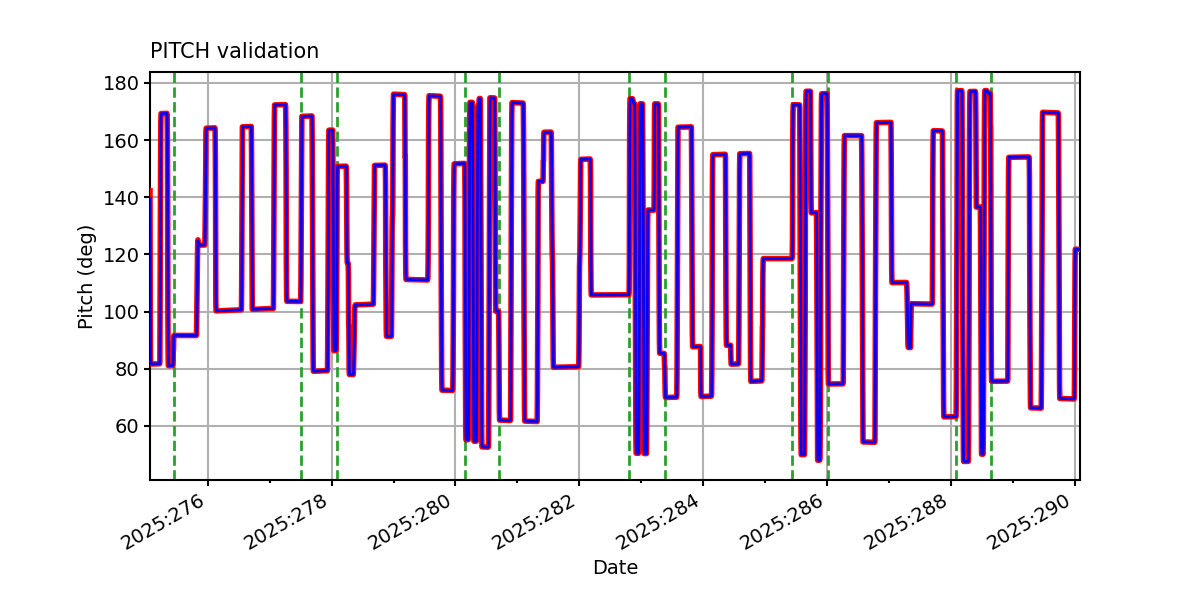

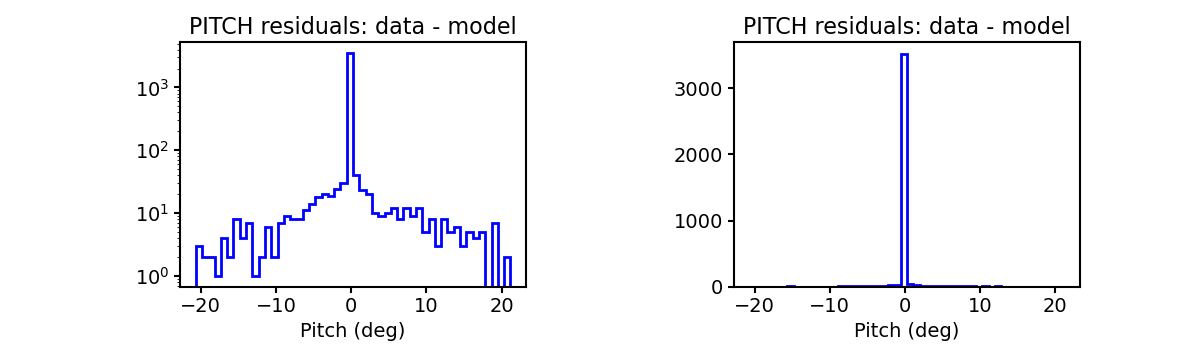

PITCH

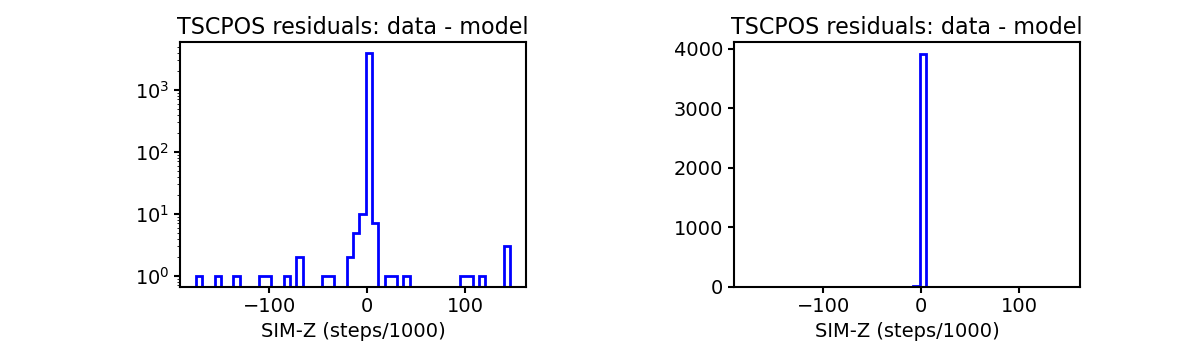

TSCPOS

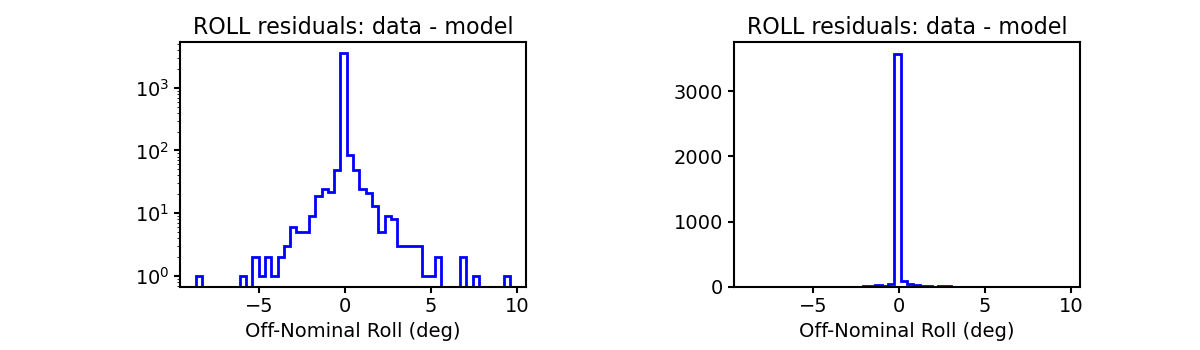

ROLL

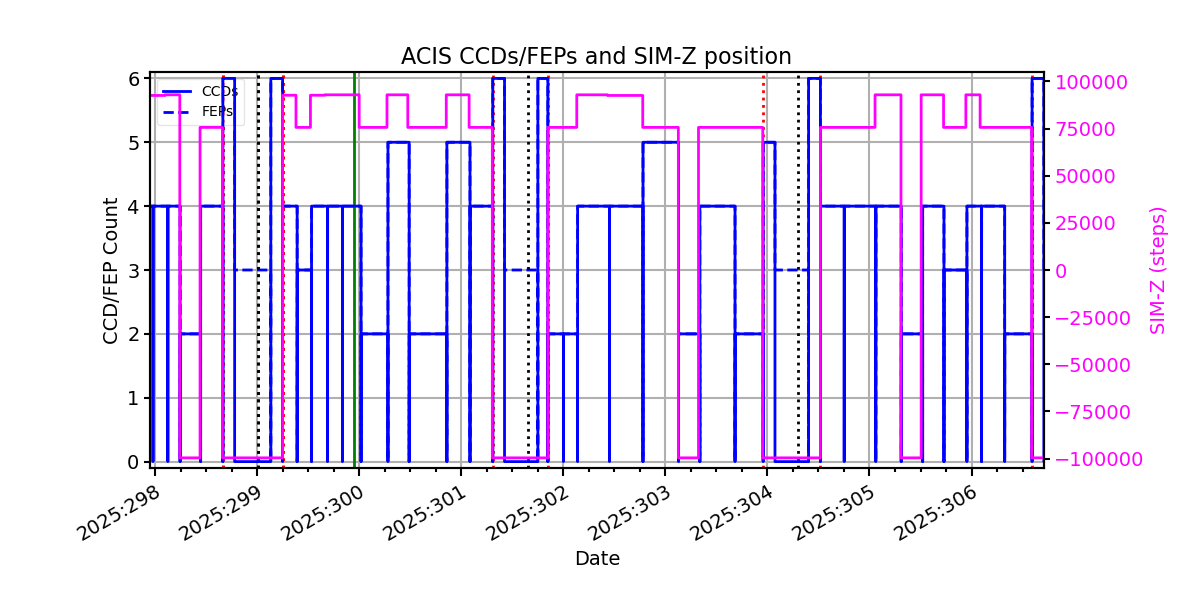

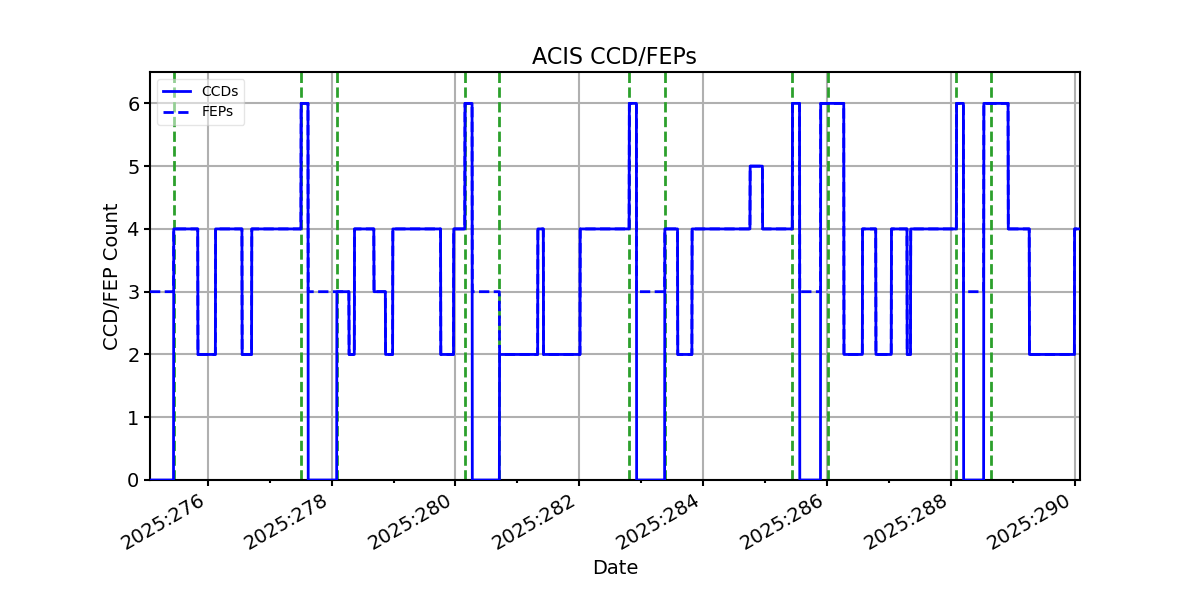

ACIS CCD/FEP Count
