FEP1_ACTEL Temperatures Check

Summary

Date start 2025:246:00:40:00.016
Date stop 2025:250:21:18:18.716
Model status OK
Load directory /data/acis/LoadReviews/2025/SEP0325/oflsa
Run time Mon Sep 1 23:22:40 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No TMP_FEP1_ACTEL Upper Limit Violations

No TMP_FEP1_ACTEL Lower Limit Violations

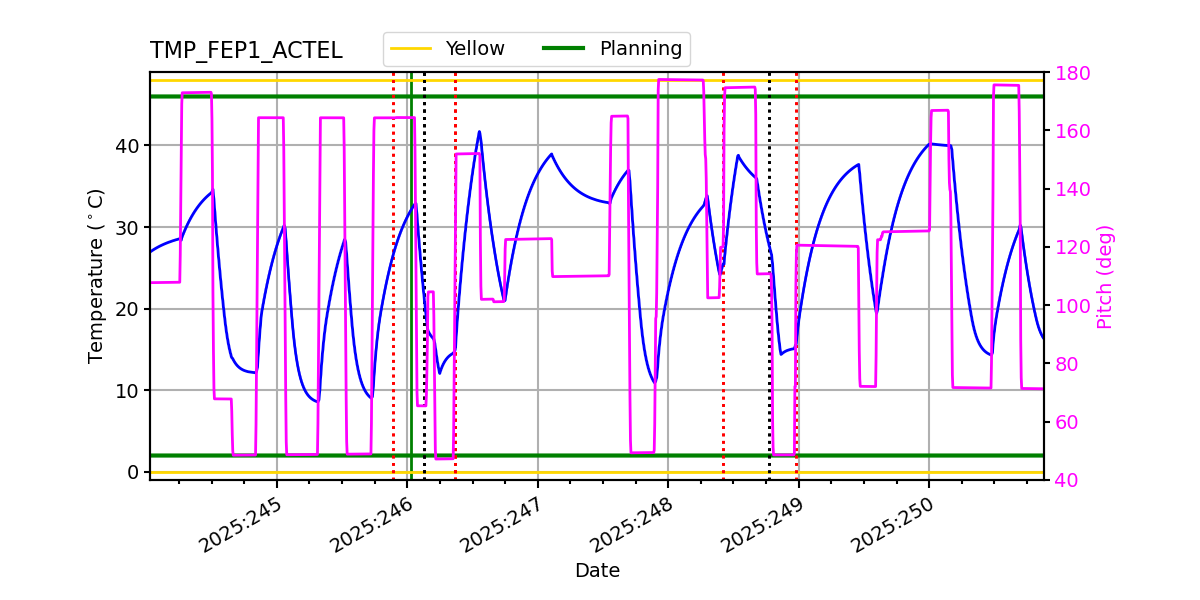

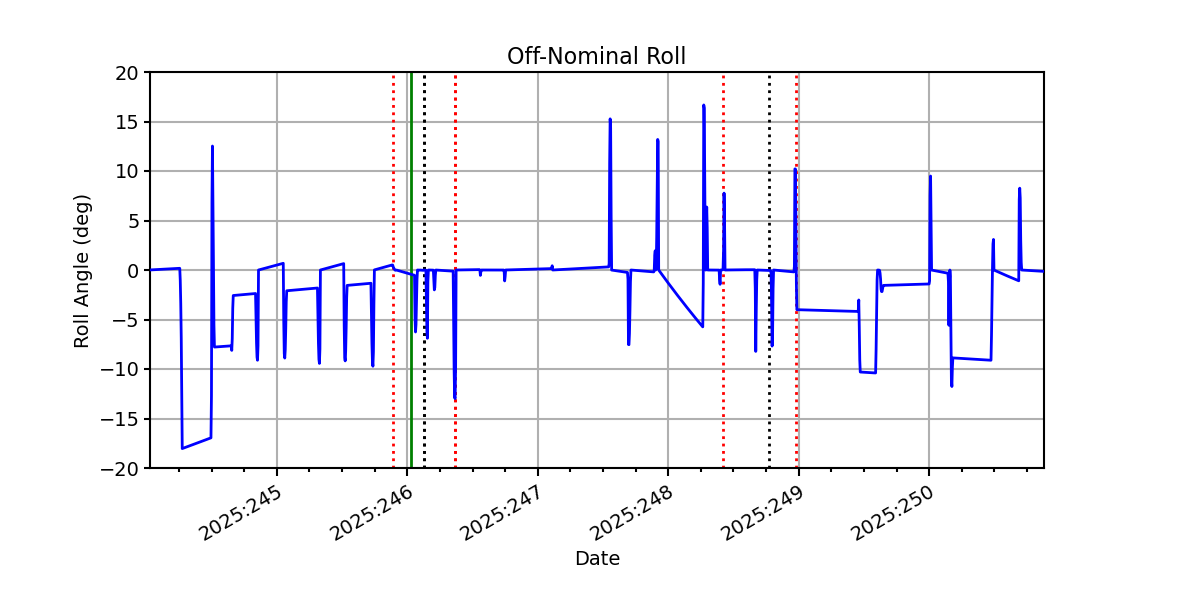

tmp_fep1_actel.png pow_sim.png roll.png

FEP1_ACTEL Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
tmp_fep1_actel -7.30 -5.72 -4.30 -1.88 0.72 1.59 2.68
pitch -8.799 -0.117 -0.004 -0.000 0.004 0.053 8.420
tscpos -1 -1 -1 0 0 0 1
roll -1.357 -0.052 -0.006 -0.000 0.006 0.053 1.515

Validation Violations

MSID Quantile Value Limit
TMP_FEP1_ACTEL 1 -7.3 2.00
TMP_FEP1_ACTEL 50 -1.88 1.00
TMP_FEP1_ACTEL 99 2.68 2.00
PITCH 1 -8.799 3.00
PITCH 99 8.42 3.00

TMP_FEP1_ACTEL

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

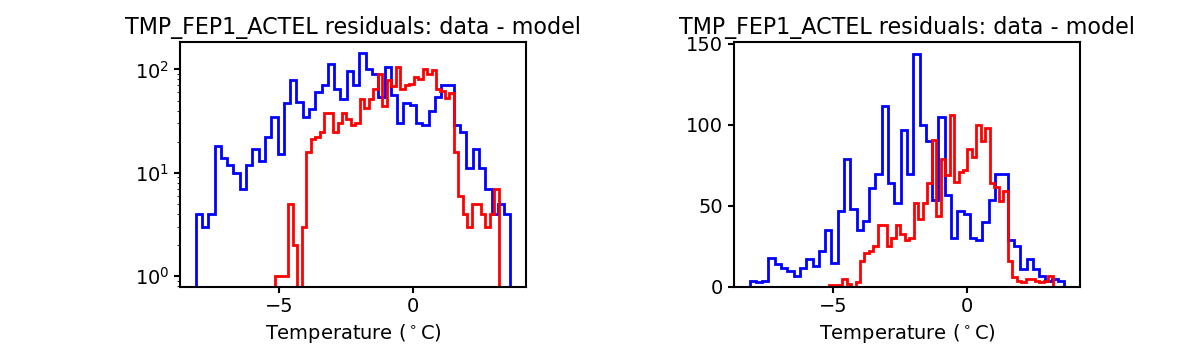

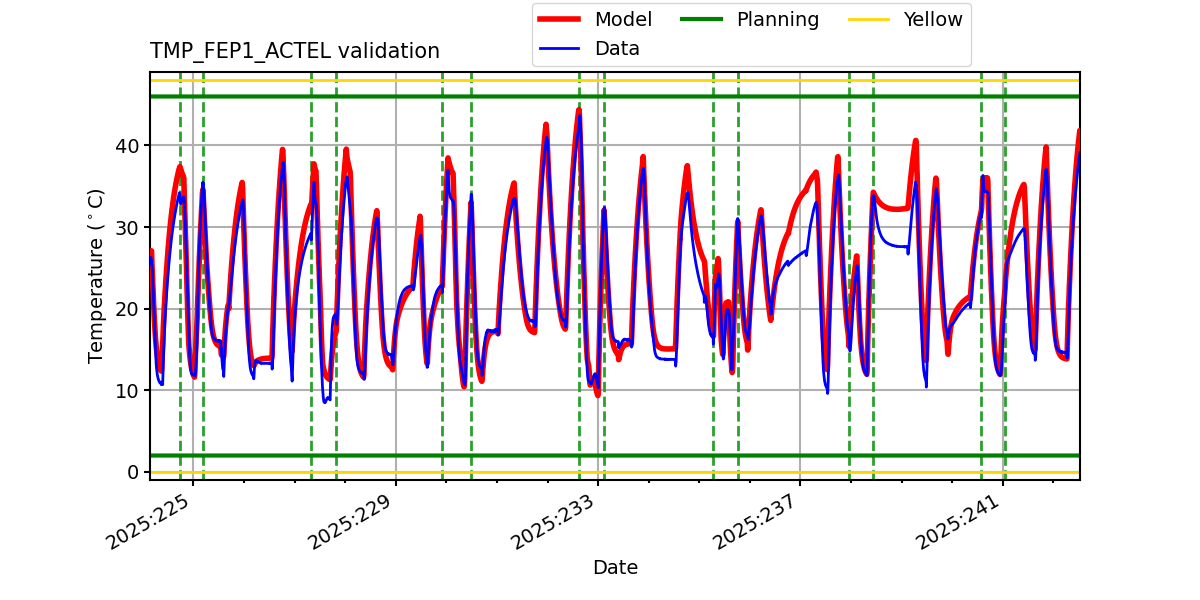

tmp_fep1_actel_valid.png tmp_fep1_actel_valid_hist.png

PITCH

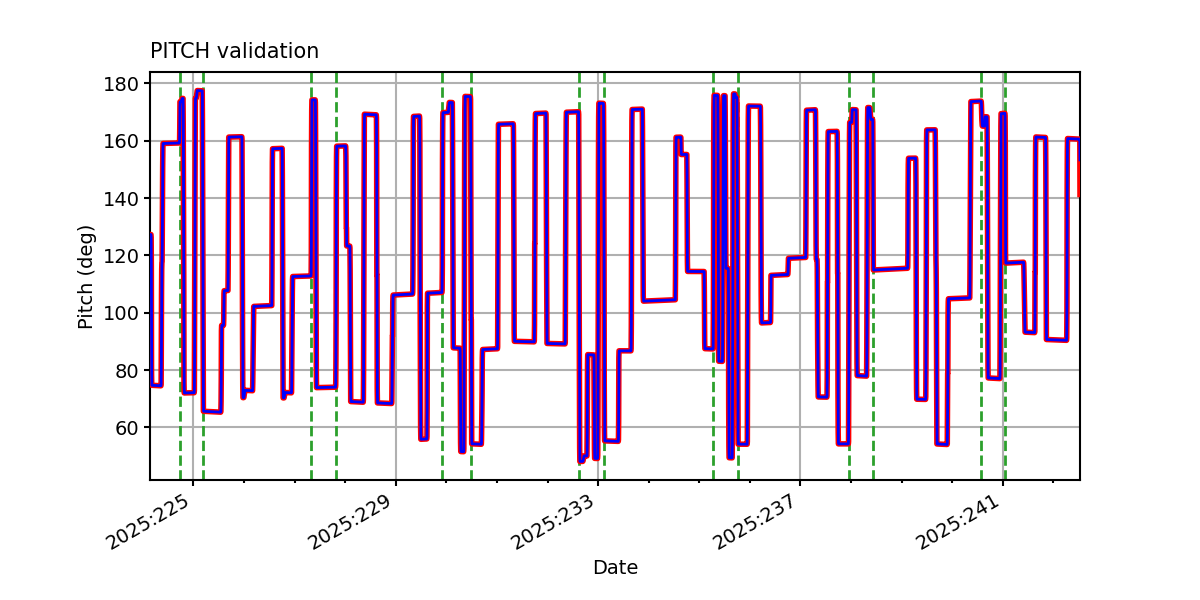

pitch_valid.png pitch_valid_hist.png

TSCPOS

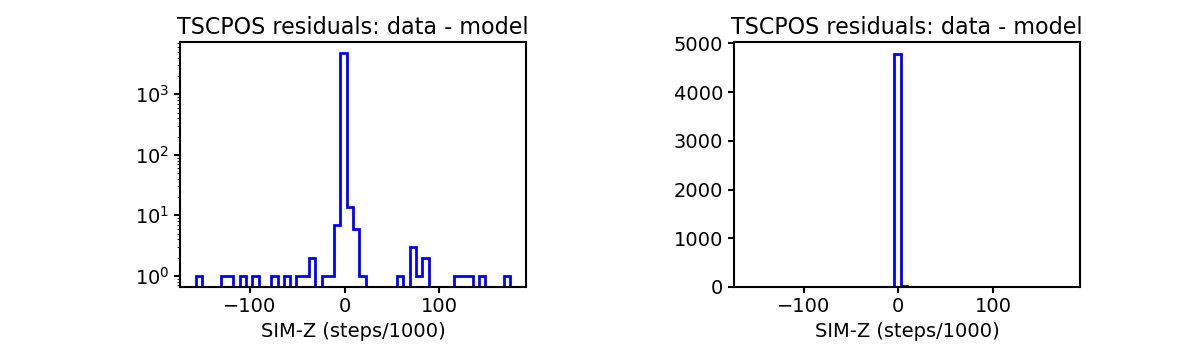

tscpos_valid.png tscpos_valid_hist.png

ROLL

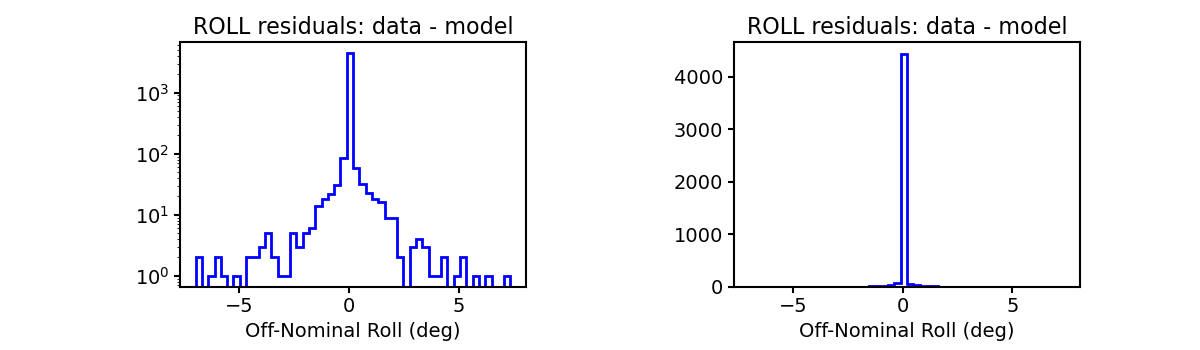

roll_valid.png roll_valid_hist.png

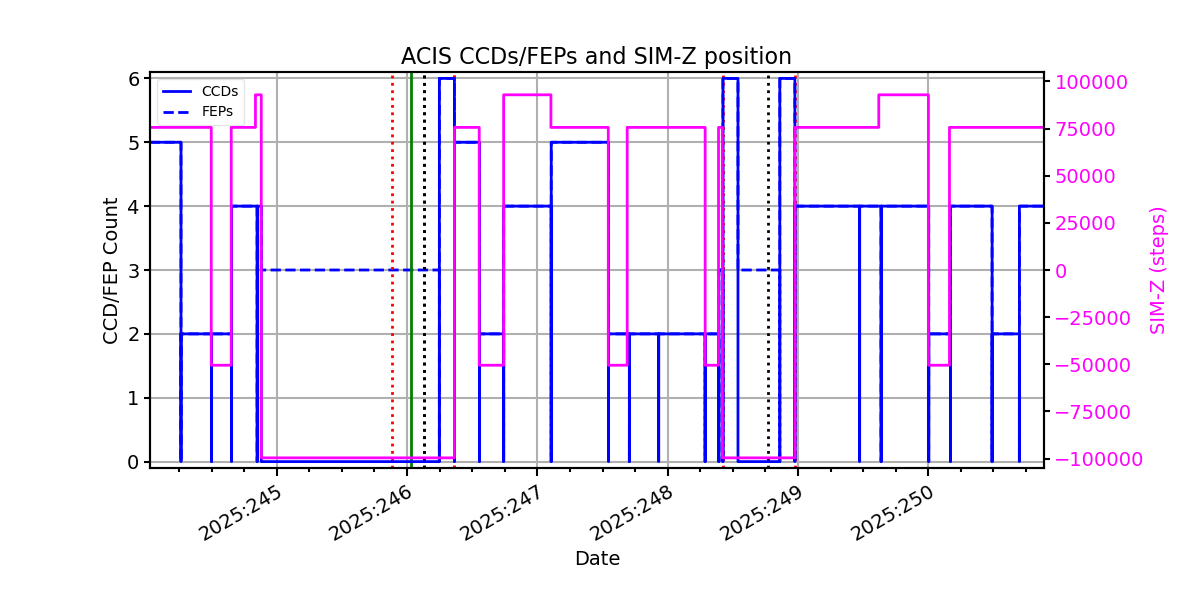

ACIS CCD/FEP Count
