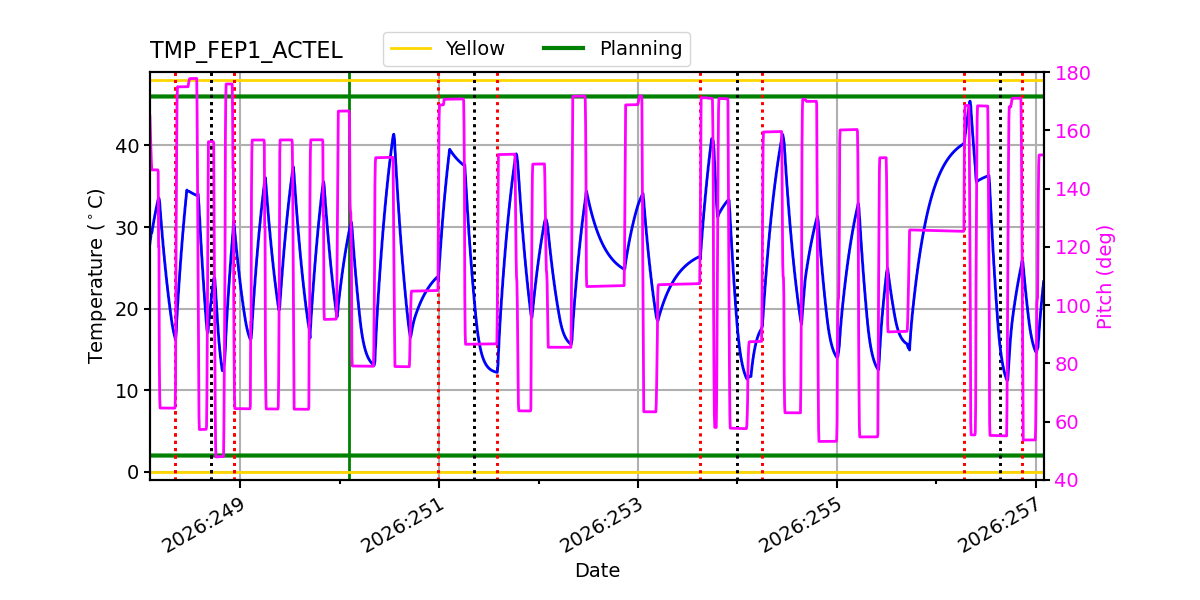

FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:250:02:14:56.816 |
| Date stop | 2026:257:02:09:19.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP0726/oflsa |
| Run time | Thu Sep 3 09:57:09 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -8.40 | -7.36 | -6.34 | -3.51 | -0.33 | 1.91 | 2.84 |
| pitch | -9.464 | -0.298 | -0.004 | 0.000 | 0.004 | 0.476 | 9.000 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.873 | -0.119 | -0.005 | -0.000 | 0.004 | 0.104 | 1.616 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -8.4 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -3.51 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.84 | 2.00 |
| PITCH | 1 | -9.464 | 3.00 |
| PITCH | 99 | 9.0 | 3.00 |
TMP_FEP1_ACTEL
Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

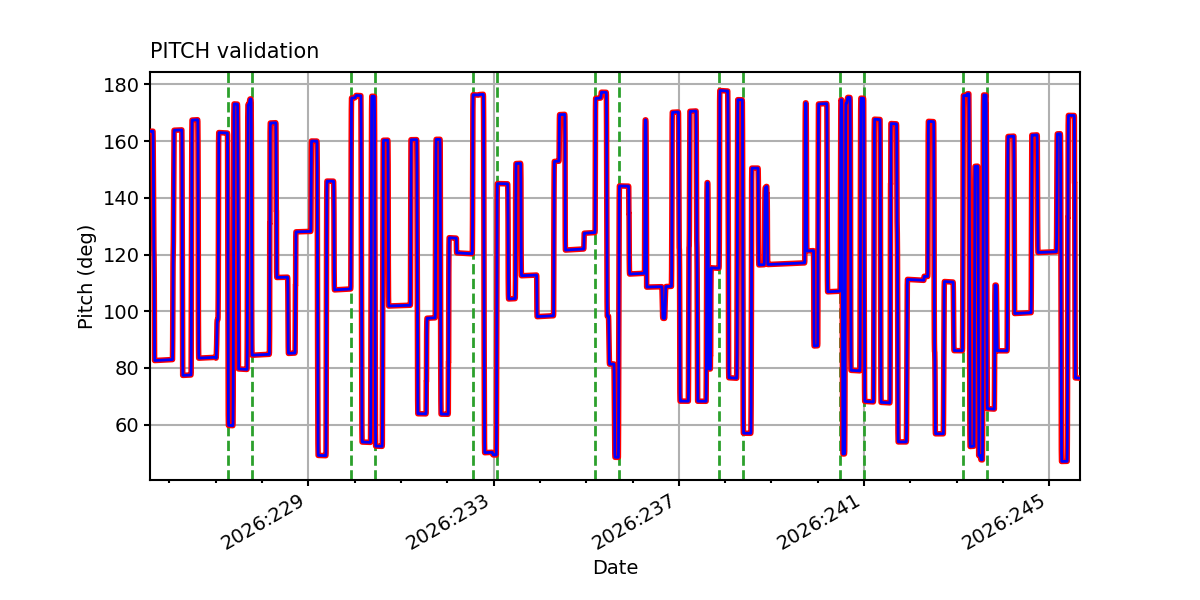

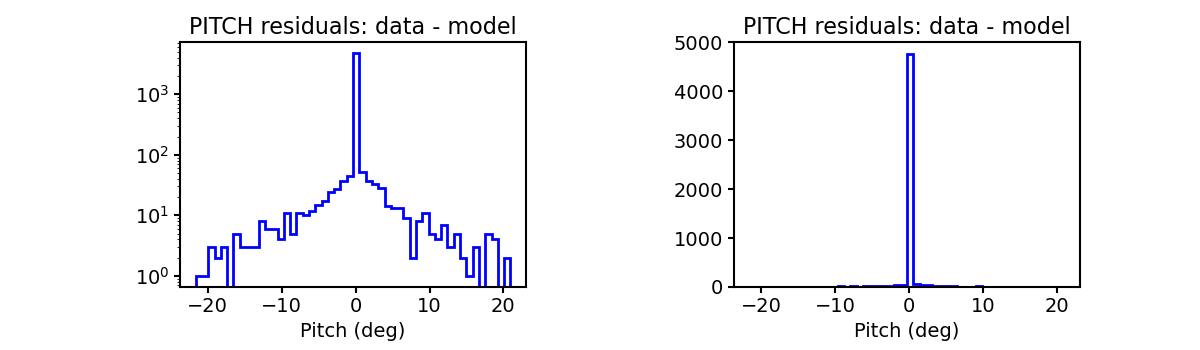

PITCH

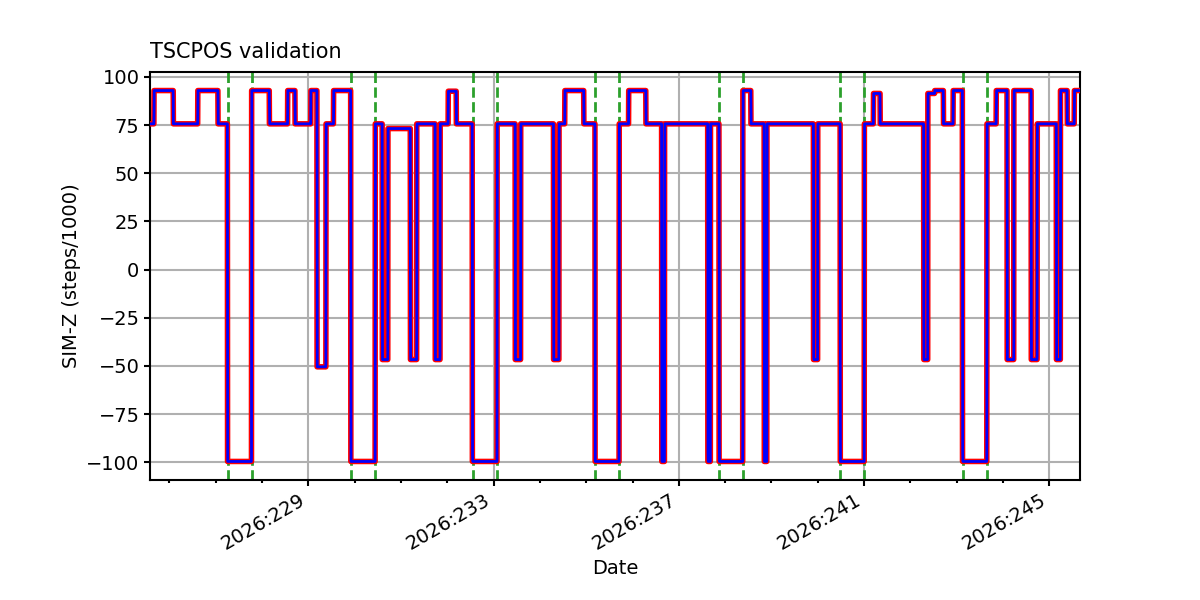

TSCPOS

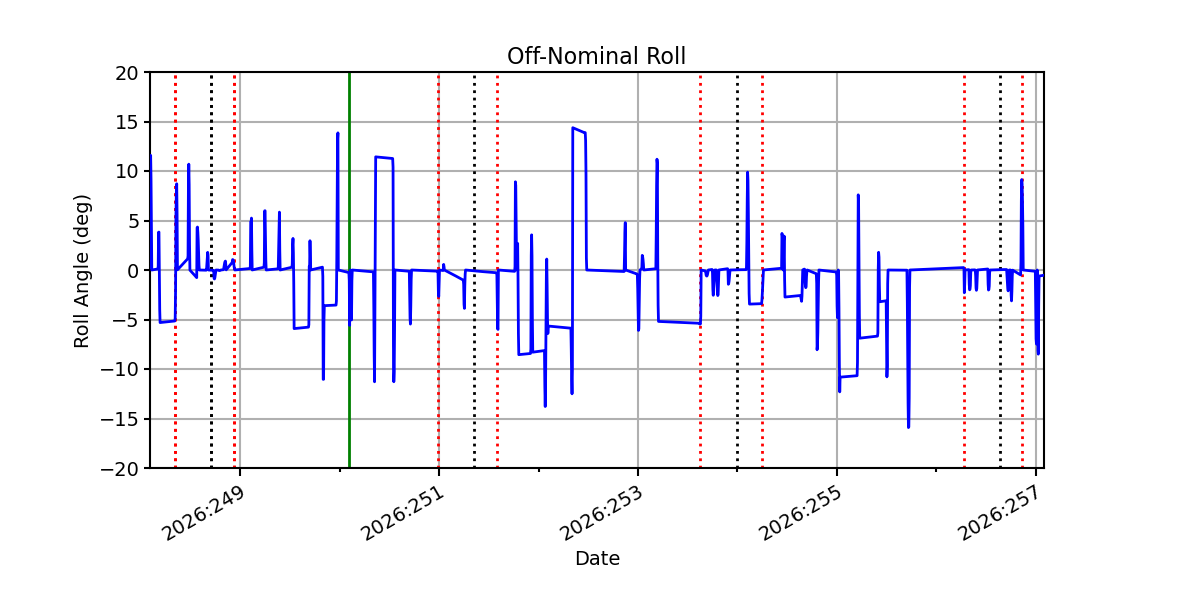

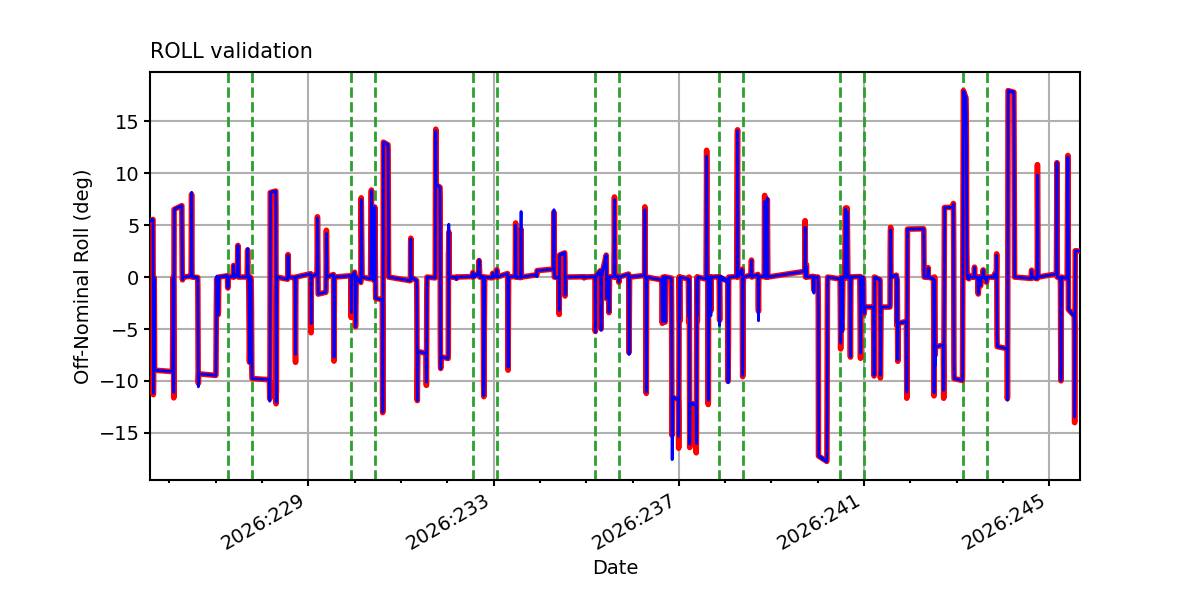

ROLL

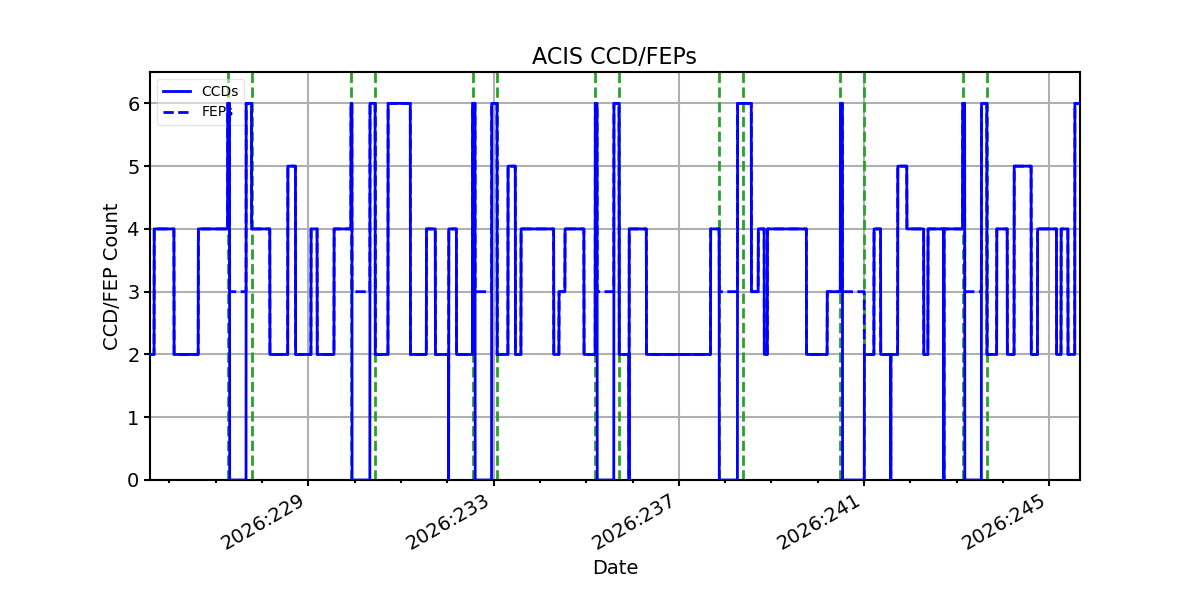

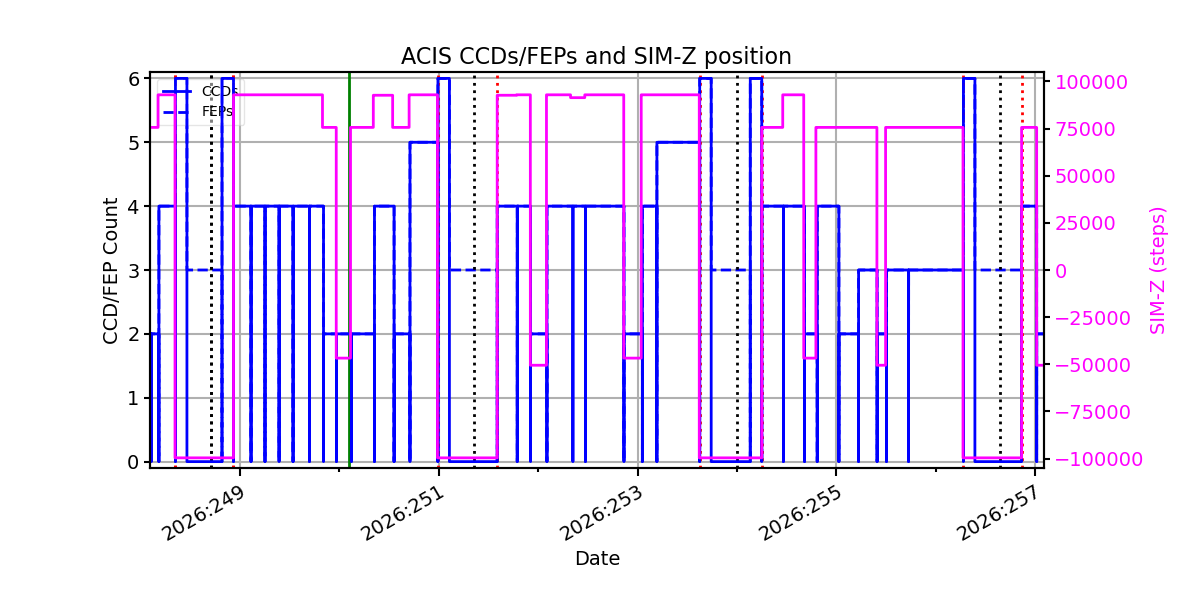

ACIS CCD/FEP Count
