FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:257:02:06:19.916 |
| Date stop | 2026:264:01:05:49.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/SEP1426/oflsa |
| Run time | Thu Sep 10 10:45:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

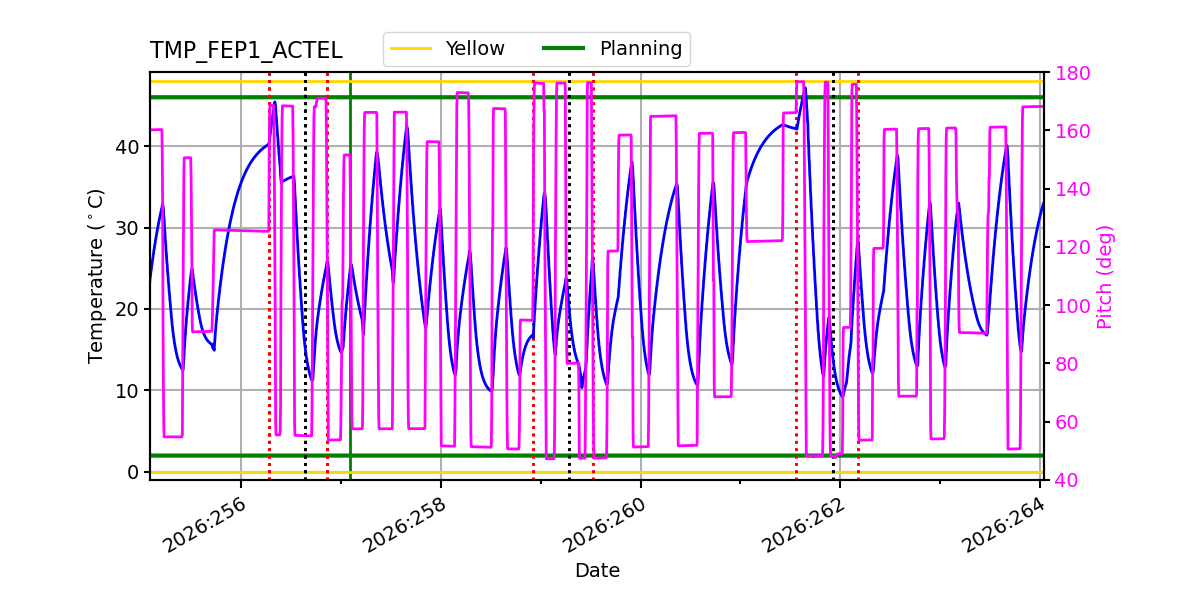

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:261:15:07:34.816 | 2026:261:15:45:50.816 | 2.30 | 47.20 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -8.49 | -7.34 | -6.21 | -3.17 | 0.01 | 1.81 | 2.80 |
| pitch | -10.330 | -0.618 | -0.004 | -0.000 | 0.004 | 0.652 | 9.757 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.048 | -0.130 | -0.006 | -0.000 | 0.006 | 0.129 | 1.645 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -8.49 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -3.17 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.8 | 2.00 |
| PITCH | 1 | -10.33 | 3.00 |
| PITCH | 99 | 9.757 | 3.00 |

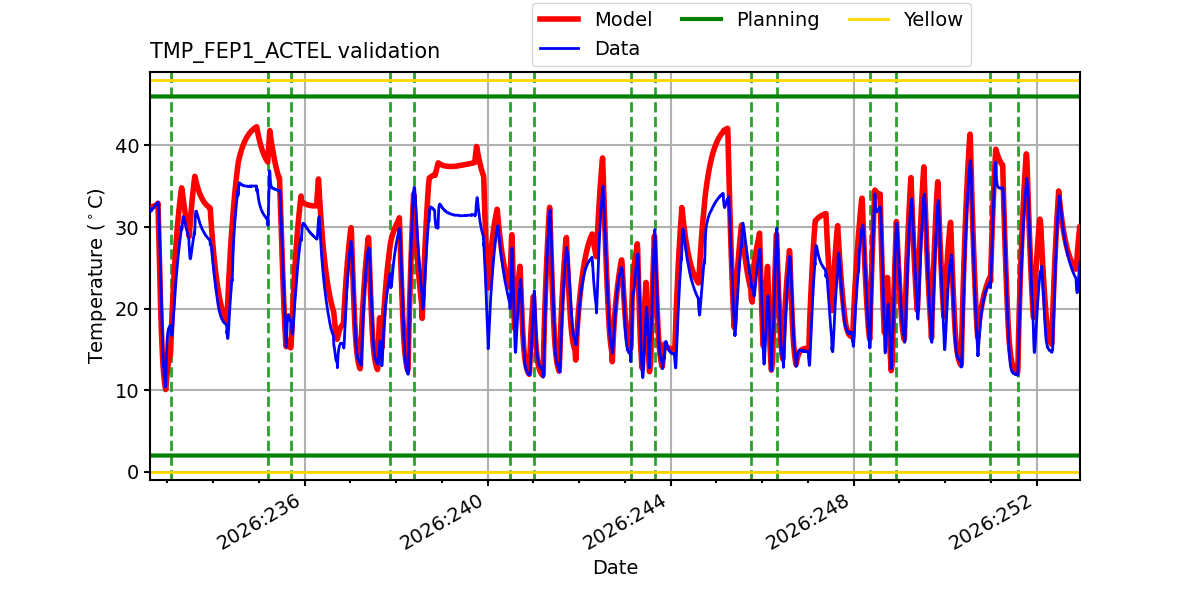

TMP_FEP1_ACTEL

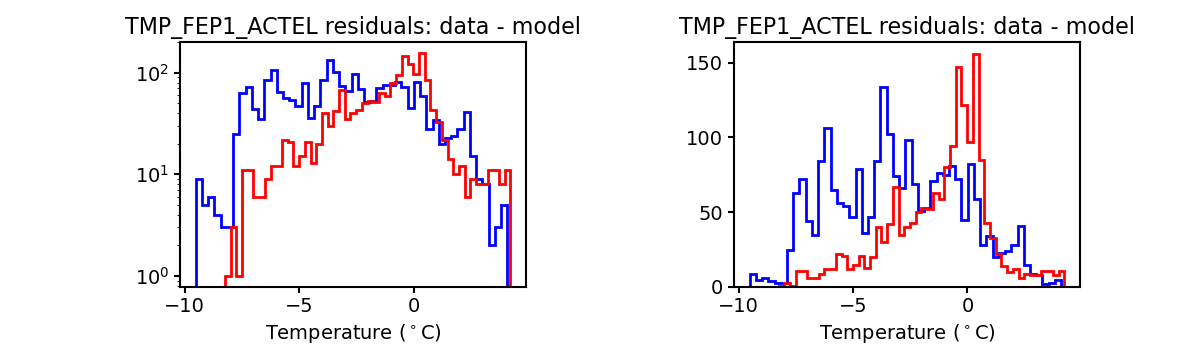

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

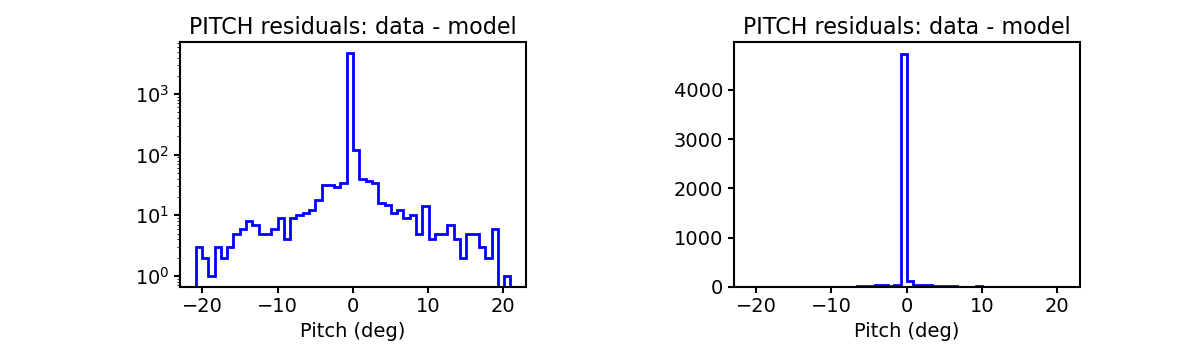

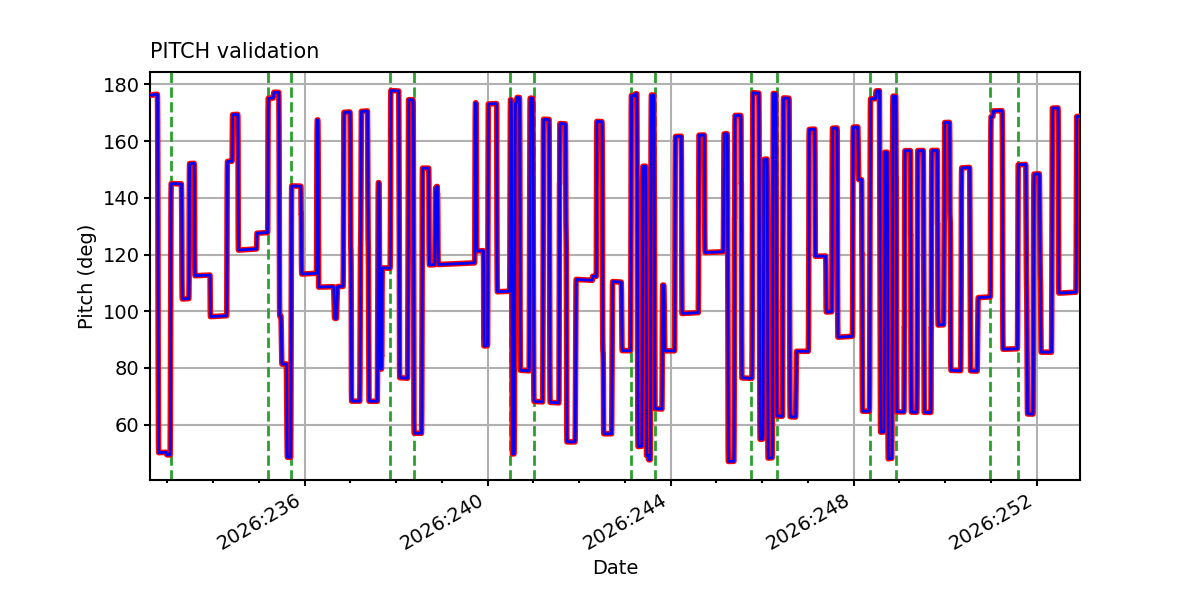

PITCH

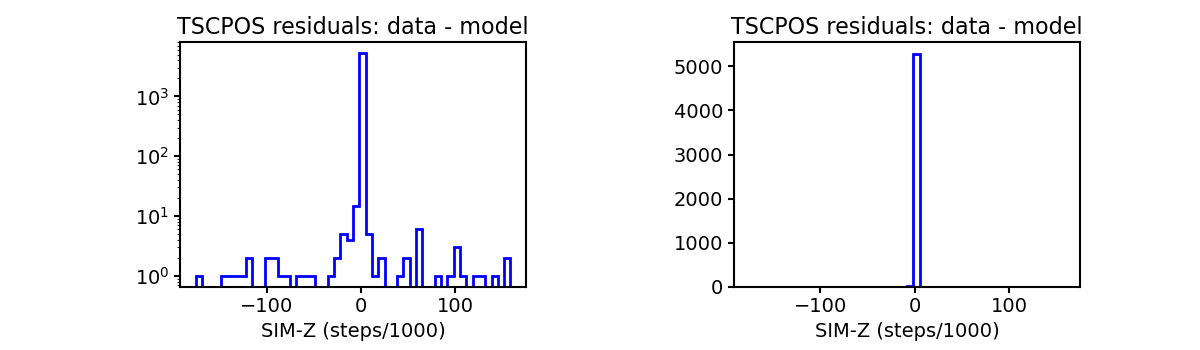

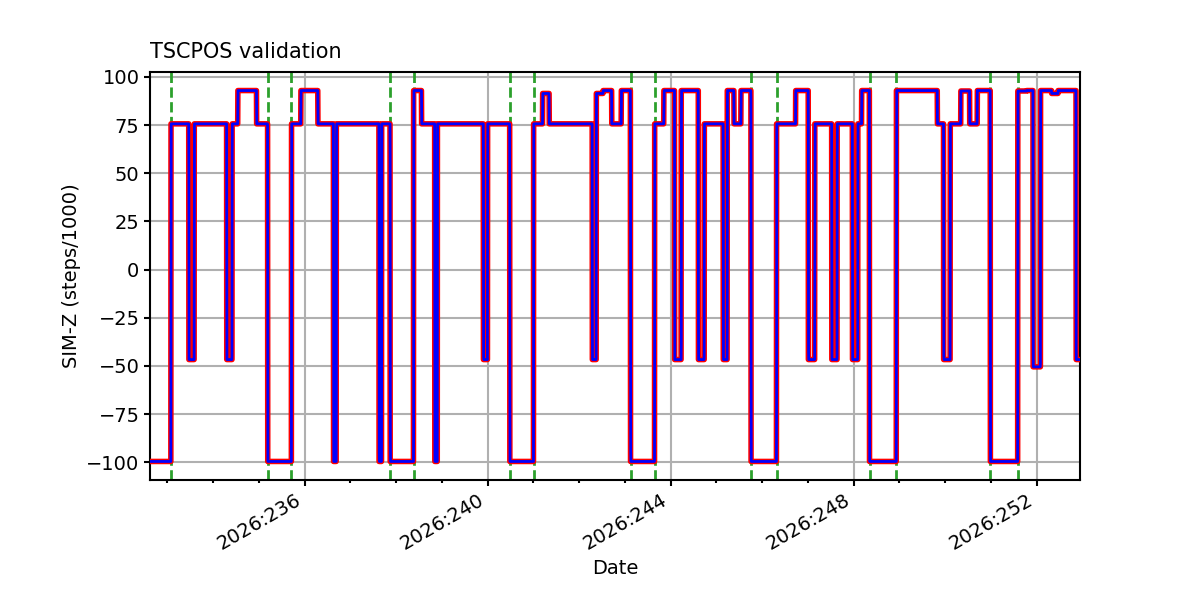

TSCPOS

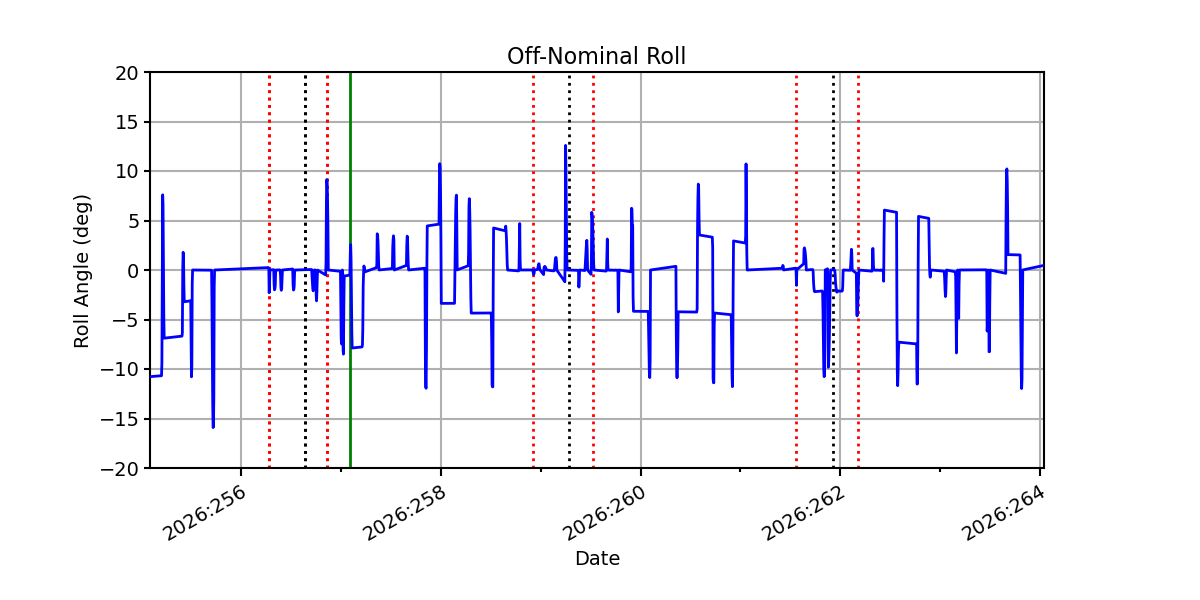

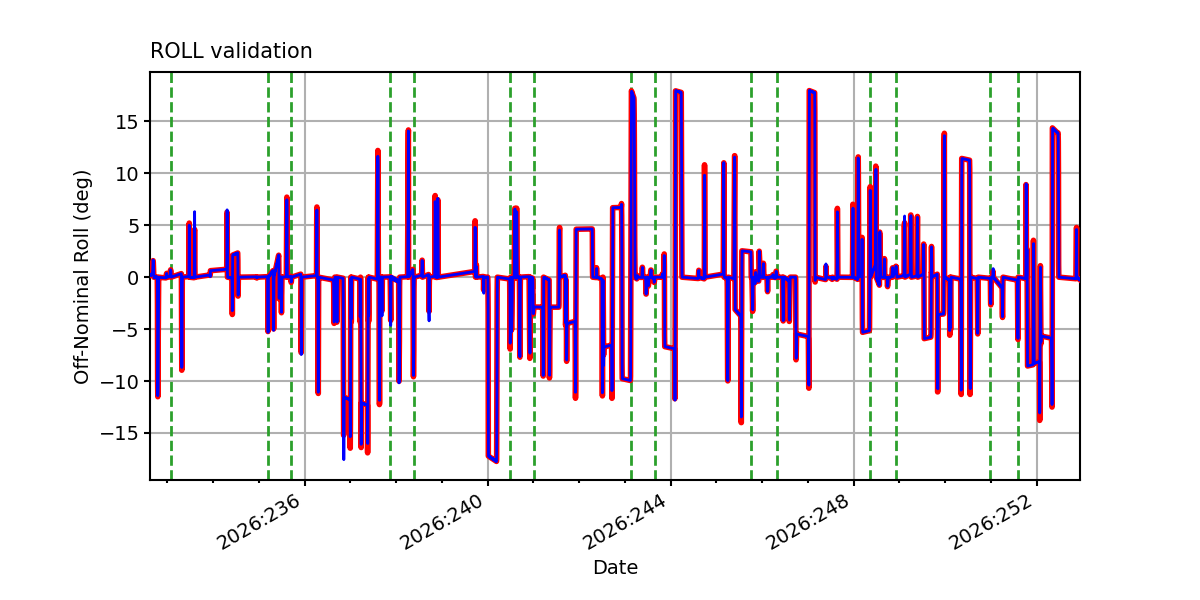

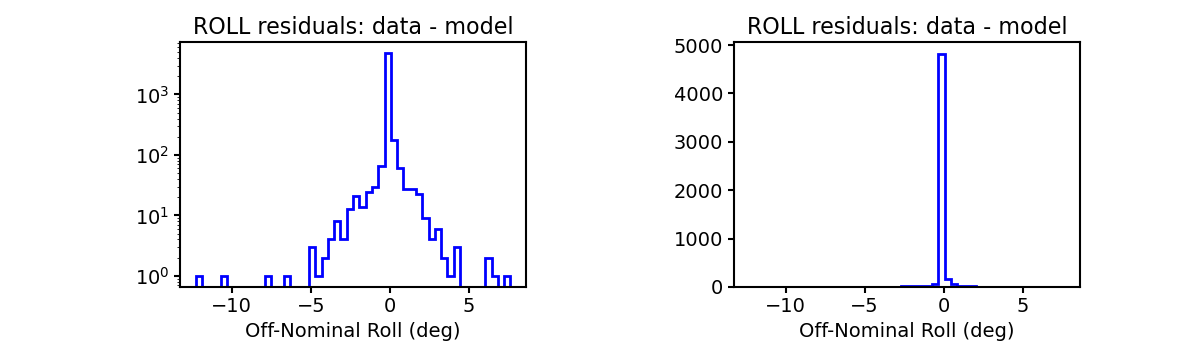

ROLL

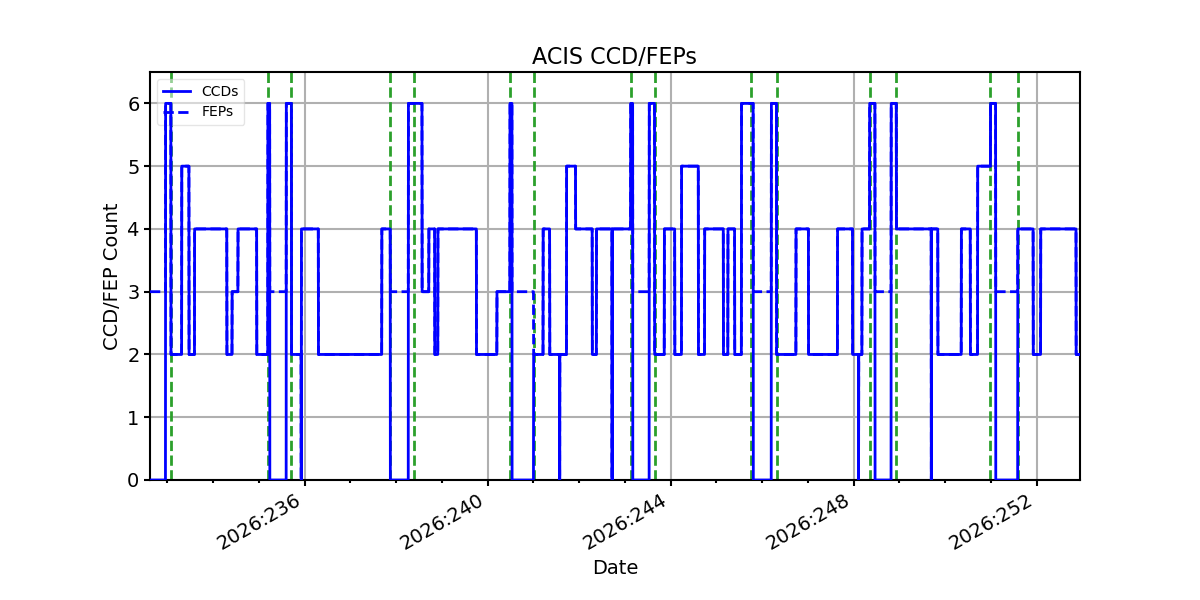

ACIS CCD/FEP Count
