FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:265:00:04:59.816 |
| Date stop | 2025:272:00:17:23.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2225/oflsa |
| Run time | Thu Sep 18 20:57:08 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.07 | -6.27 | -5.29 | -2.45 | -0.24 | 1.27 | 3.40 |
| pitch | -8.013 | -0.137 | -0.004 | 0.000 | 0.004 | 0.221 | 11.491 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.546 | -0.078 | -0.006 | -0.000 | 0.007 | 0.086 | 1.399 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.07 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.45 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.4 | 2.00 |
| PITCH | 1 | -8.013 | 3.00 |
| PITCH | 99 | 11.491 | 3.00 |

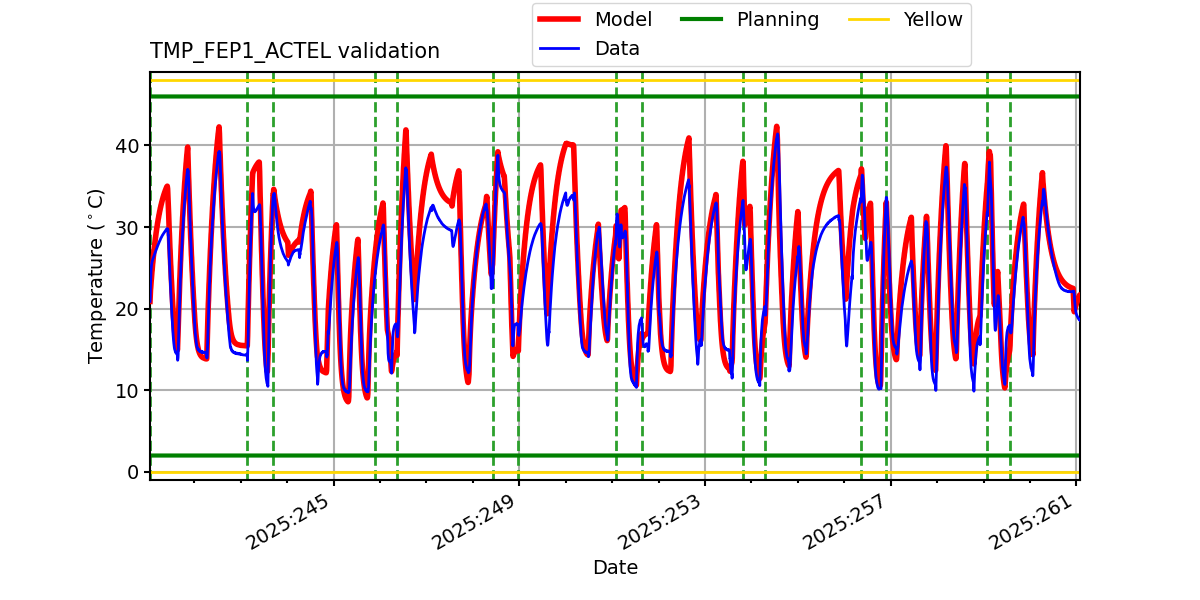

TMP_FEP1_ACTEL

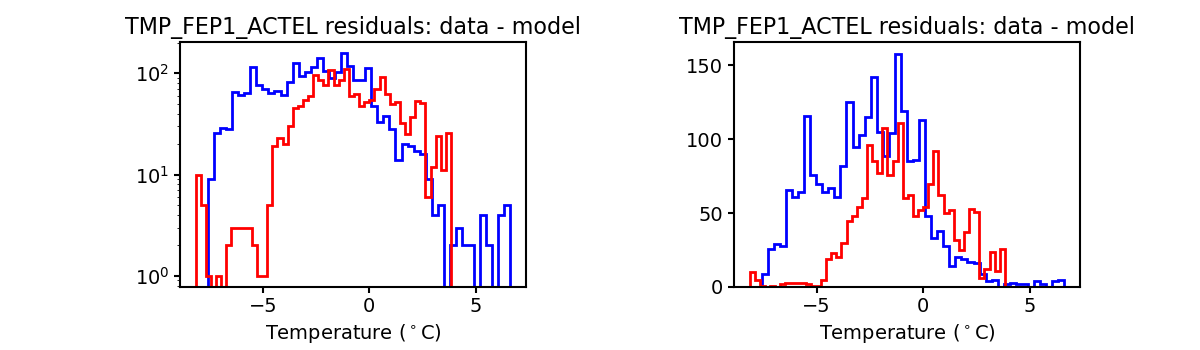

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

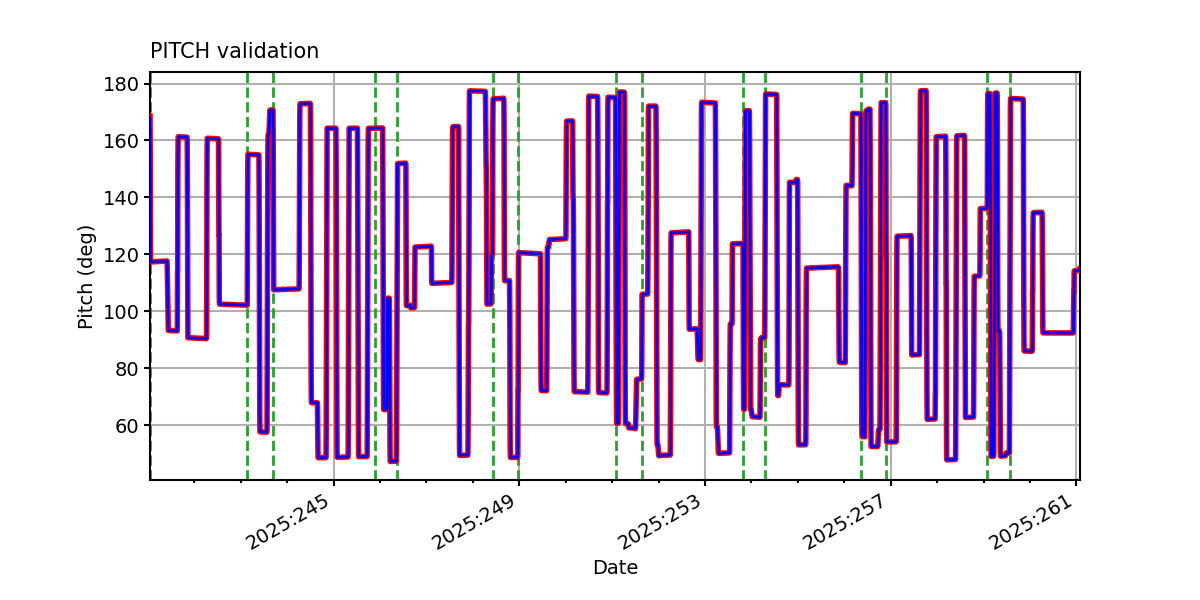

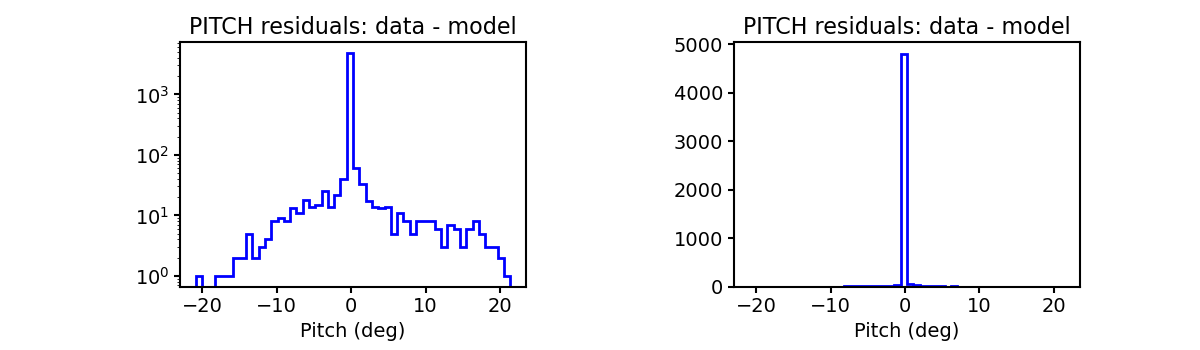

PITCH

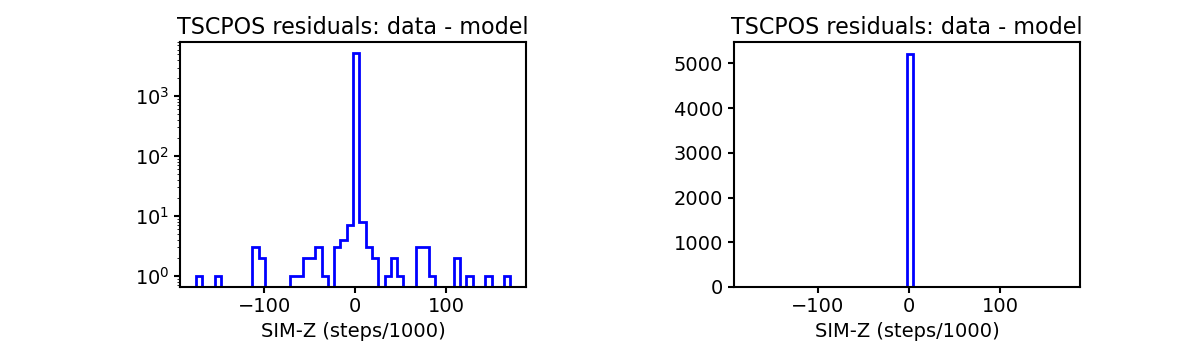

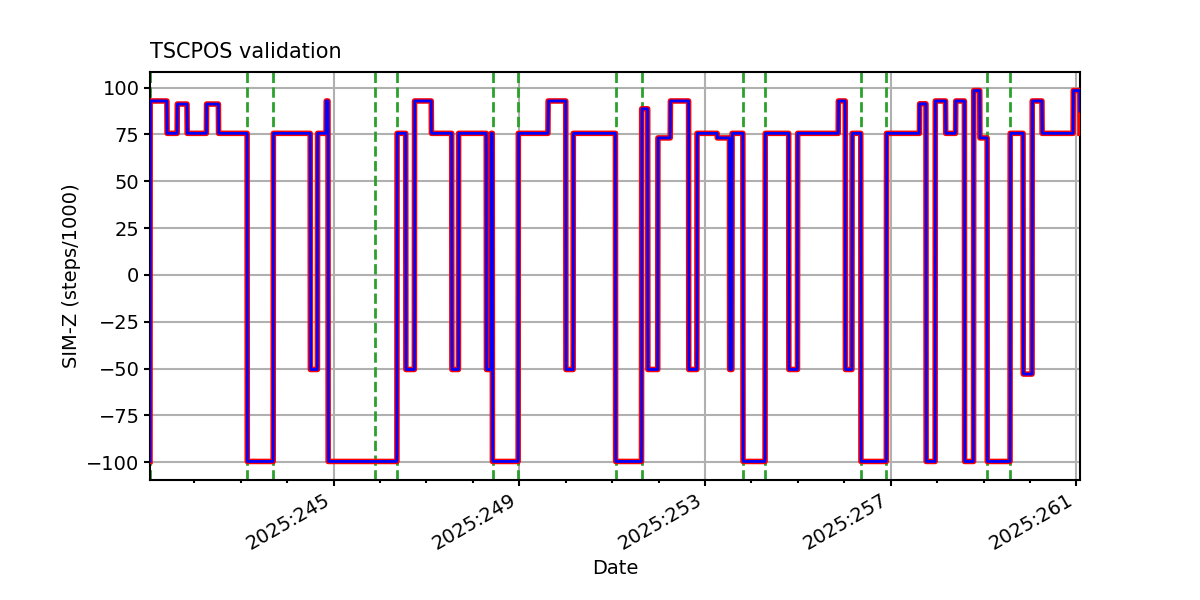

TSCPOS

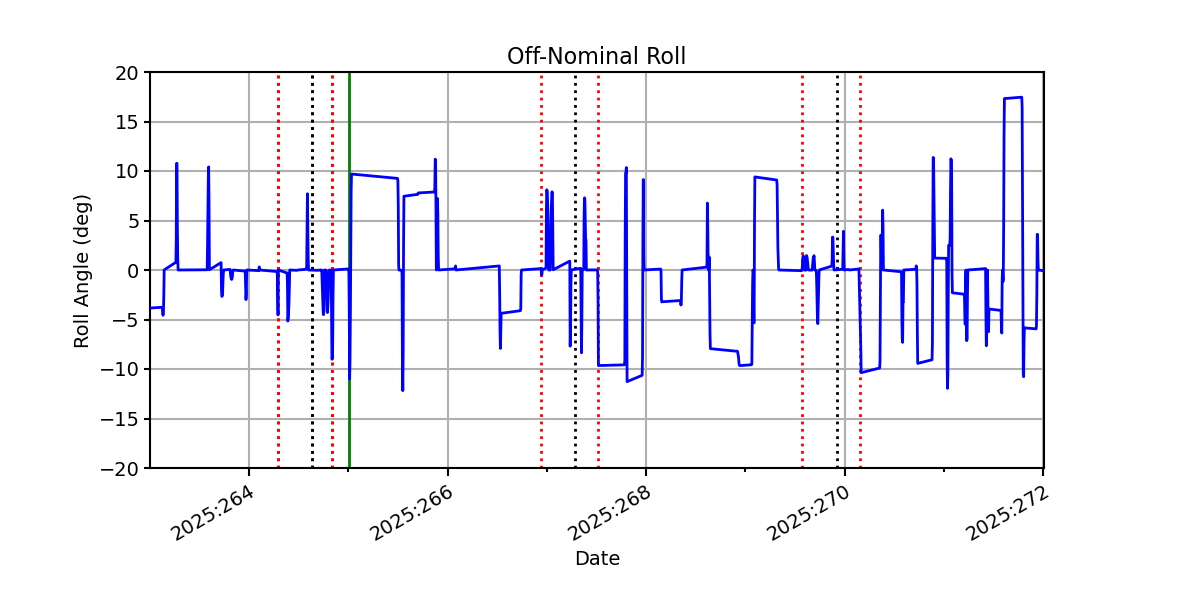

ROLL

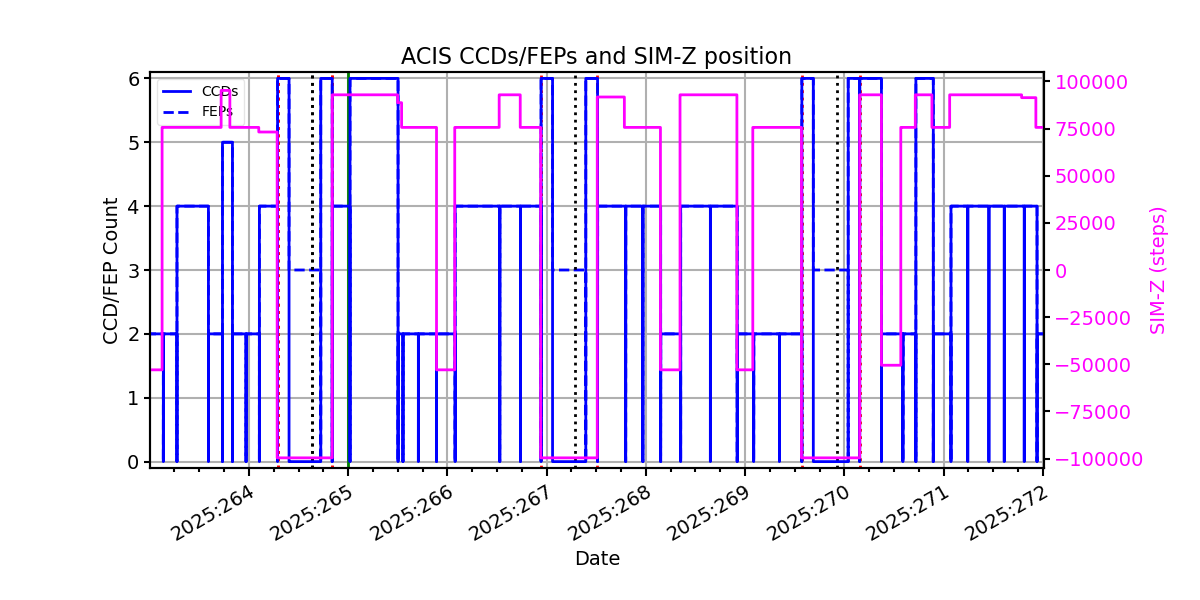

ACIS CCD/FEP Count
