FEP1_ACTEL Temperatures Check

Summary

Date start 2025:272:00:14:23.616
Date stop 2025:278:23:13:04.316
Model status OK
Load directory /data/acis/LoadReviews/2025/SEP2925/oflsa
Run time Thu Sep 25 10:01:18 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No TMP_FEP1_ACTEL Upper Limit Violations

No TMP_FEP1_ACTEL Lower Limit Violations

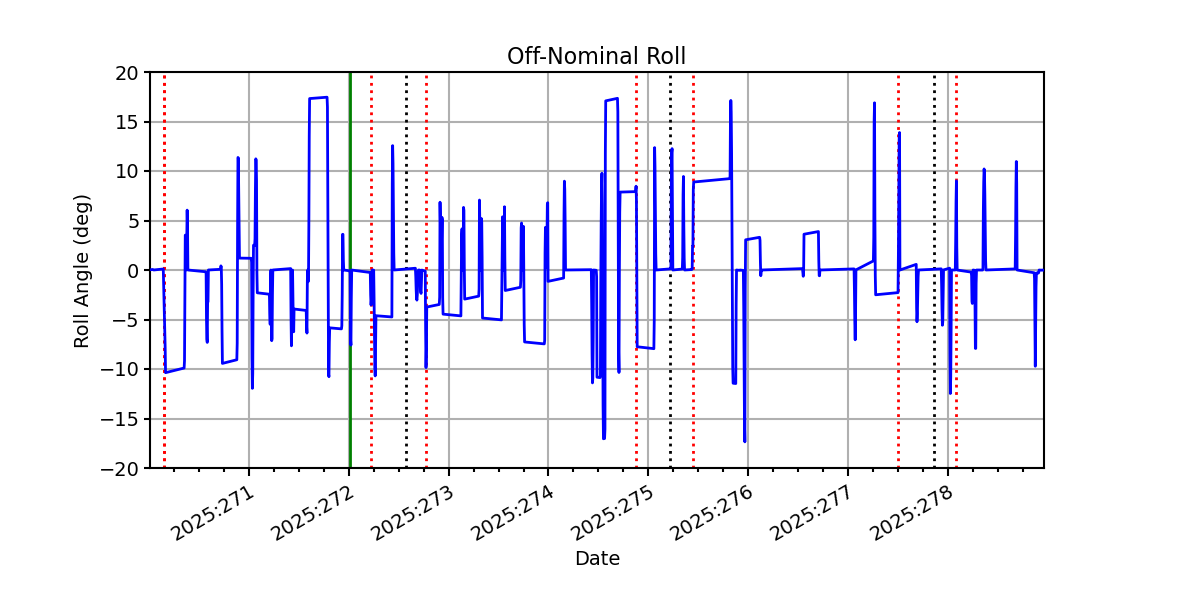

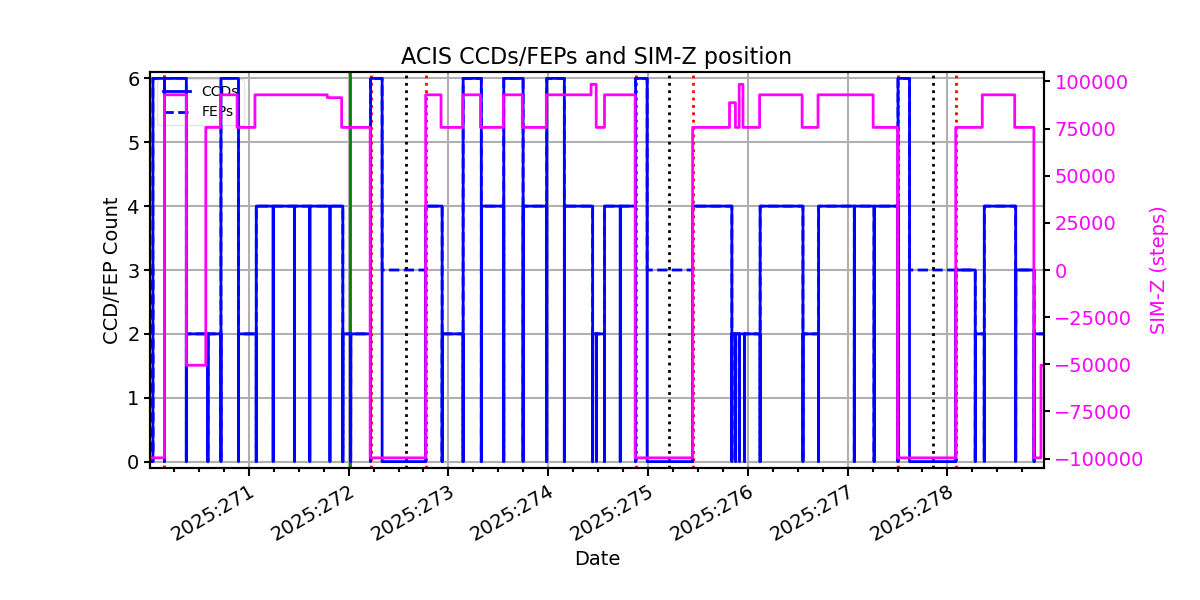

tmp_fep1_actel.png pow_sim.png roll.png

FEP1_ACTEL Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
tmp_fep1_actel -7.12 -6.12 -4.97 -2.36 0.04 2.22 4.45
pitch -9.068 -0.417 -0.004 0.000 0.004 0.460 12.748
tscpos -1 -1 -1 0 0 0 1
roll -1.595 -0.149 -0.008 -0.000 0.007 0.106 1.559

Validation Violations

MSID Quantile Value Limit
TMP_FEP1_ACTEL 1 -7.12 2.00
TMP_FEP1_ACTEL 50 -2.36 1.00
TMP_FEP1_ACTEL 99 4.45 2.00
PITCH 1 -9.068 3.00
PITCH 99 12.748 3.00

TMP_FEP1_ACTEL

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

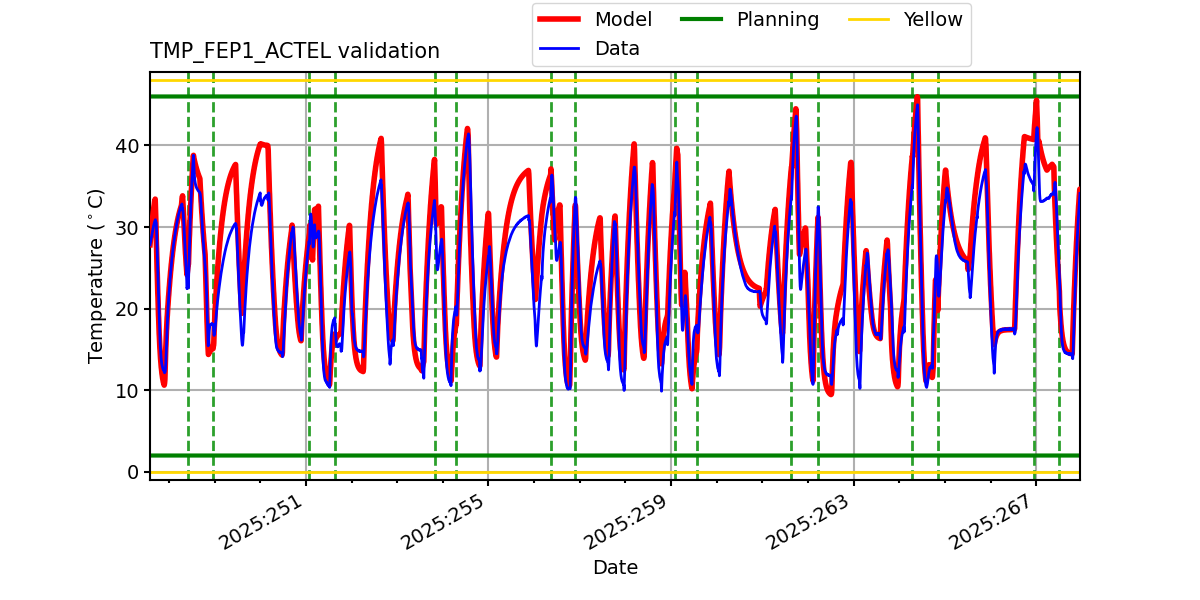

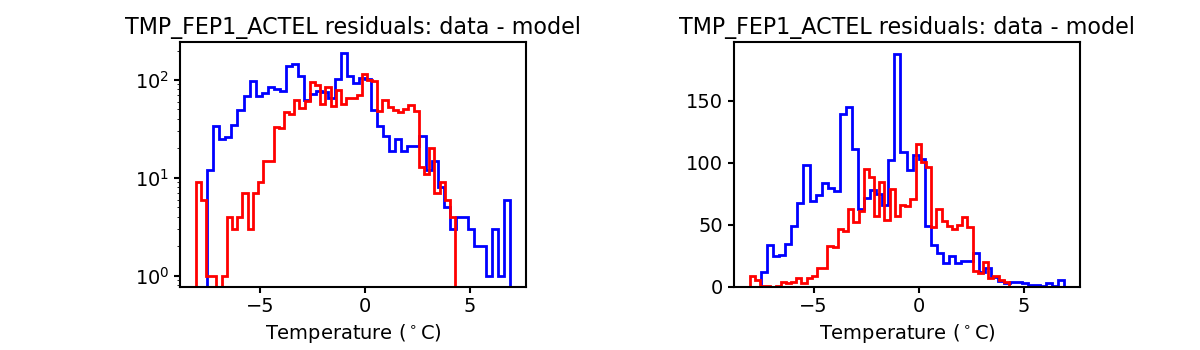

tmp_fep1_actel_valid.png tmp_fep1_actel_valid_hist.png

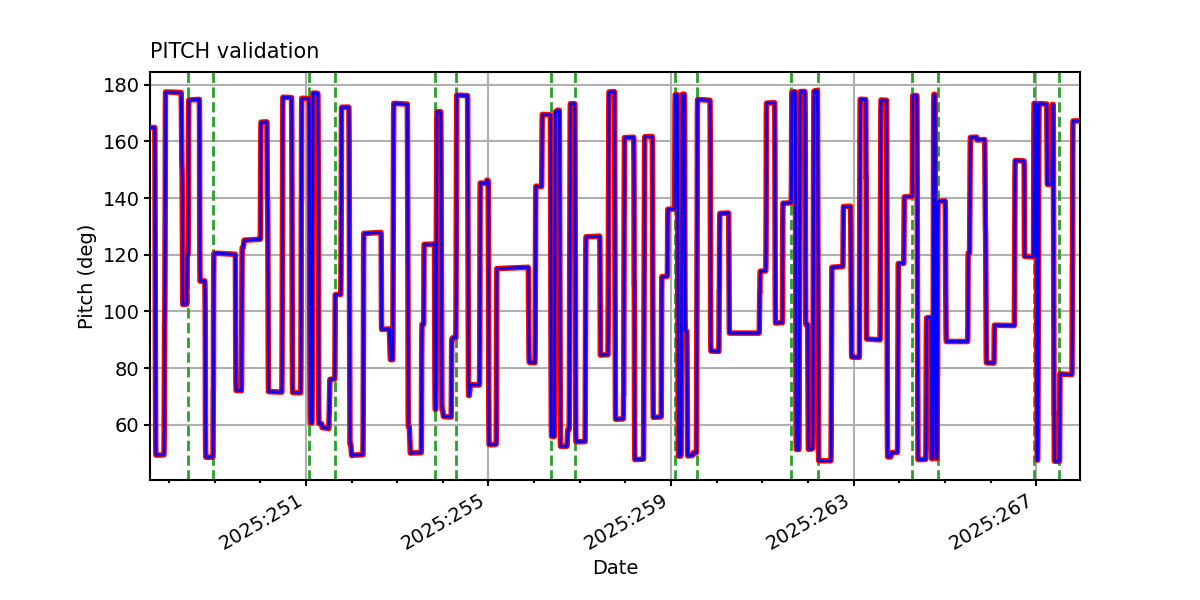

PITCH

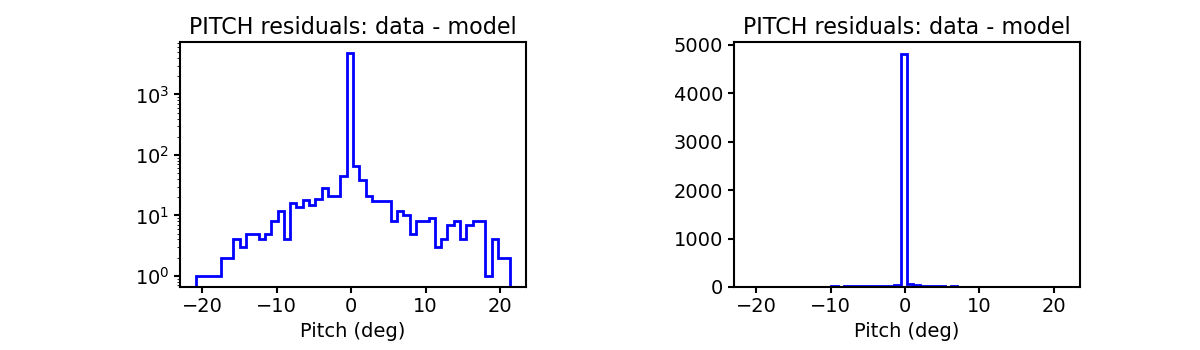

pitch_valid.png pitch_valid_hist.png

TSCPOS

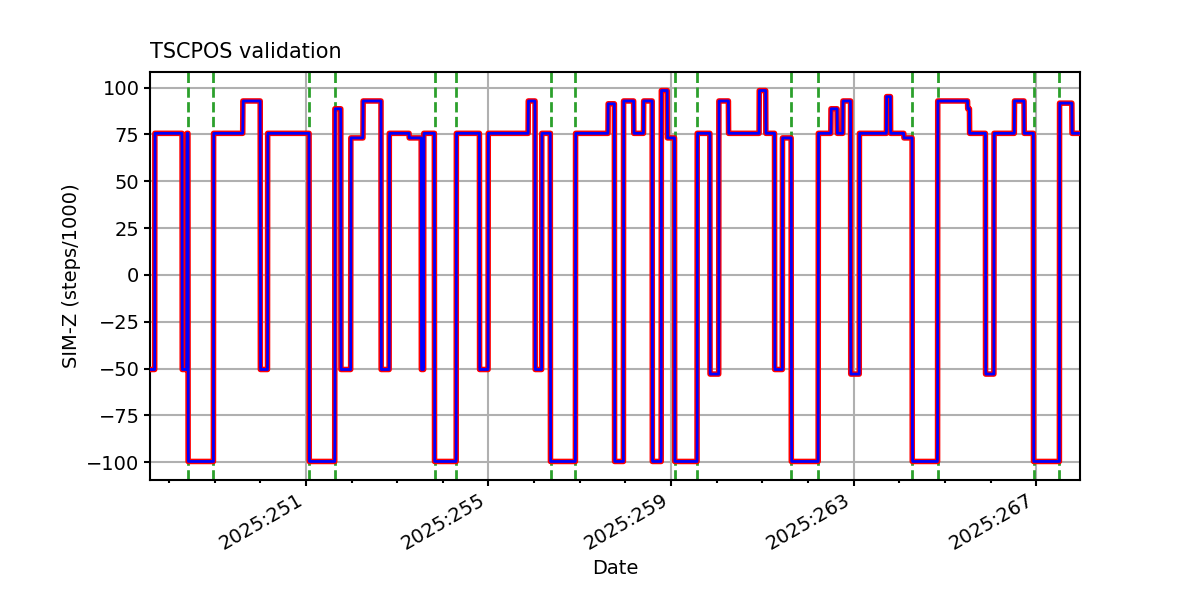

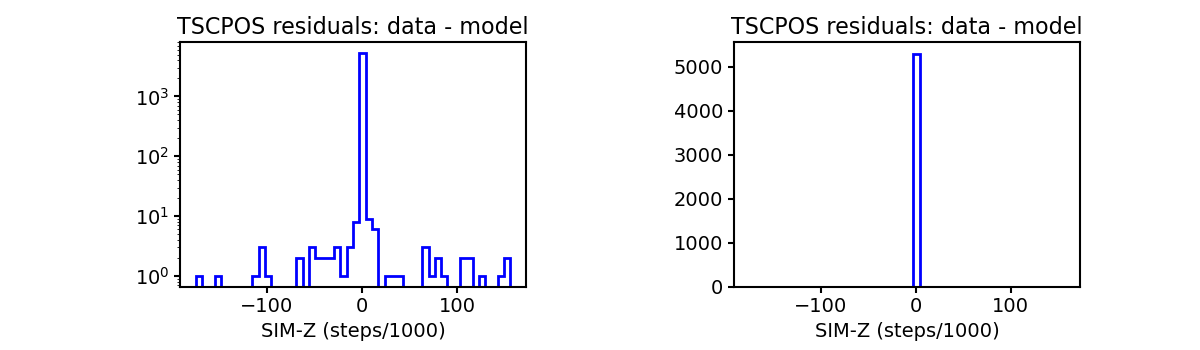

tscpos_valid.png tscpos_valid_hist.png

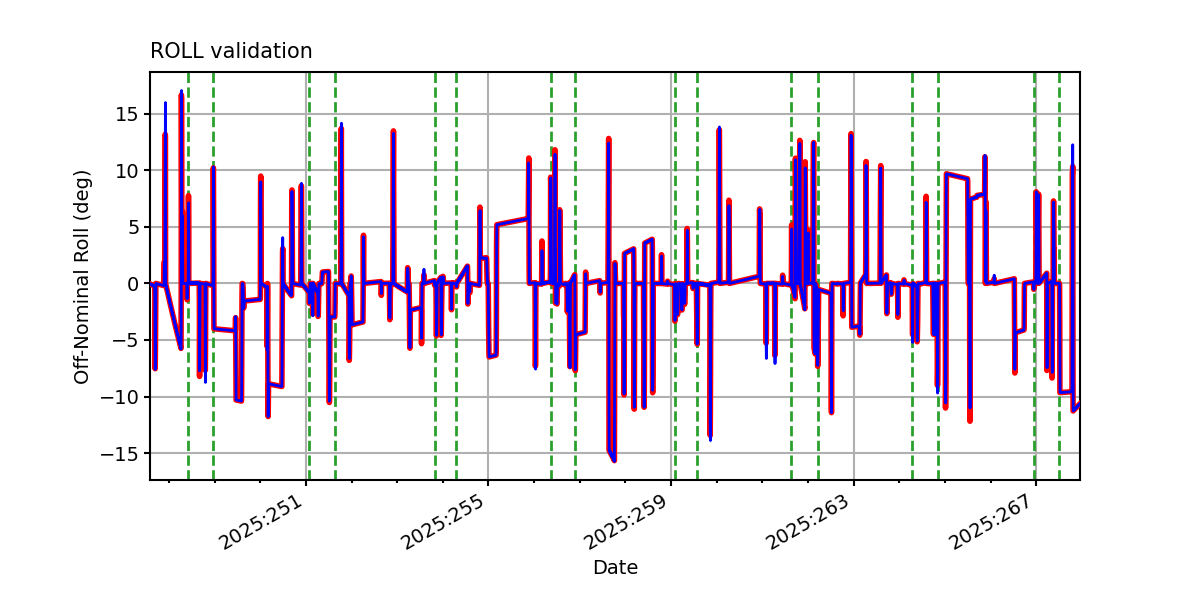

ROLL

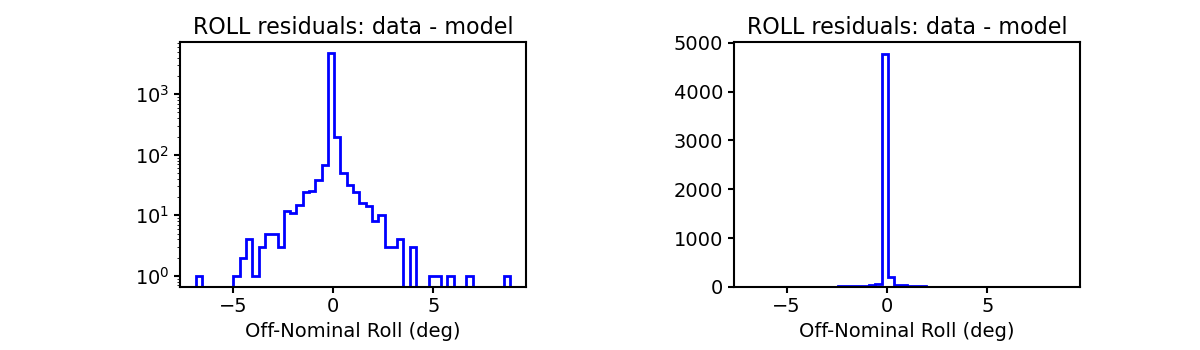

roll_valid.png roll_valid_hist.png

ACIS CCD/FEP Count
