FEP1_MONG Temperatures Check
Summary
| Date start | 2026:110:01:29:52.116 |
| Date stop | 2026:117:01:19:40.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/APR2026/oflsa |
| Run time | Wed Apr 15 16:35:13 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -4.73 | -3.51 | -2.32 | -0.57 | 1.58 | 2.83 | 3.61 |
| pitch | -13.346 | -1.156 | -0.004 | -0.000 | 0.004 | 1.218 | 13.454 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.296 | -0.202 | -0.007 | -0.000 | 0.007 | 0.201 | 2.227 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -4.73 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.61 | 2.00 |
| PITCH | 1 | -13.346 | 3.00 |
| PITCH | 99 | 13.454 | 3.00 |

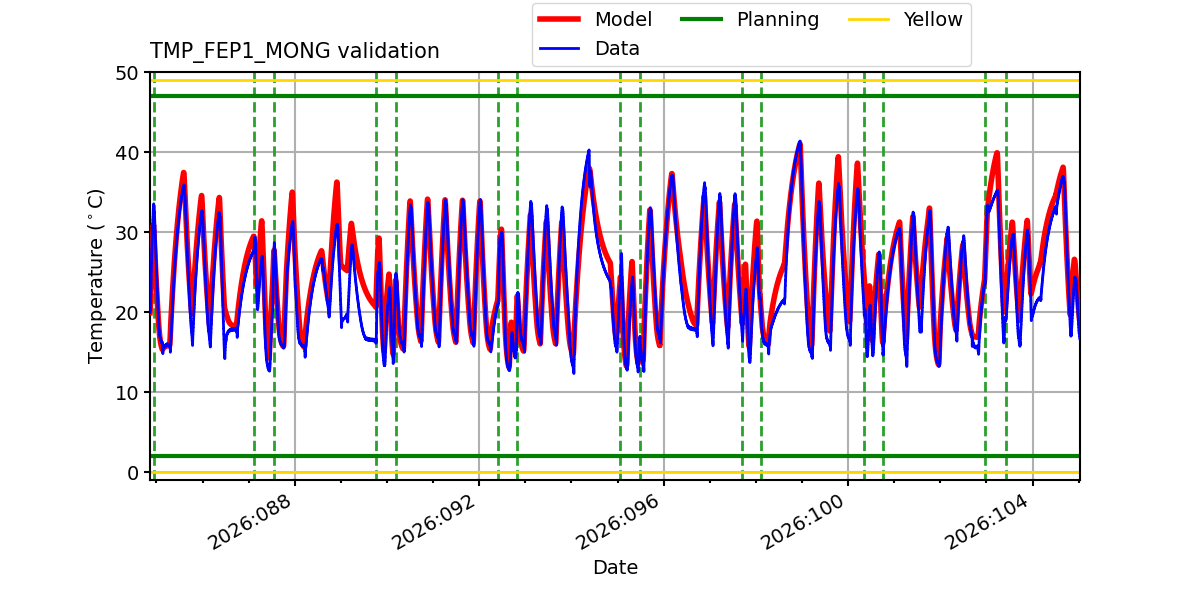

TMP_FEP1_MONG

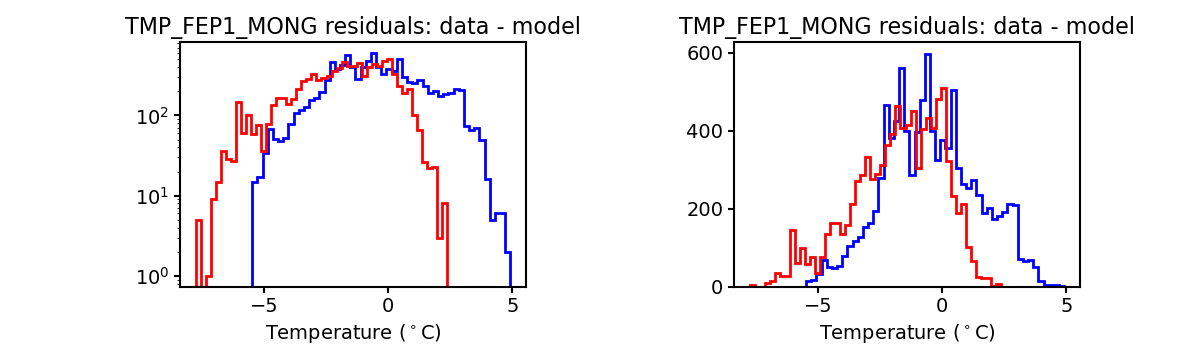

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

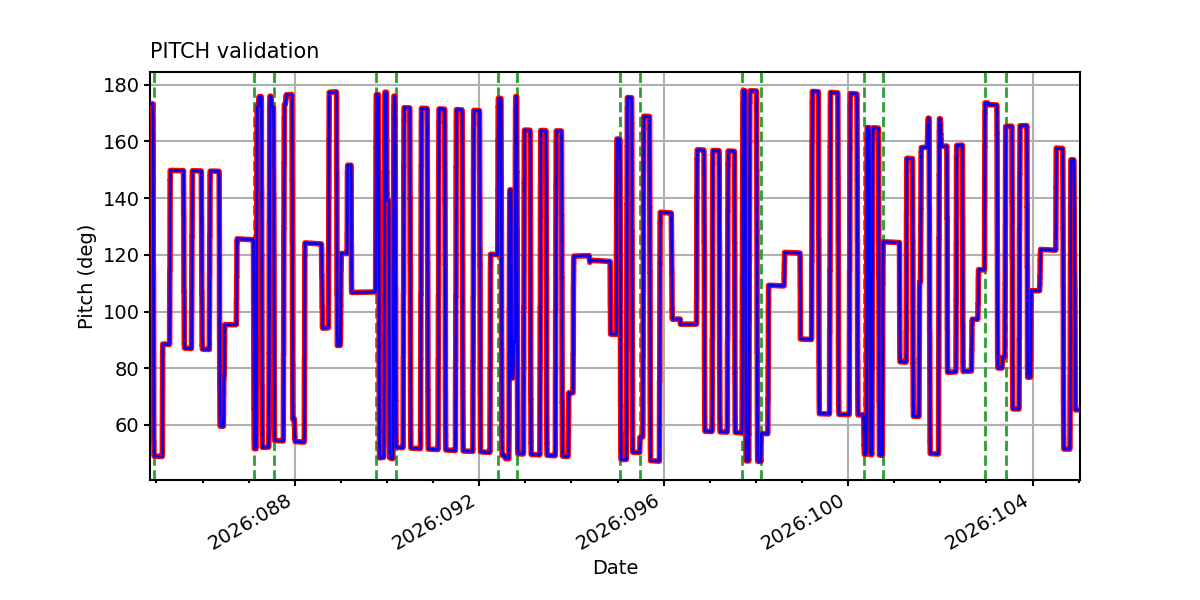

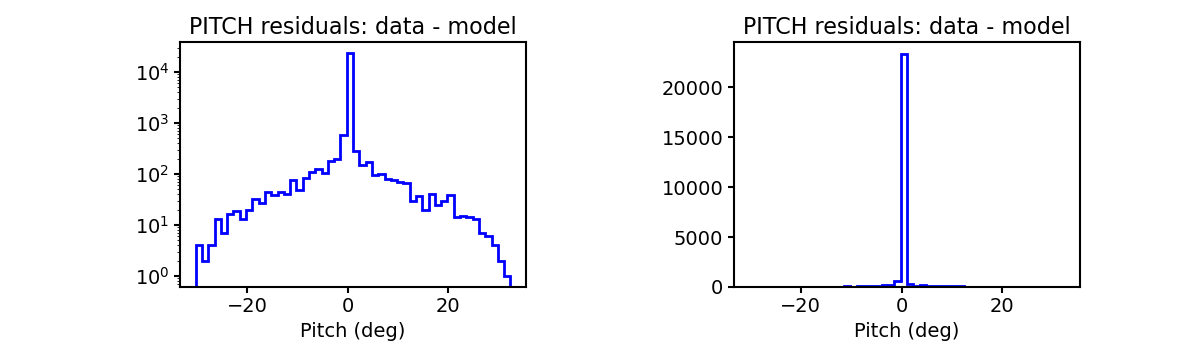

PITCH

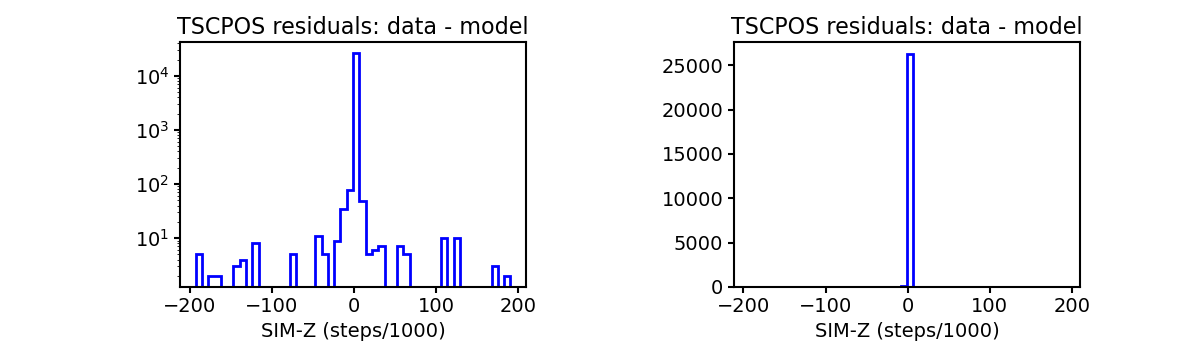

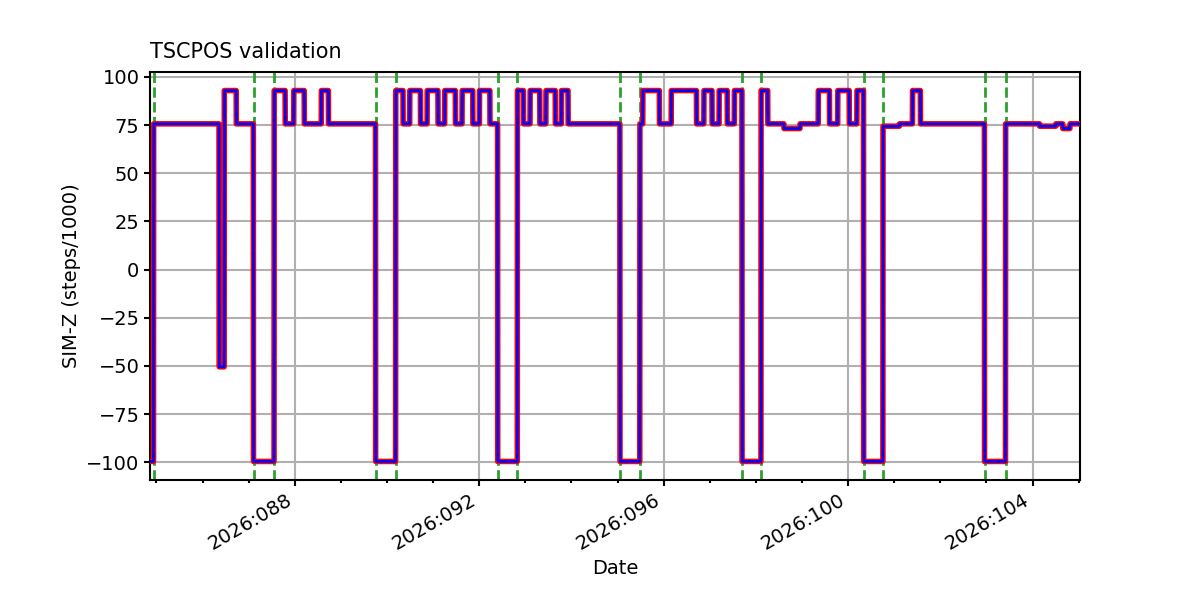

TSCPOS

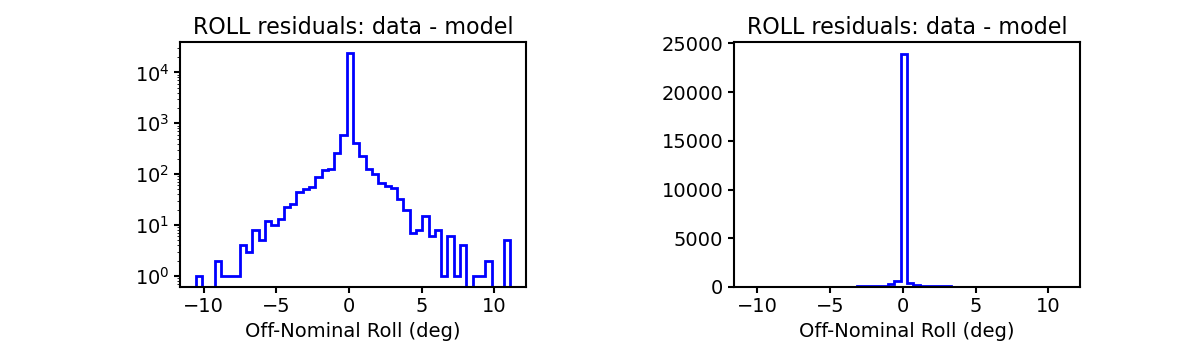

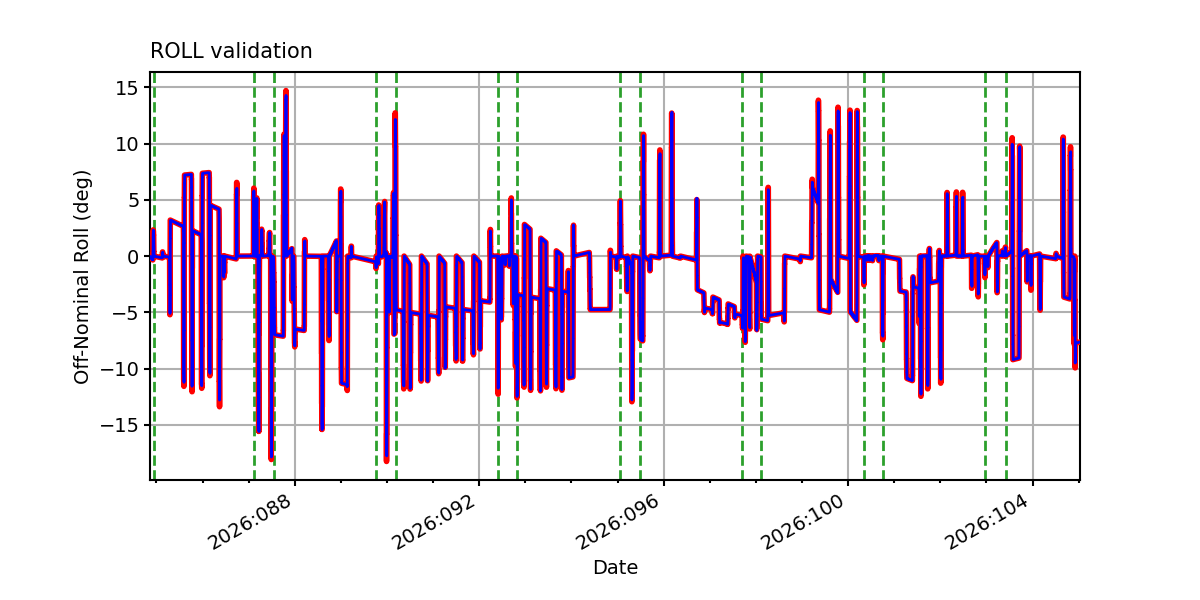

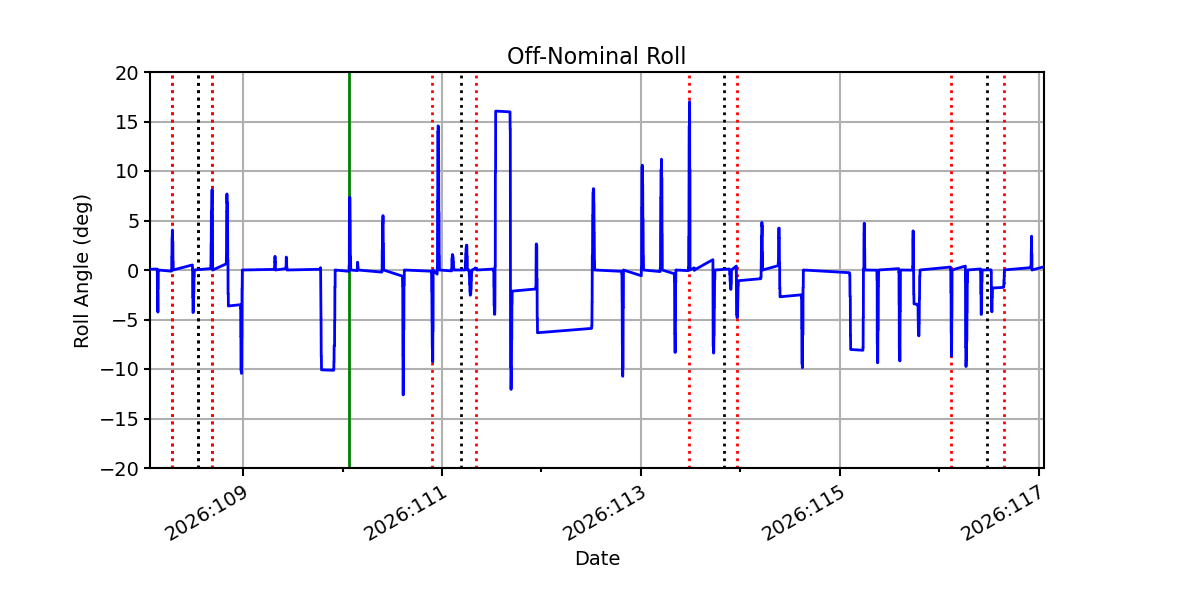

ROLL

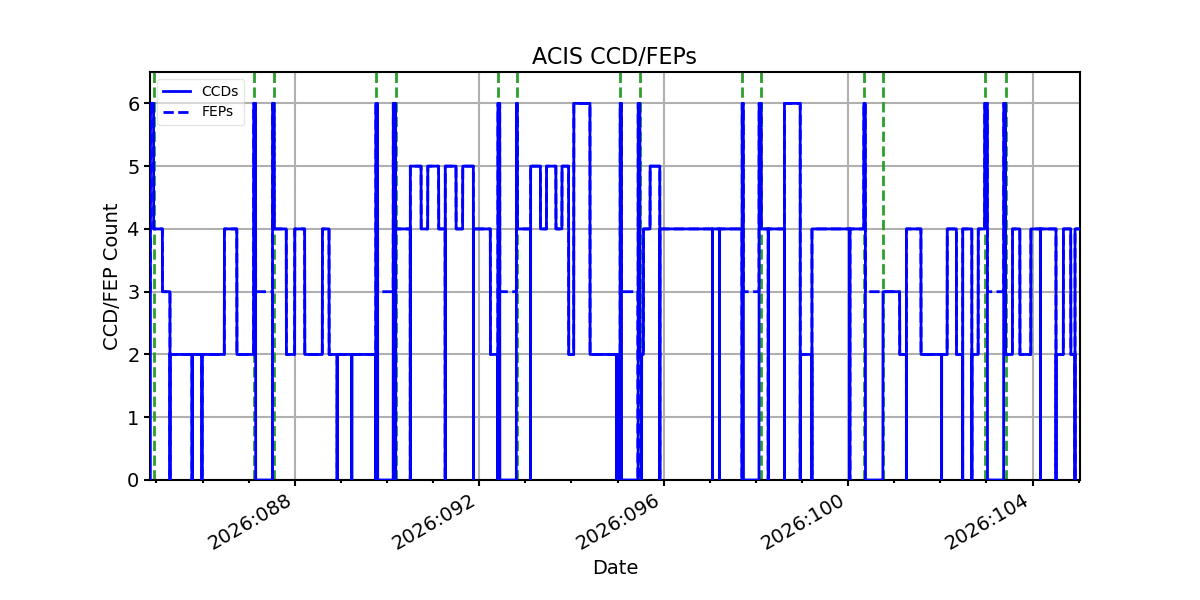

ACIS CCD/FEP Count
