FEP1_MONG Temperatures Check
Summary
| Date start | 2025:111:00:38:00.016 |
| Date stop | 2025:118:00:24:12.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/APR2125/ofls |
| Run time | Thu Apr 17 13:42:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.00 | -3.83 | -2.93 | -1.38 | 0.18 | 0.93 | 1.97 |
| pitch | -8.254 | -0.559 | -0.004 | 0.000 | 0.004 | 0.711 | 8.409 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.047 | -0.145 | -0.009 | 0.000 | 0.009 | 0.167 | 1.921 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.0 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.38 | 1.00 |
| PITCH | 1 | -8.254 | 3.00 |
| PITCH | 99 | 8.409 | 3.00 |

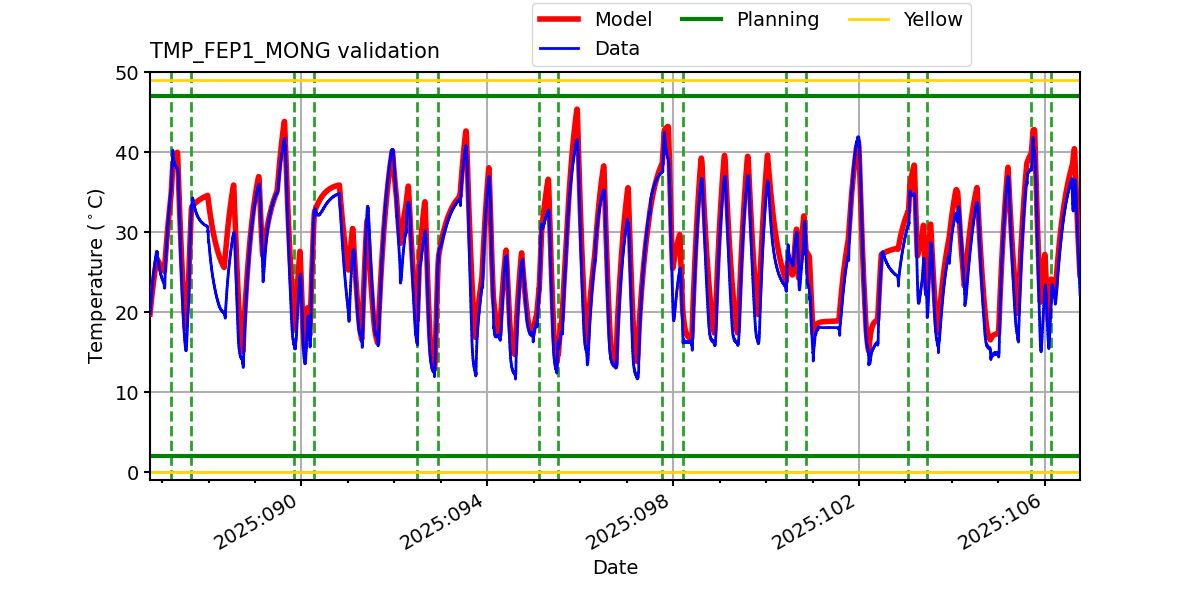

TMP_FEP1_MONG

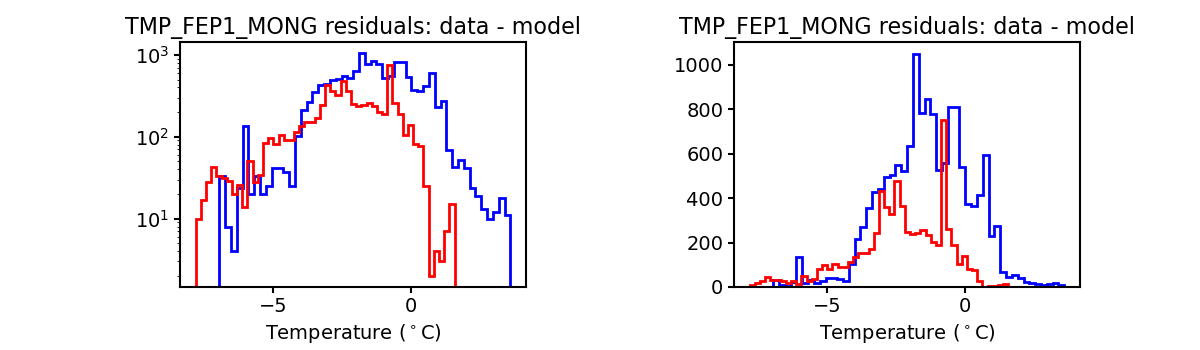

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

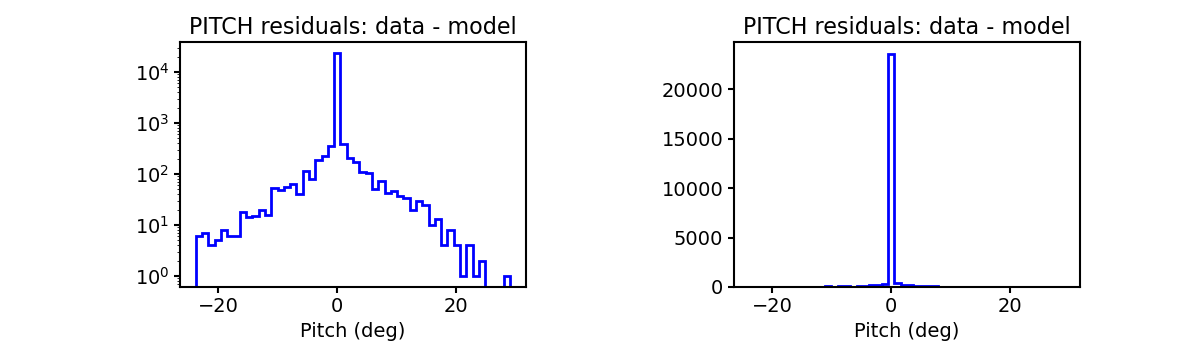

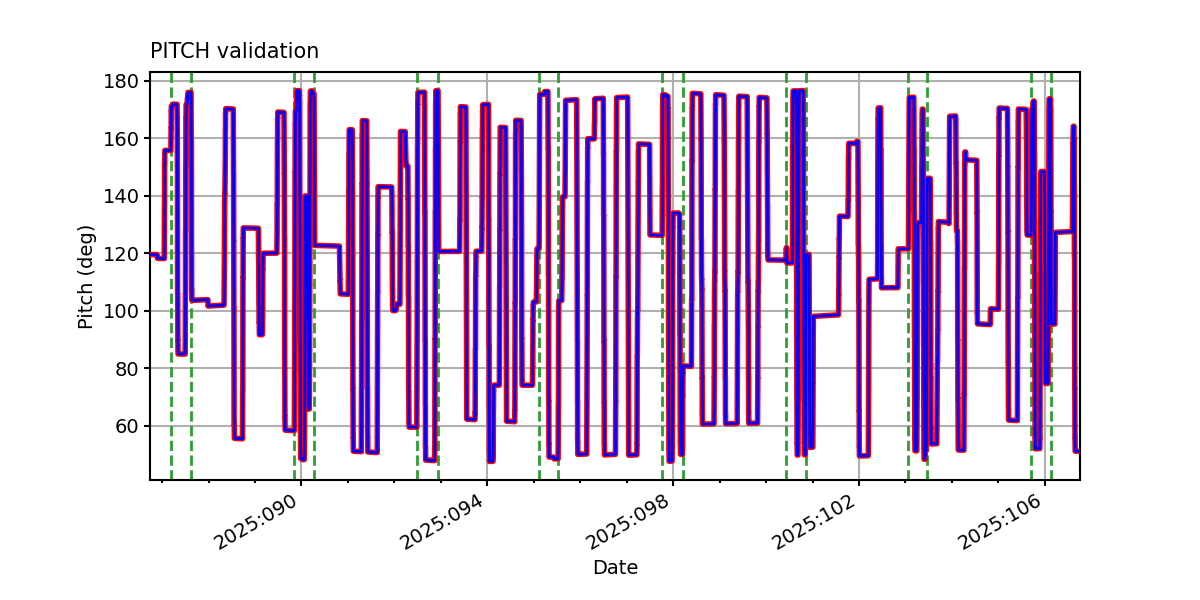

PITCH

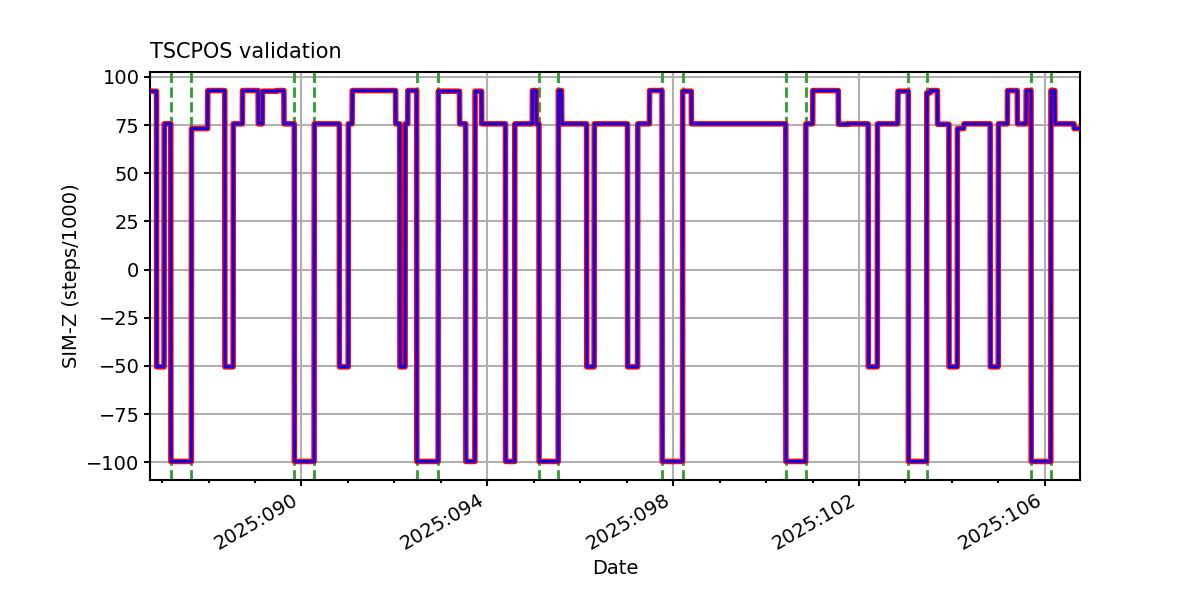

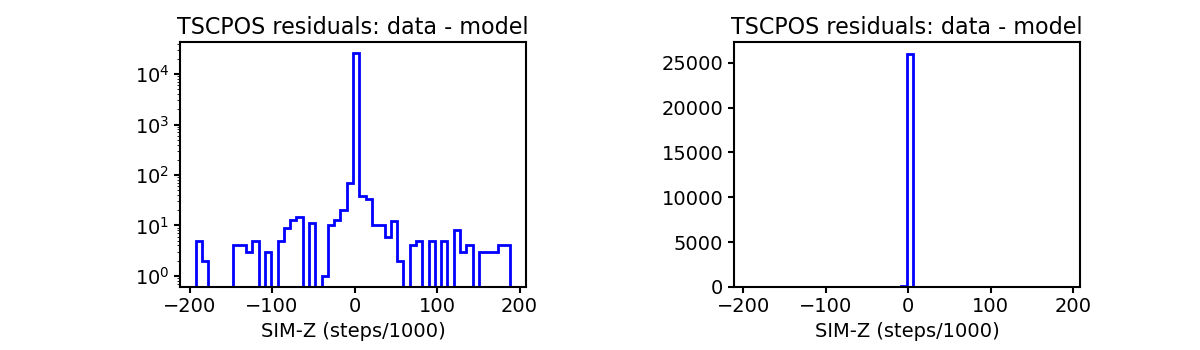

TSCPOS

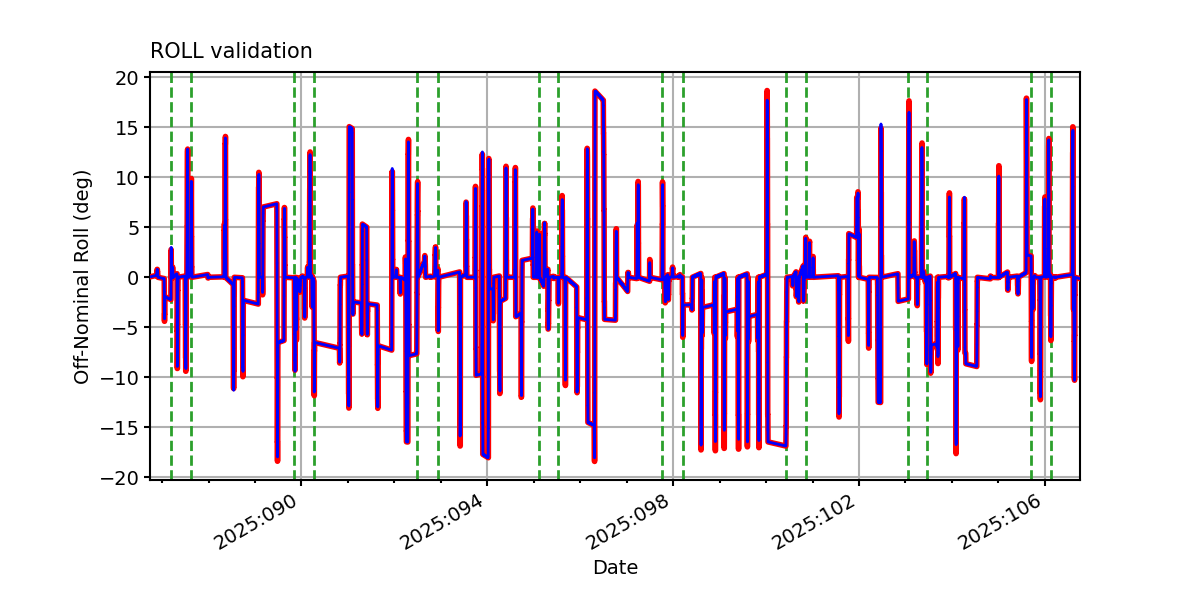

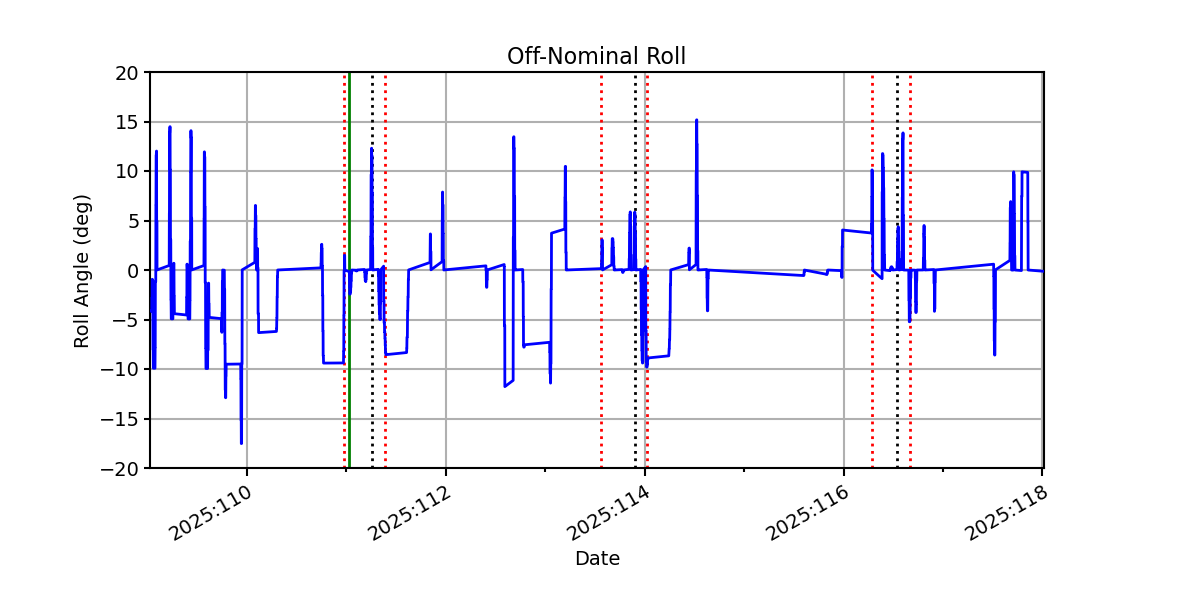

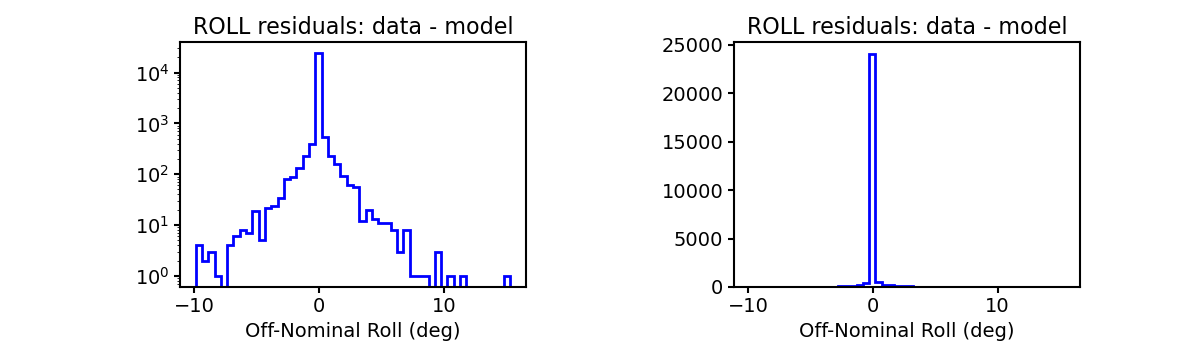

ROLL

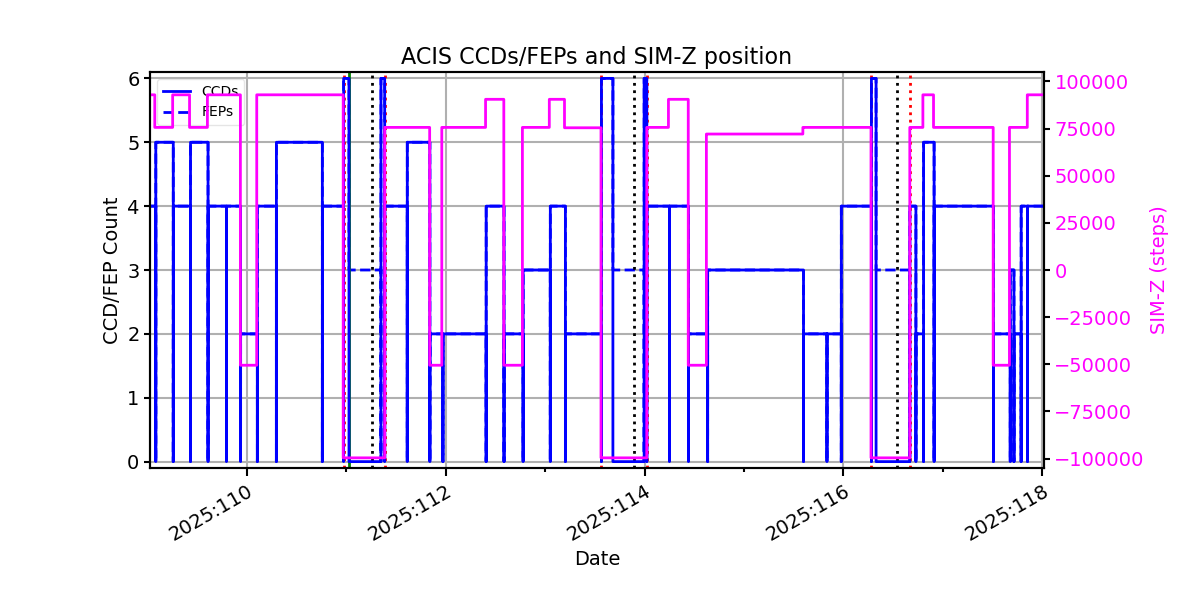

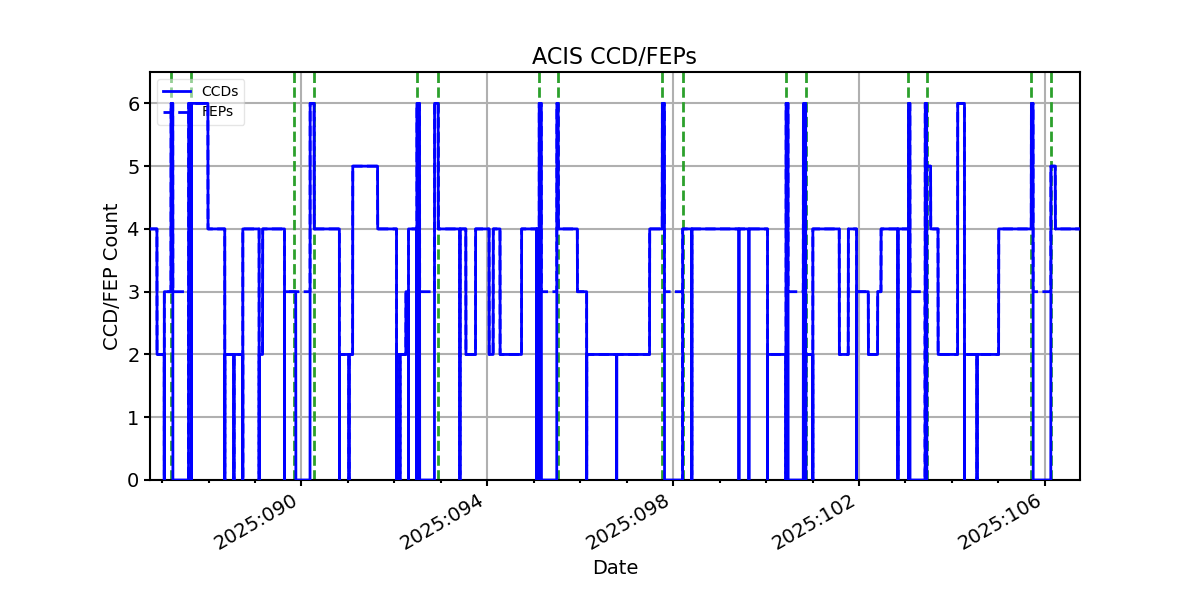

ACIS CCD/FEP Count
