FEP1_MONG Temperatures Check
Summary
| Date start | 2026:117:01:16:40.316 |
| Date stop | 2026:123:23:23:16.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR2726/oflsa |
| Run time | Wed Apr 22 09:32:50 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

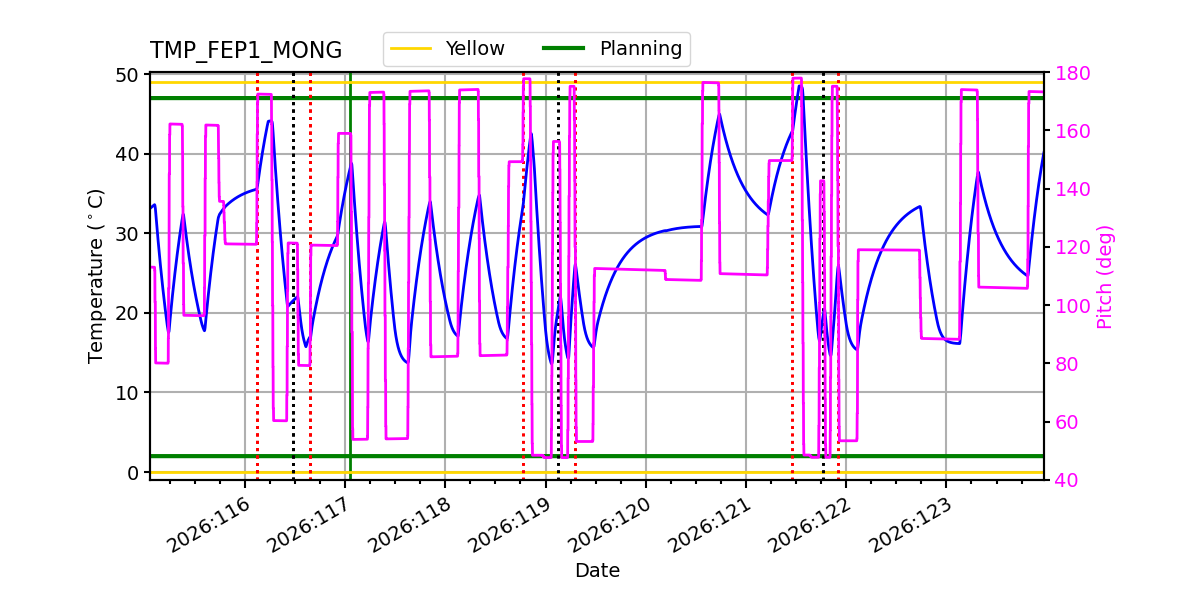

TMP_FEP1_MONG Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:121:12:16:11.616 | 2026:121:13:40:22.816 | 5.05 | 48.53 / 47.00 |
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -3.90 | -3.17 | -2.29 | -0.83 | 1.27 | 2.70 | 3.48 |
| pitch | -12.168 | -0.870 | -0.004 | 0.000 | 0.004 | 1.036 | 12.256 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.096 | -0.169 | -0.006 | -0.000 | 0.007 | 0.158 | 2.102 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -3.9 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.48 | 2.00 |
| PITCH | 1 | -12.168 | 3.00 |
| PITCH | 99 | 12.256 | 3.00 |

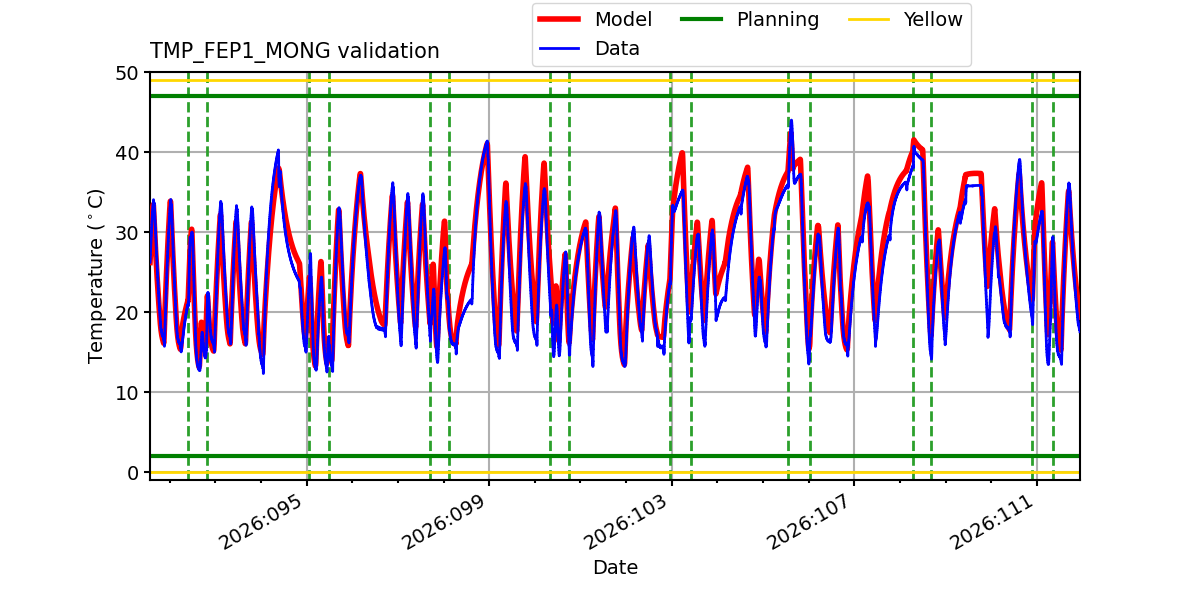

TMP_FEP1_MONG

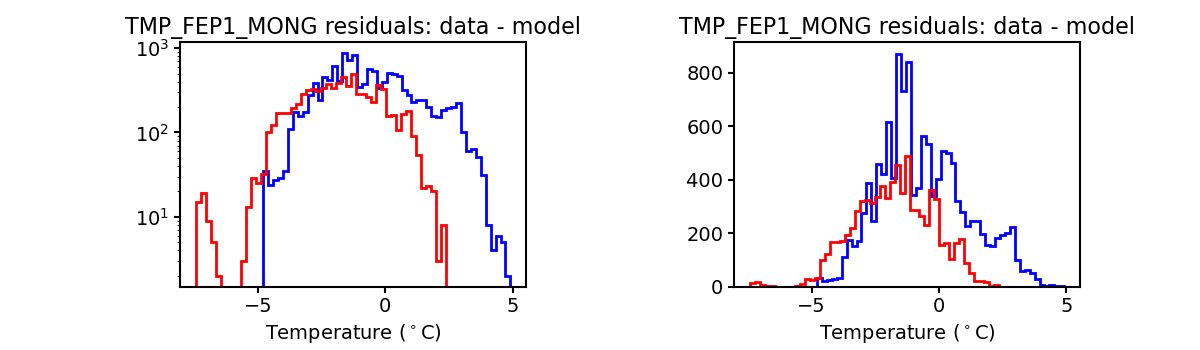

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

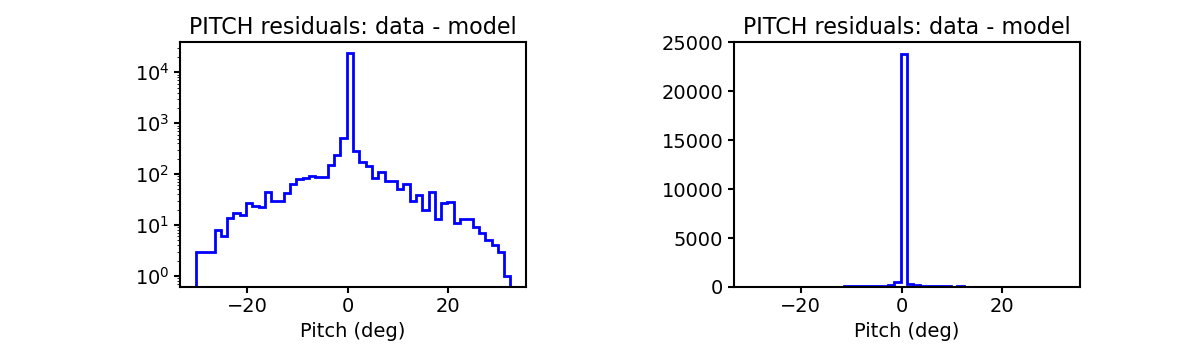

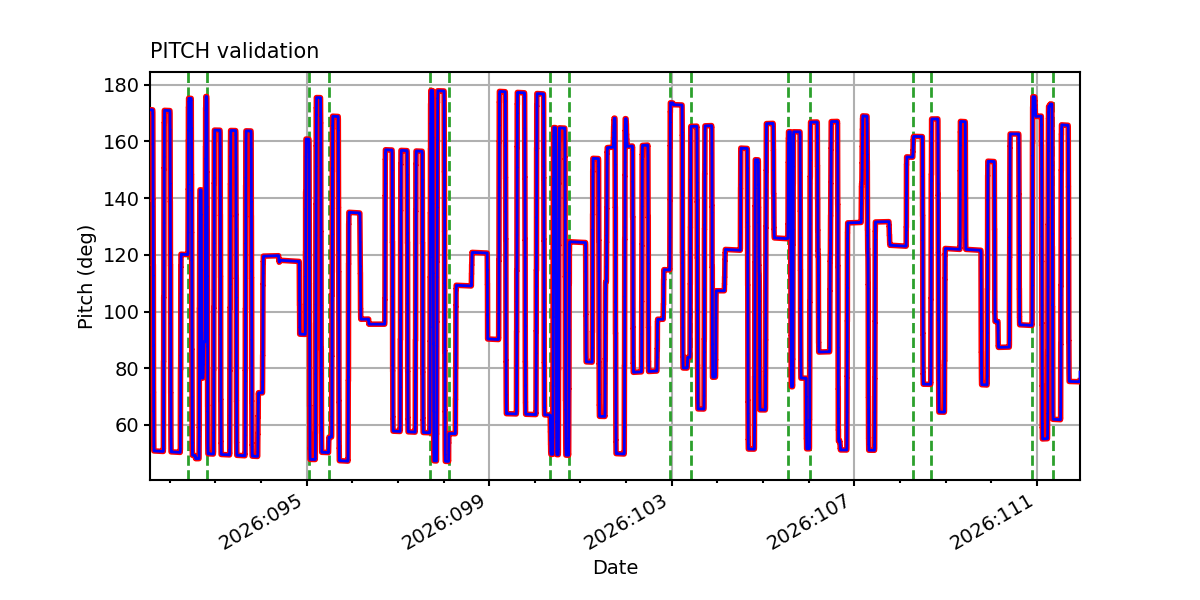

PITCH

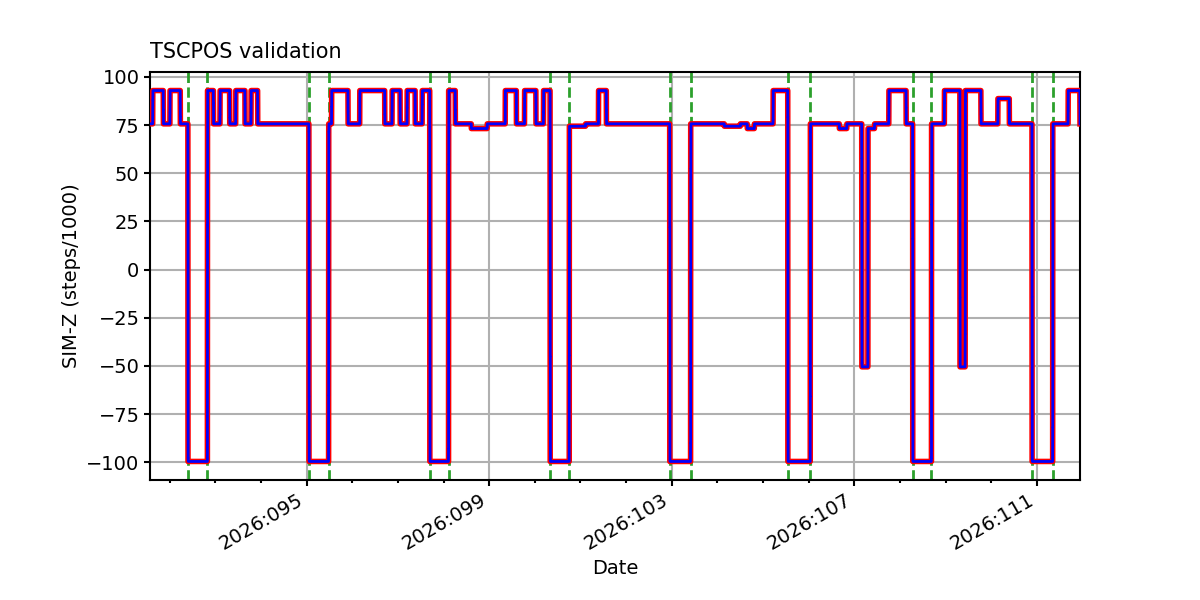

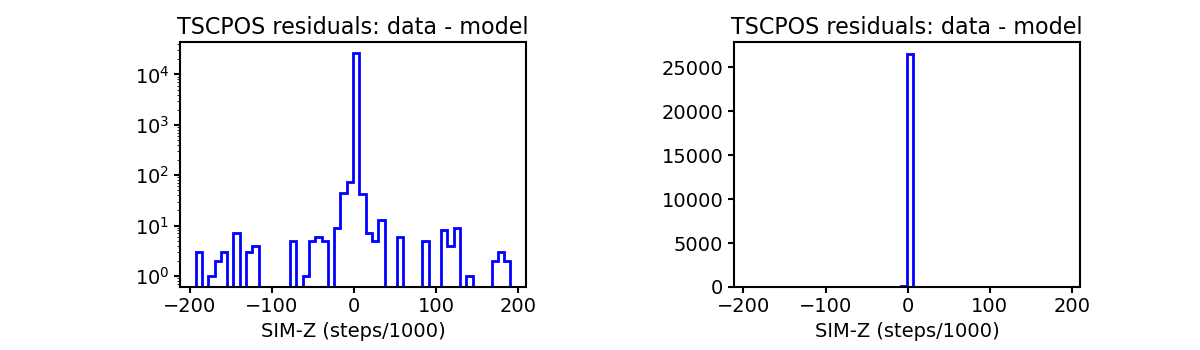

TSCPOS

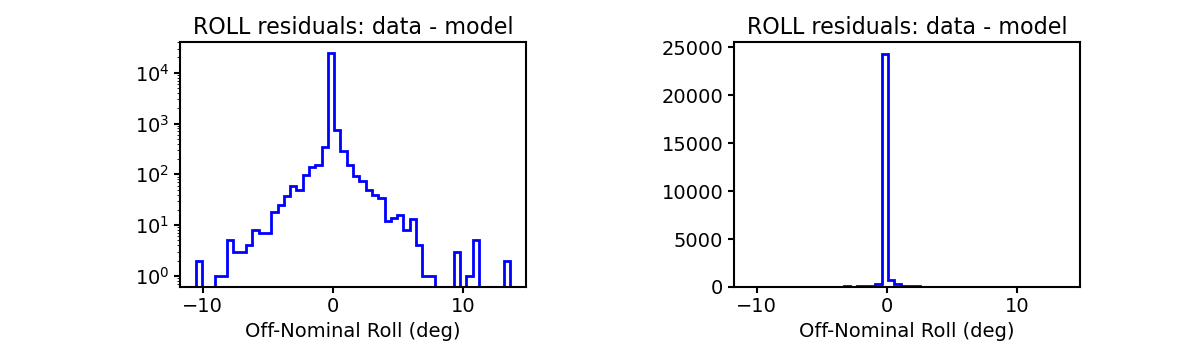

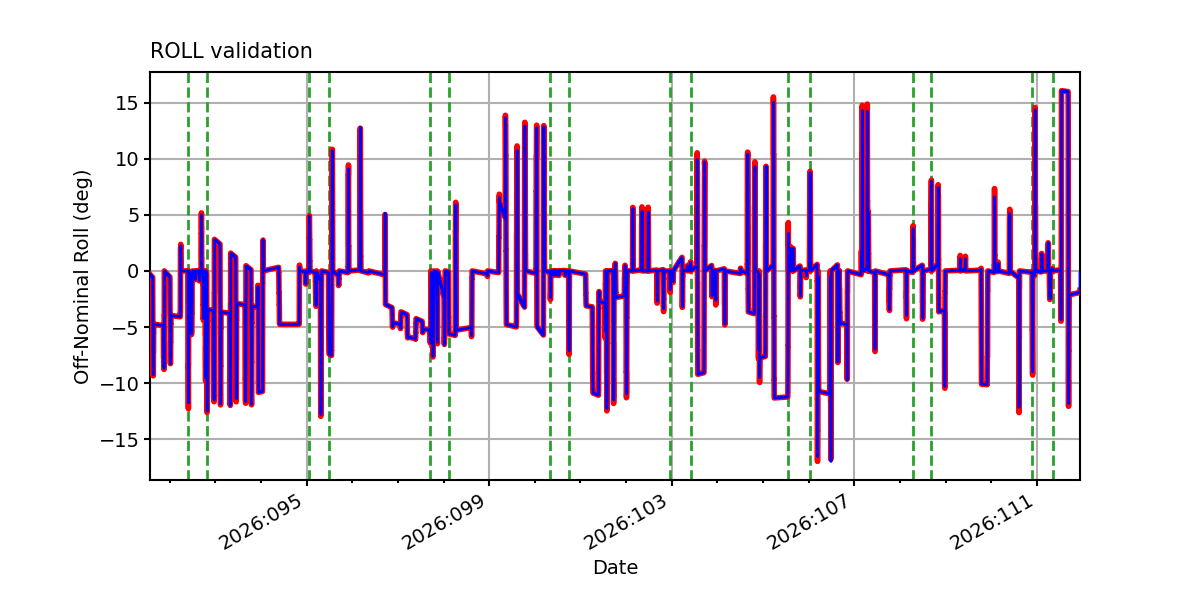

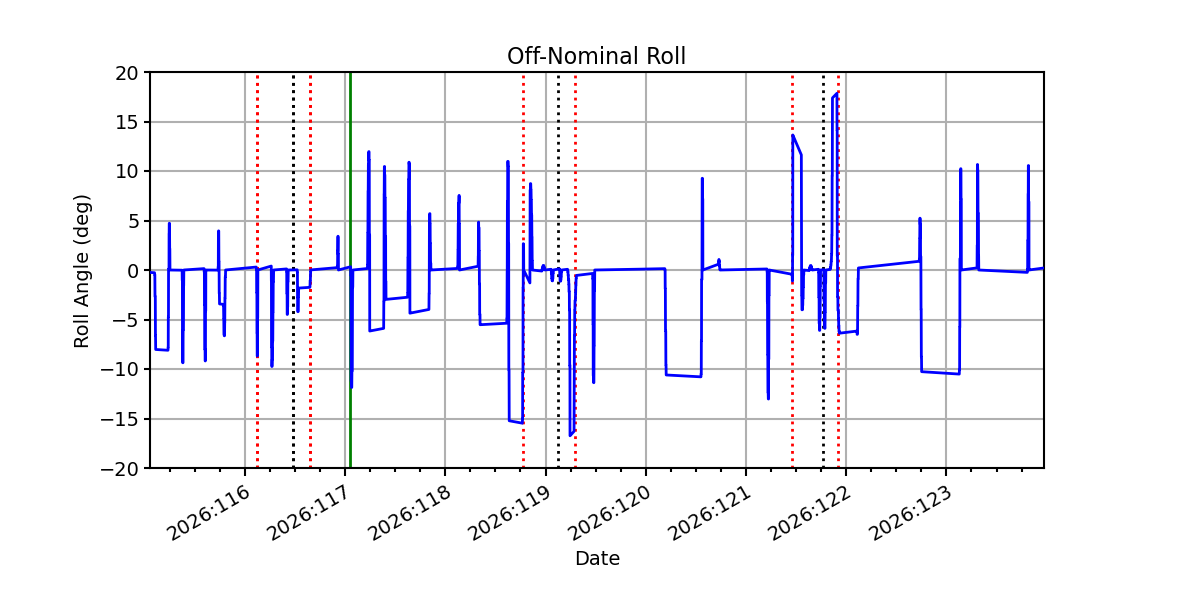

ROLL

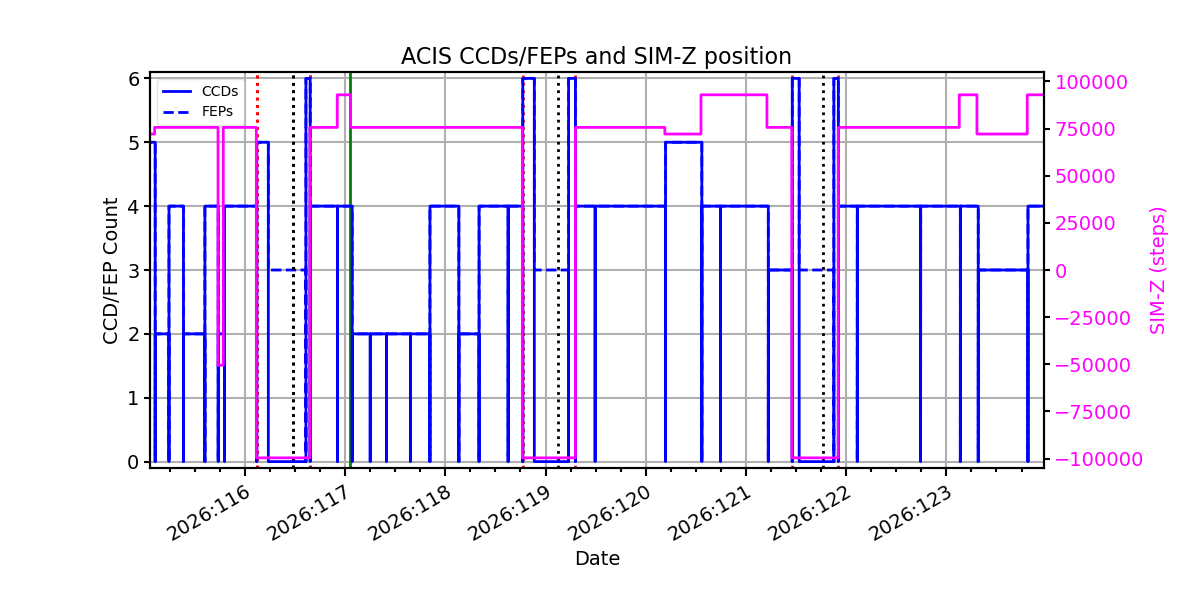

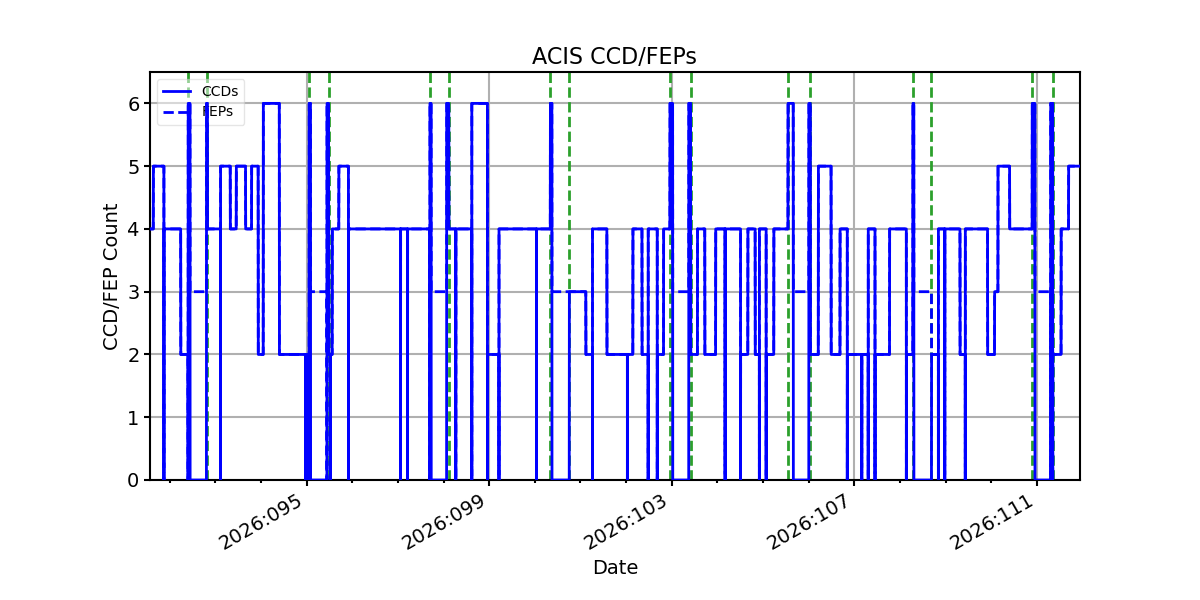

ACIS CCD/FEP Count
