FEP1_MONG Temperatures Check
Summary
| Date start | 2026:222:00:50:00.016 |
| Date stop | 2026:229:01:19:21.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1026/oflsb |
| Run time | Wed Aug 5 10:57:44 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.59 | -4.42 | -2.19 | 0.28 | 1.75 | 2.79 | 3.65 |
| pitch | -13.276 | -1.352 | -0.004 | -0.000 | 0.004 | 1.410 | 14.037 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.482 | -0.262 | -0.009 | -0.000 | 0.009 | 0.292 | 2.202 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.59 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.65 | 2.00 |
| PITCH | 1 | -13.276 | 3.00 |
| PITCH | 99 | 14.037 | 3.00 |

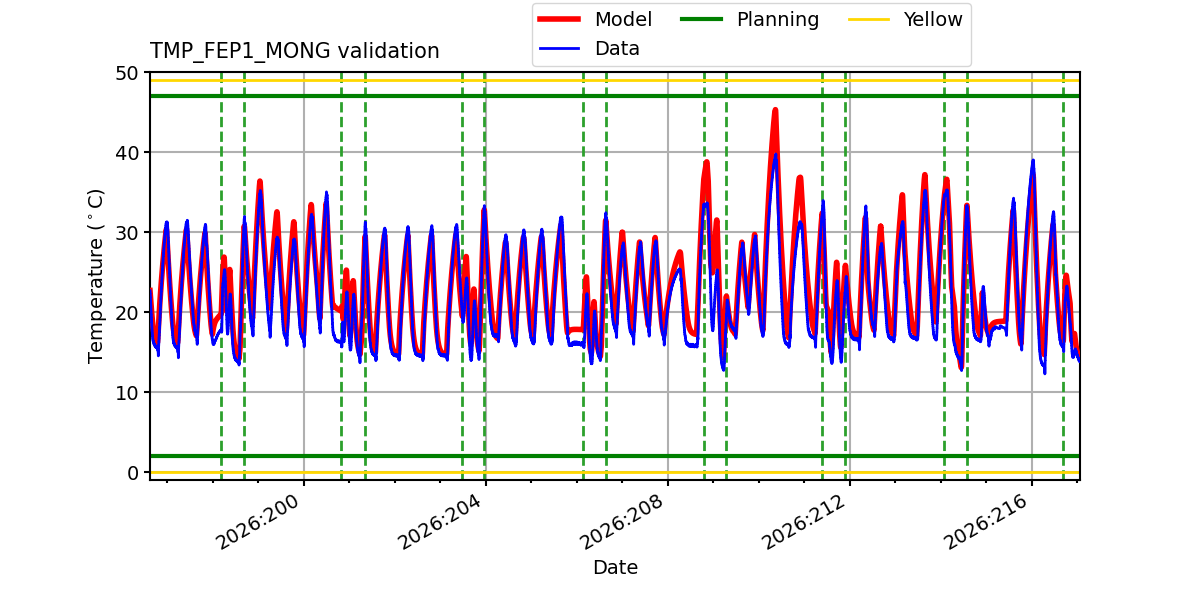

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

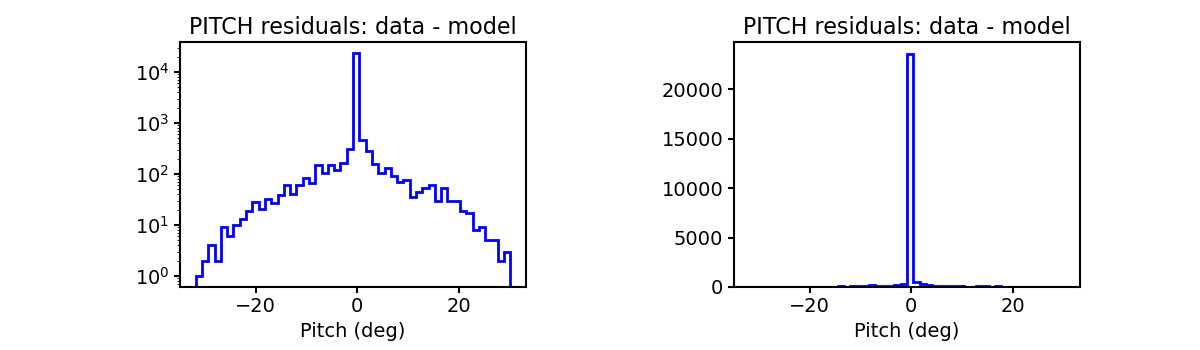

PITCH

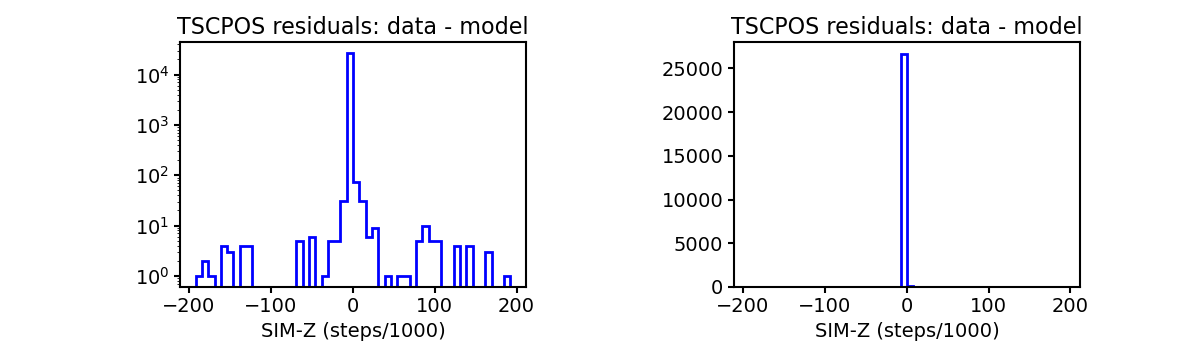

TSCPOS

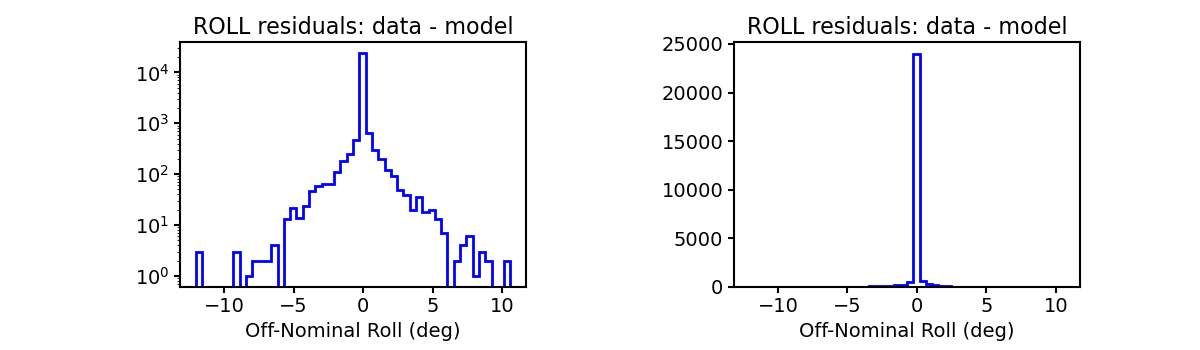

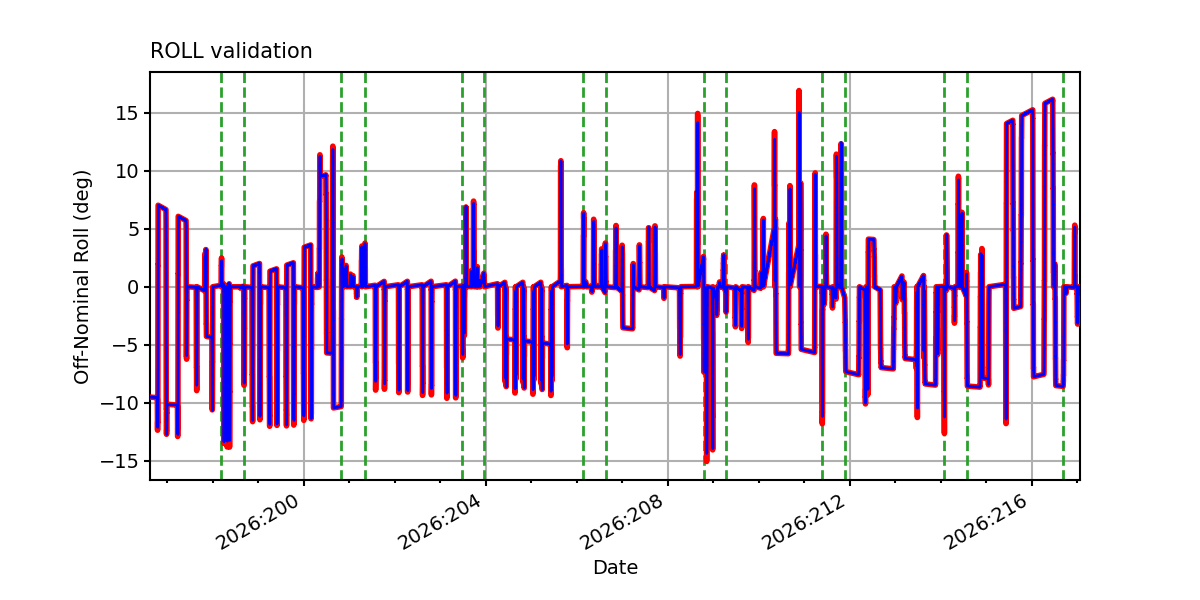

ROLL

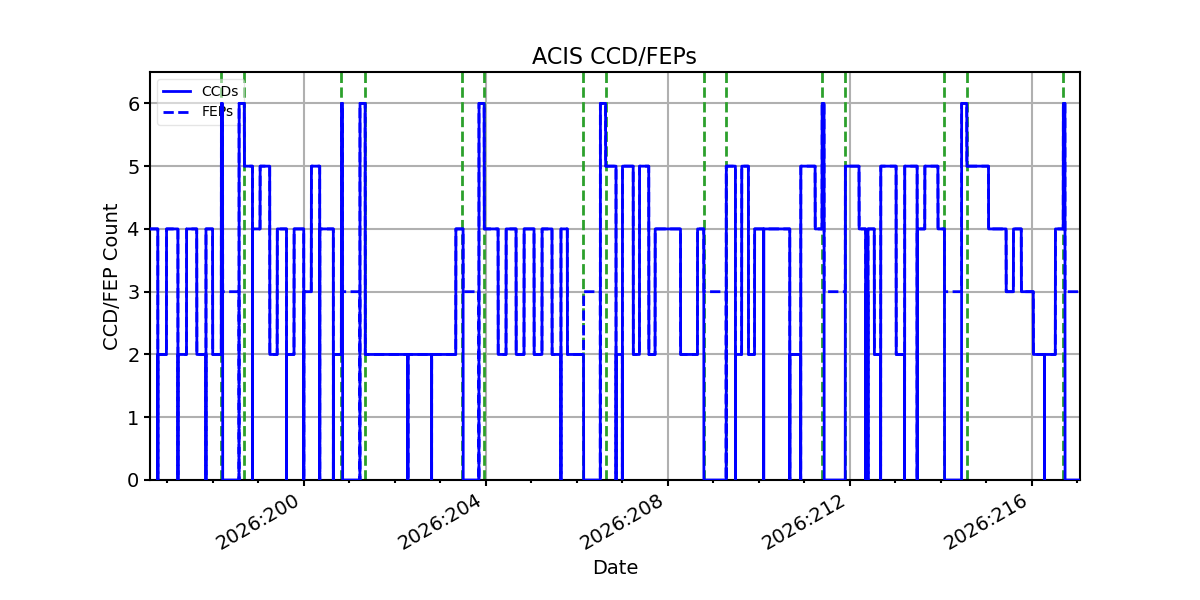

ACIS CCD/FEP Count
