FEP1_MONG Temperatures Check
Summary
| Date start | 2026:229:01:16:21.916 |
| Date stop | 2026:235:21:59:21.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1726/oflsa |
| Run time | Thu Aug 13 13:42:59 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.57 | -4.31 | -2.34 | 0.03 | 1.61 | 2.99 | 3.82 |
| pitch | -11.107 | -1.380 | -0.004 | 0.000 | 0.004 | 1.199 | 13.489 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.238 | -0.241 | -0.009 | 0.000 | 0.010 | 0.313 | 2.249 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.57 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.82 | 2.00 |
| PITCH | 1 | -11.107 | 3.00 |
| PITCH | 99 | 13.489 | 3.00 |

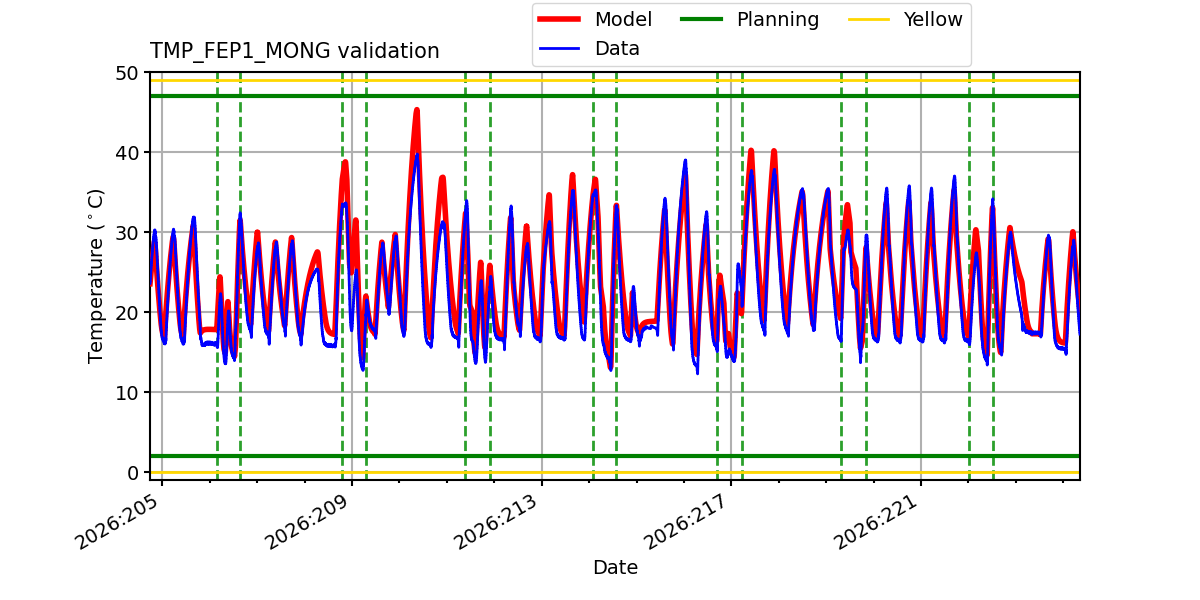

TMP_FEP1_MONG

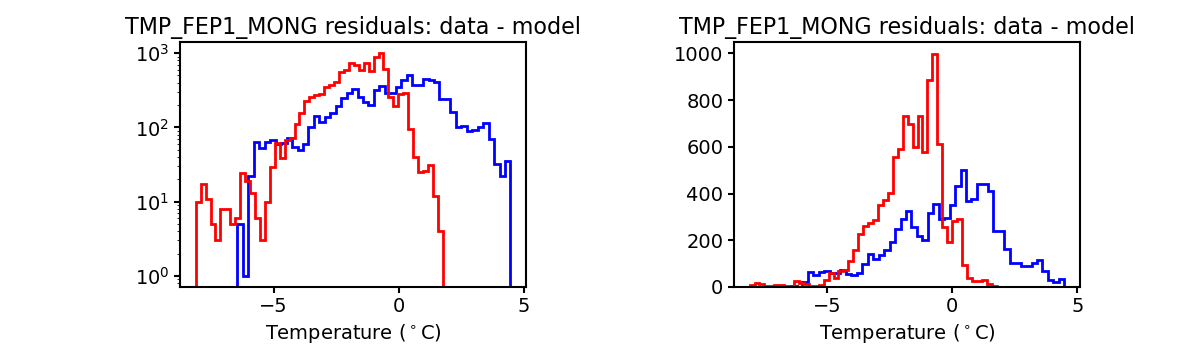

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

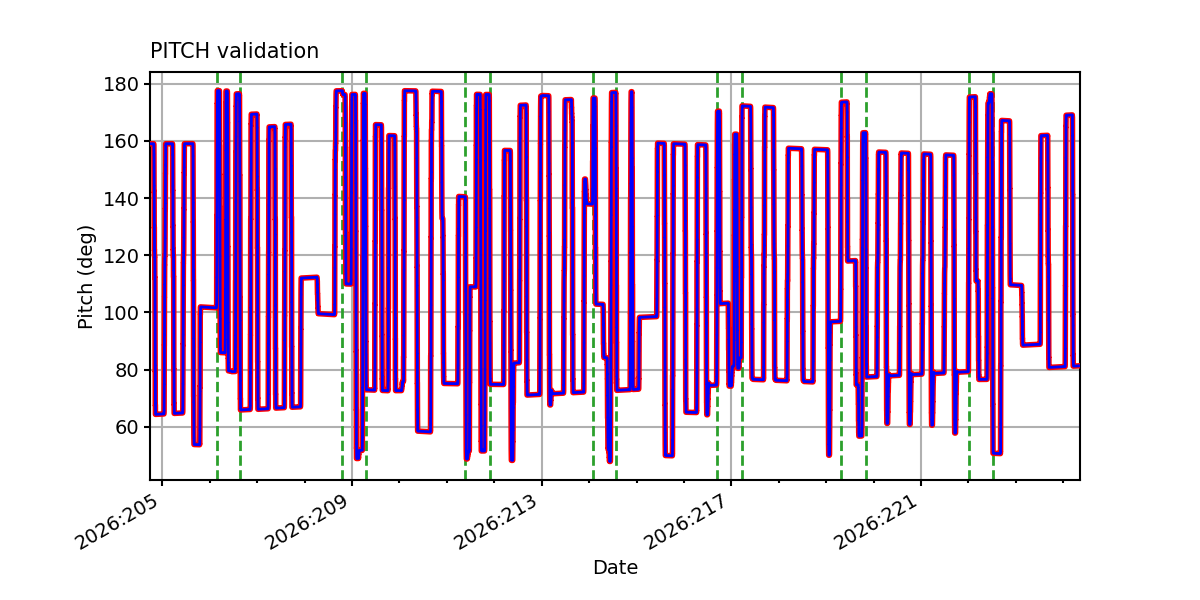

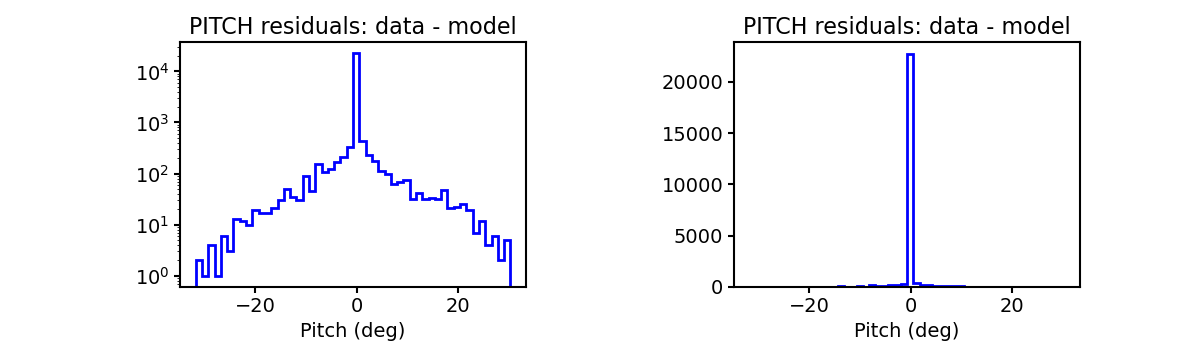

PITCH

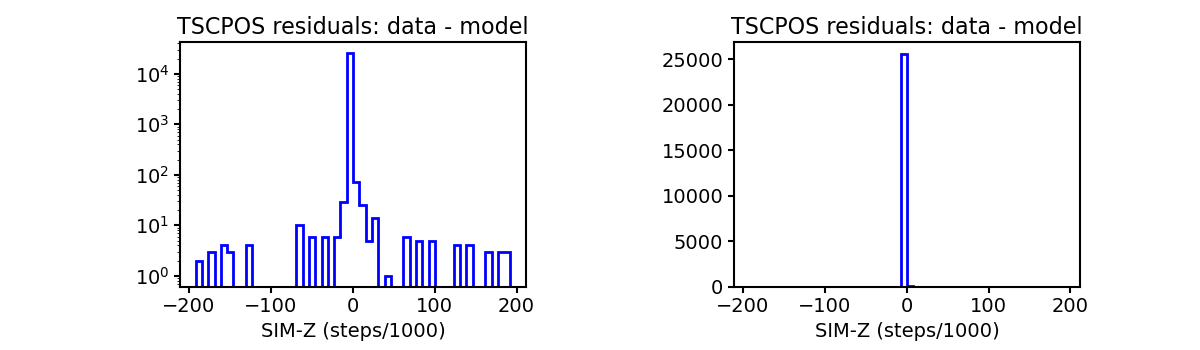

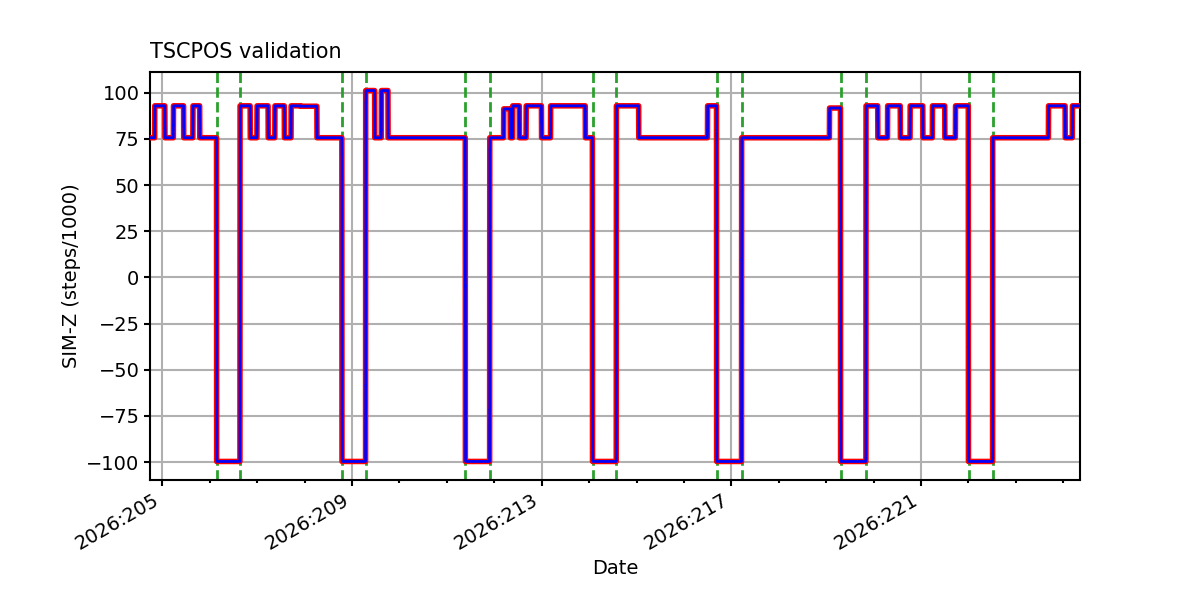

TSCPOS

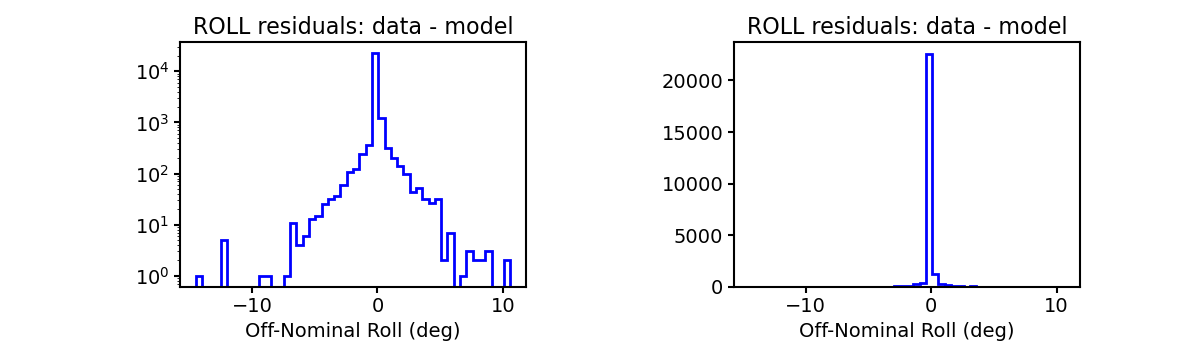

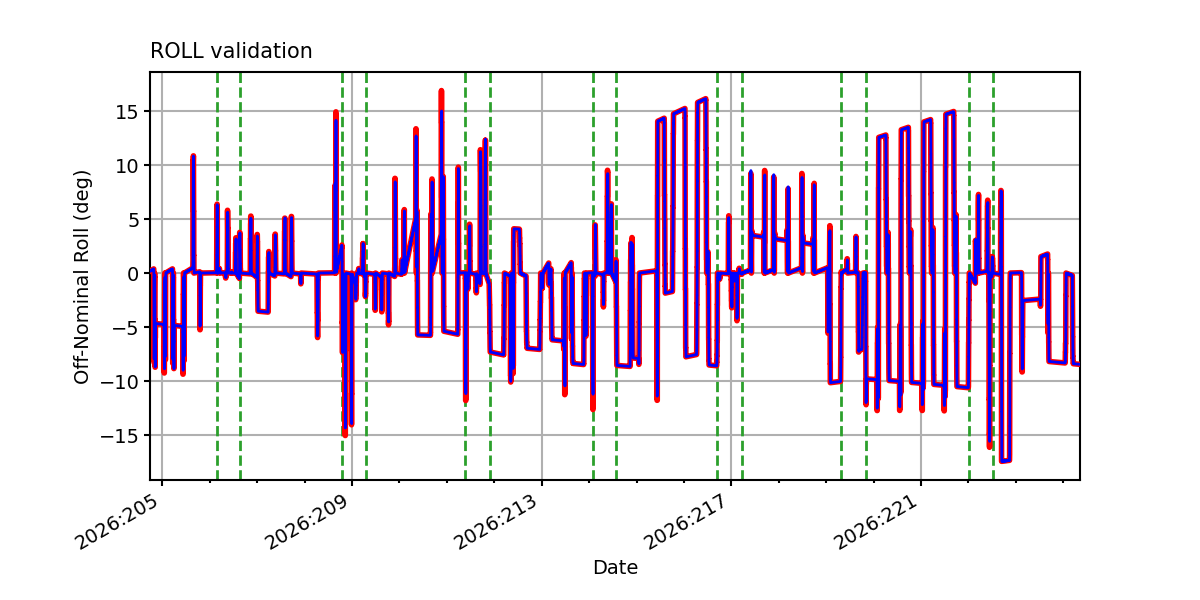

ROLL

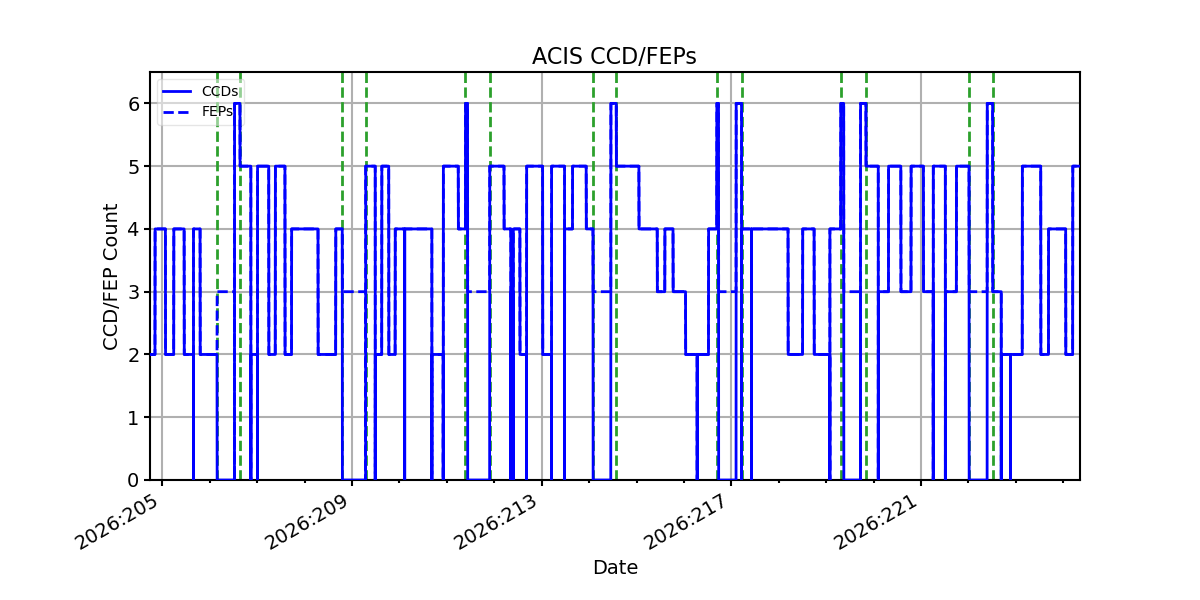

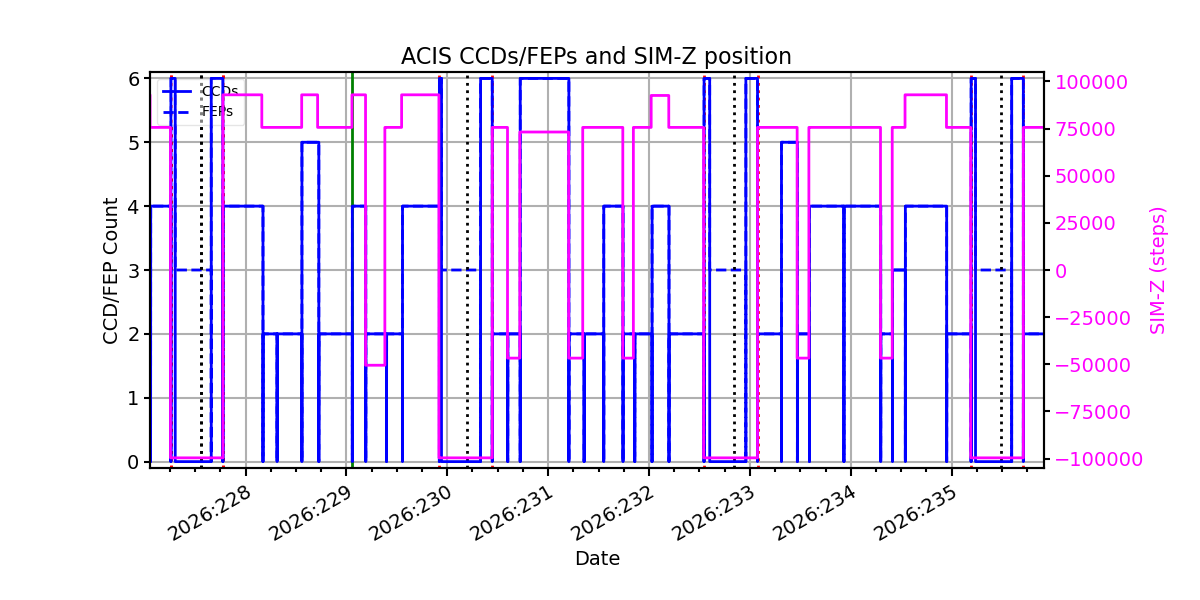

ACIS CCD/FEP Count
