FEP1_MONG Temperatures Check
Summary
| Date start | 2026:235:21:56:21.316 |
| Date stop | 2026:242:22:06:33.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG2426/oflsa |
| Run time | Wed Aug 19 13:23:44 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.00 | -4.37 | -2.38 | -0.06 | 1.56 | 3.06 | 4.08 |
| pitch | -11.306 | -1.138 | -0.004 | -0.000 | 0.004 | 1.032 | 12.346 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.168 | -0.261 | -0.008 | -0.000 | 0.008 | 0.292 | 2.182 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.0 | 2.00 |
| TMP_FEP1_MONG | 99 | 4.08 | 2.00 |
| PITCH | 1 | -11.306 | 3.00 |
| PITCH | 99 | 12.346 | 3.00 |
TMP_FEP1_MONG

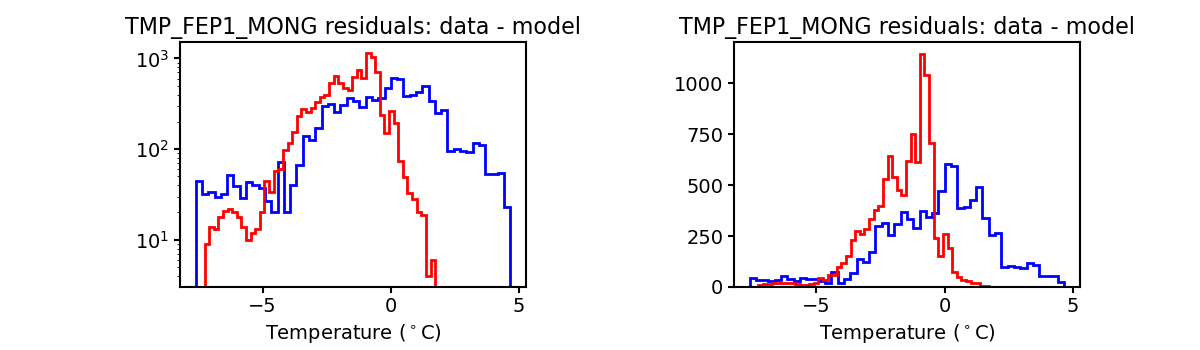

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

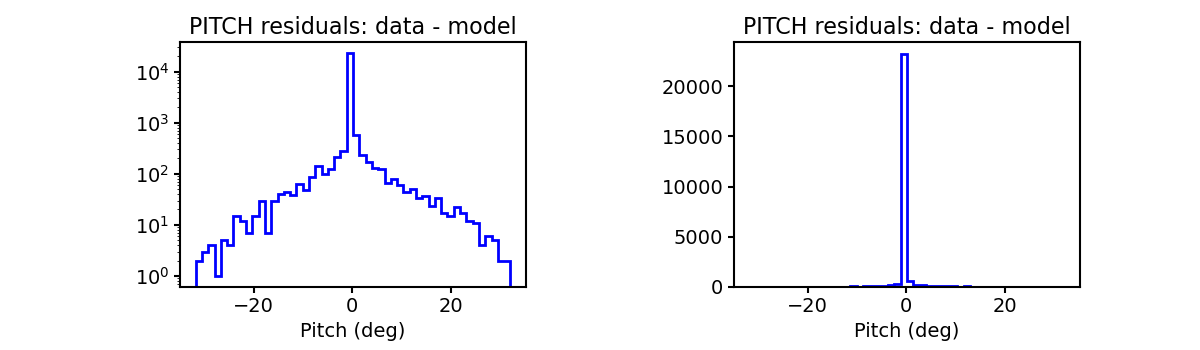

PITCH

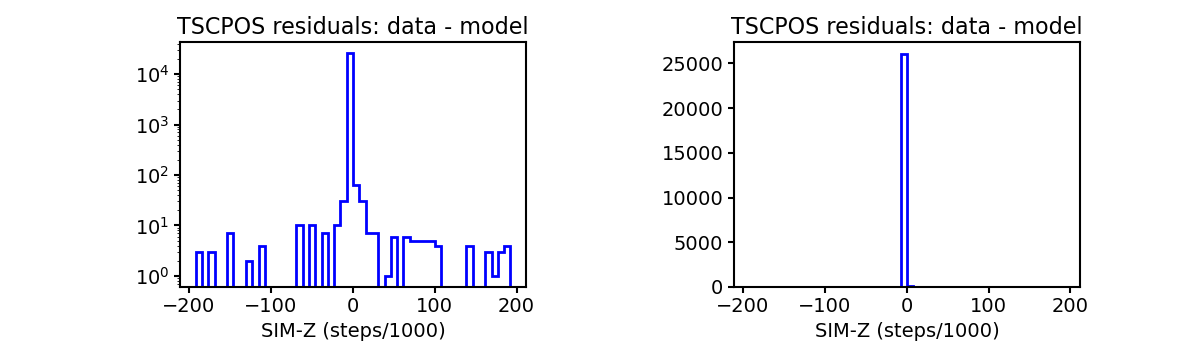

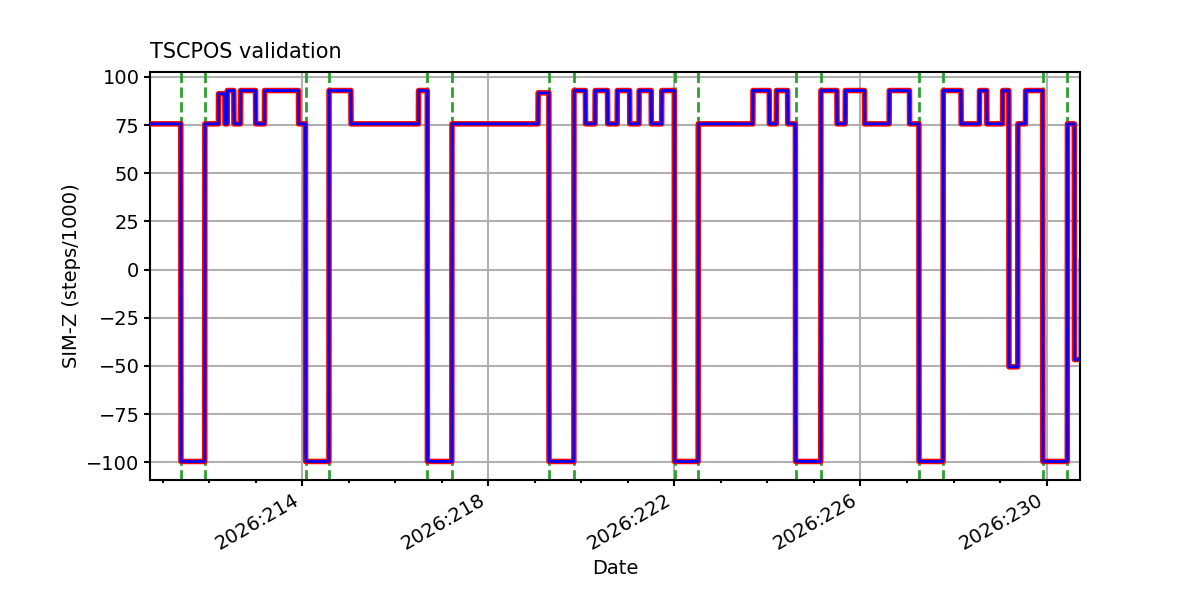

TSCPOS

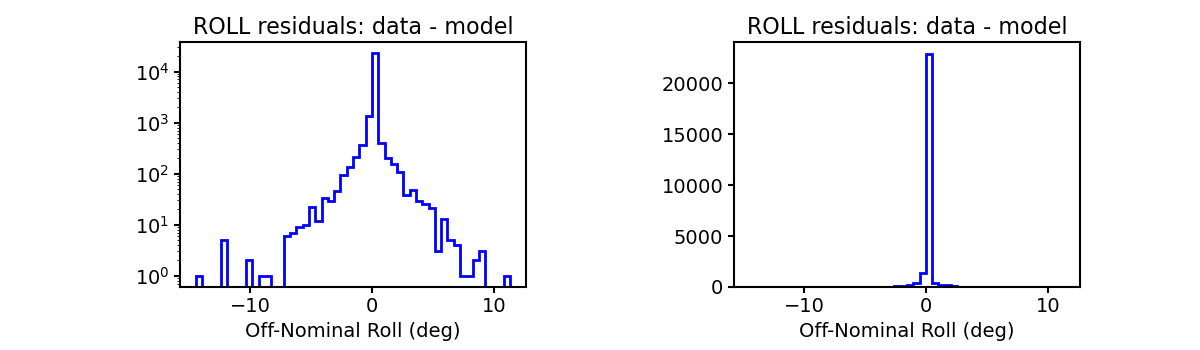

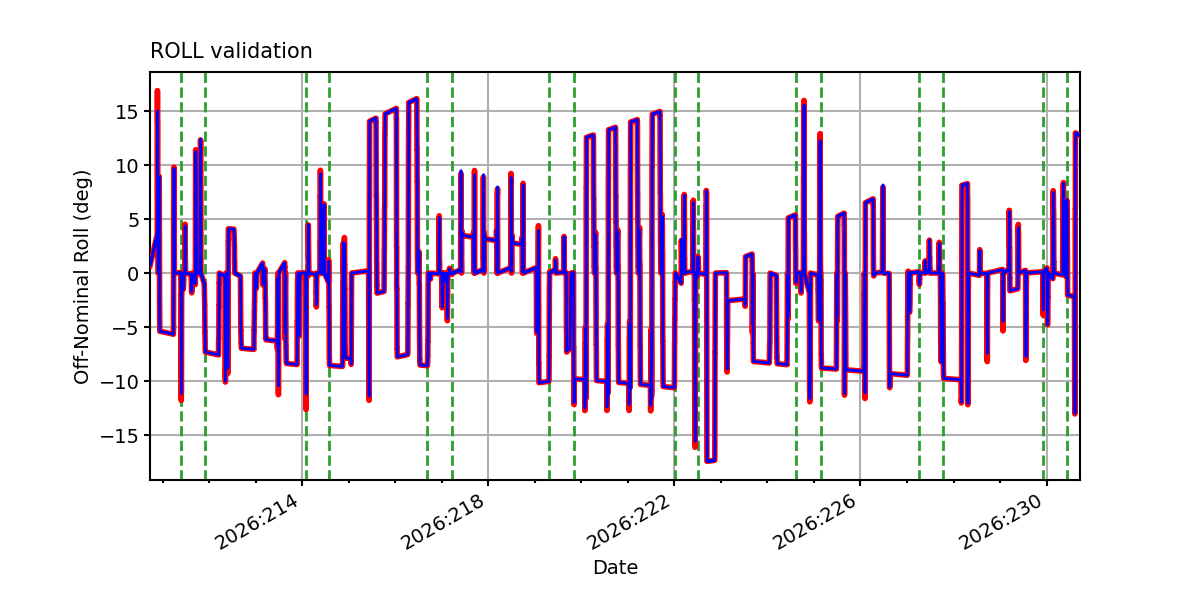

ROLL

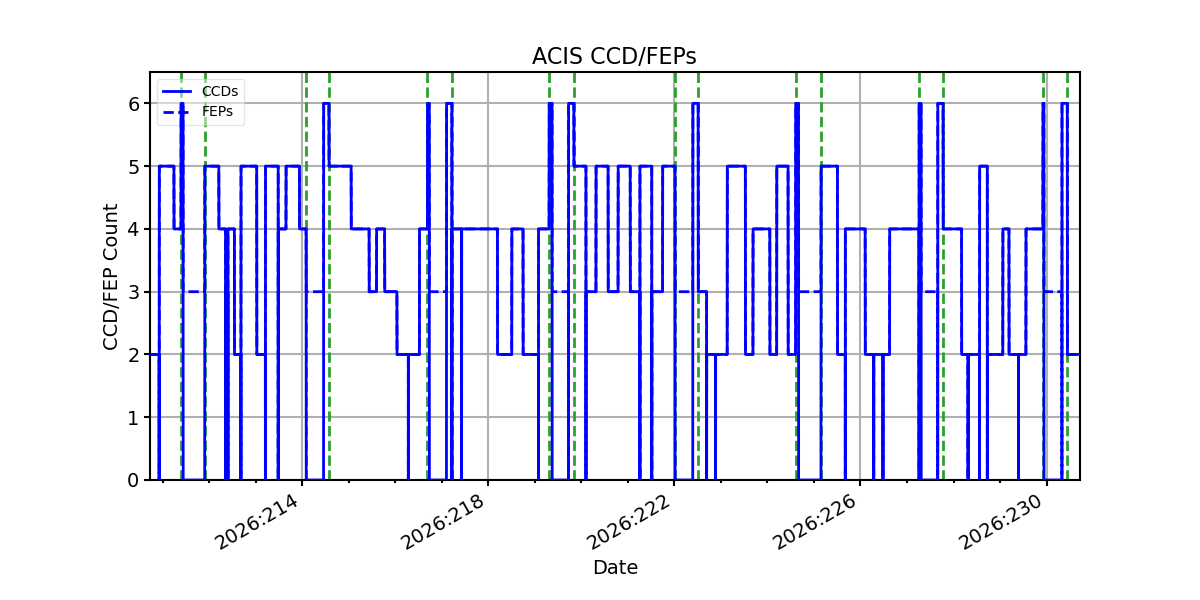

ACIS CCD/FEP Count
