FEP1_MONG Temperatures Check
Summary
| Date start | 2026:242:22:03:33.816 |
| Date stop | 2026:250:02:17:56.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG3126/oflsa |
| Run time | Thu Aug 27 09:17:17 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.26 | -5.91 | -3.82 | -1.75 | 0.93 | 1.95 | 3.50 |
| pitch | -9.704 | -0.664 | -0.004 | 0.000 | 0.004 | 0.545 | 9.875 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.057 | -0.195 | -0.006 | -0.000 | 0.006 | 0.188 | 2.014 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.26 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.75 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.5 | 2.00 |
| PITCH | 1 | -9.704 | 3.00 |
| PITCH | 99 | 9.875 | 3.00 |

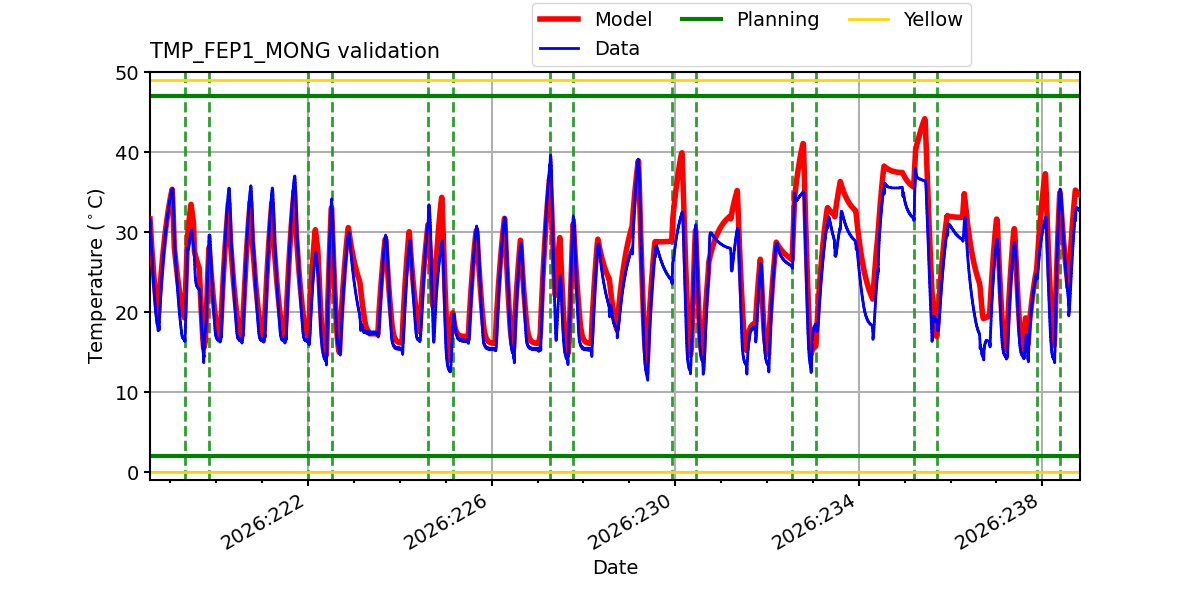

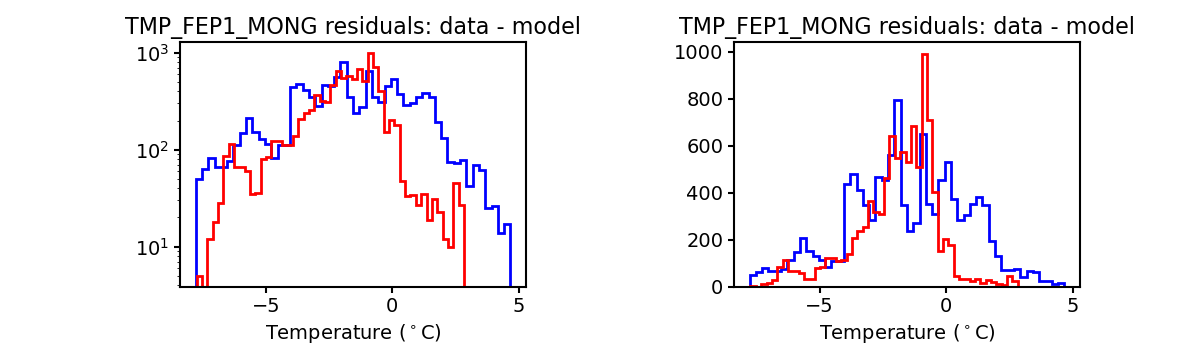

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

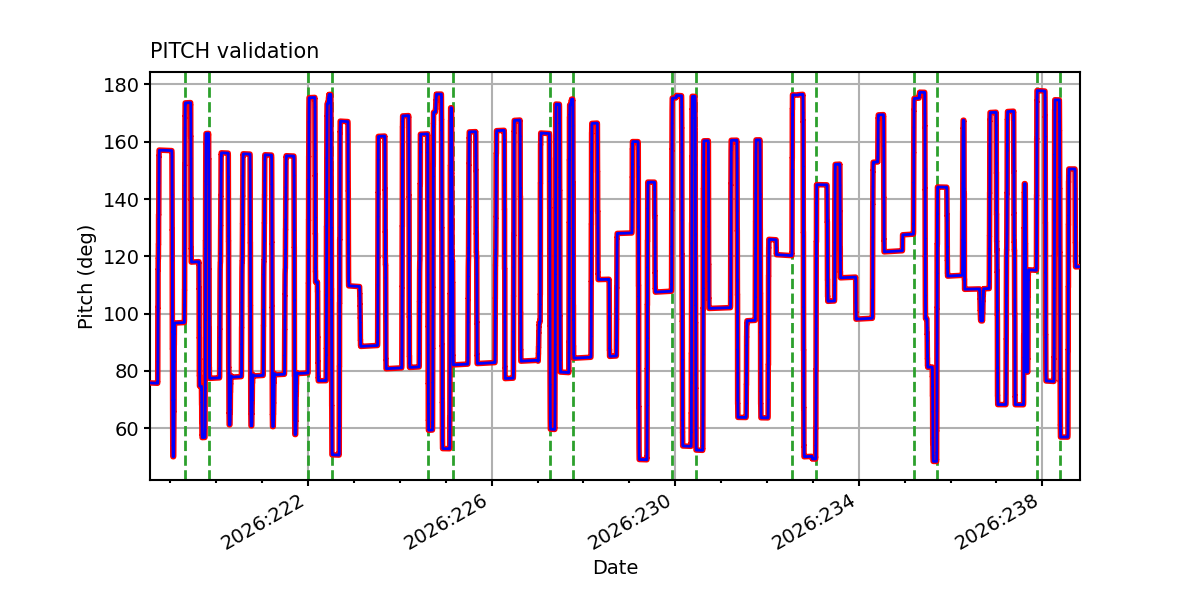

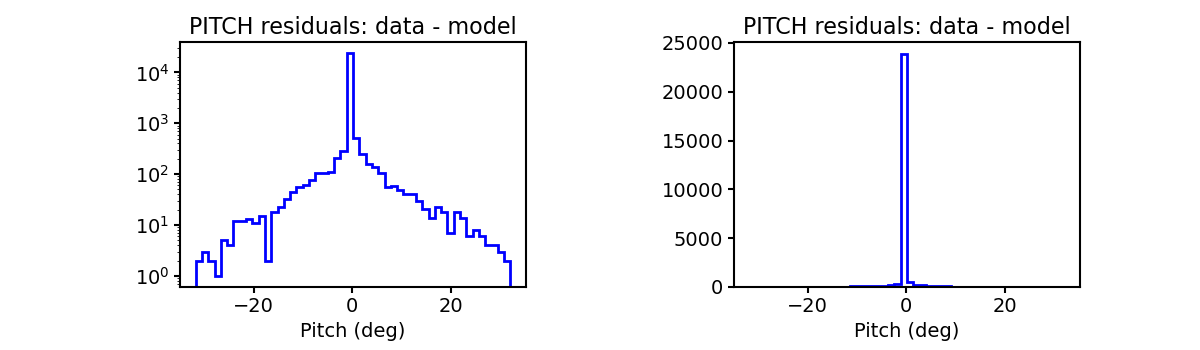

PITCH

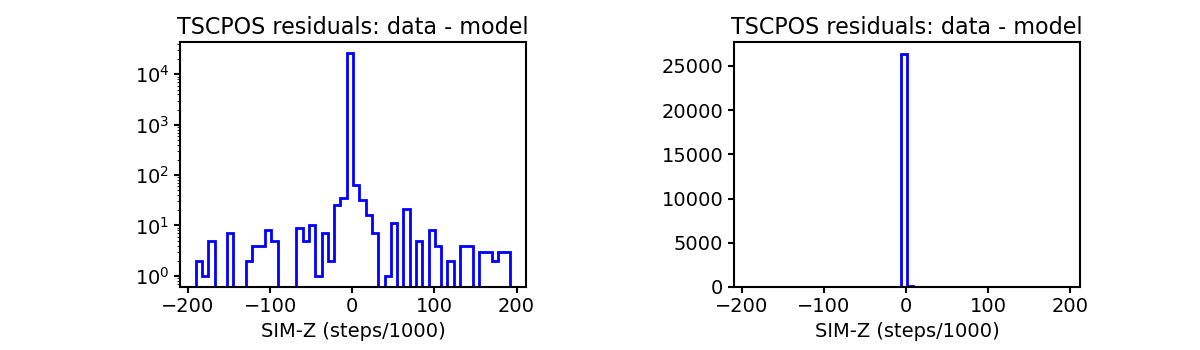

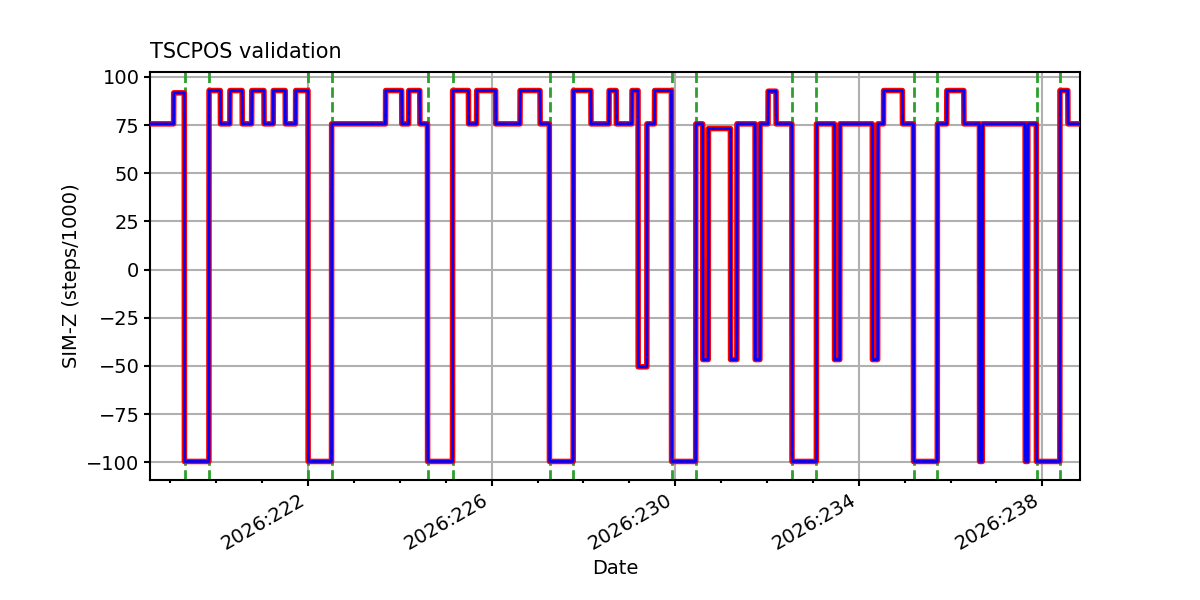

TSCPOS

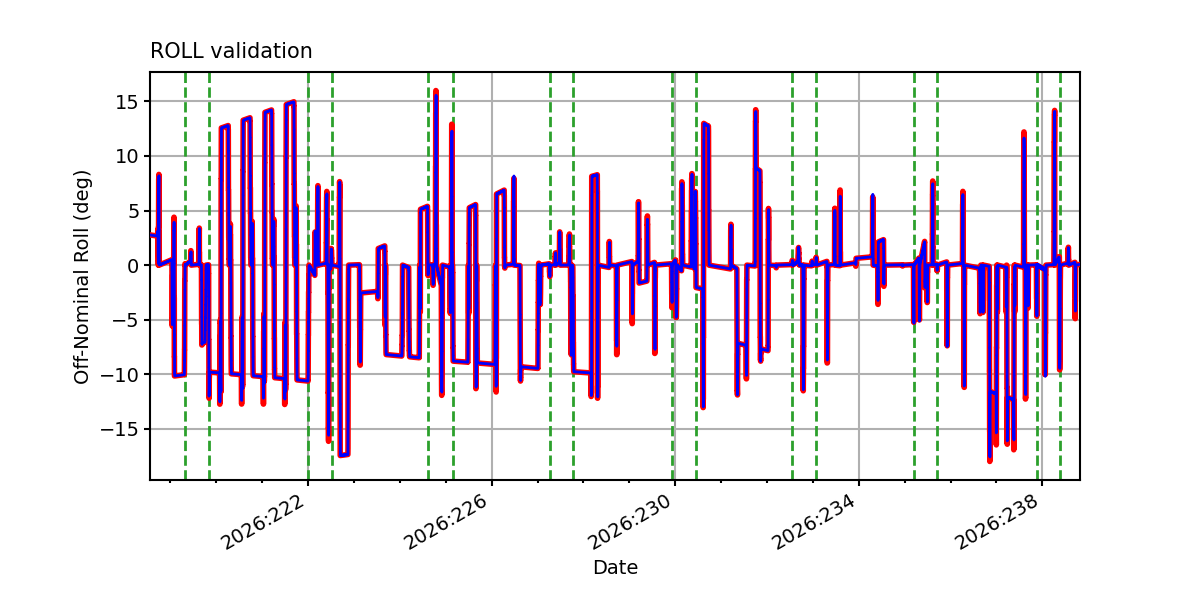

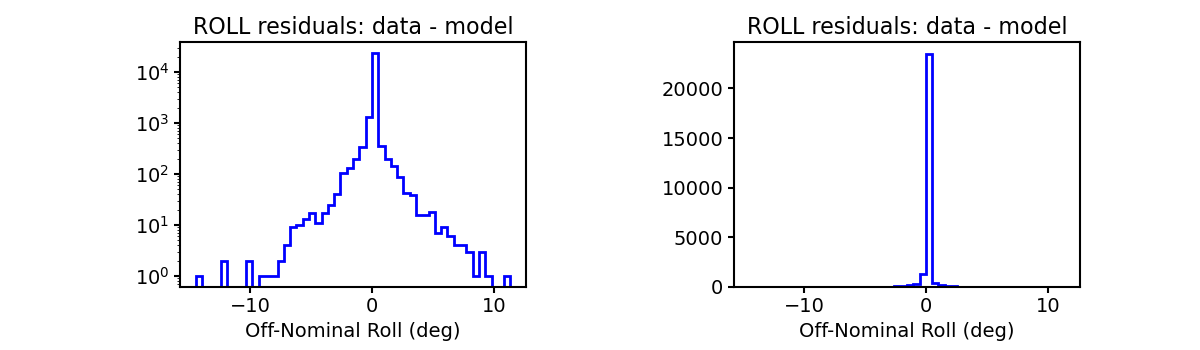

ROLL

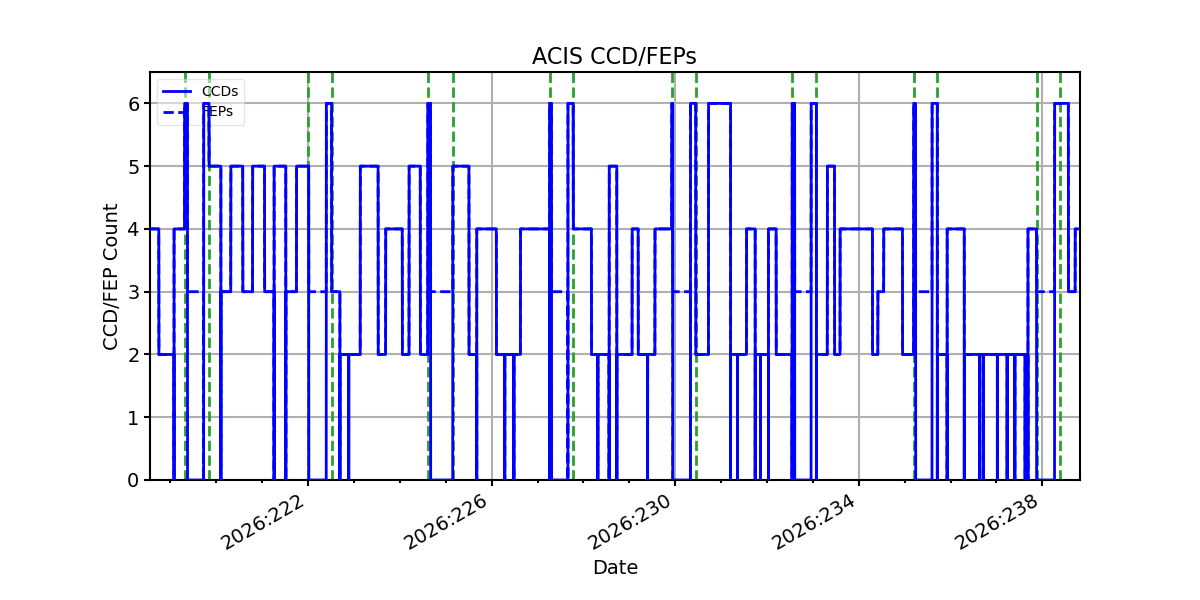

ACIS CCD/FEP Count
