FEP1_MONG Temperatures Check
Summary
| Date start | 2025:335:01:19:35.216 |
| Date stop | 2025:342:01:01:51.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0125/oflsa |
| Run time | Tue Nov 25 12:11:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.42 | -3.65 | -2.16 | -0.05 | 1.67 | 2.99 | 4.34 |
| pitch | -12.685 | -1.526 | -0.004 | -0.000 | 0.004 | 1.394 | 13.145 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.726 | -0.272 | -0.007 | 0.000 | 0.007 | 0.309 | 2.903 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.42 | 2.00 |
| TMP_FEP1_MONG | 99 | 4.34 | 2.00 |
| PITCH | 1 | -12.685 | 3.00 |
| PITCH | 99 | 13.145 | 3.00 |

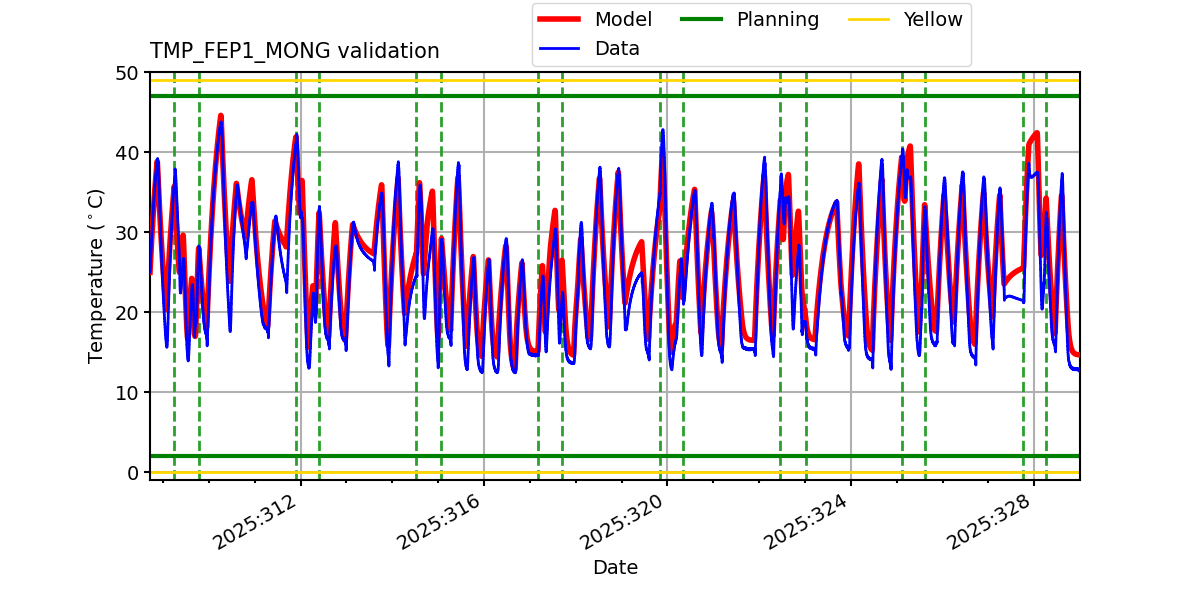

TMP_FEP1_MONG

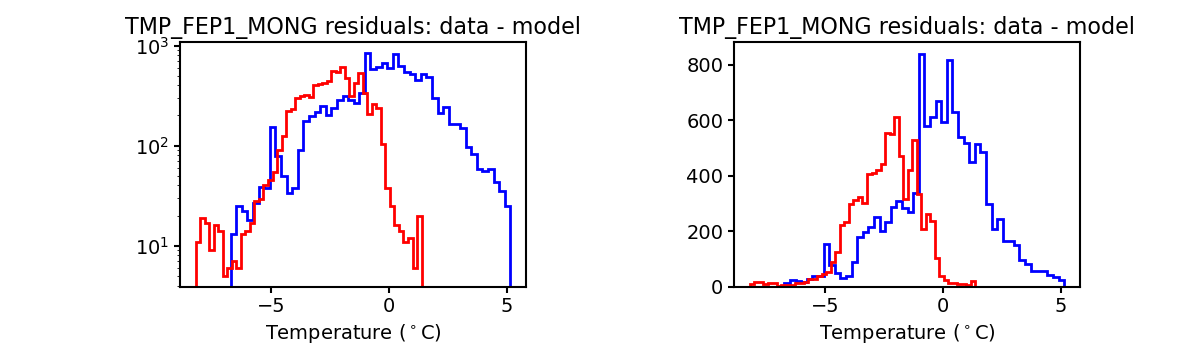

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

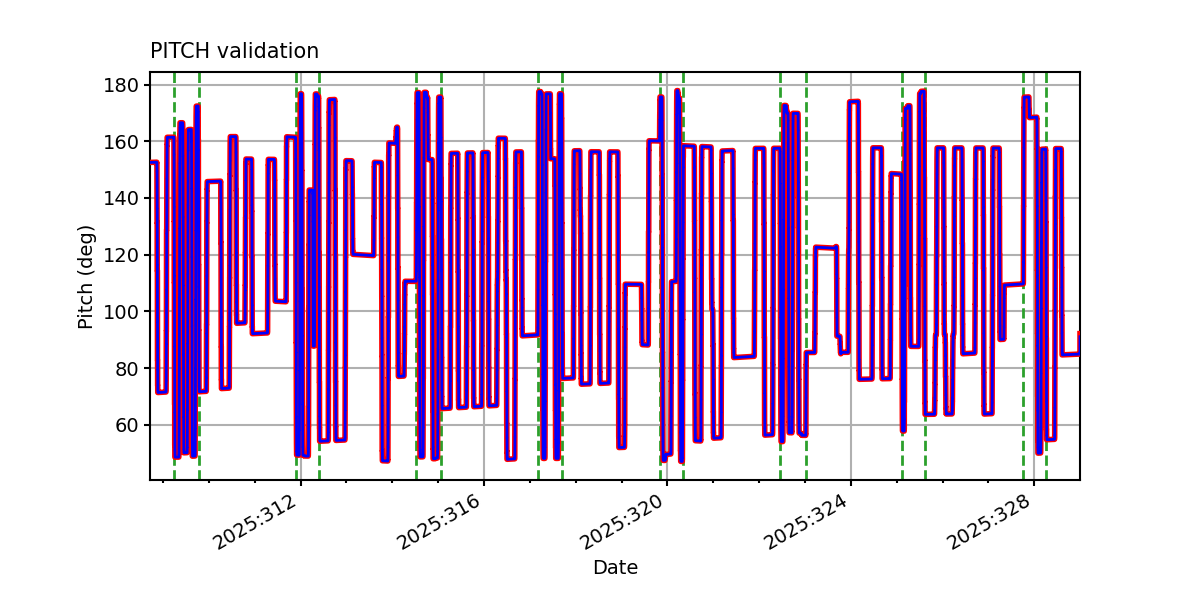

PITCH

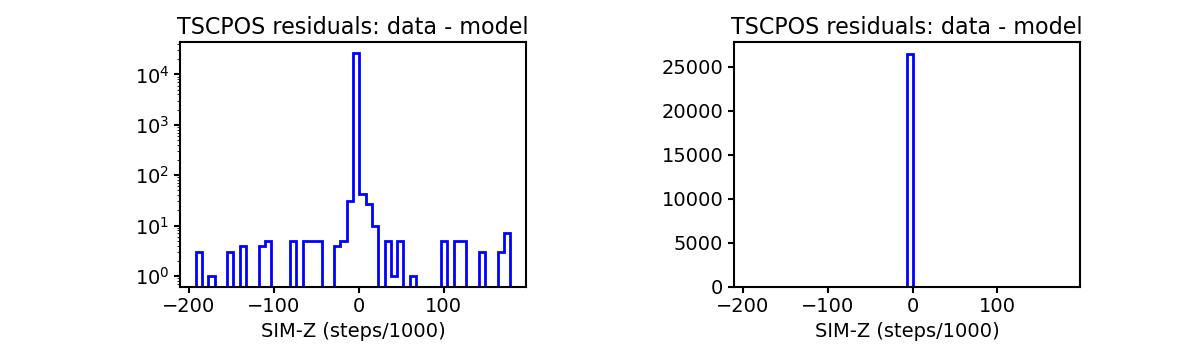

TSCPOS

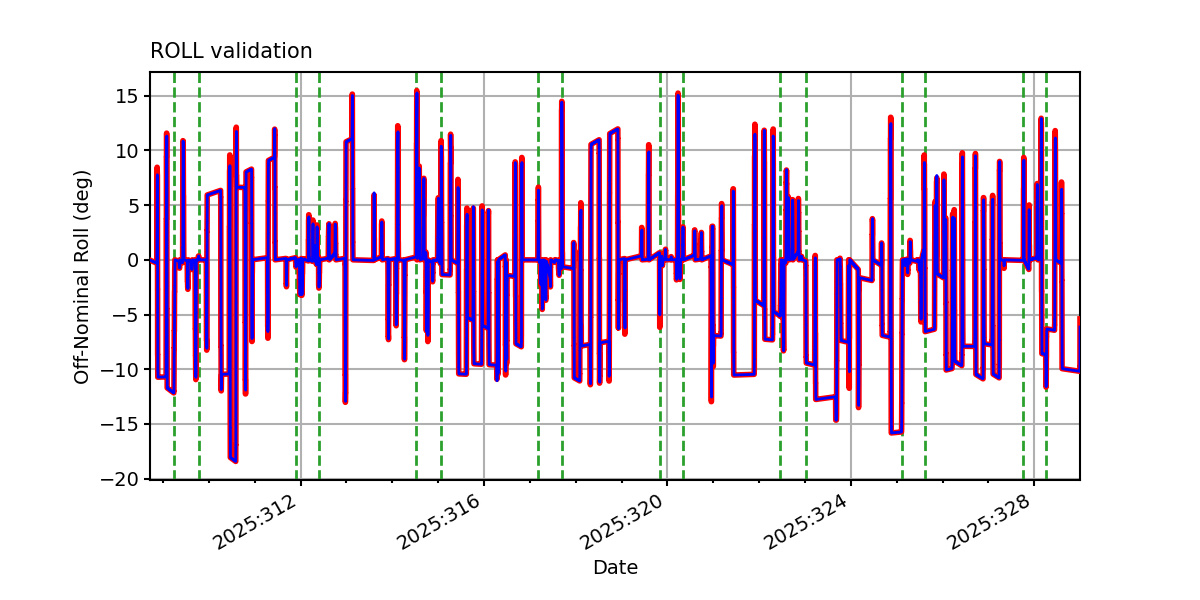

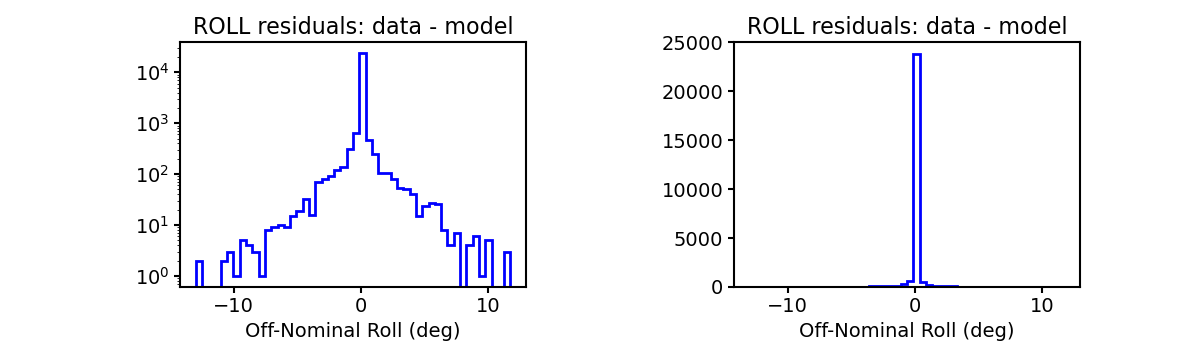

ROLL

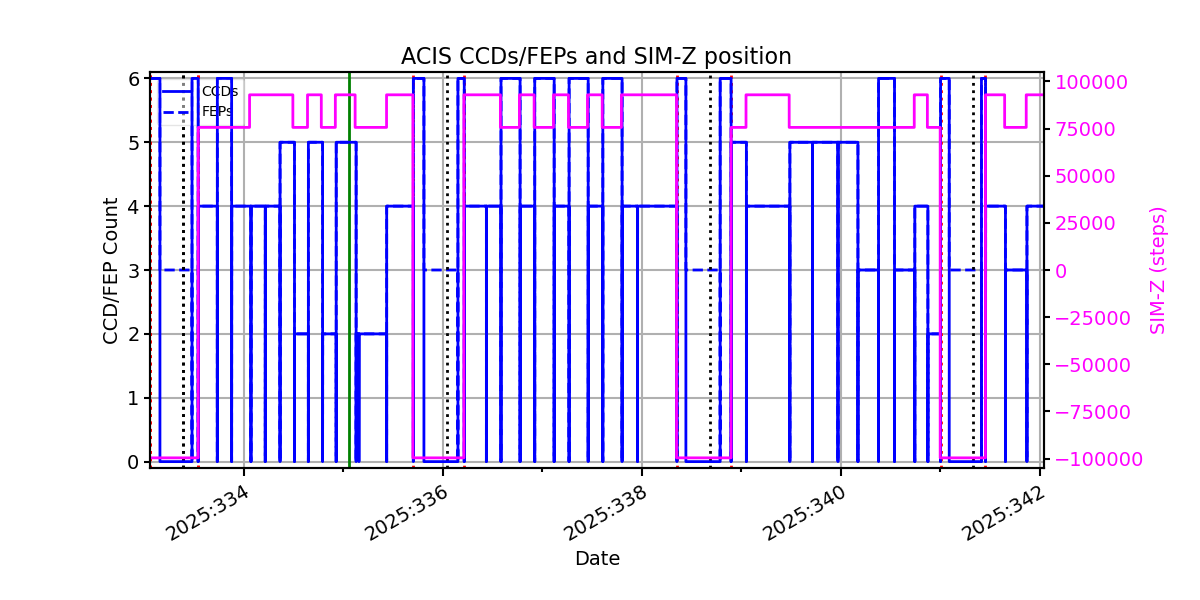

ACIS CCD/FEP Count
