FEP1_MONG Temperatures Check
Summary
| Date start | 2025:342:00:58:51.816 |
| Date stop | 2025:349:00:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0825/oflsa |
| Run time | Wed Dec 3 15:27:47 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.48 | -4.60 | -2.79 | 0.07 | 1.87 | 3.22 | 4.64 |
| pitch | -11.680 | -0.763 | -0.004 | -0.000 | 0.004 | 0.772 | 12.292 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.715 | -0.205 | -0.007 | 0.000 | 0.007 | 0.216 | 2.659 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.48 | 2.00 |
| TMP_FEP1_MONG | 99 | 4.64 | 2.00 |
| PITCH | 1 | -11.68 | 3.00 |
| PITCH | 99 | 12.292 | 3.00 |

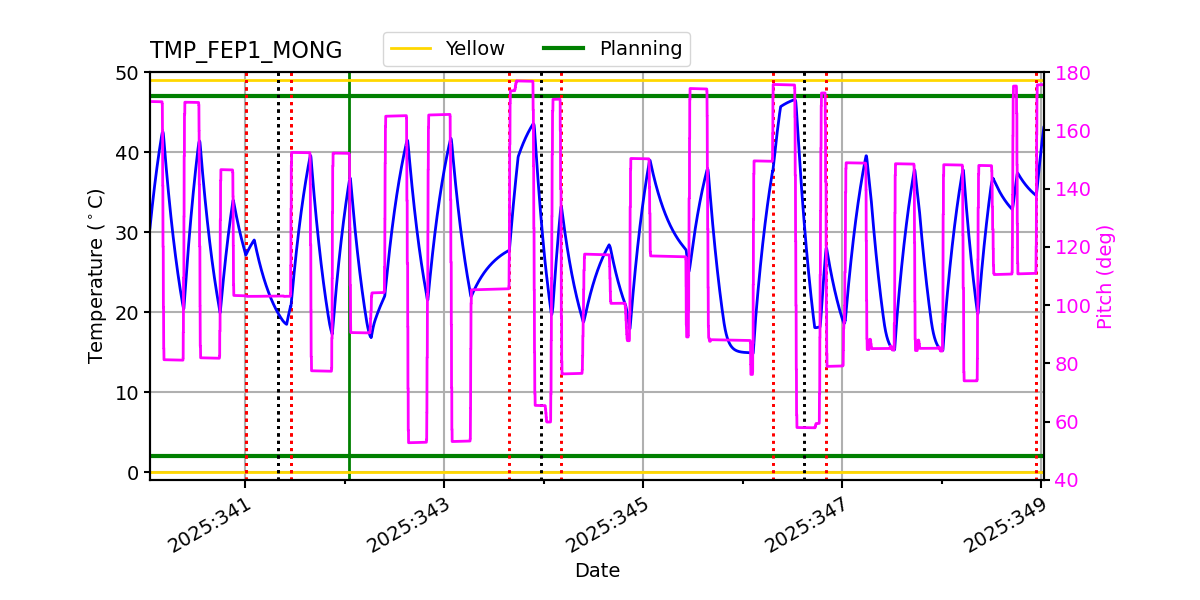

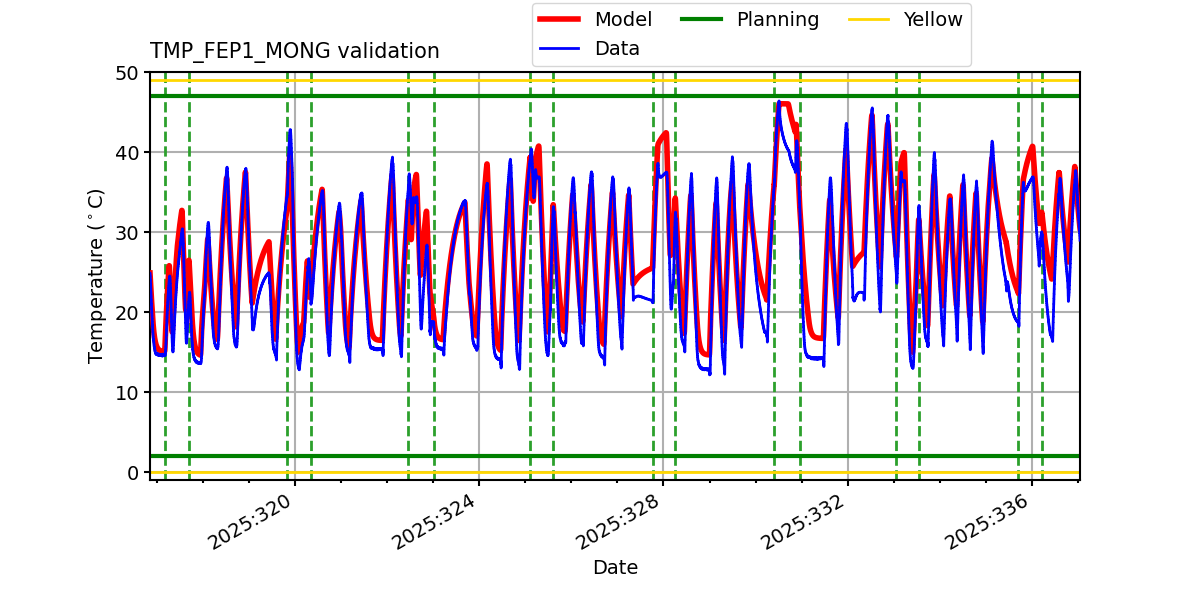

TMP_FEP1_MONG

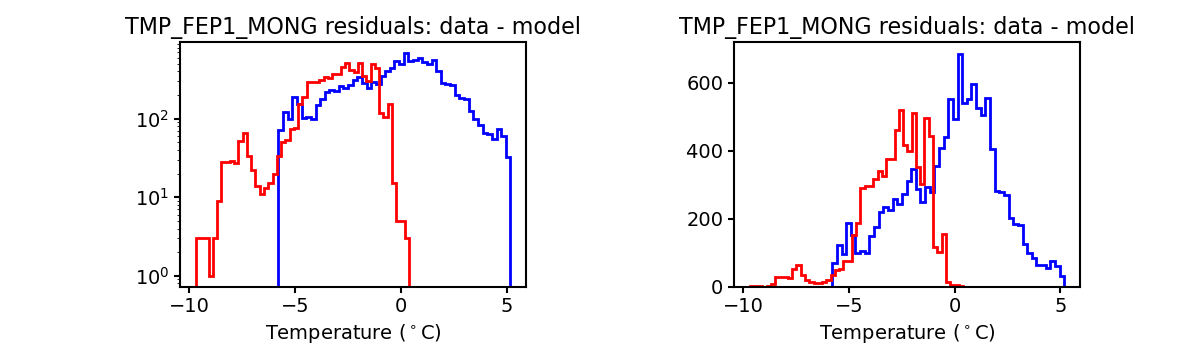

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

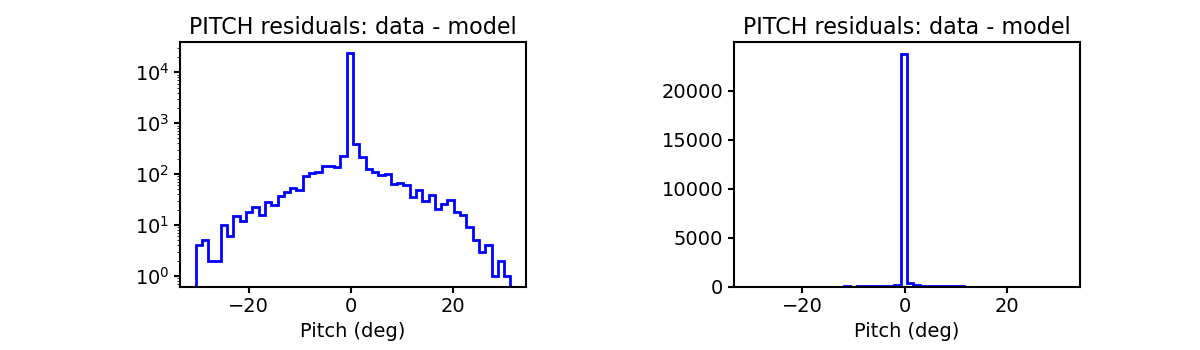

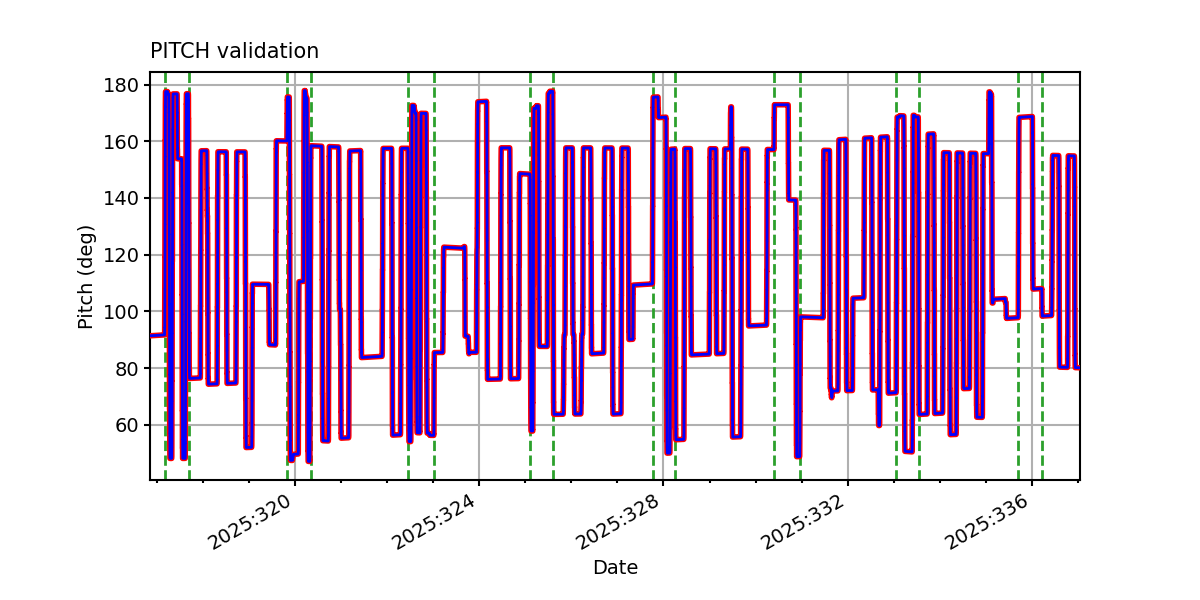

PITCH

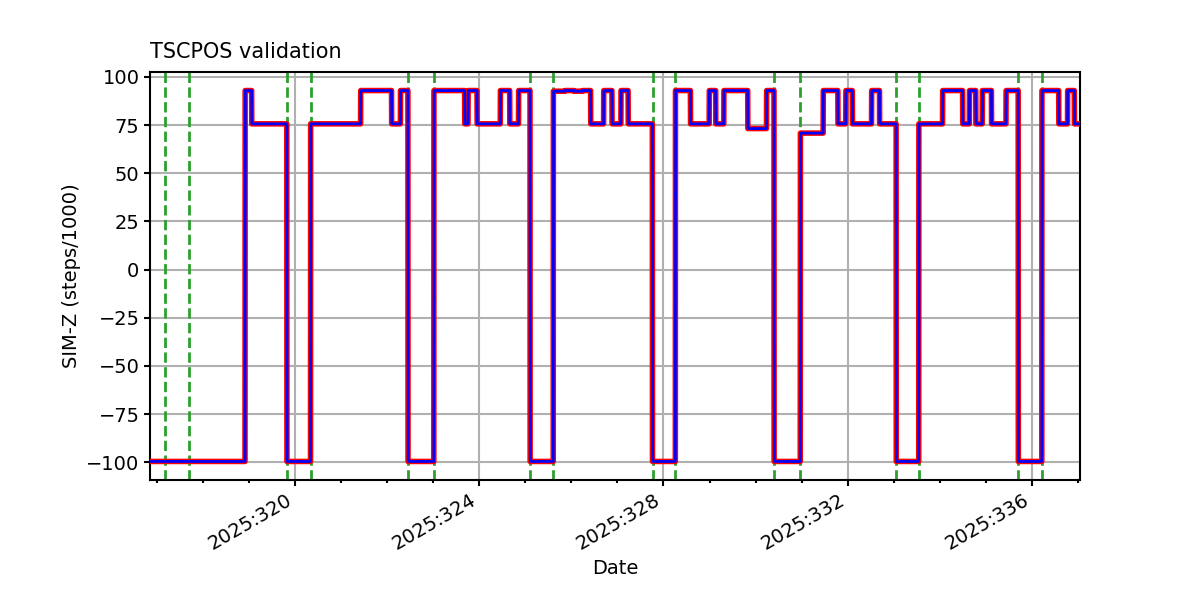

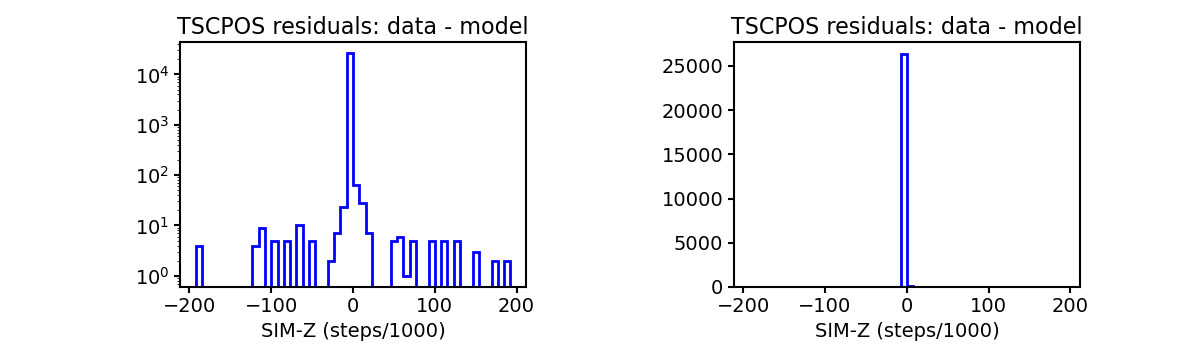

TSCPOS

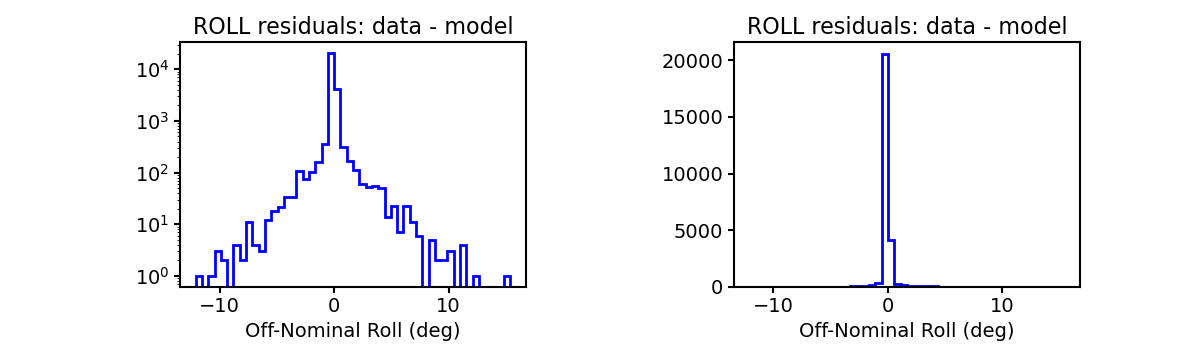

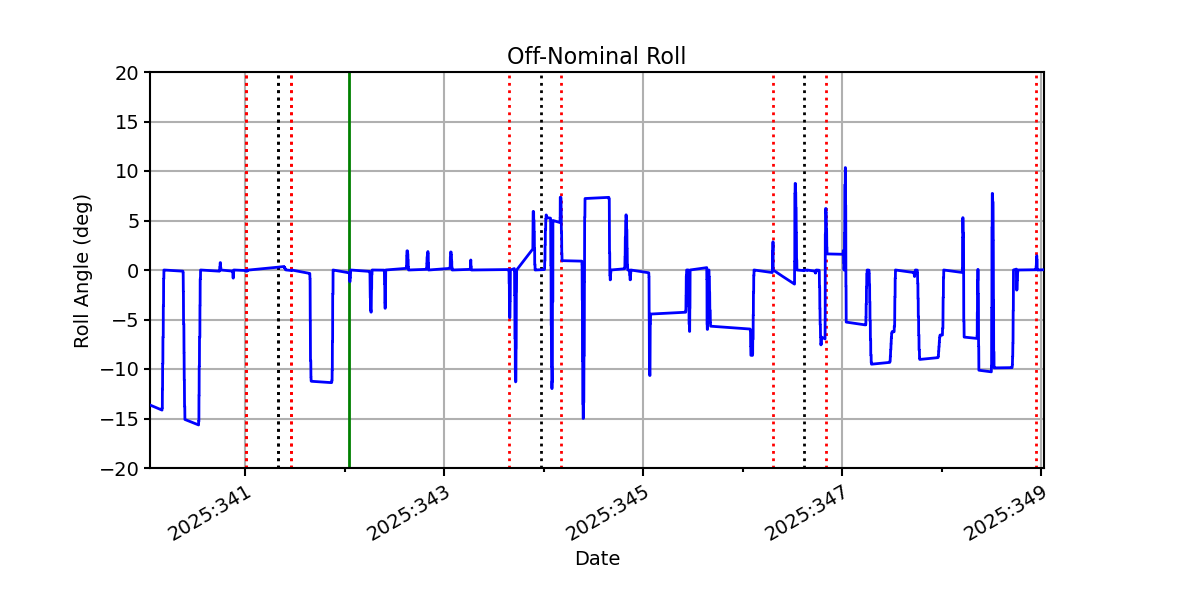

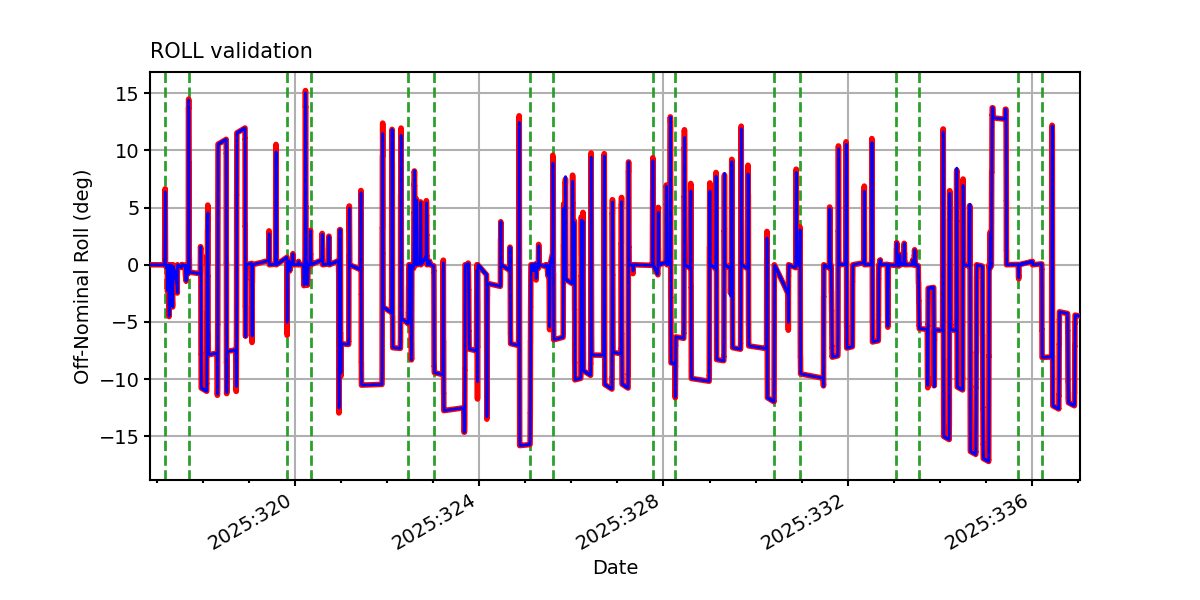

ROLL

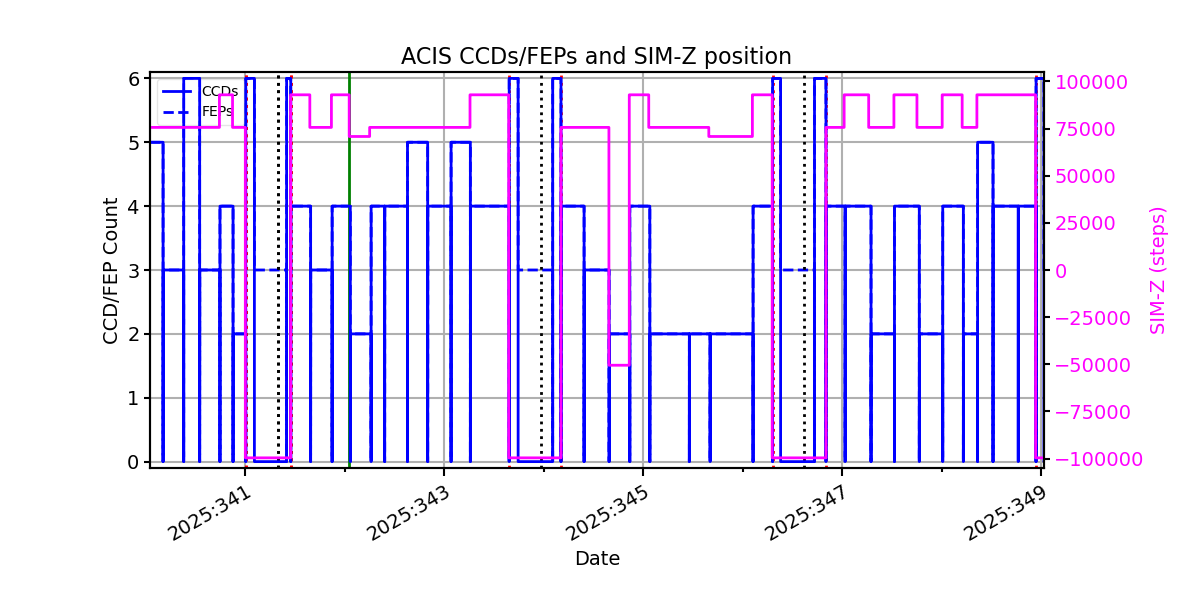

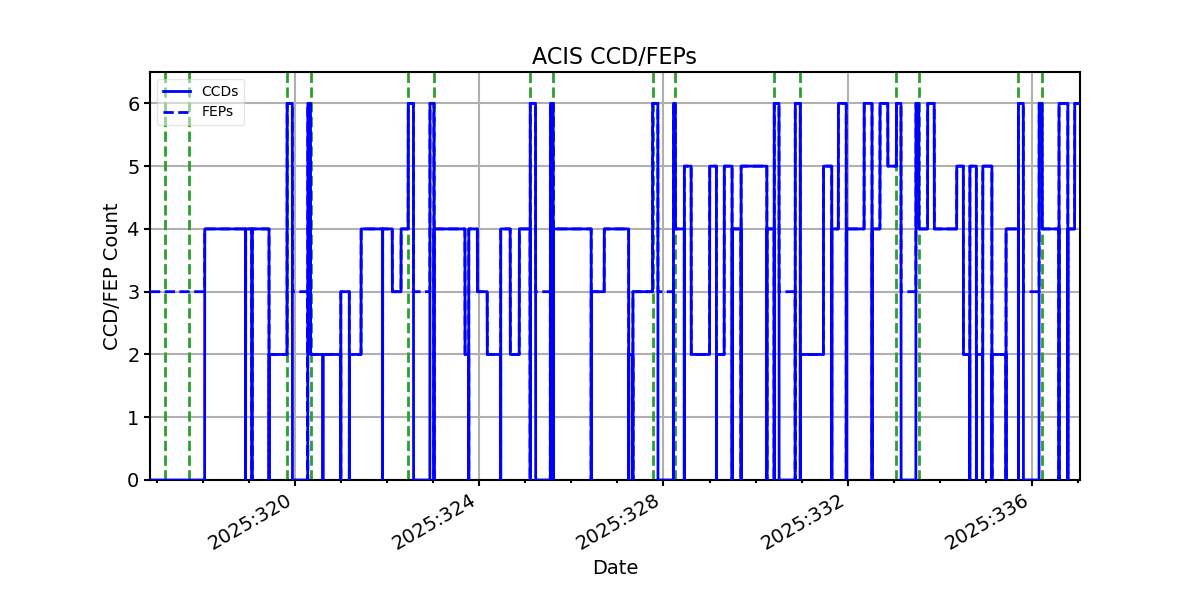

ACIS CCD/FEP Count
