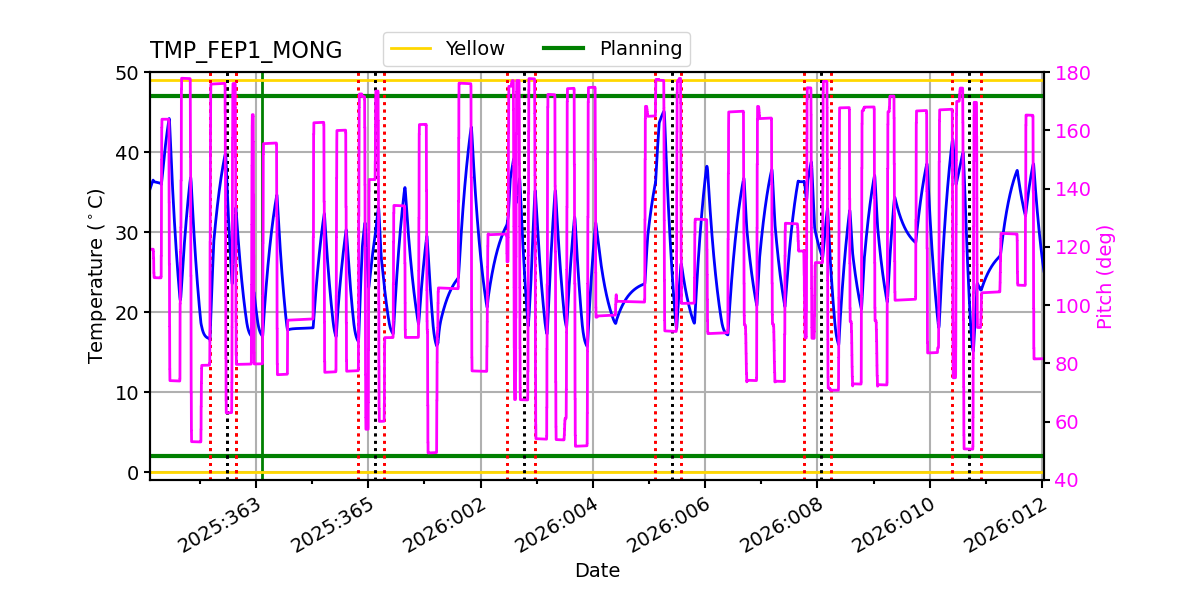

FEP1_MONG Temperatures Check
Summary
| Date start | 2025:363:02:40:37.616 |
| Date stop | 2026:012:00:54:56.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2925/oflsb |
| Run time | Tue Dec 23 11:54:13 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.76 | -5.20 | -3.27 | -1.05 | 0.38 | 1.55 | 2.35 |
| pitch | -11.355 | -0.561 | -0.004 | 0.000 | 0.004 | 0.700 | 11.694 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.871 | -0.136 | -0.006 | 0.000 | 0.006 | 0.152 | 1.619 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.76 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.05 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.35 | 2.00 |
| PITCH | 1 | -11.355 | 3.00 |
| PITCH | 99 | 11.694 | 3.00 |
TMP_FEP1_MONG

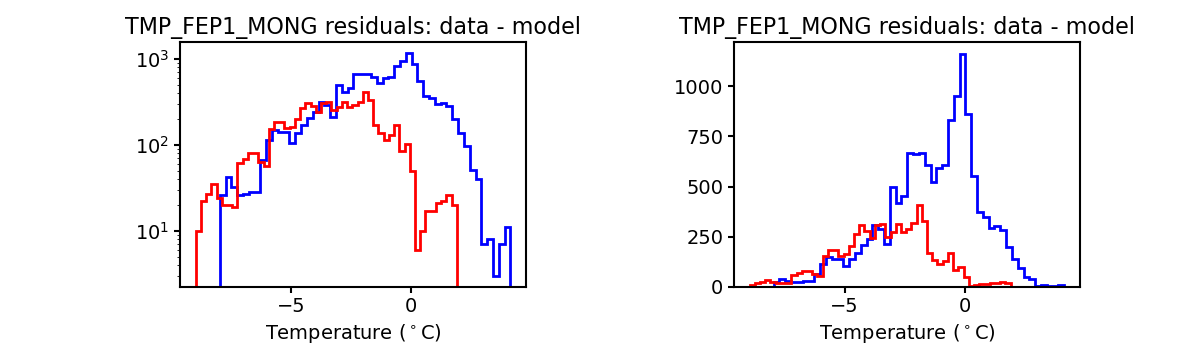

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

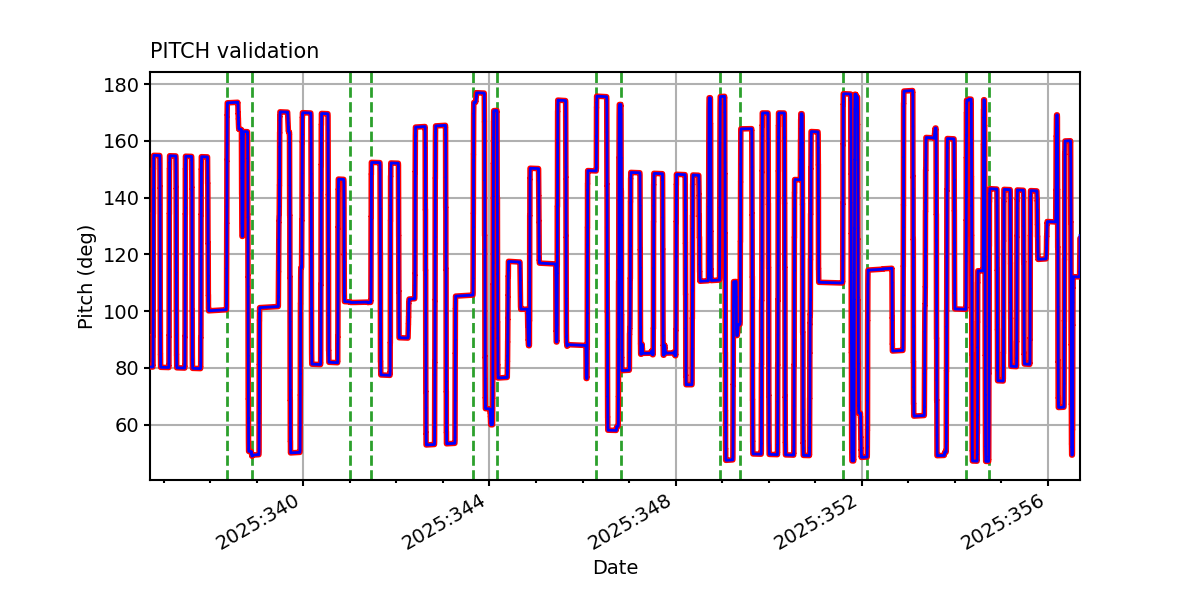

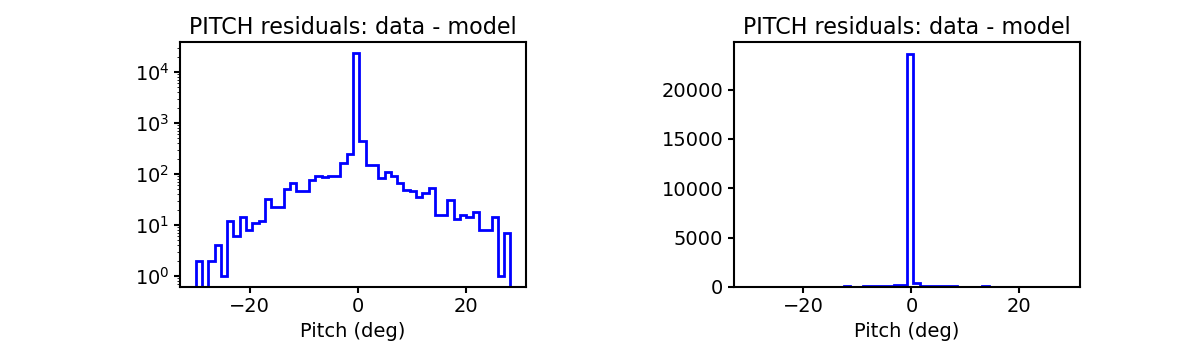

PITCH

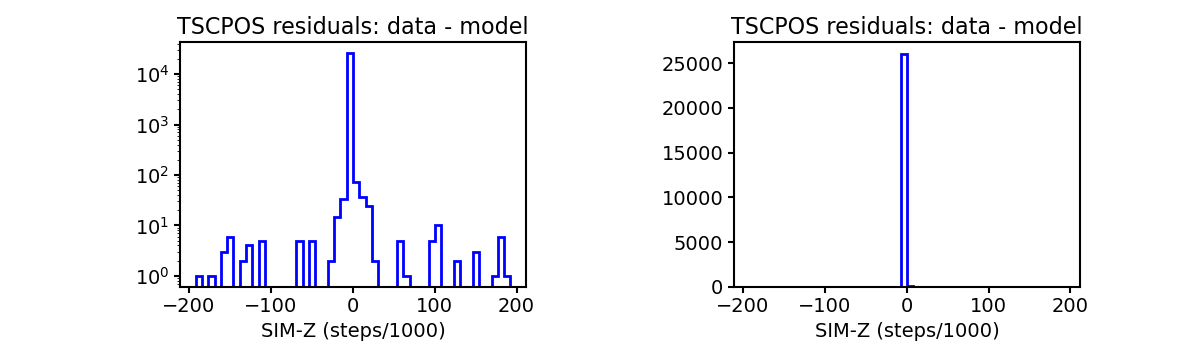

TSCPOS

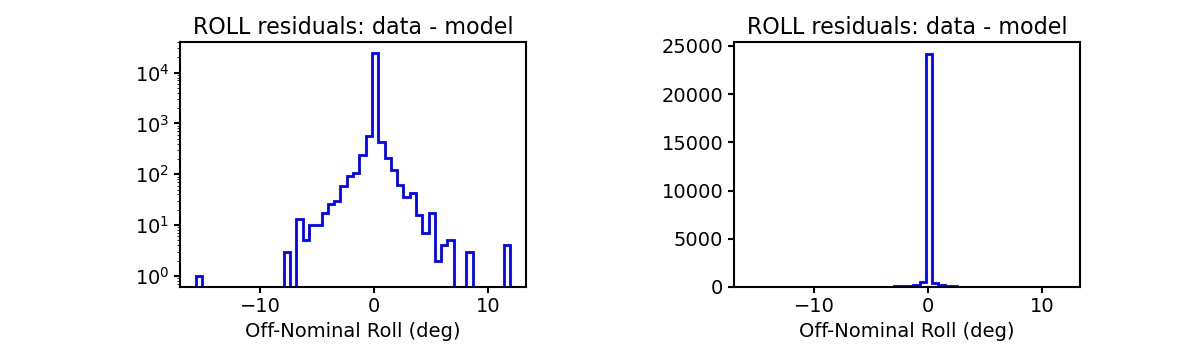

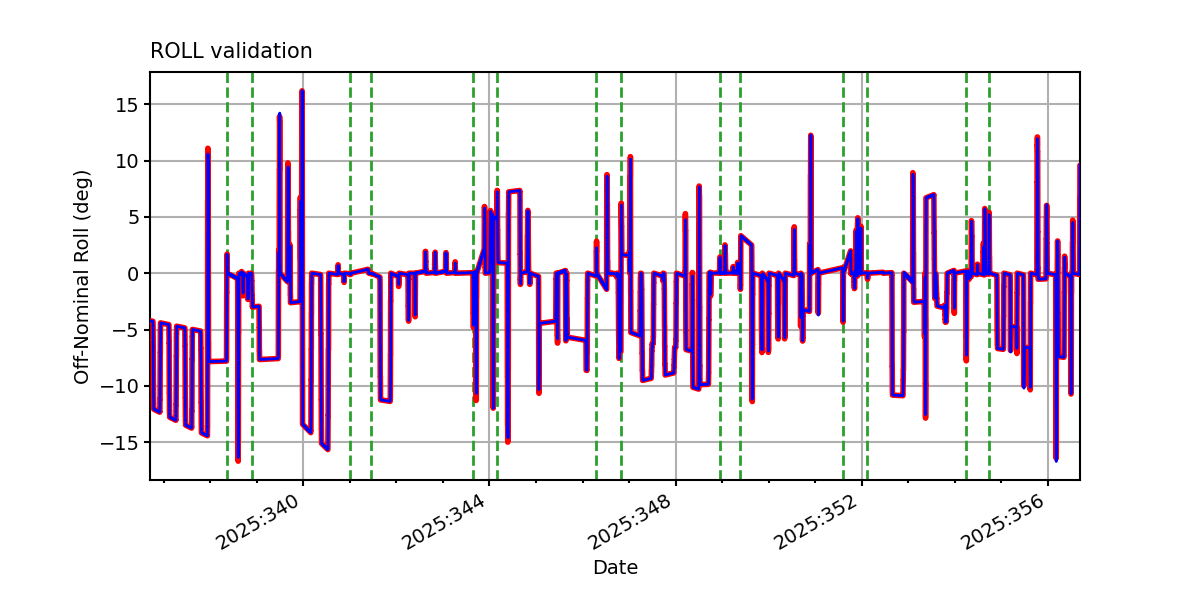

ROLL

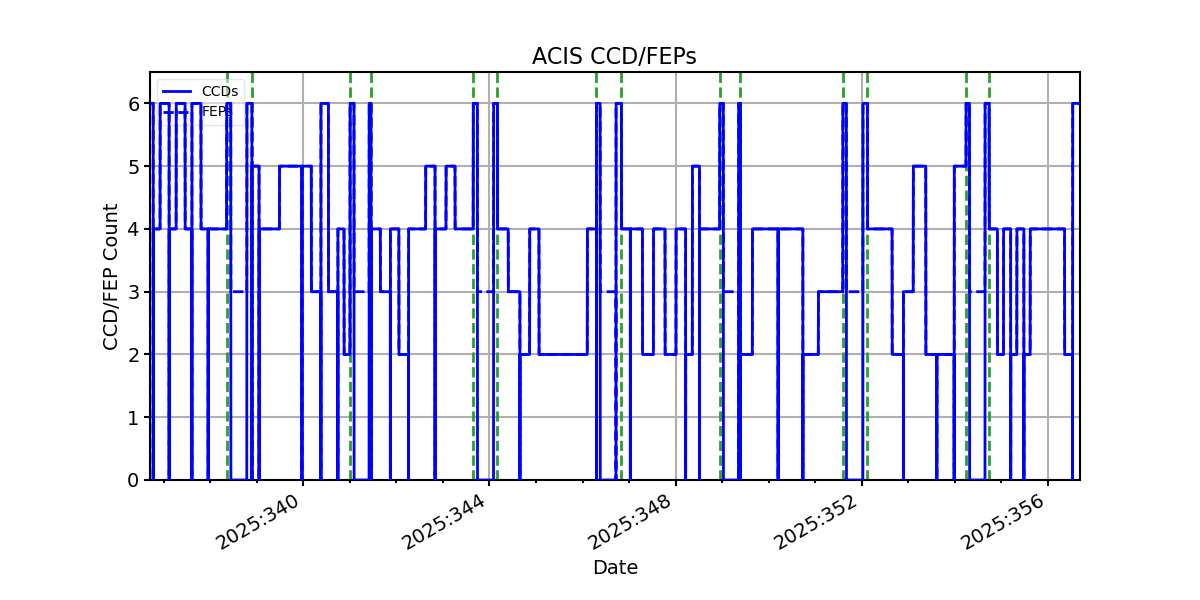

ACIS CCD/FEP Count
