FEP1_MONG Temperatures Check
Summary
| Date start | 2026:054:01:52:44.816 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2326/oflsa |
| Run time | Wed Feb 18 17:48:31 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_MONG Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:056:17:11:07.616 | 2026:056:17:38:27.616 | 1.64 | 47.46 / 47.00 |
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.70 | -5.12 | -3.96 | -1.74 | 0.17 | 1.63 | 2.95 |
| pitch | -10.370 | -0.668 | -0.004 | 0.000 | 0.004 | 0.516 | 12.846 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.025 | -0.161 | -0.010 | -0.000 | 0.010 | 0.105 | 1.928 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.7 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.74 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.95 | 2.00 |
| PITCH | 1 | -10.37 | 3.00 |
| PITCH | 99 | 12.846 | 3.00 |
TMP_FEP1_MONG

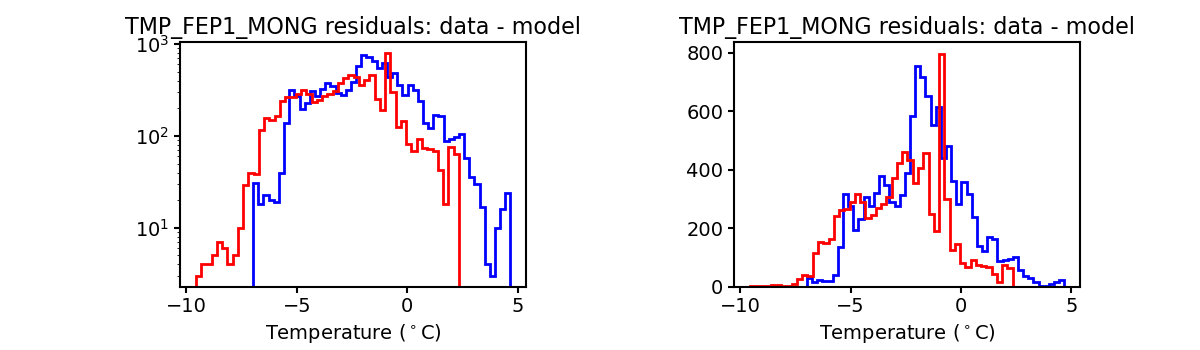

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

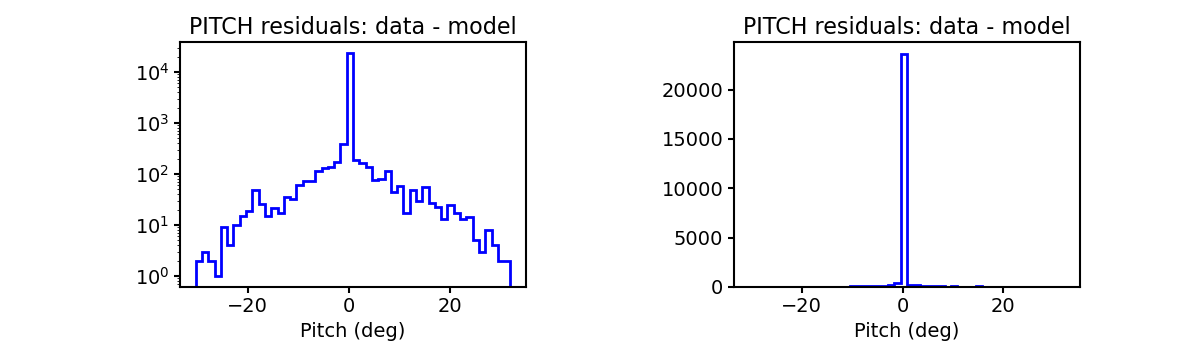

PITCH

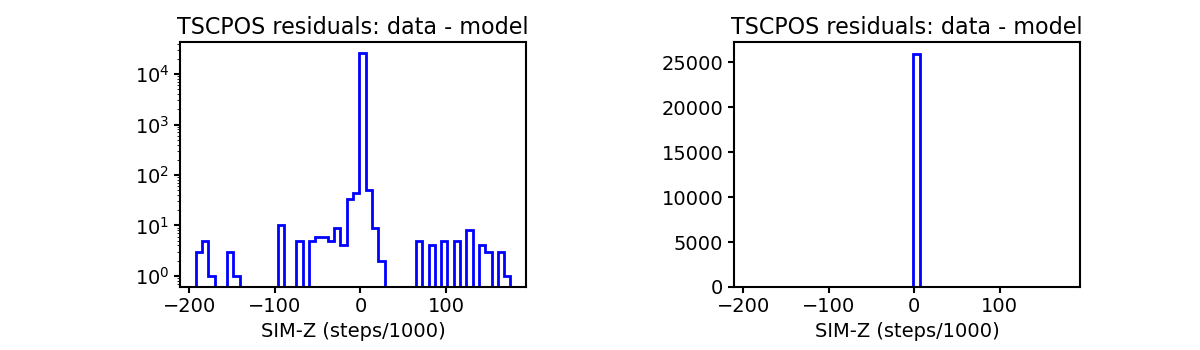

TSCPOS

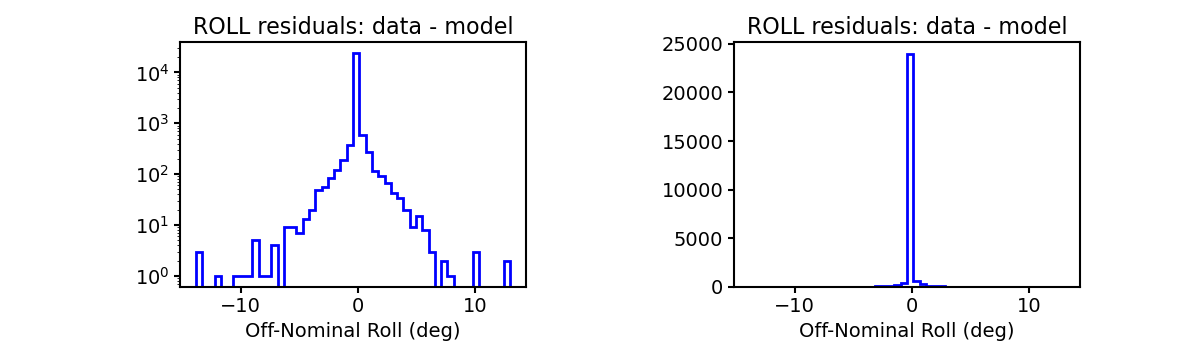

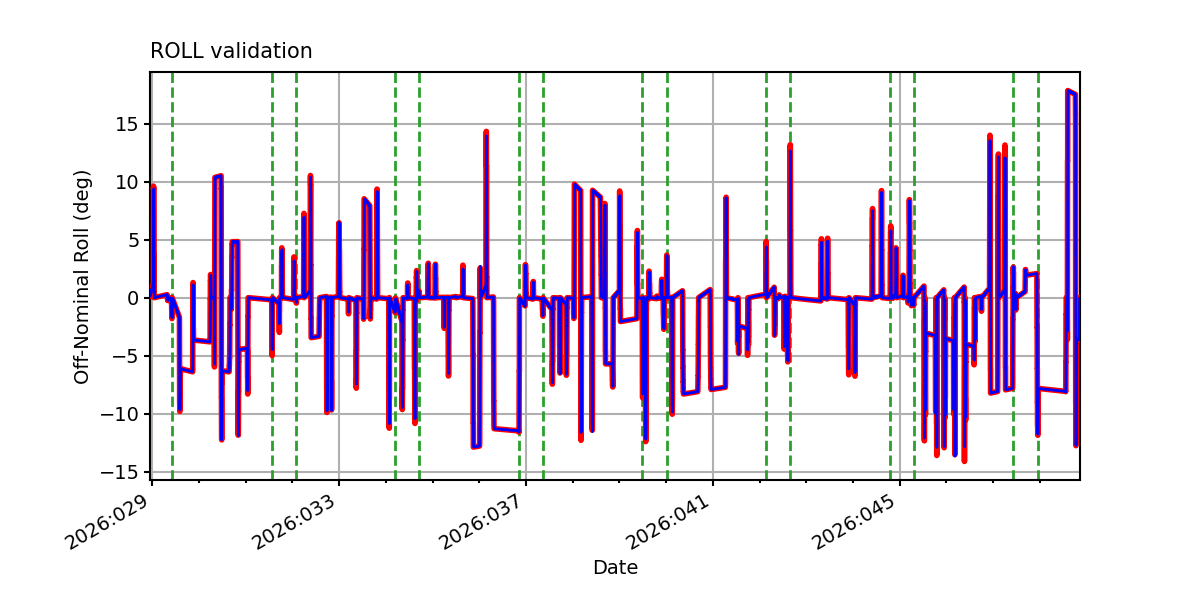

ROLL

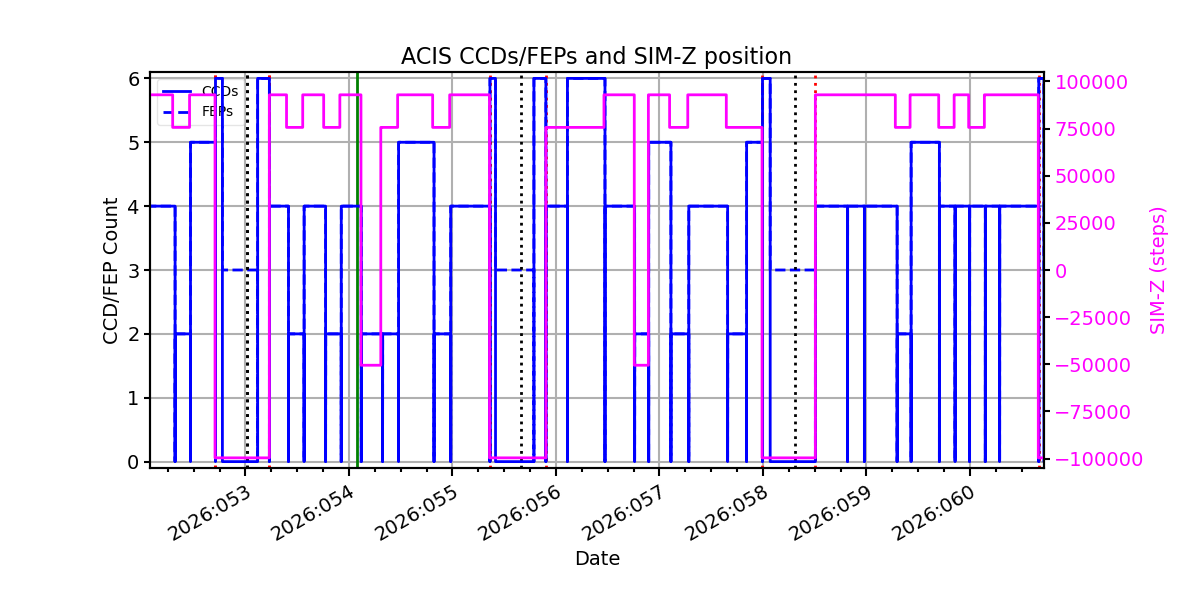

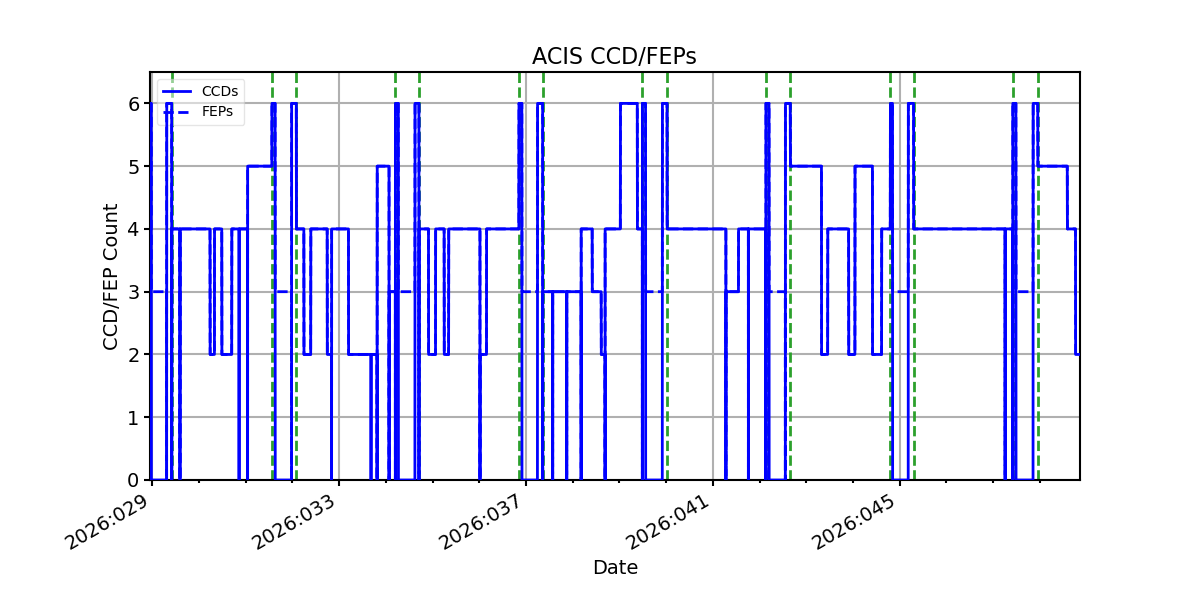

ACIS CCD/FEP Count
