FEP1_MONG Temperatures Check
Summary
| Date start | 2026:056:22:59:59.016 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2526/oflsa |
| Run time | Sun Feb 22 20:17:20 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.70 | -5.01 | -3.84 | -1.47 | 0.54 | 2.00 | 3.14 |
| pitch | -10.091 | -0.696 | -0.004 | -0.000 | 0.004 | 0.446 | 12.855 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.034 | -0.154 | -0.011 | -0.000 | 0.011 | 0.109 | 1.928 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.7 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.47 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.14 | 2.00 |
| PITCH | 1 | -10.091 | 3.00 |
| PITCH | 99 | 12.855 | 3.00 |

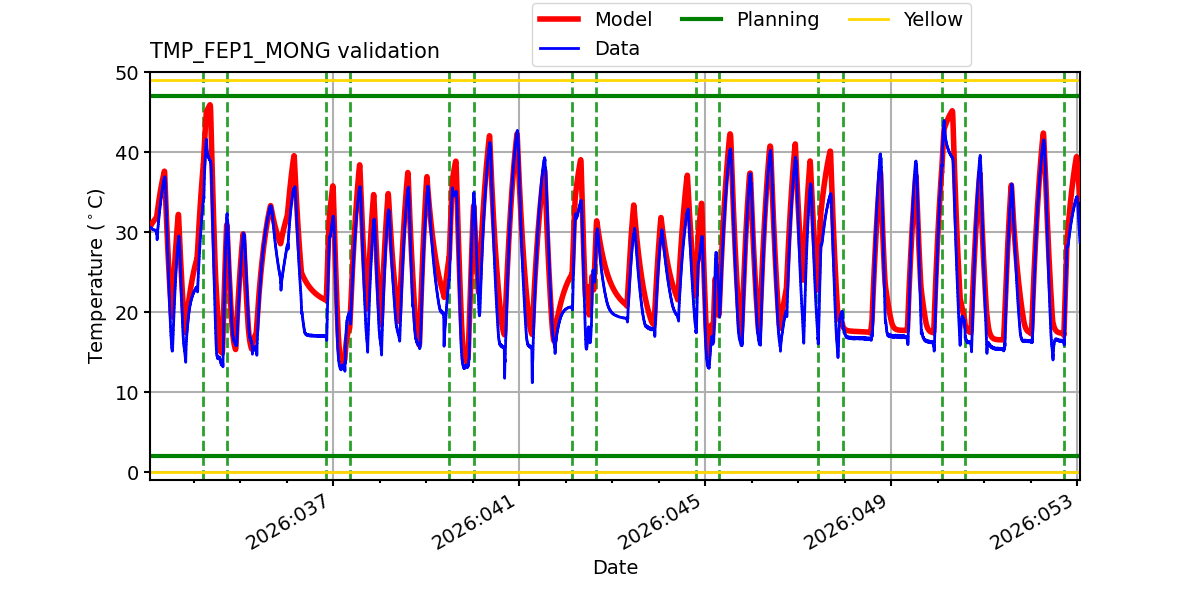

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

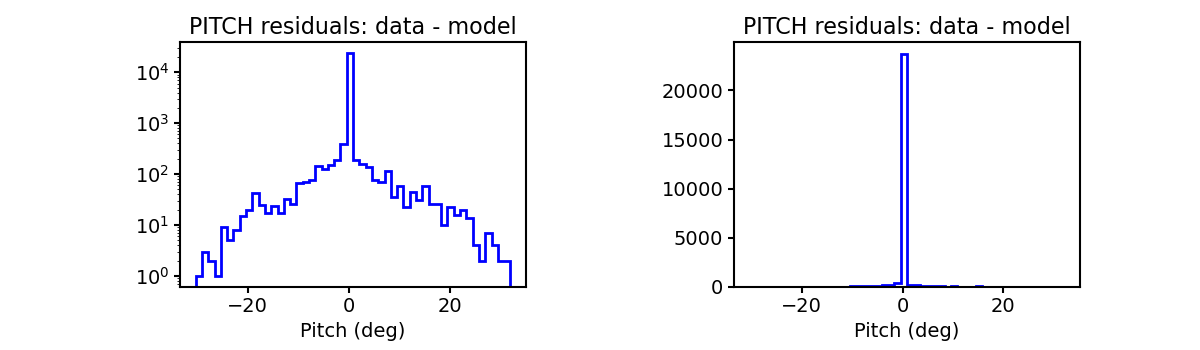

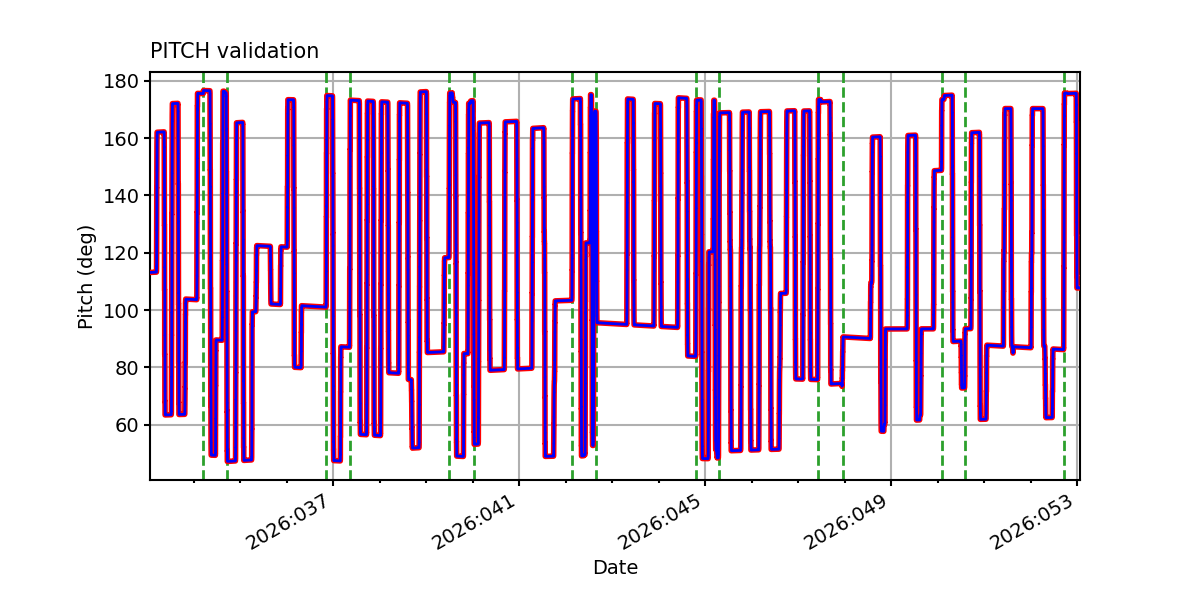

PITCH

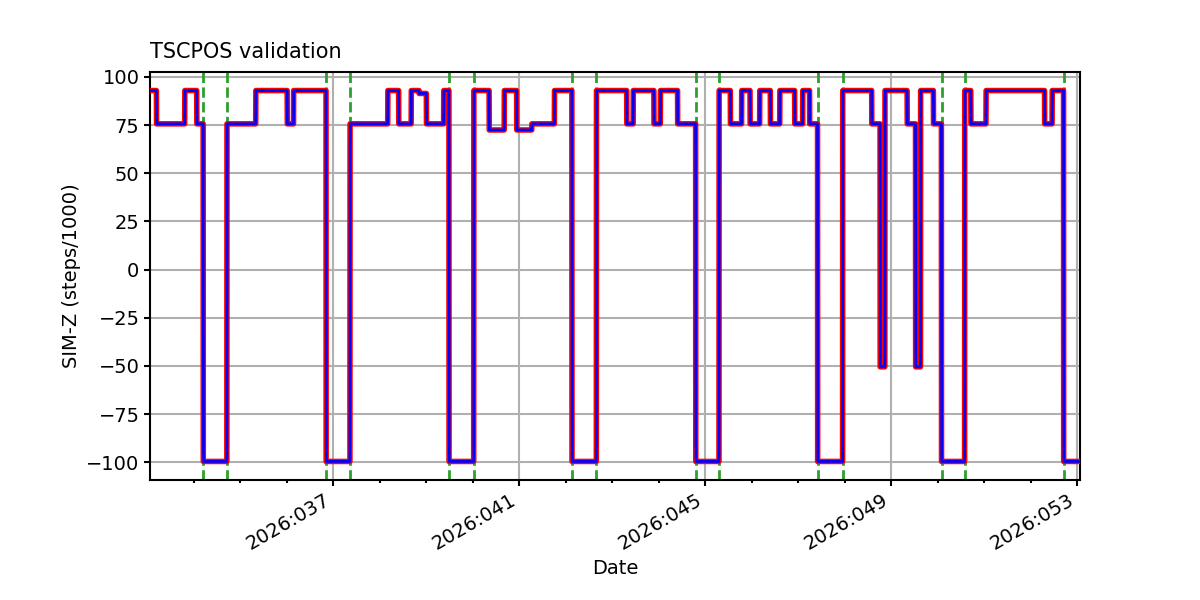

TSCPOS

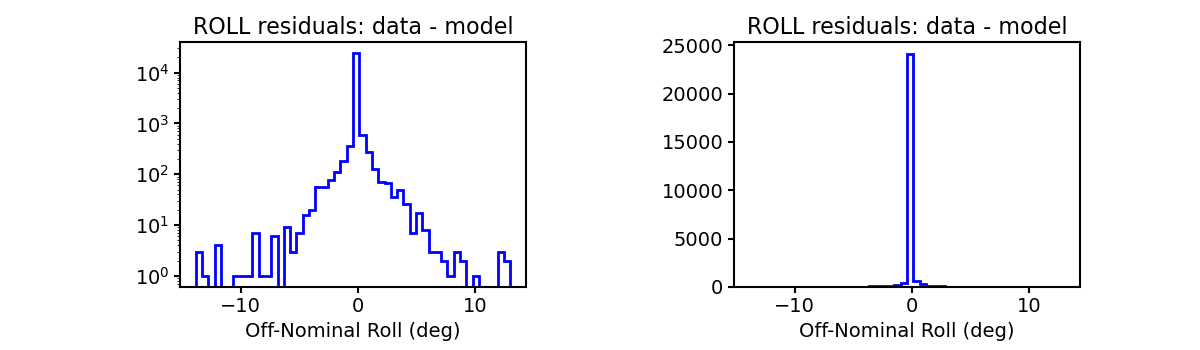

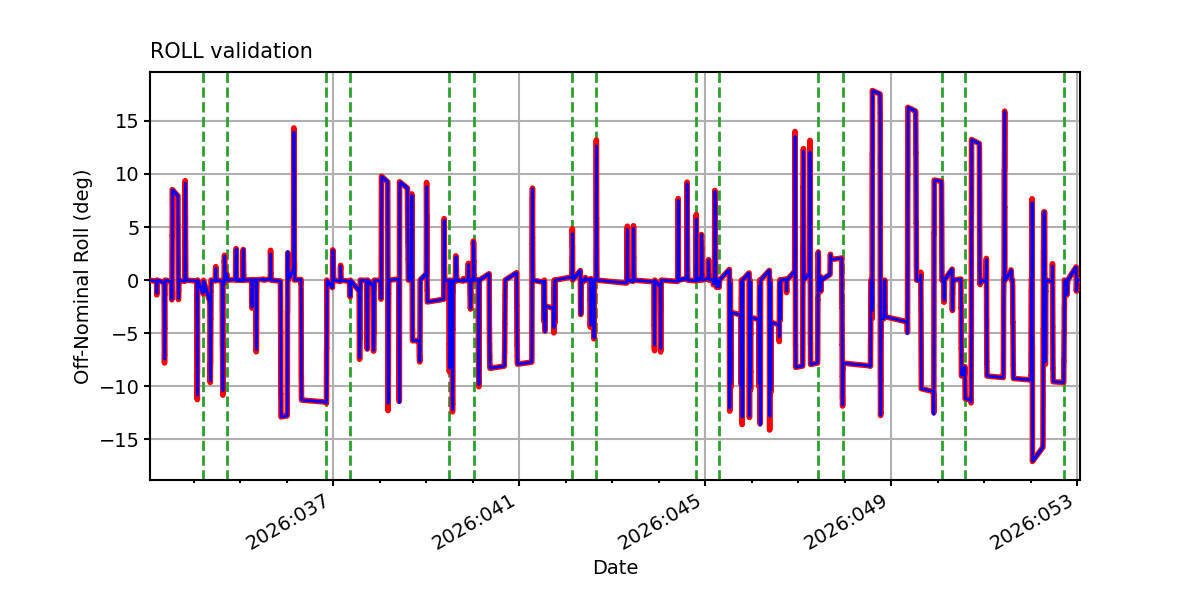

ROLL

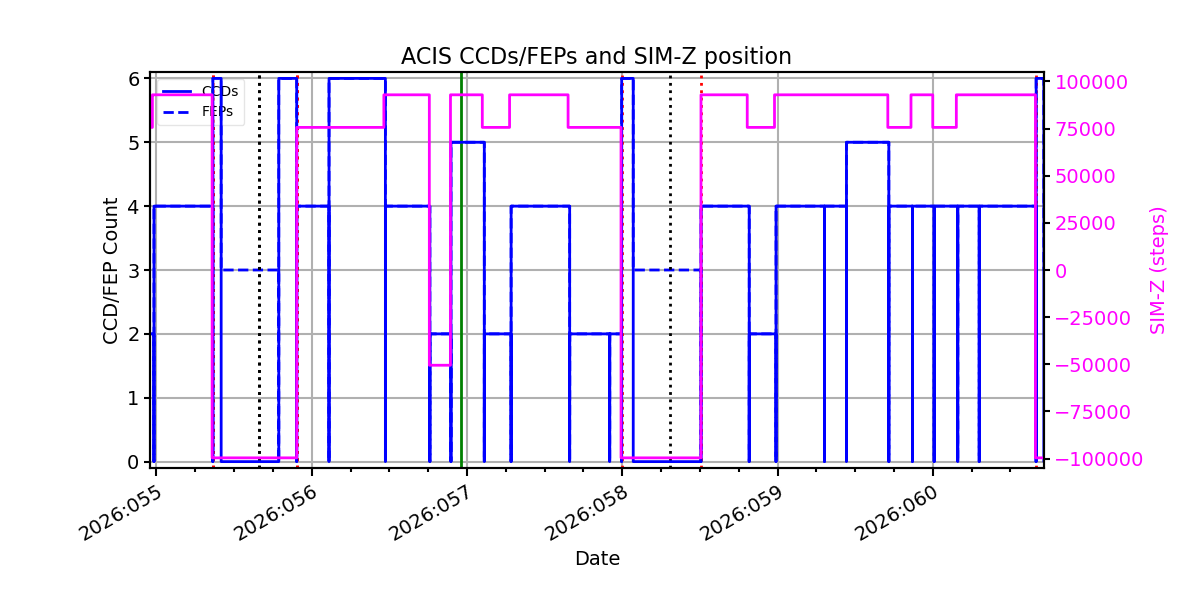

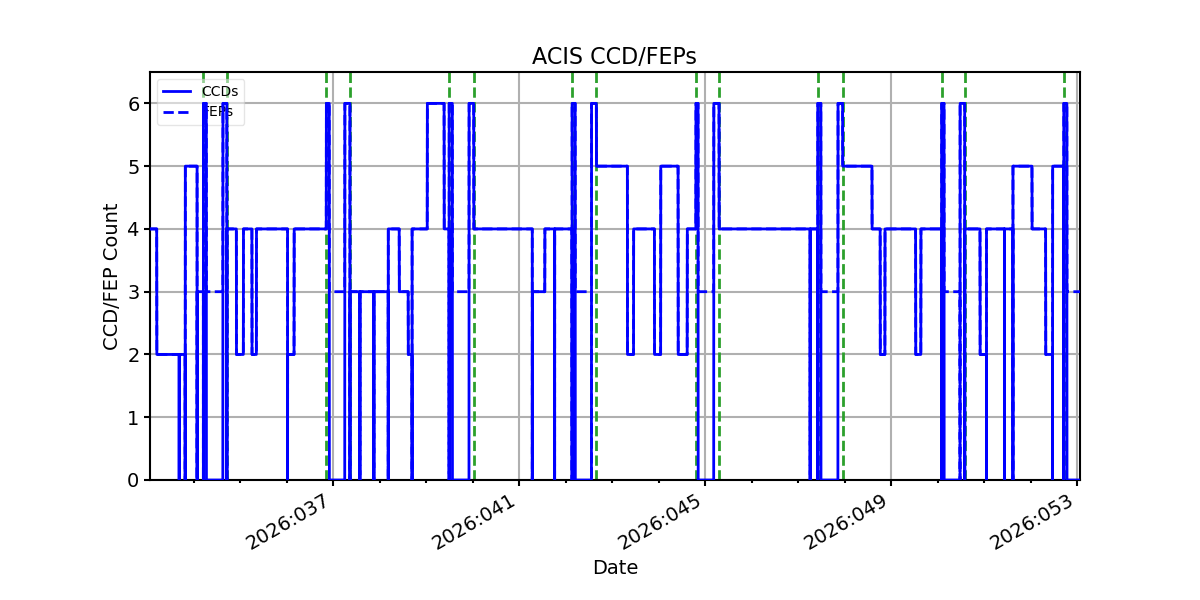

ACIS CCD/FEP Count
