FEP1_MONG Temperatures Check
Summary
| Date start | 2026:012:00:51:56.516 |
| Date stop | 2026:019:00:52:29.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1226/oflsa |
| Run time | Thu Jan 8 08:42:12 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.41 | -4.02 | -2.94 | -0.98 | 0.50 | 1.33 | 2.65 |
| pitch | -12.193 | -0.866 | -0.004 | -0.000 | 0.004 | 0.662 | 12.338 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.056 | -0.230 | -0.007 | -0.000 | 0.007 | 0.178 | 2.142 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.41 | 2.00 |
| TMP_FEP1_MONG | 99 | 2.65 | 2.00 |
| PITCH | 1 | -12.193 | 3.00 |
| PITCH | 99 | 12.338 | 3.00 |

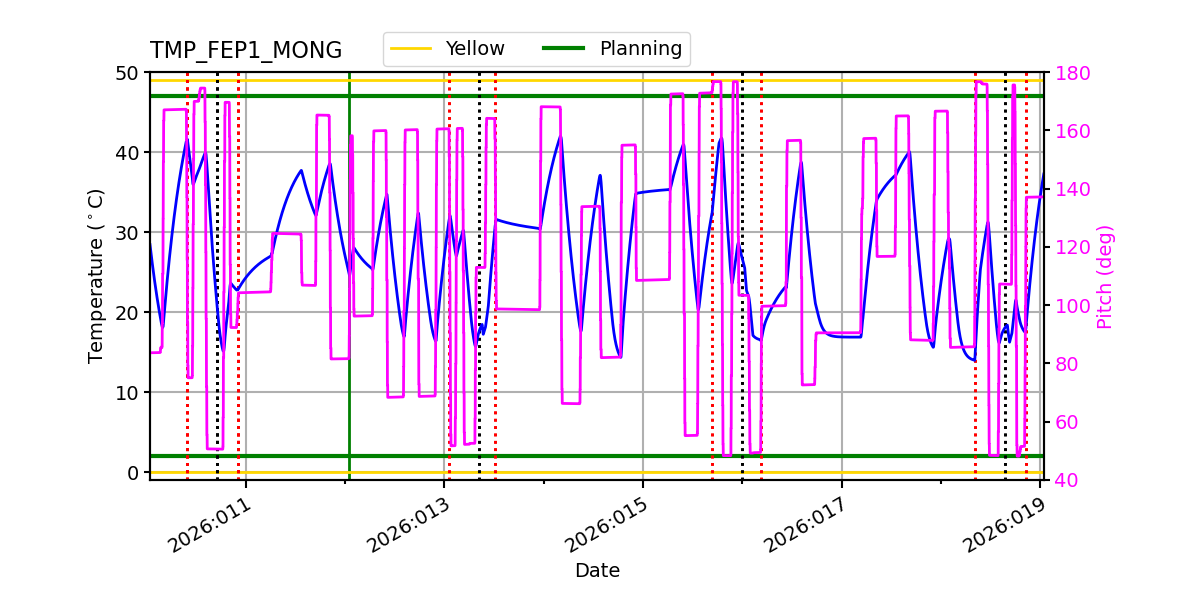

TMP_FEP1_MONG

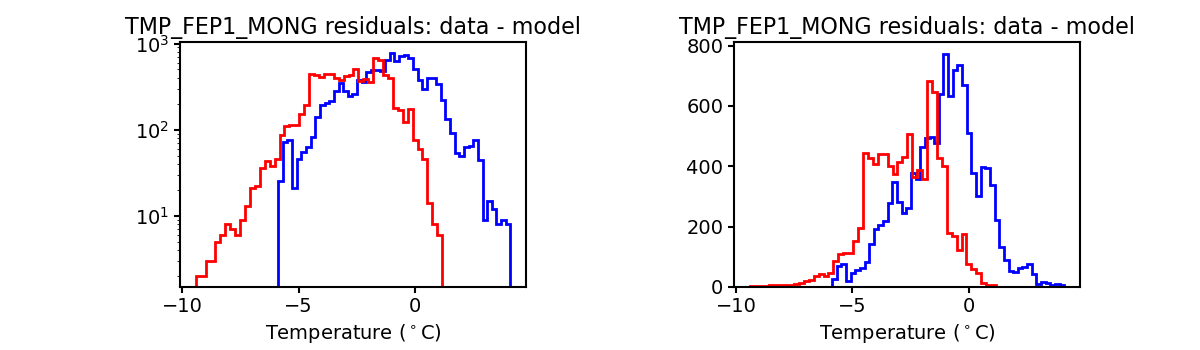

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

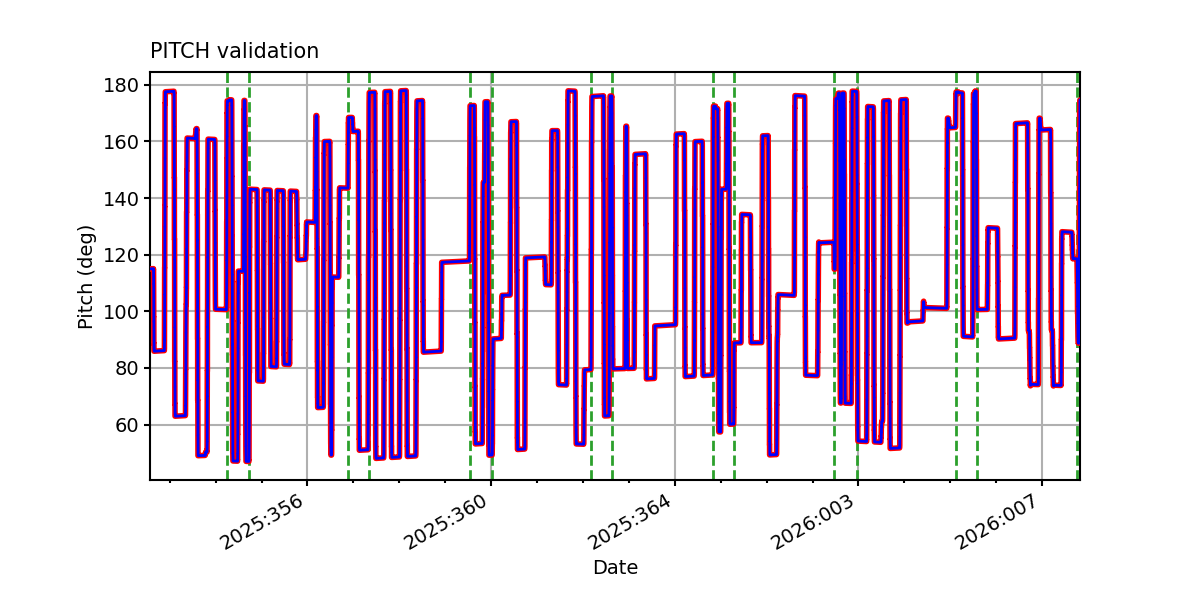

PITCH

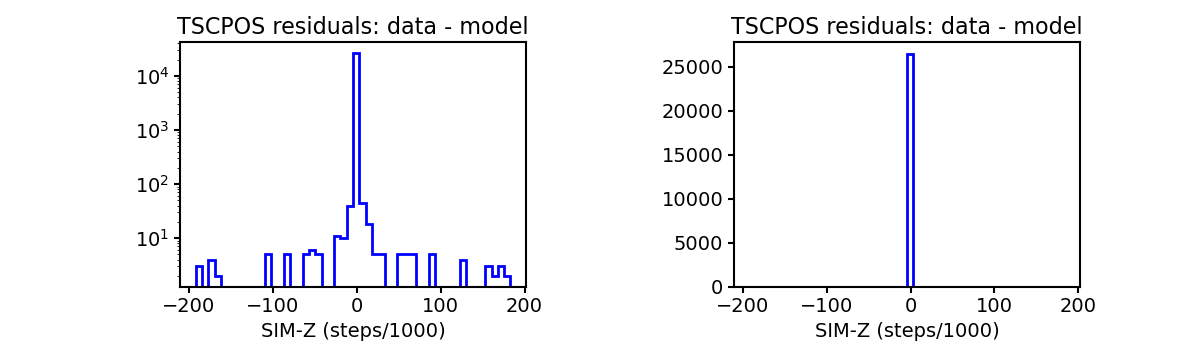

TSCPOS

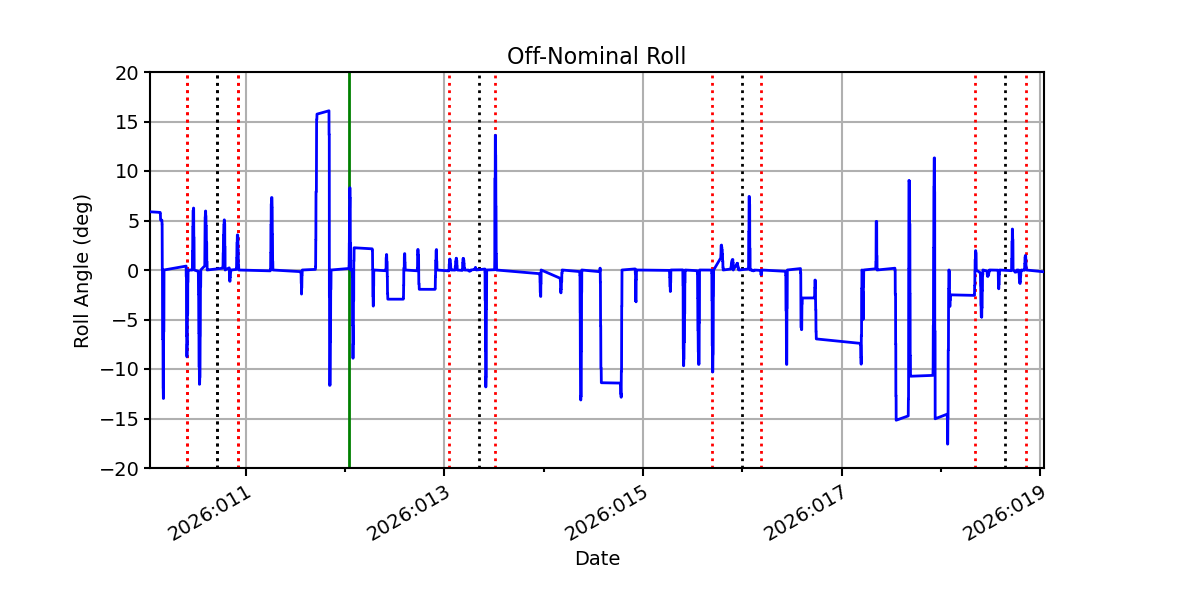

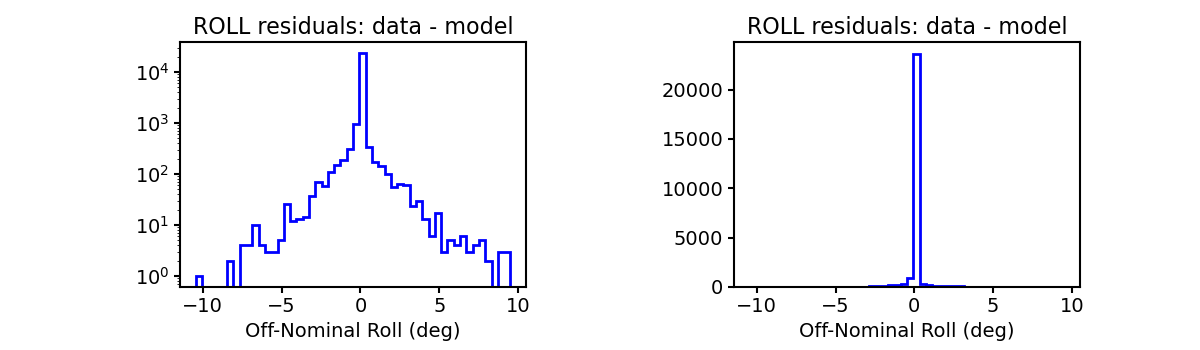

ROLL

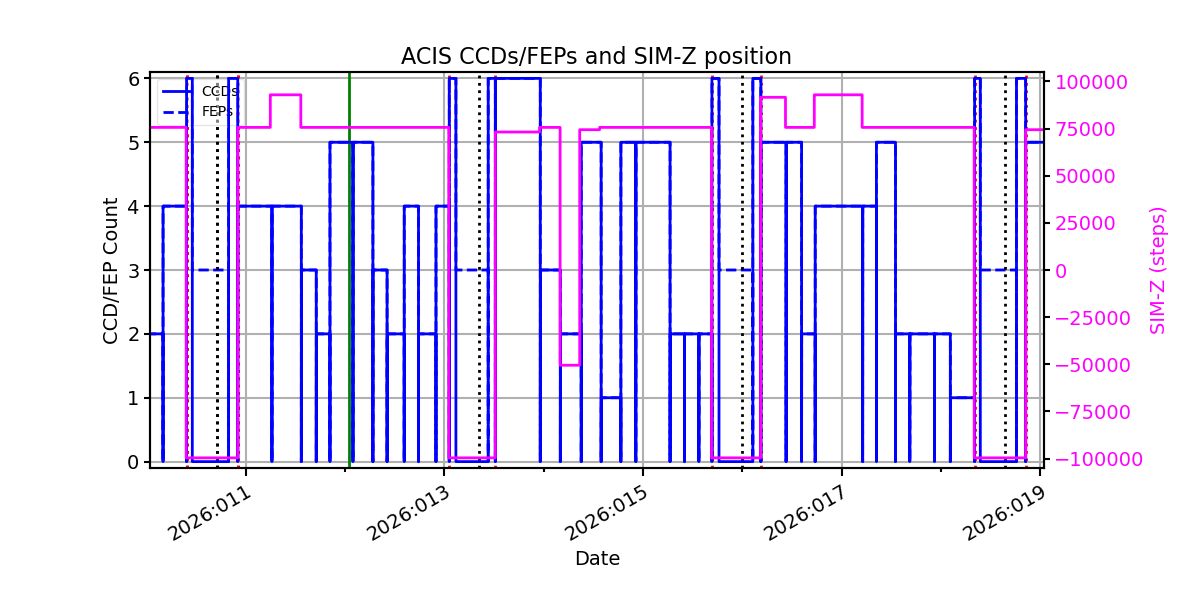

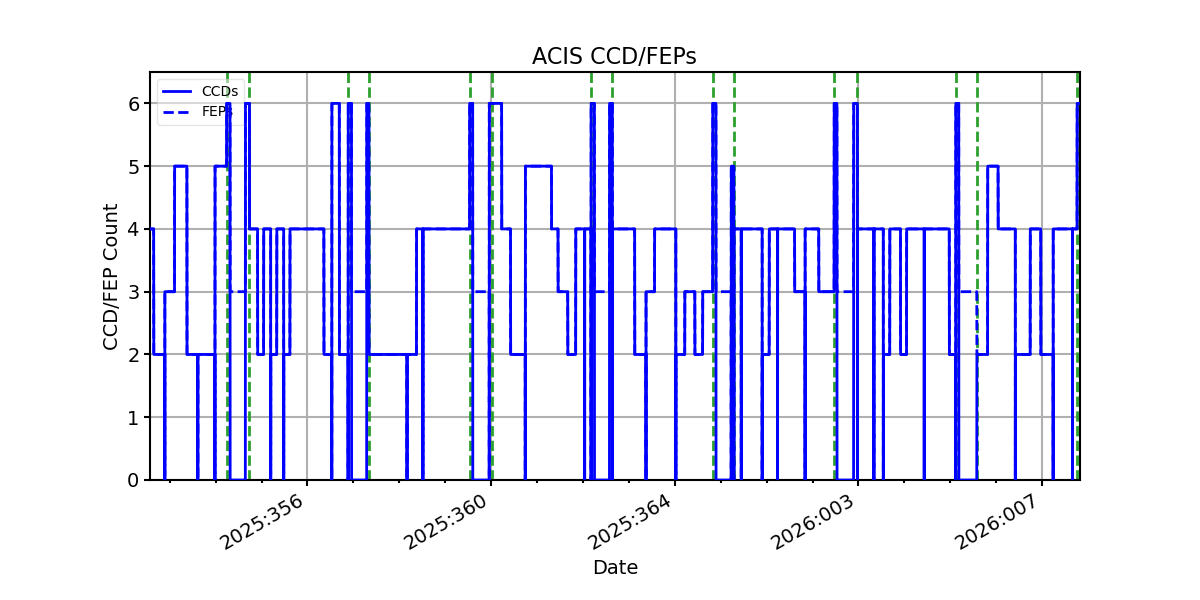

ACIS CCD/FEP Count
