FEP1_MONG Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsb |
| Run time | Thu Jan 15 22:06:14 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.76 | -4.73 | -3.63 | -1.37 | 0.68 | 2.04 | 3.53 |
| pitch | -12.305 | -0.795 | -0.004 | -0.000 | 0.004 | 0.706 | 12.088 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.240 | -0.248 | -0.008 | -0.000 | 0.008 | 0.197 | 2.287 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.76 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.37 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.53 | 2.00 |
| PITCH | 1 | -12.305 | 3.00 |
| PITCH | 99 | 12.088 | 3.00 |

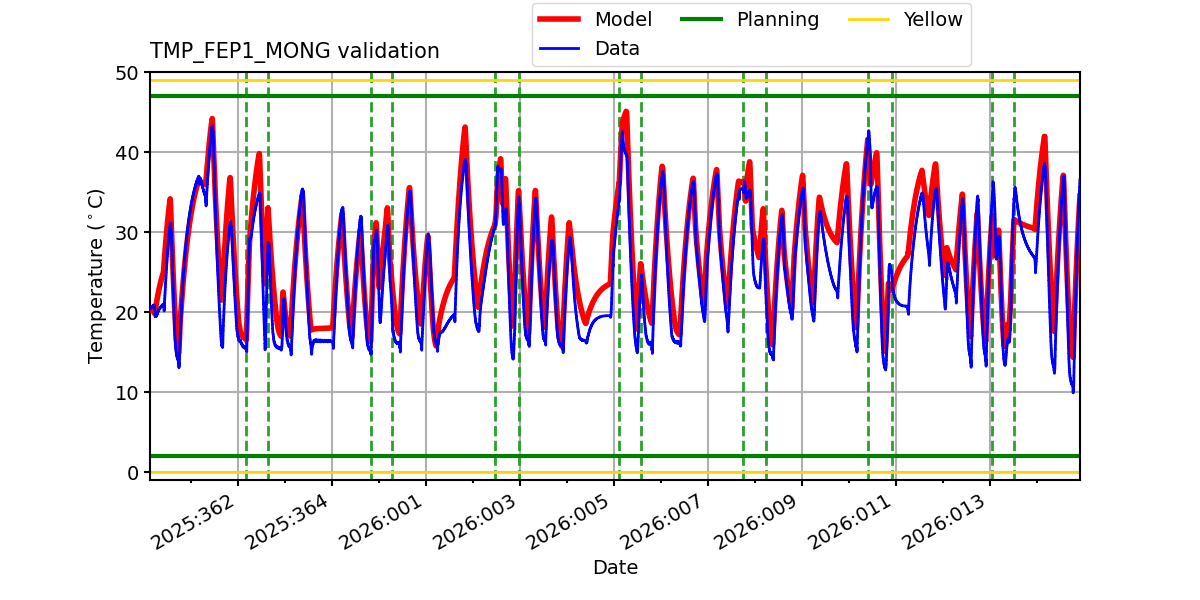

TMP_FEP1_MONG

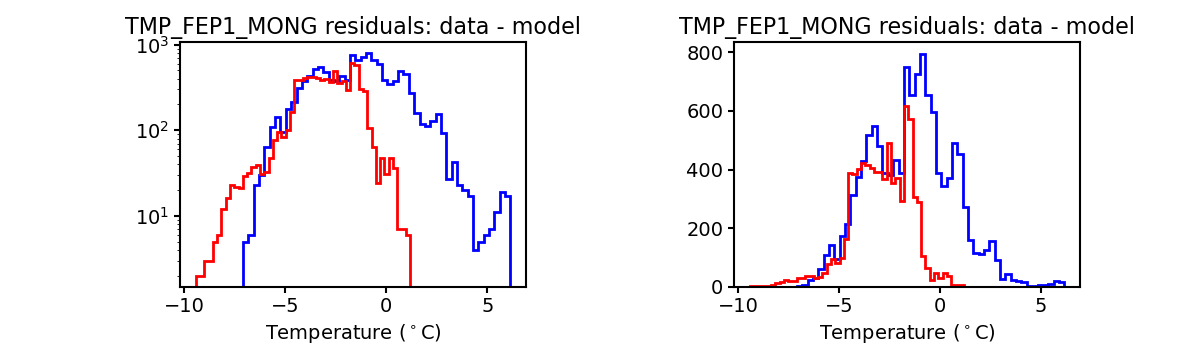

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

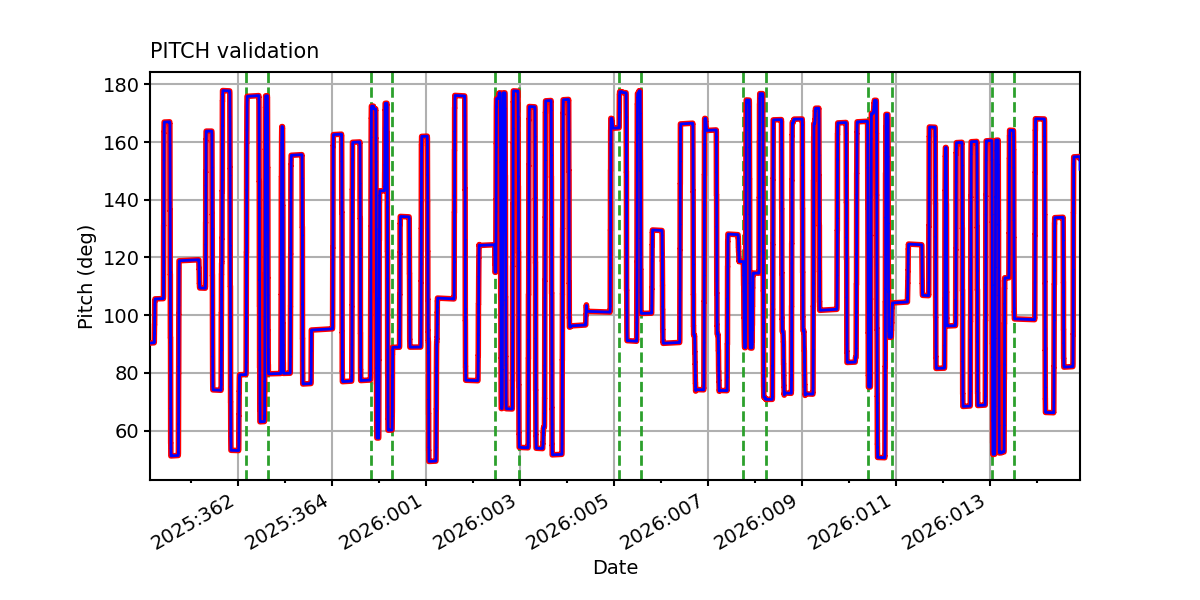

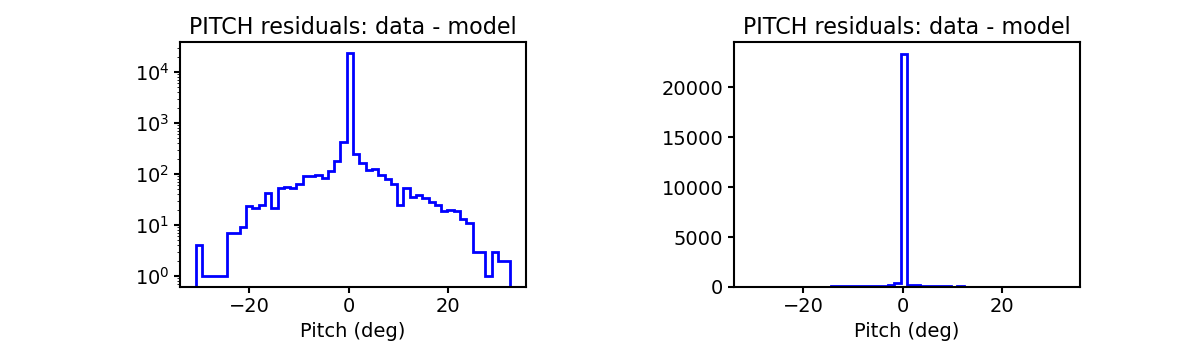

PITCH

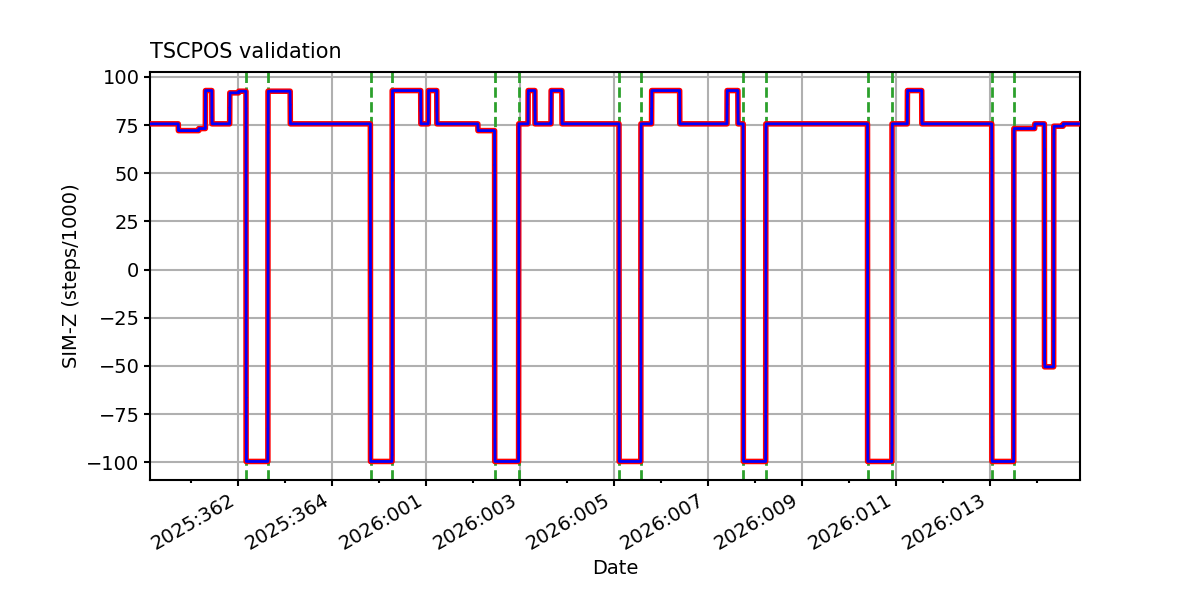

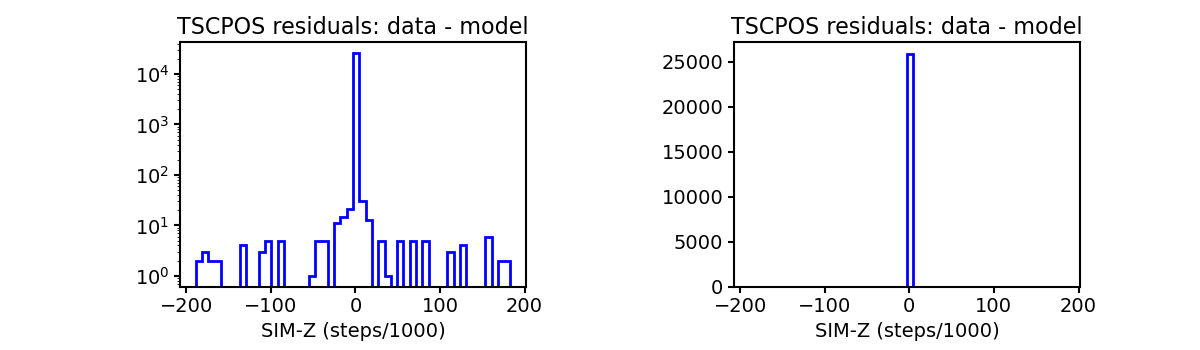

TSCPOS

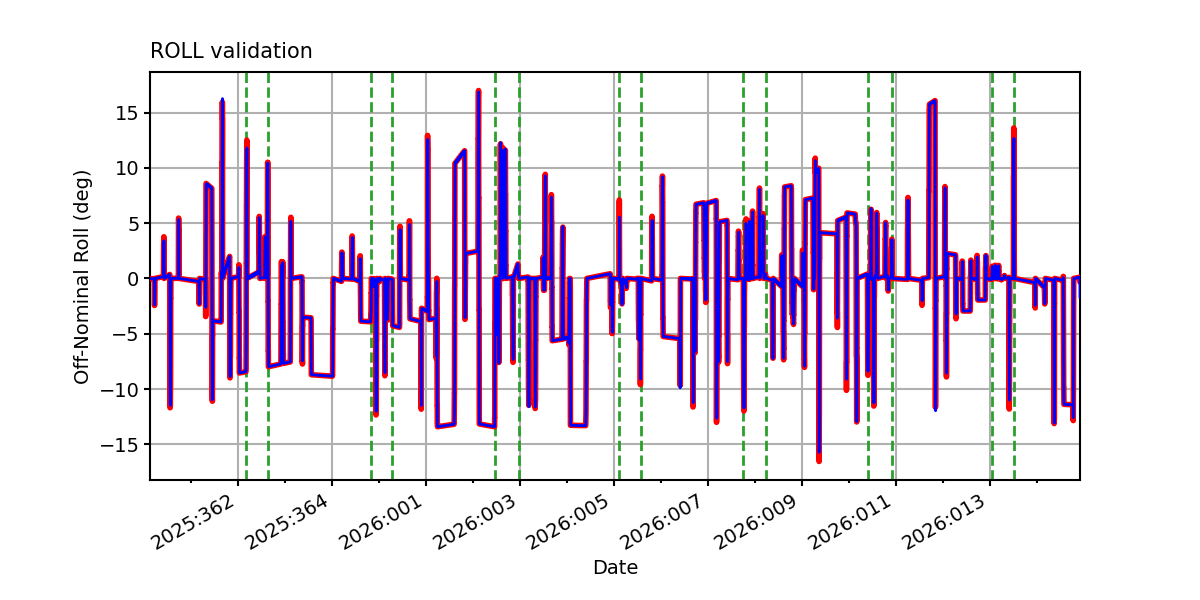

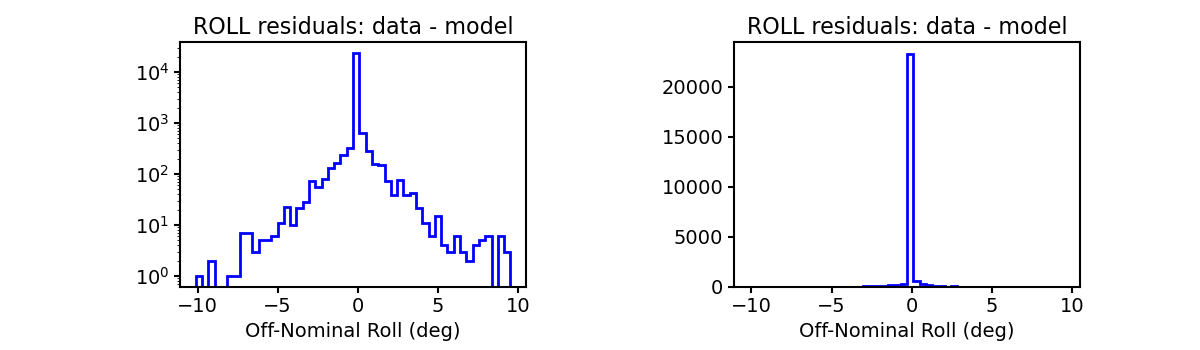

ROLL

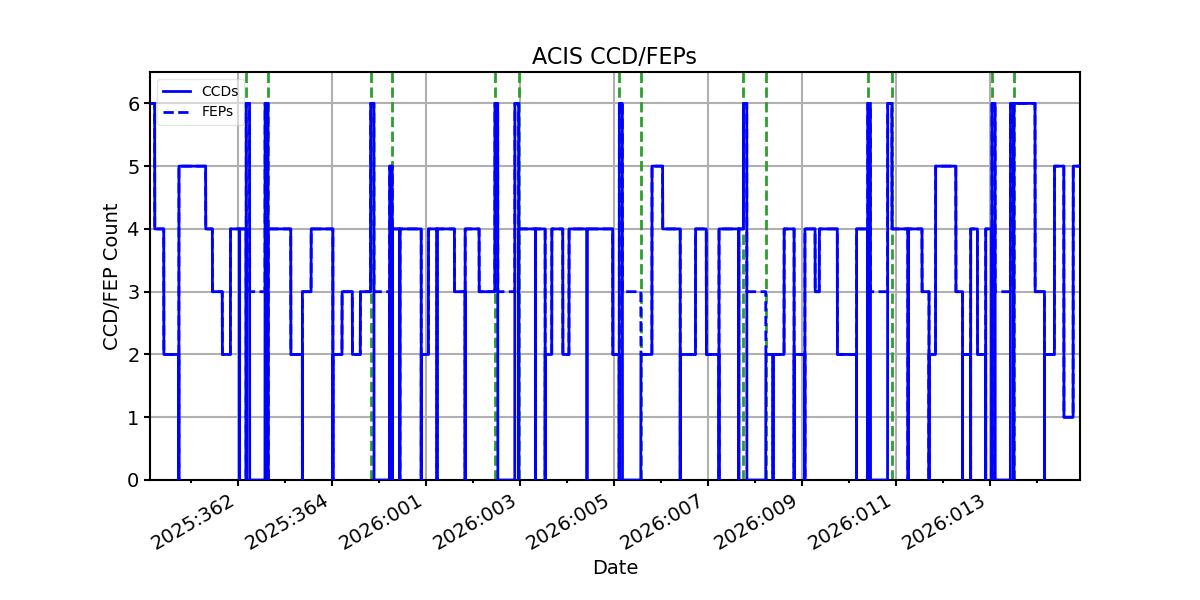

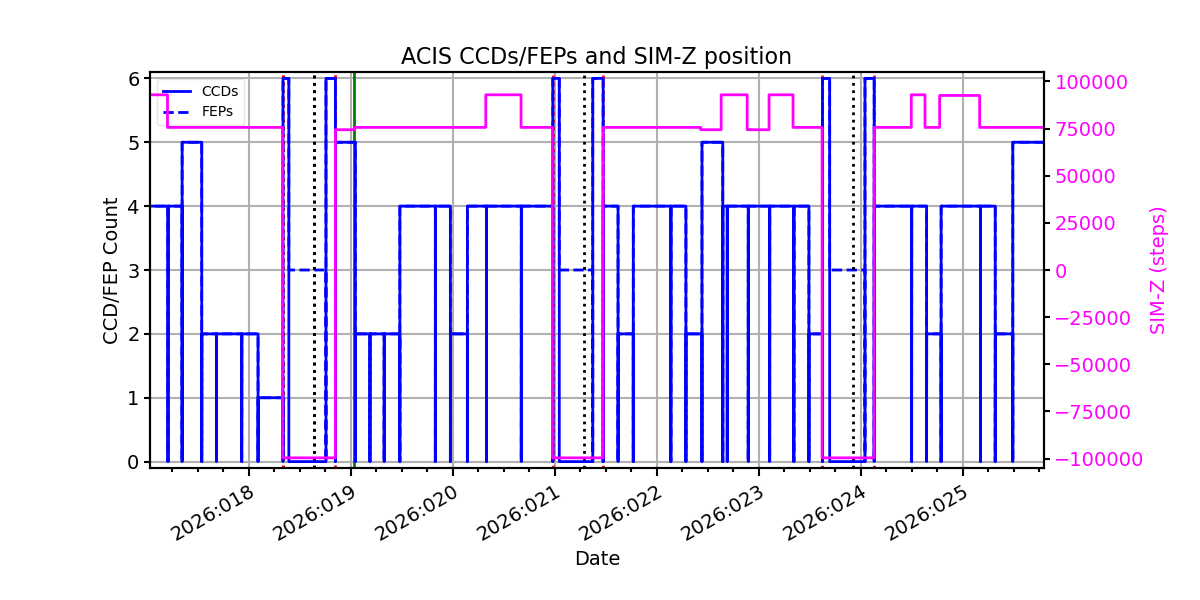

ACIS CCD/FEP Count
