FEP1_MONG Temperatures Check
Summary
| Date start | 2026:025:19:05:18.516 |
| Date stop | 2026:032:23:33:17.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2626/oflsa |
| Run time | Thu Jan 22 13:02:16 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.72 | -4.51 | -3.52 | -1.25 | 0.62 | 2.08 | 3.58 |
| pitch | -12.267 | -0.820 | -0.004 | -0.000 | 0.004 | 0.745 | 11.994 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.317 | -0.244 | -0.008 | -0.000 | 0.007 | 0.207 | 2.313 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.72 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.25 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.58 | 2.00 |
| PITCH | 1 | -12.267 | 3.00 |
| PITCH | 99 | 11.994 | 3.00 |

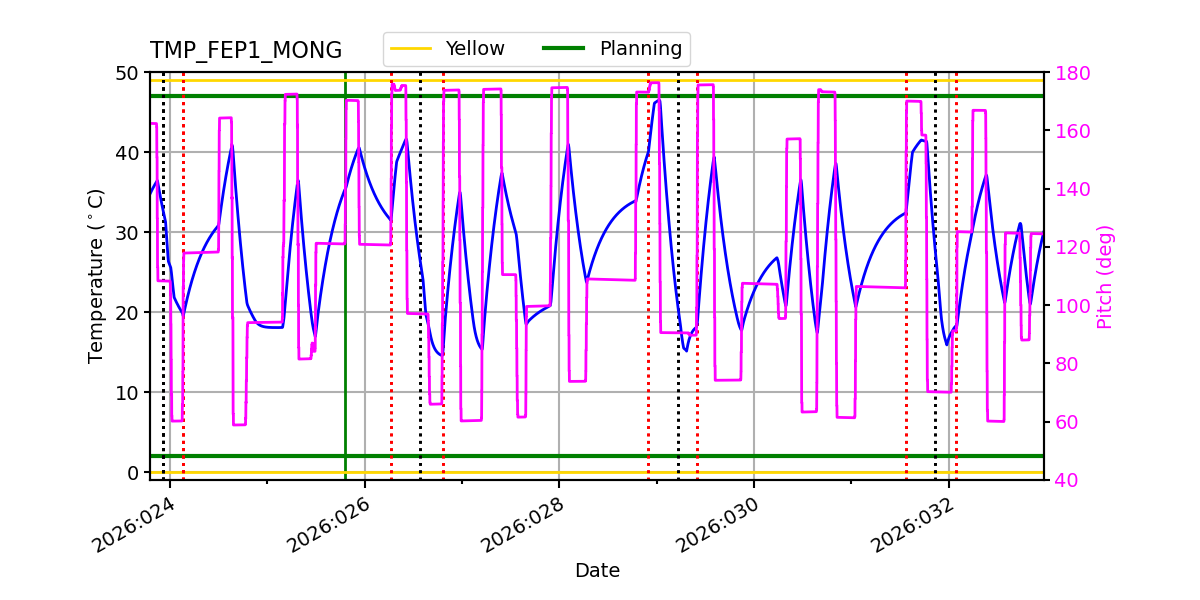

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

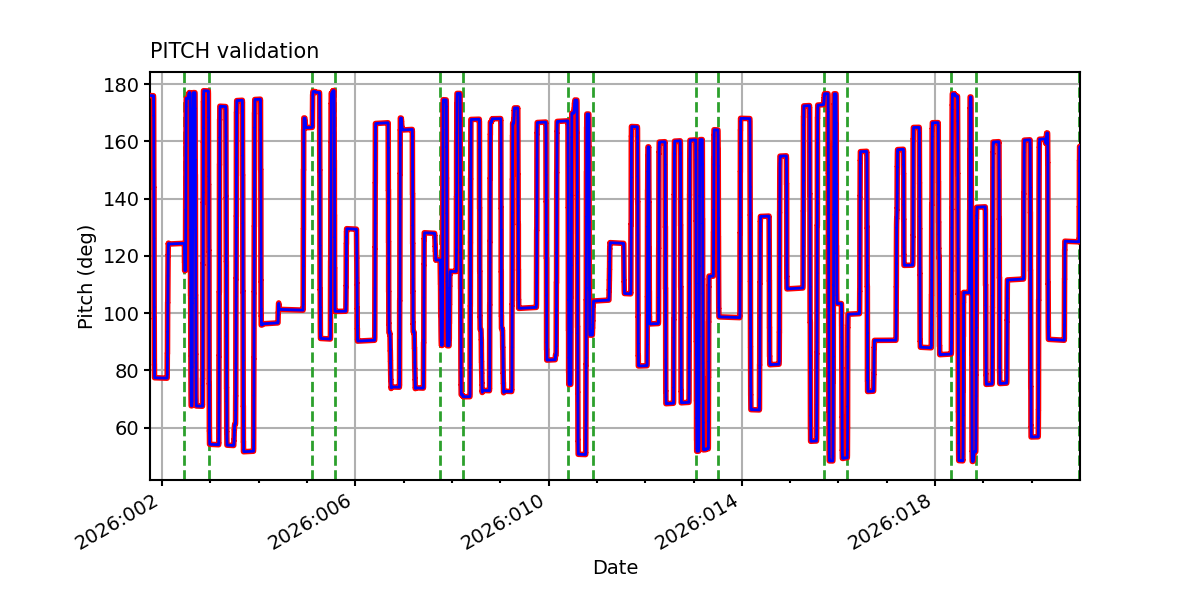

PITCH
TSCPOS

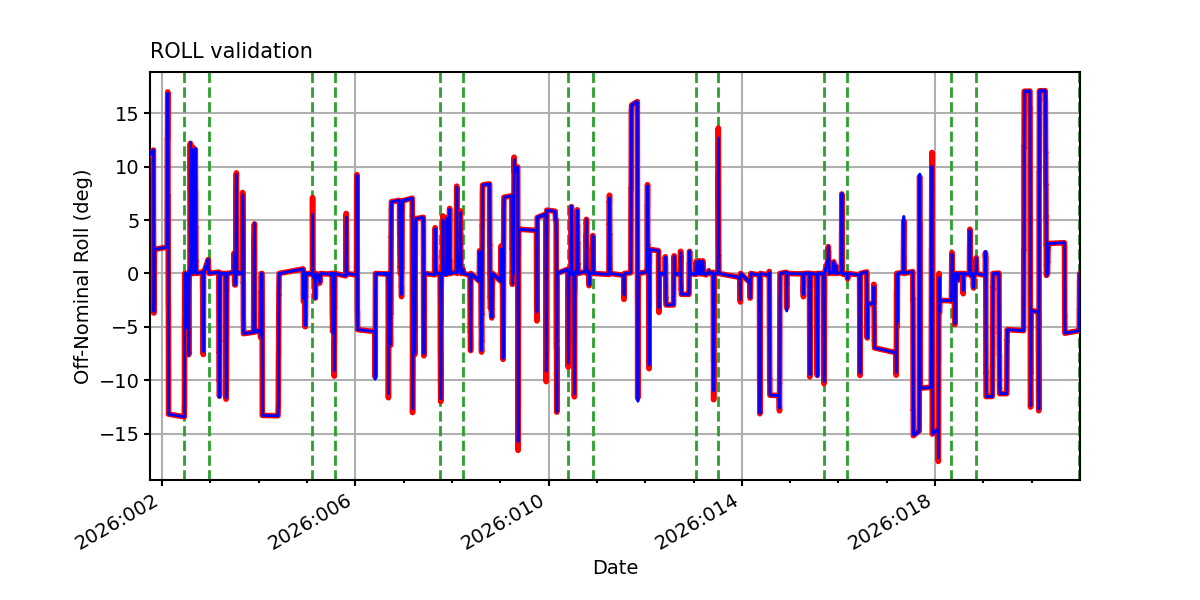

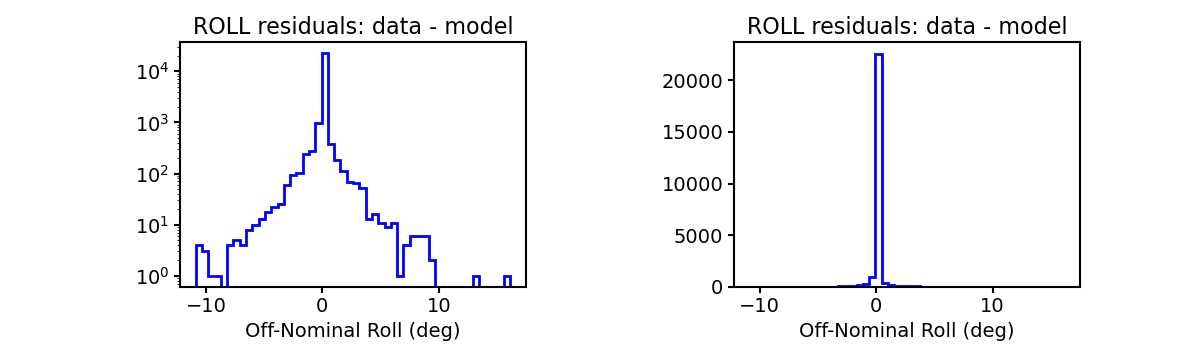

ROLL

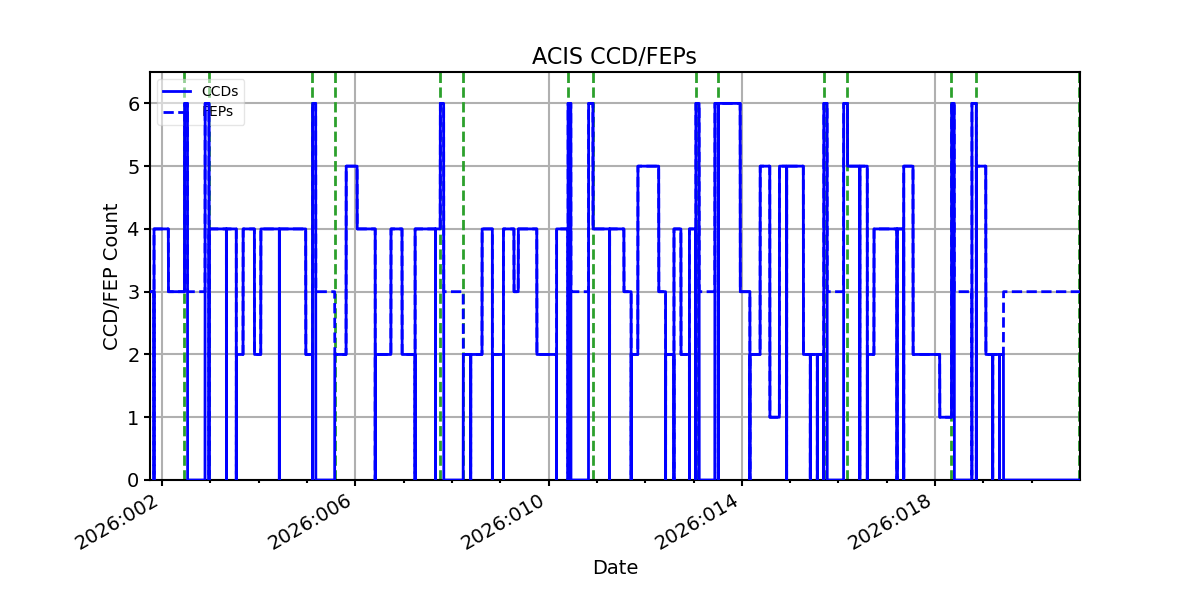

ACIS CCD/FEP Count
