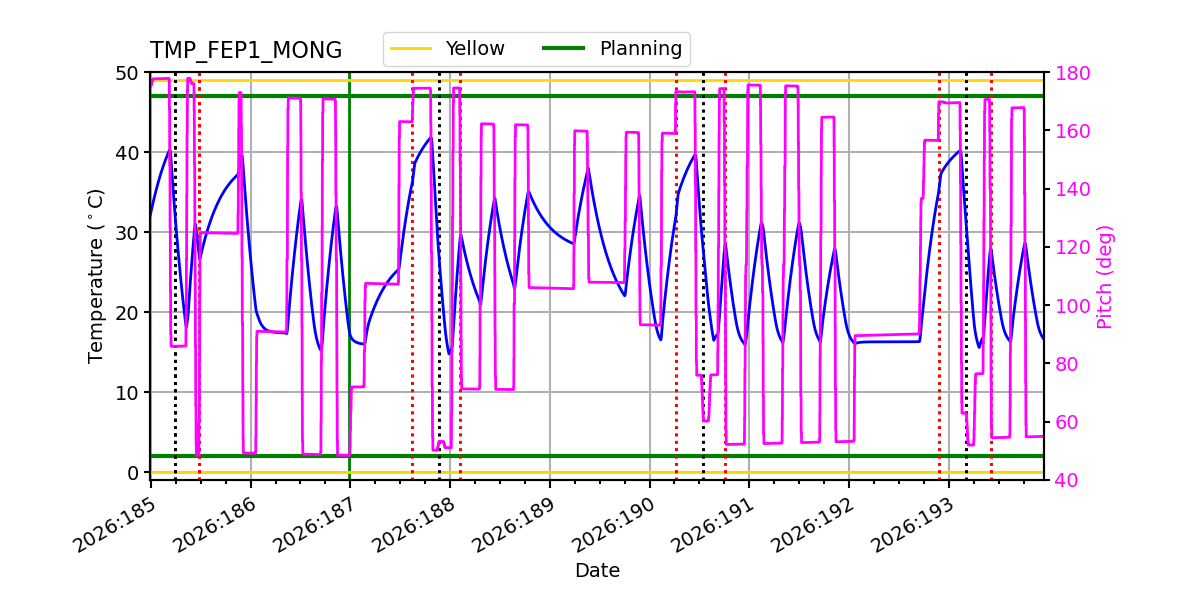

FEP1_MONG Temperatures Check
Summary
| Date start | 2026:186:23:47:27.716 |
| Date stop | 2026:193:22:57:34.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL0626/oflsa |
| Run time | Tue Jun 30 18:25:29 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.65 | -5.23 | -4.12 | -1.93 | 0.70 | 1.83 | 3.27 |
| pitch | -11.254 | -0.384 | -0.004 | -0.000 | 0.004 | 0.363 | 12.055 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.016 | -0.111 | -0.010 | -0.000 | 0.008 | 0.094 | 1.915 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.65 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.93 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.27 | 2.00 |
| PITCH | 1 | -11.254 | 3.00 |
| PITCH | 99 | 12.055 | 3.00 |

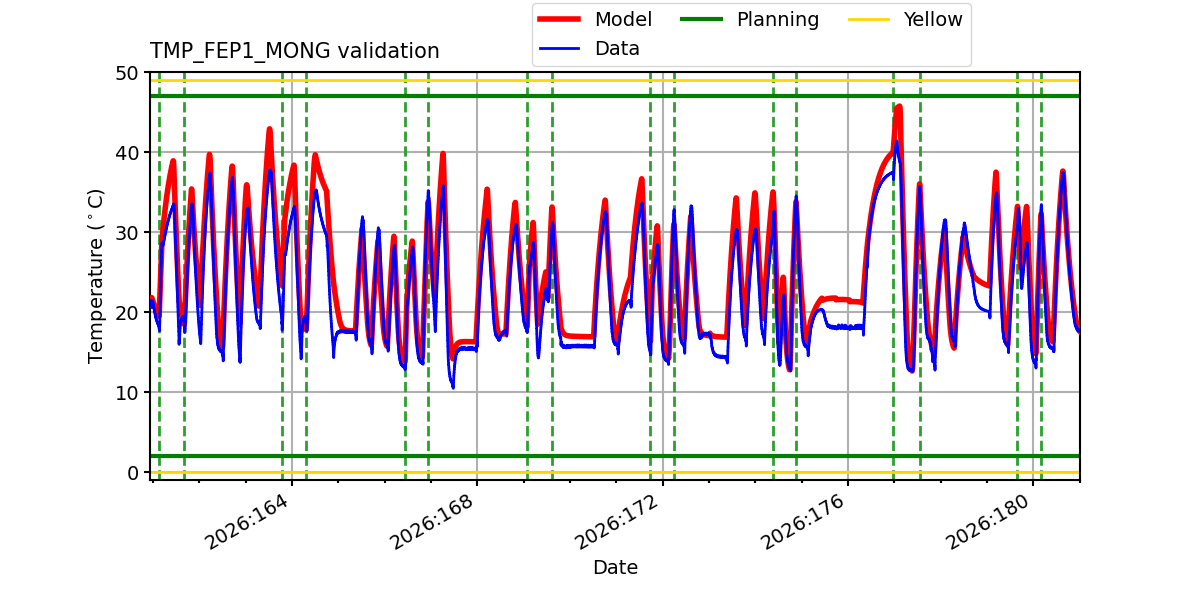

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

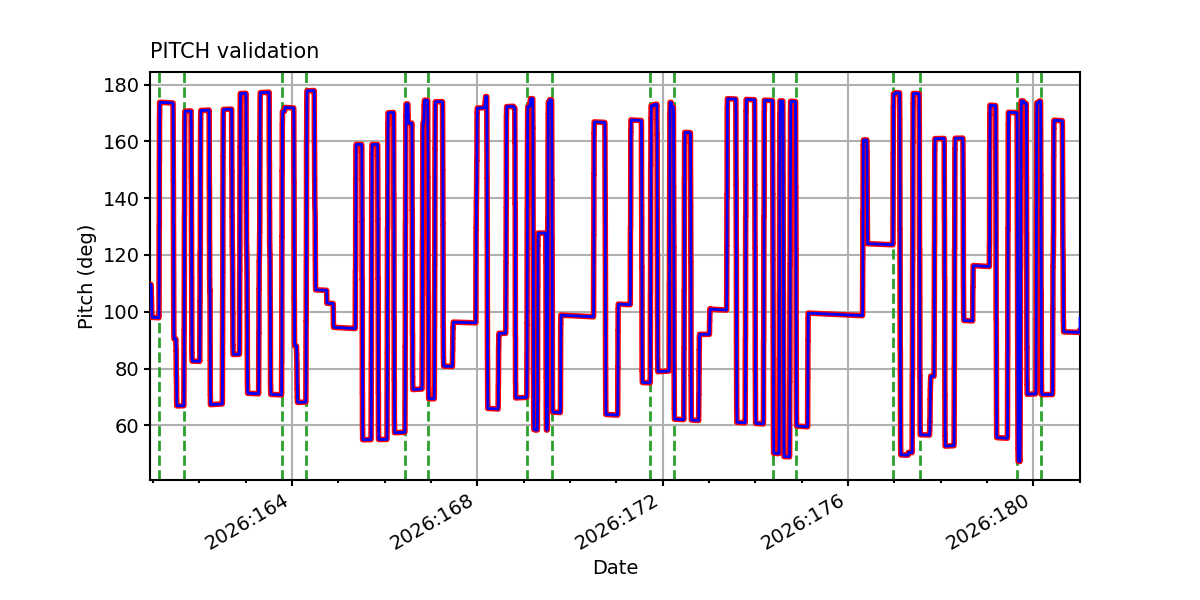

PITCH

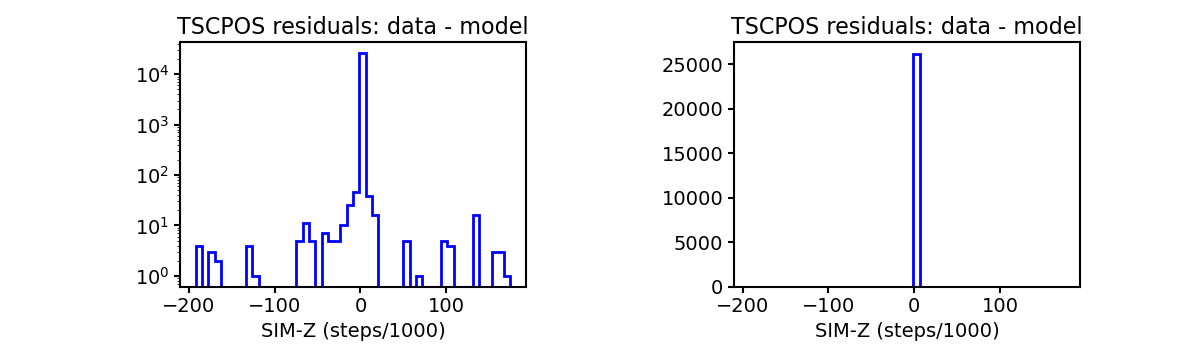

TSCPOS

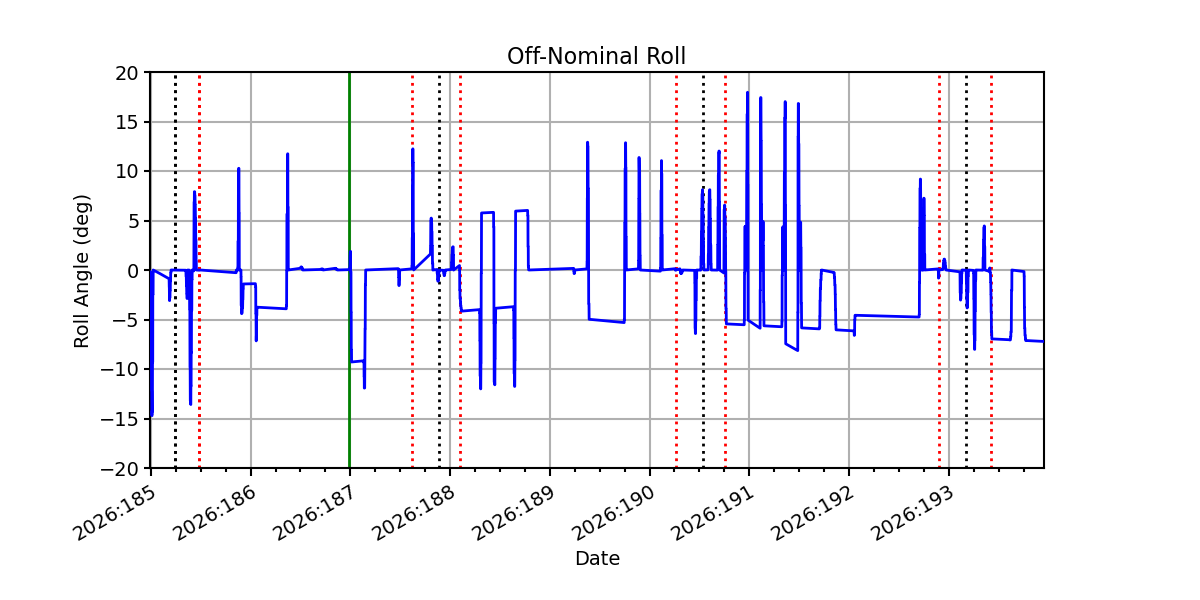

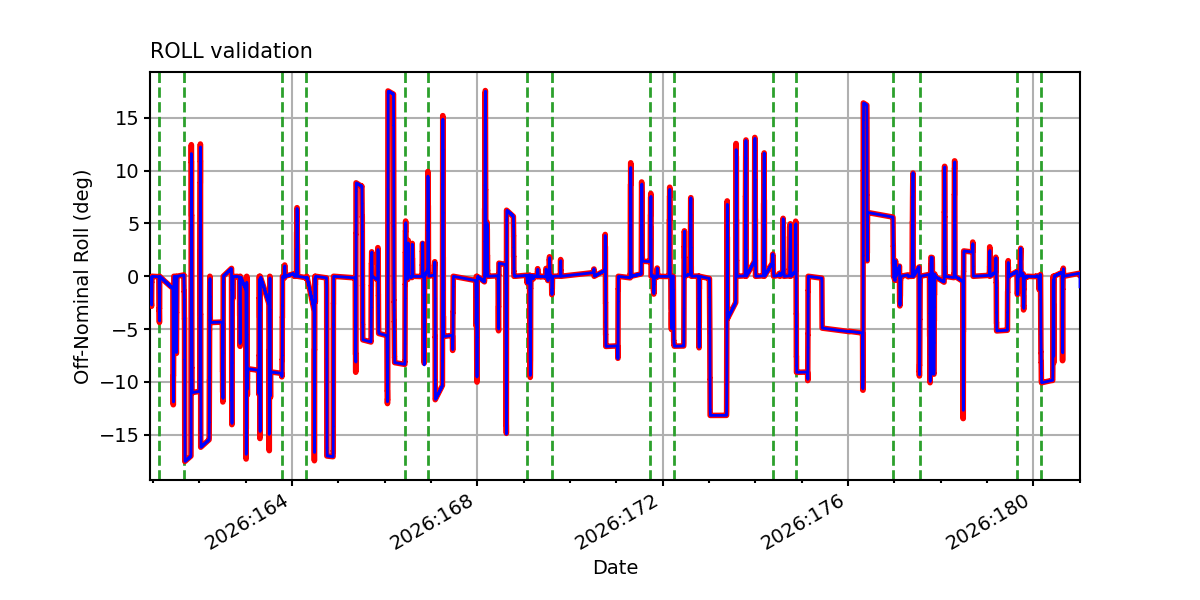

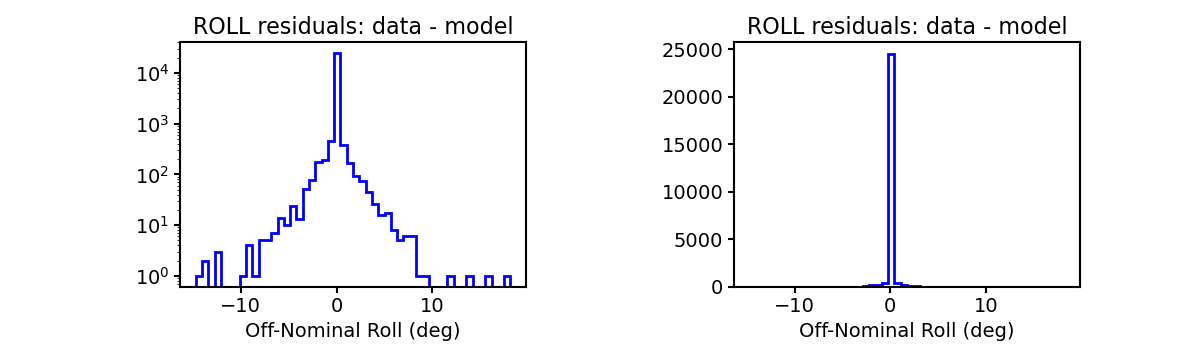

ROLL

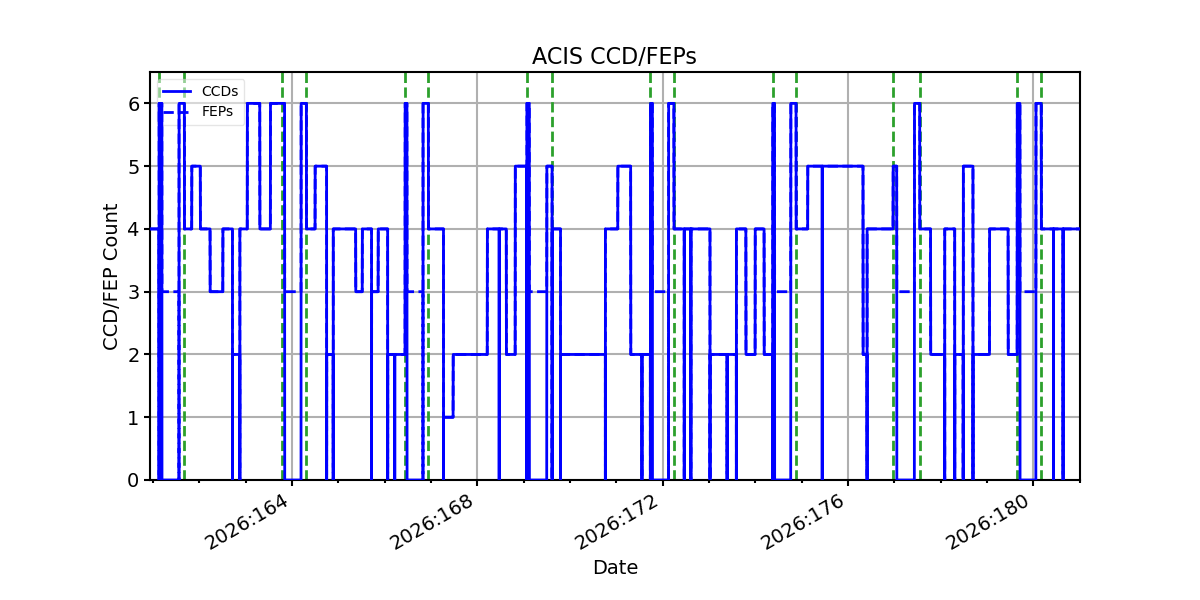

ACIS CCD/FEP Count
