FEP1_MONG Temperatures Check
Summary
| Date start | 2026:193:22:54:34.016 |
| Date stop | 2026:200:20:48:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL1326/oflsa |
| Run time | Wed Jul 8 16:03:39 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.56 | -4.69 | -3.17 | -0.82 | 0.82 | 1.93 | 3.22 |
| pitch | -11.407 | -0.443 | -0.004 | -0.000 | 0.004 | 0.178 | 12.233 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.792 | -0.092 | -0.006 | 0.000 | 0.006 | 0.079 | 1.811 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.56 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.22 | 2.00 |
| PITCH | 1 | -11.407 | 3.00 |
| PITCH | 99 | 12.233 | 3.00 |
TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

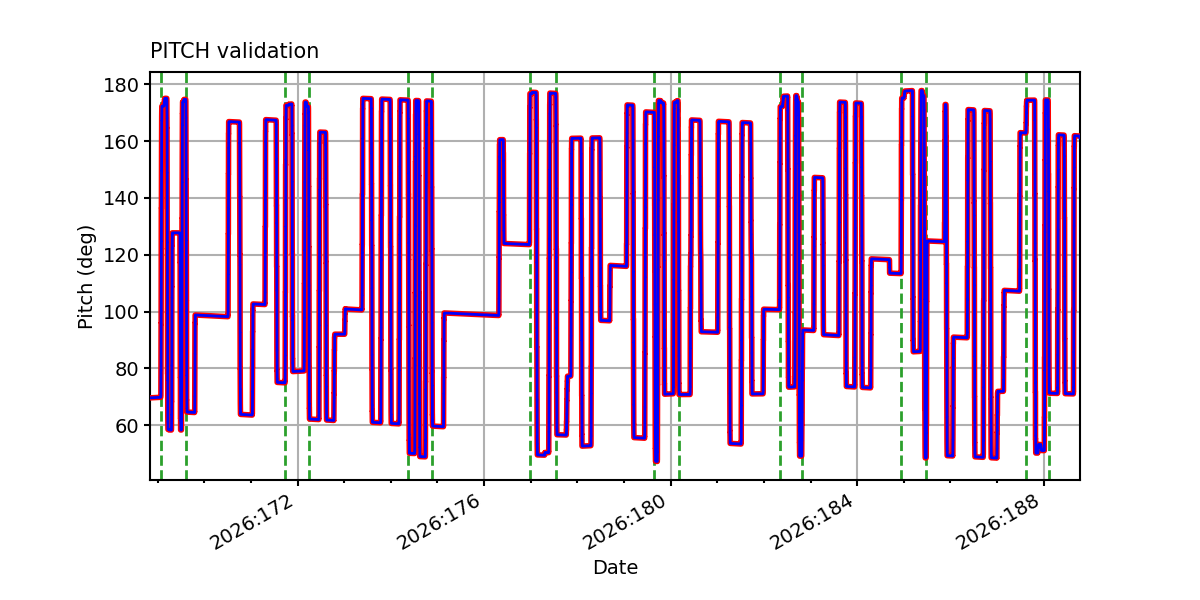

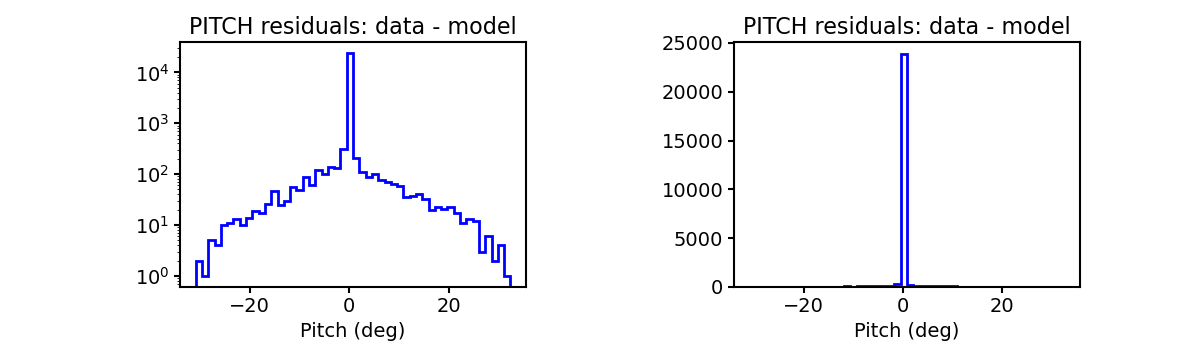

PITCH

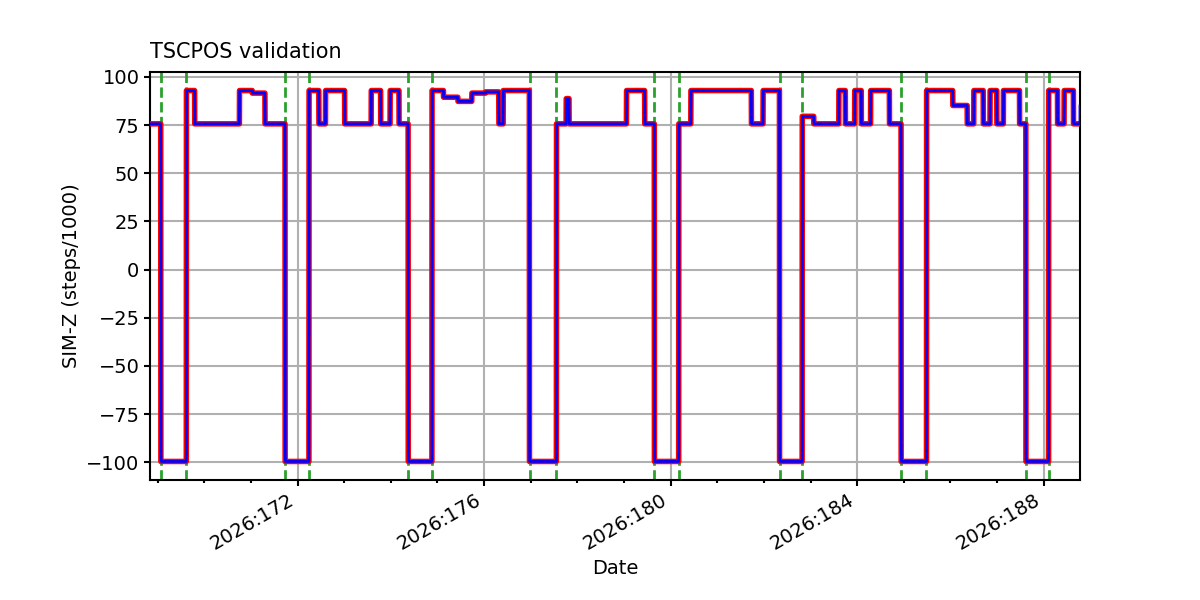

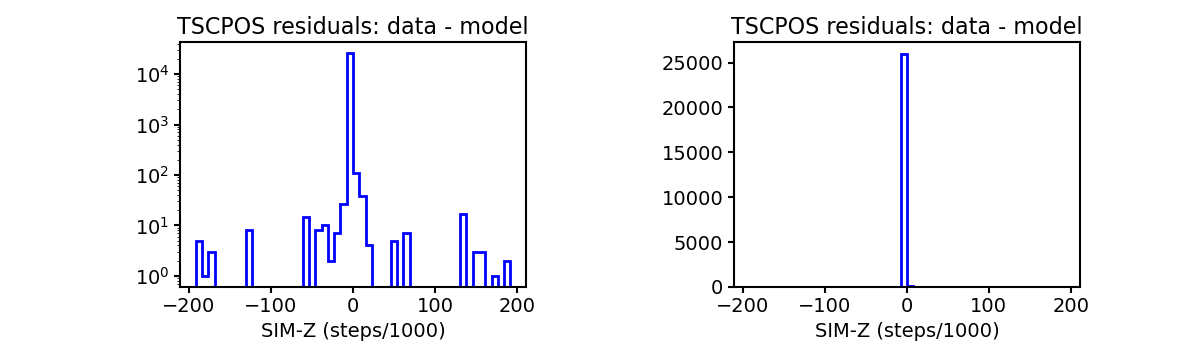

TSCPOS

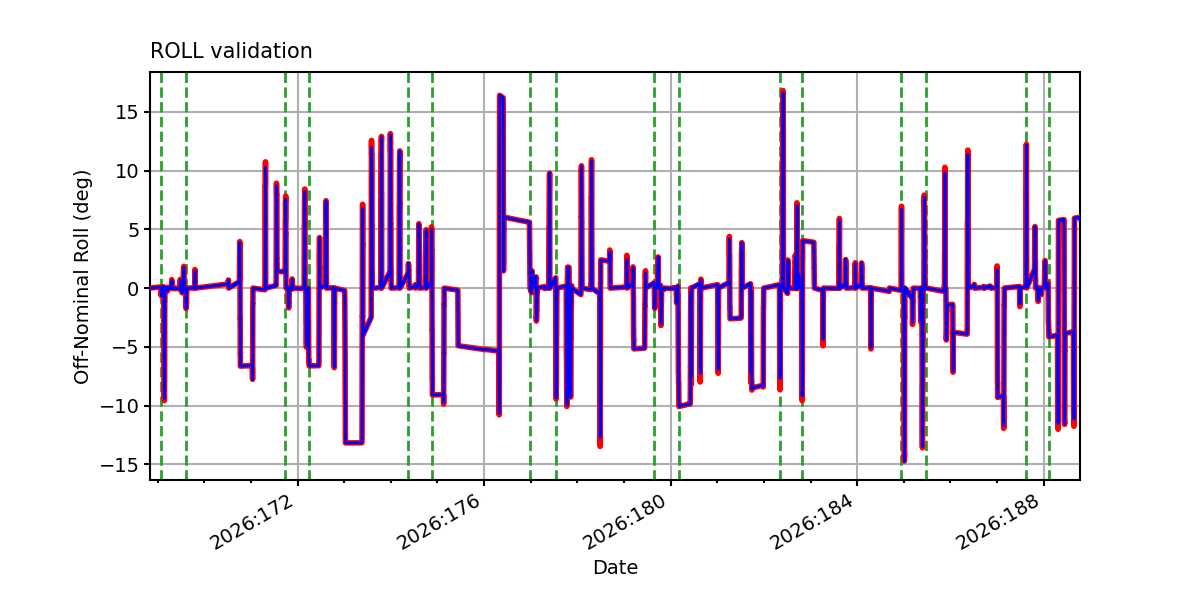

ROLL

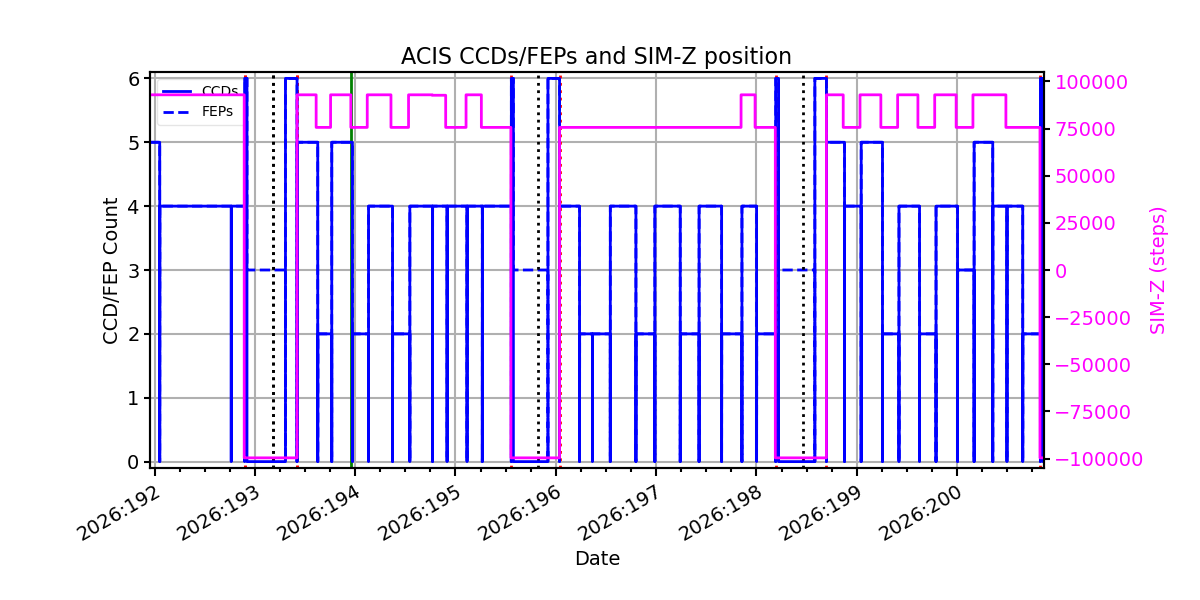

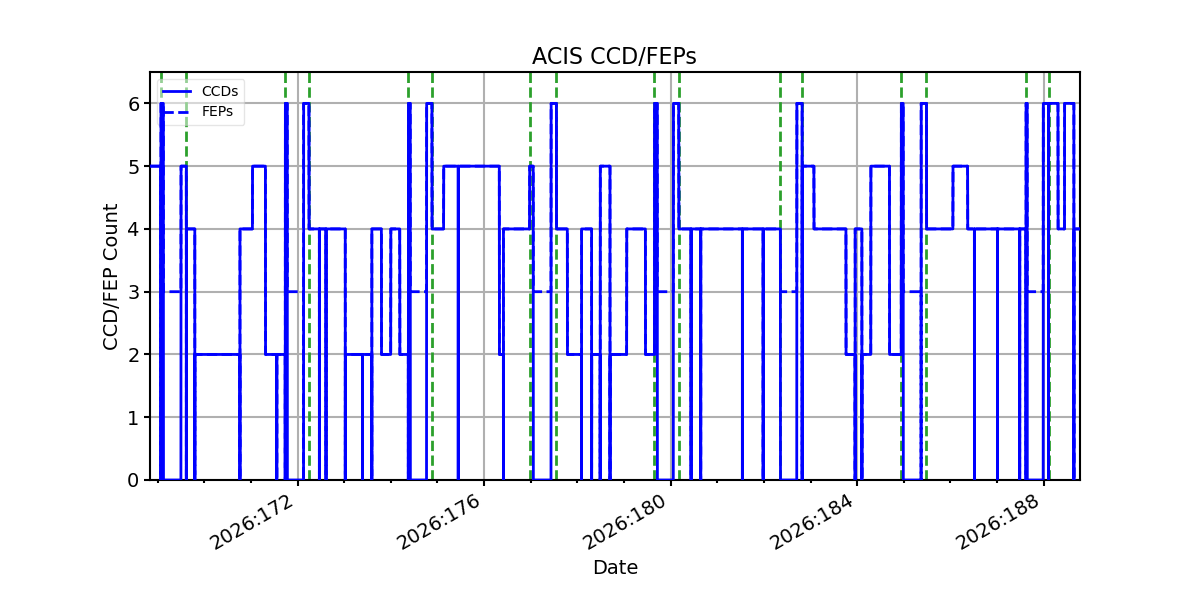

ACIS CCD/FEP Count
