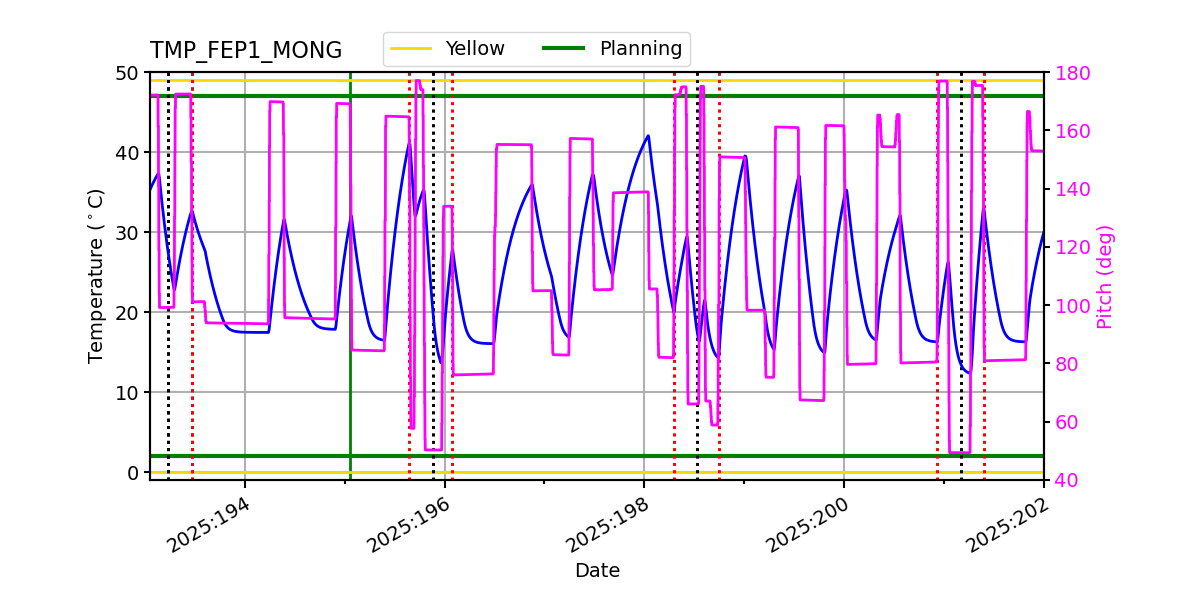

FEP1_MONG Temperatures Check
Summary
| Date start | 2025:195:01:13:43.816 |
| Date stop | 2025:202:00:04:37.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL1425/ofls |
| Run time | Thu Jul 10 12:49:25 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.16 | -4.86 | -3.69 | -1.20 | 1.22 | 2.15 | 3.28 |
| pitch | -9.591 | -0.362 | -0.004 | -0.000 | 0.004 | 0.374 | 11.160 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.052 | -0.136 | -0.007 | 0.000 | 0.007 | 0.150 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.16 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.2 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.28 | 2.00 |
| PITCH | 1 | -9.591 | 3.00 |
| PITCH | 99 | 11.16 | 3.00 |

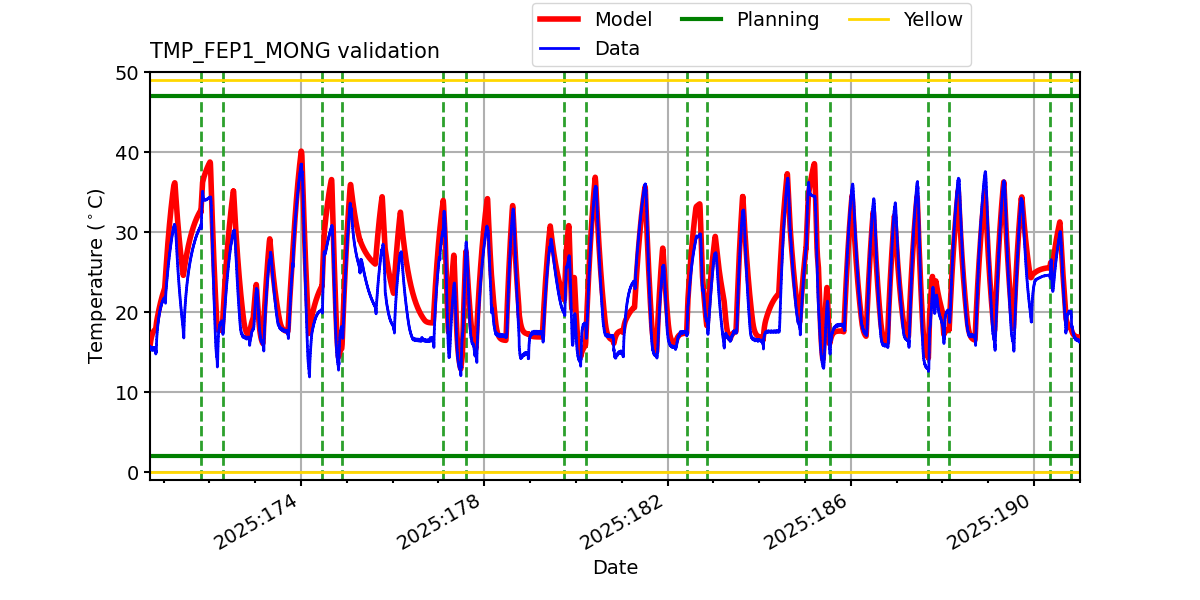

TMP_FEP1_MONG

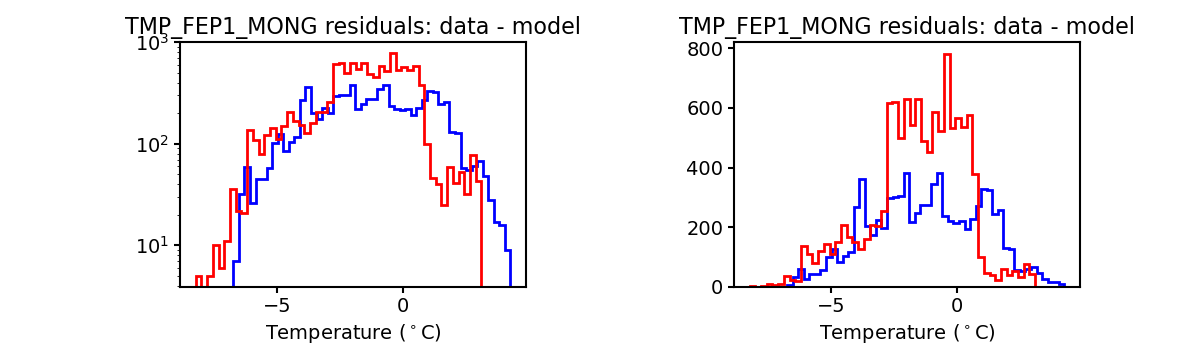

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.
PITCH

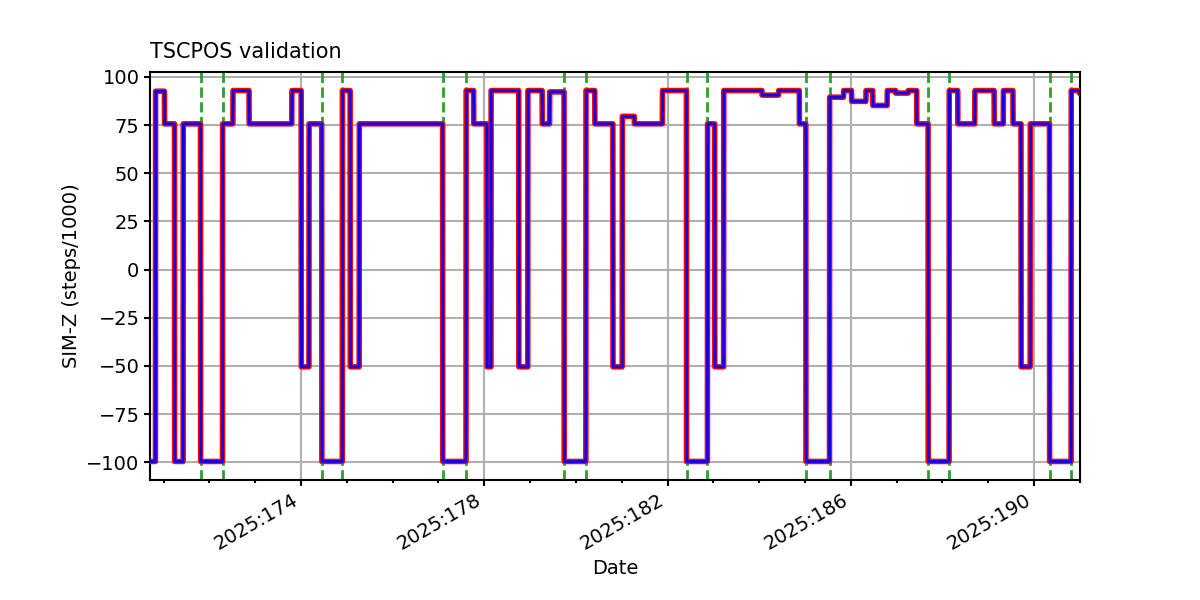

TSCPOS

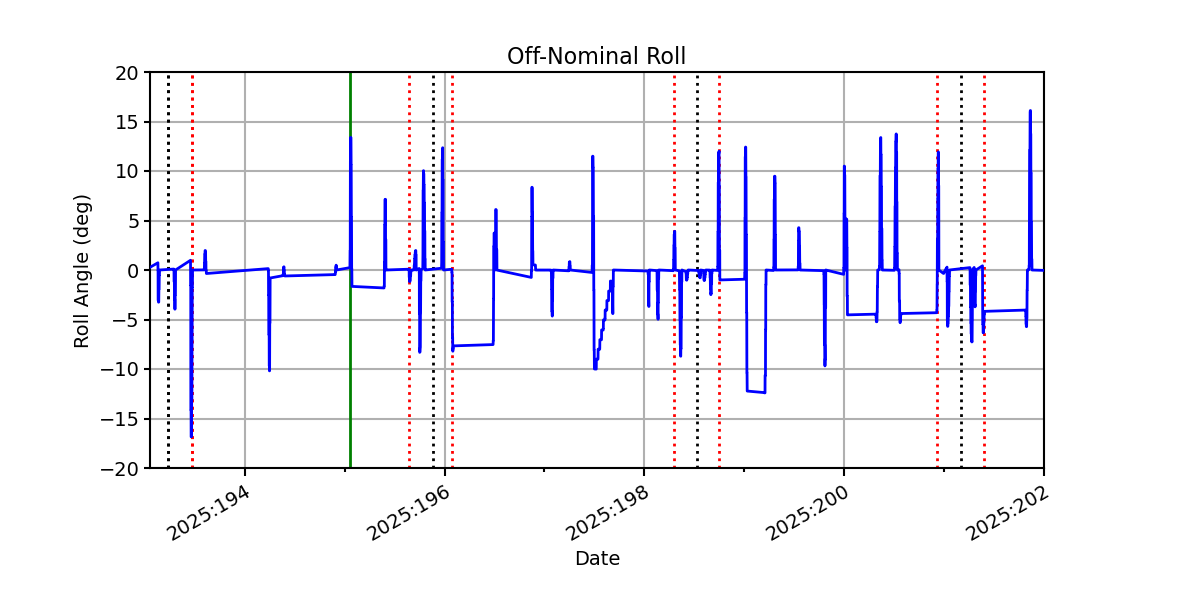

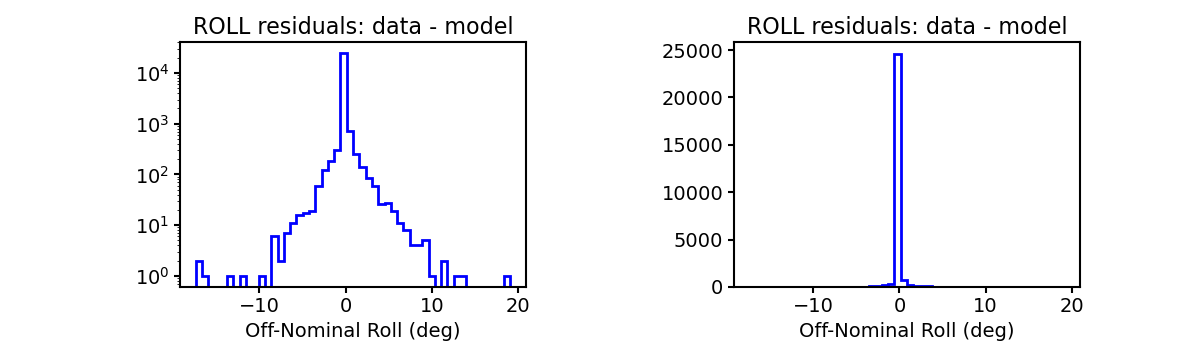

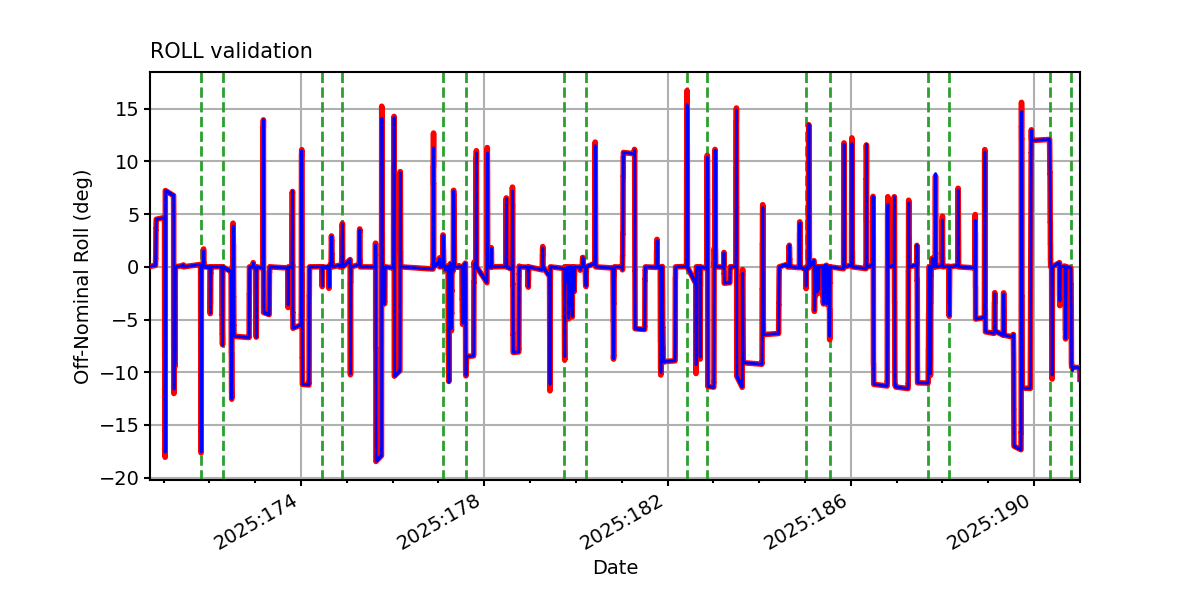

ROLL

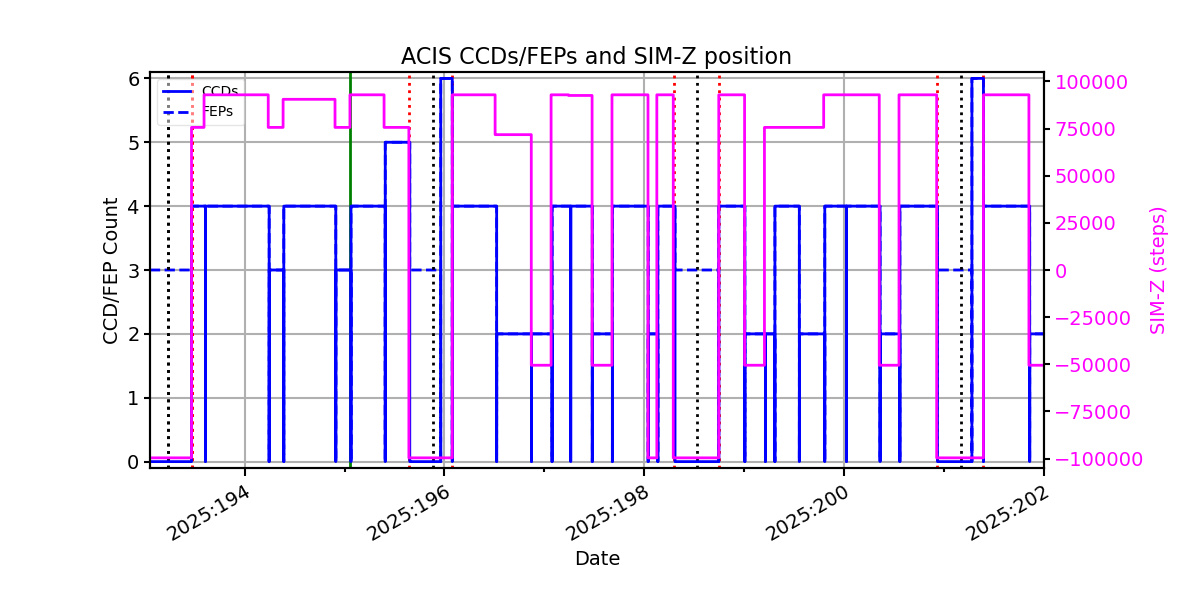

ACIS CCD/FEP Count
