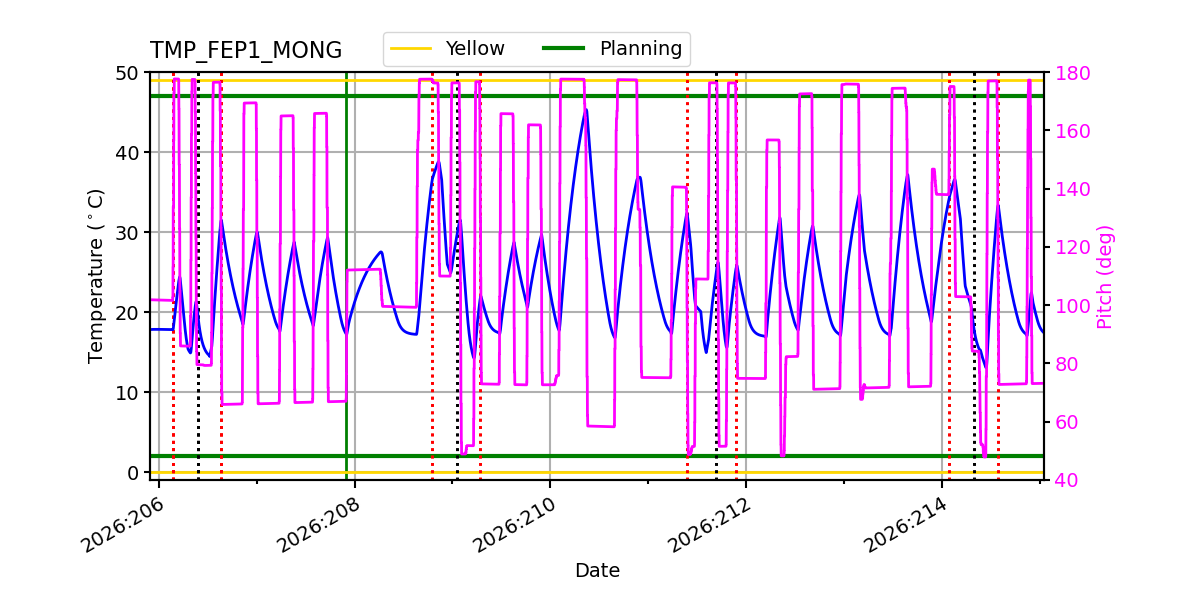

FEP1_MONG Temperatures Check
Summary
| Date start | 2026:207:21:51:34.216 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2726/oflsa |
| Run time | Wed Jul 22 12:51:52 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.21 | -4.48 | -2.78 | -0.27 | 1.28 | 2.41 | 3.20 |
| pitch | -11.754 | -0.937 | -0.004 | 0.000 | 0.004 | 0.876 | 12.466 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.236 | -0.193 | -0.008 | 0.000 | 0.008 | 0.191 | 2.281 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.21 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.2 | 2.00 |
| PITCH | 1 | -11.754 | 3.00 |
| PITCH | 99 | 12.466 | 3.00 |

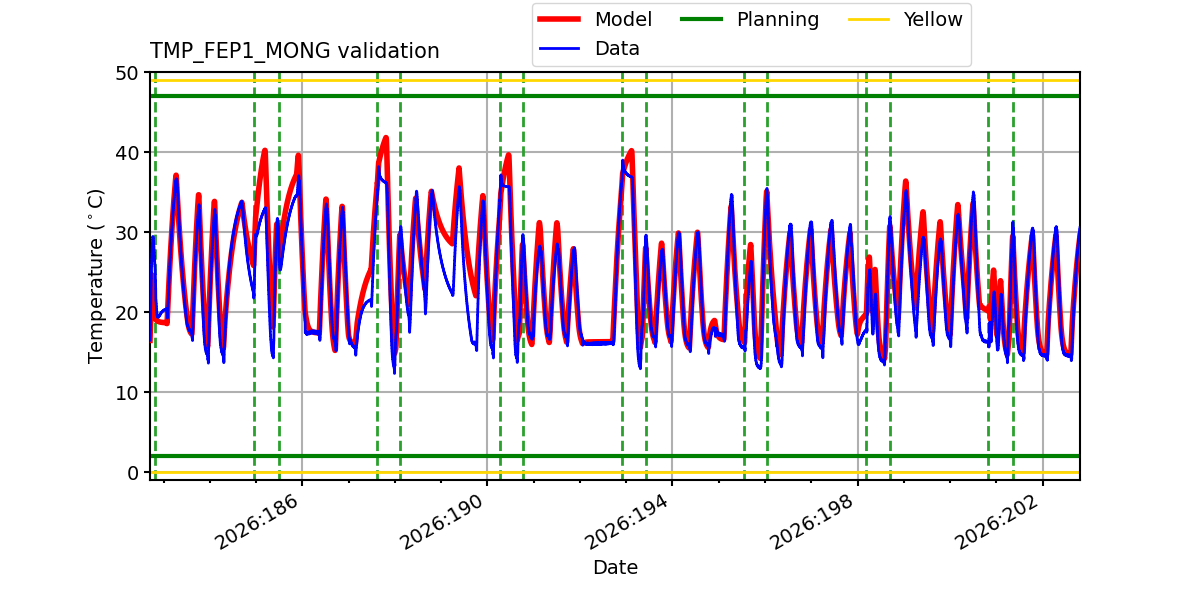

TMP_FEP1_MONG

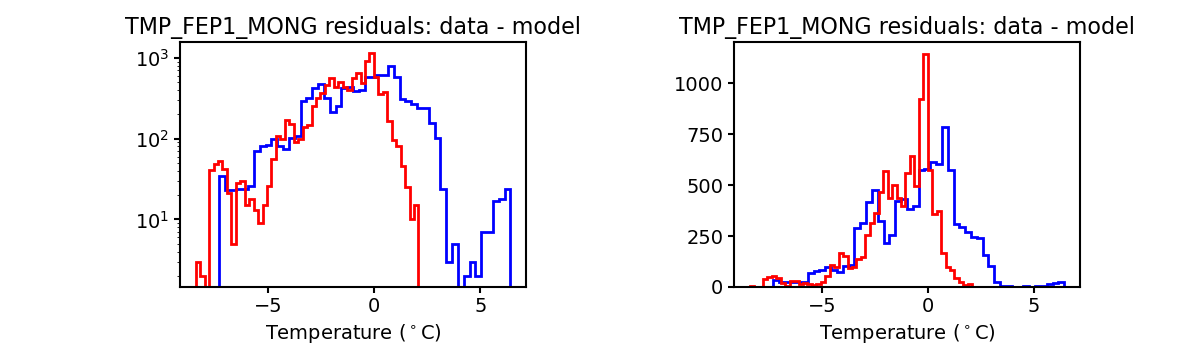

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

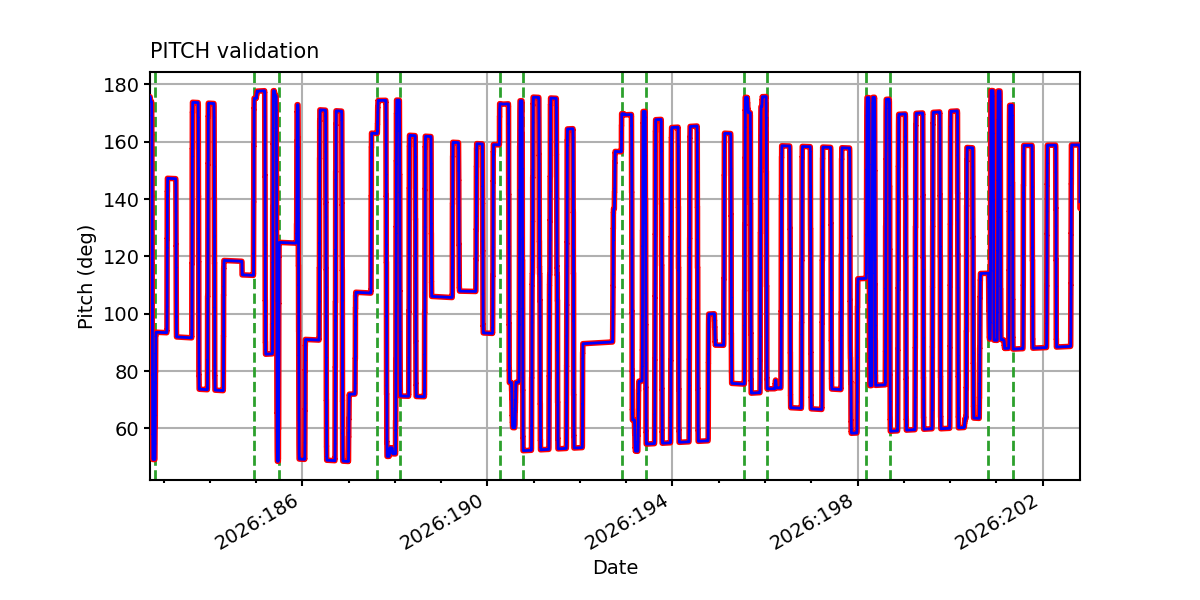

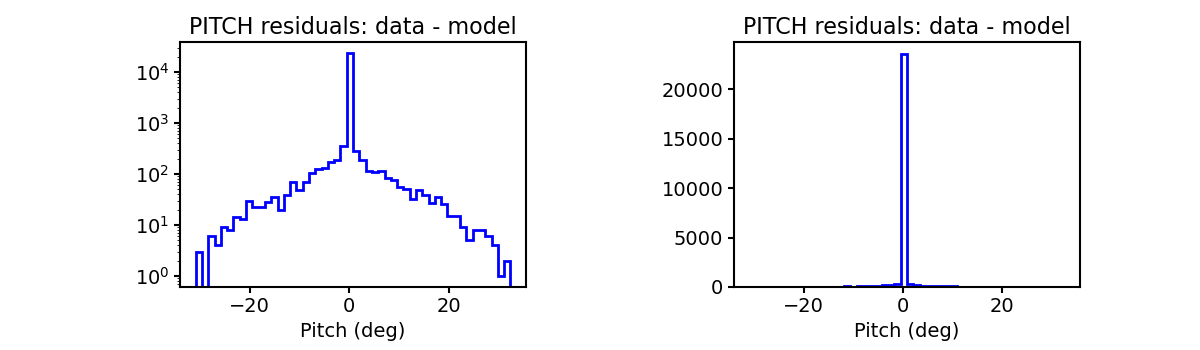

PITCH

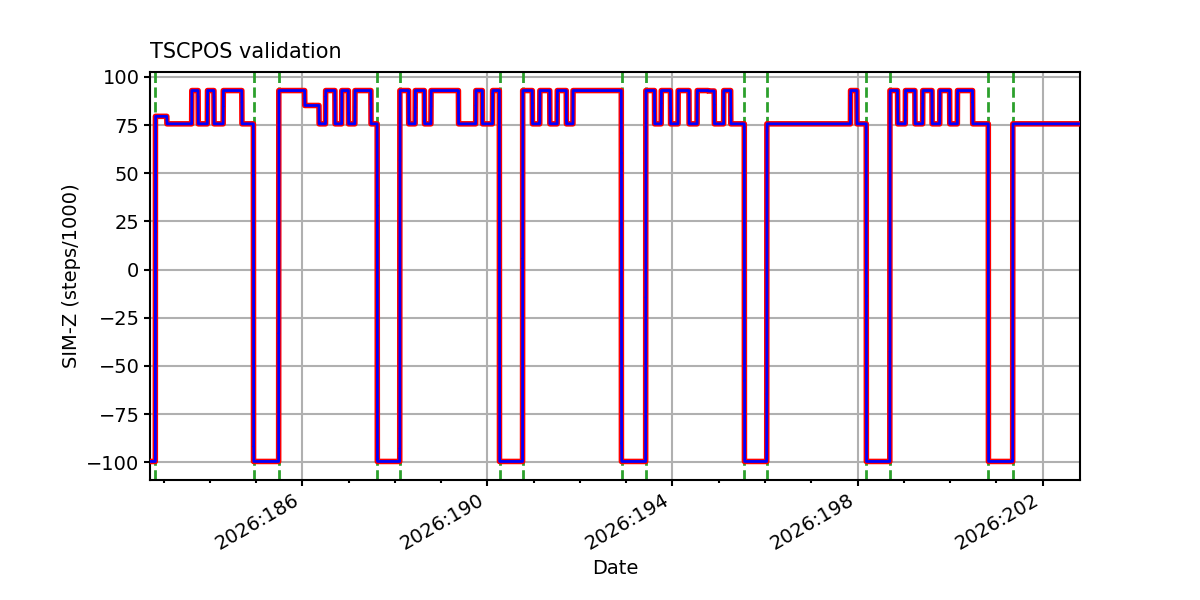

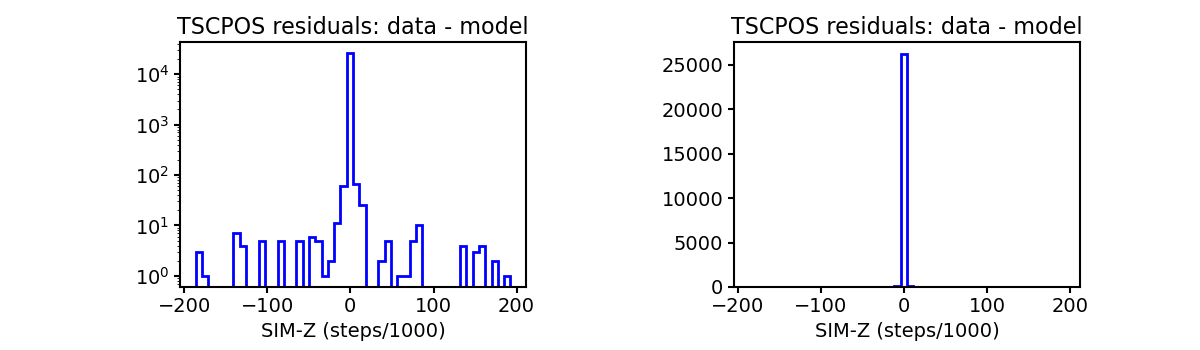

TSCPOS

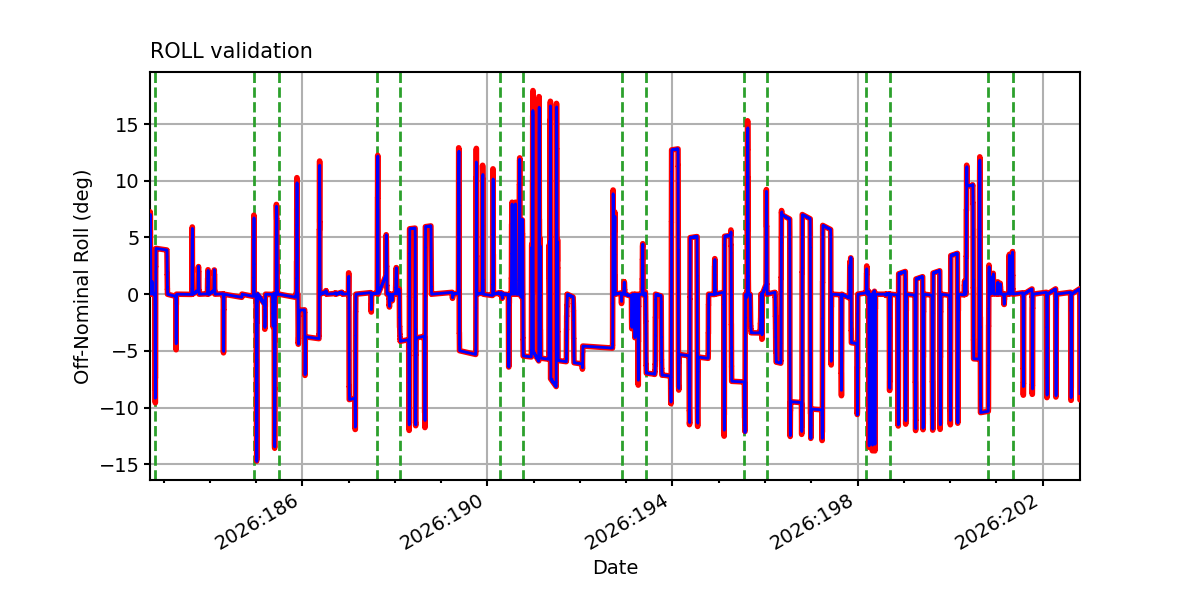

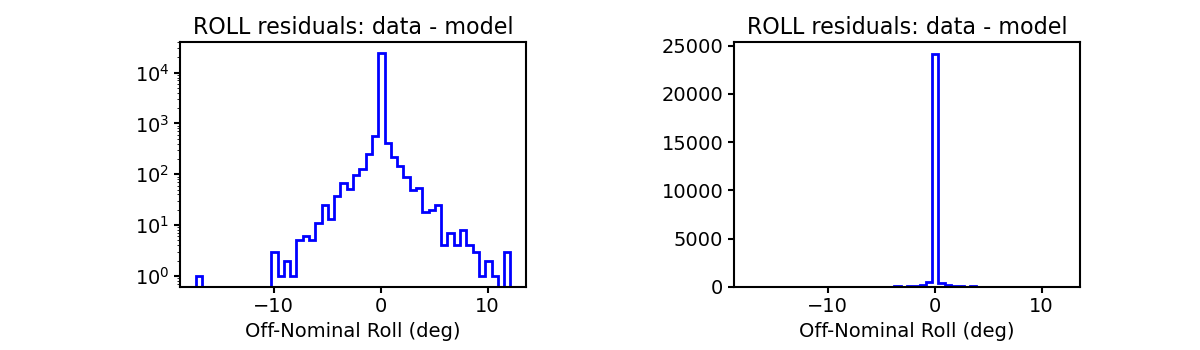

ROLL

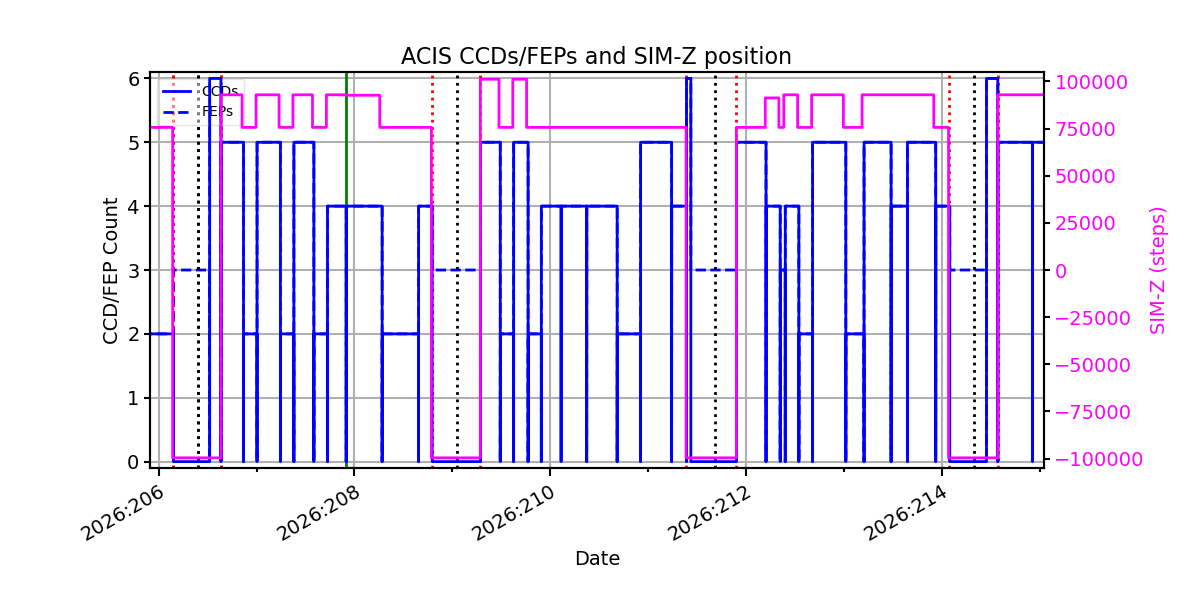

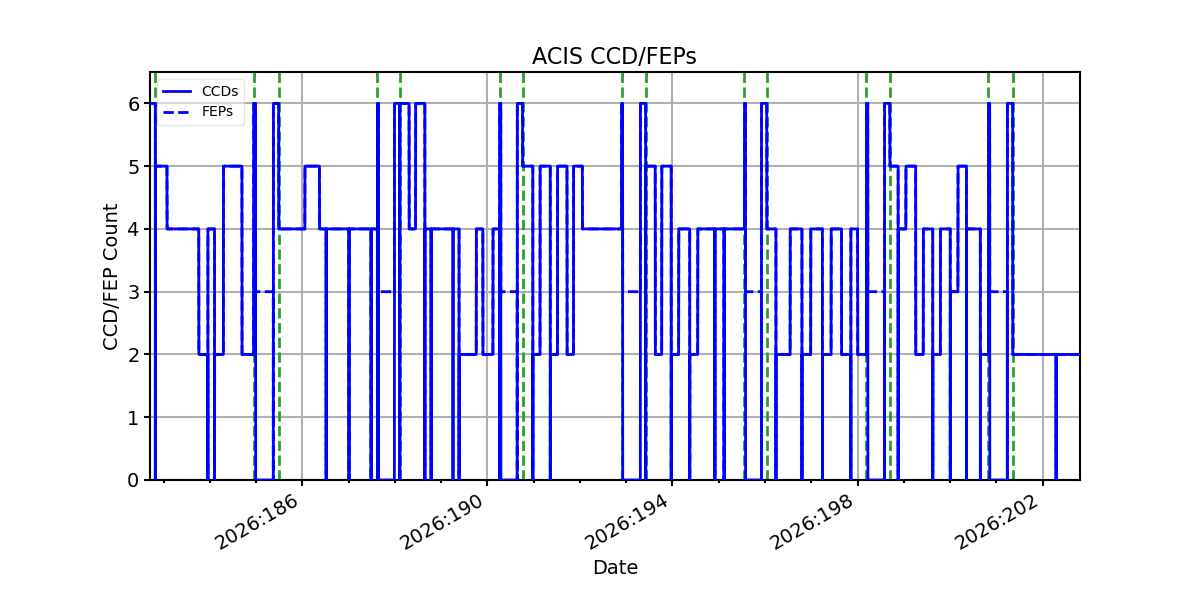

ACIS CCD/FEP Count
