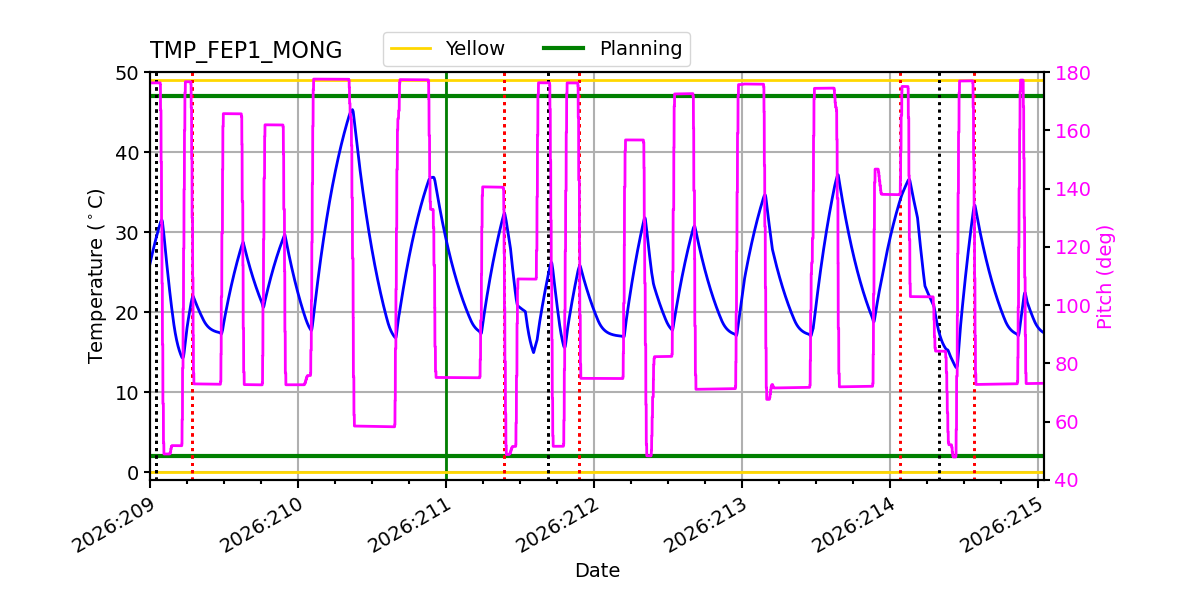

FEP1_MONG Temperatures Check
Summary
| Date start | 2026:210:23:59:59.016 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2926/oflsa |
| Run time | Tue Jul 28 09:33:00 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -4.80 | -3.36 | -2.14 | 0.38 | 1.64 | 2.56 | 3.14 |
| pitch | -13.027 | -1.304 | -0.004 | 0.000 | 0.004 | 1.211 | 12.813 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.610 | -0.248 | -0.008 | -0.000 | 0.009 | 0.253 | 2.291 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -4.8 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.14 | 2.00 |
| PITCH | 1 | -13.027 | 3.00 |
| PITCH | 99 | 12.813 | 3.00 |

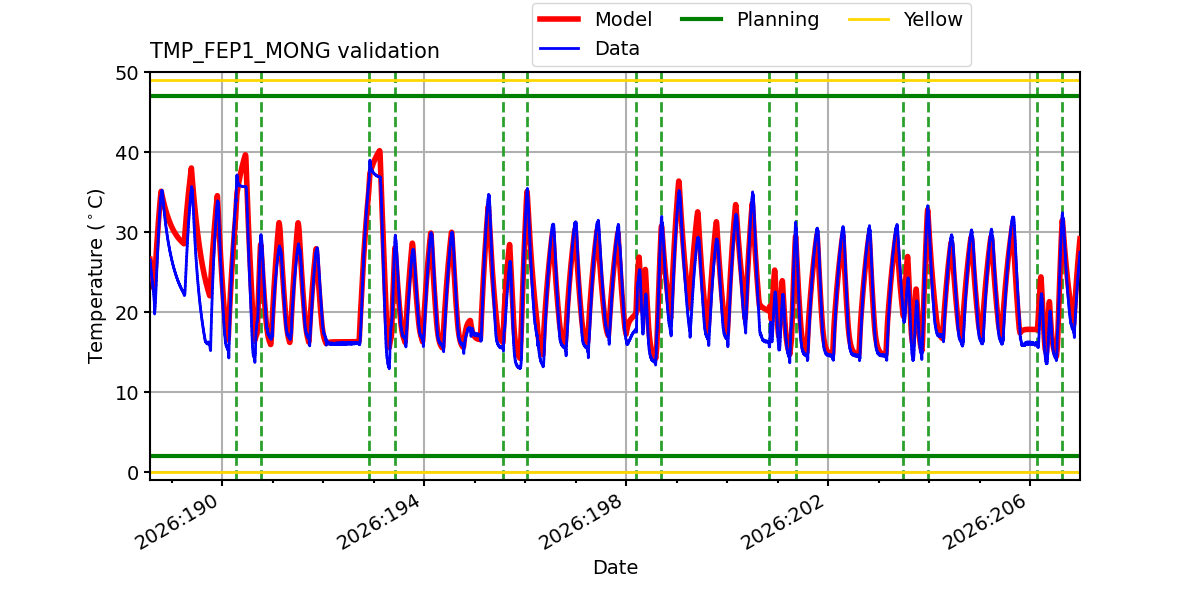

TMP_FEP1_MONG

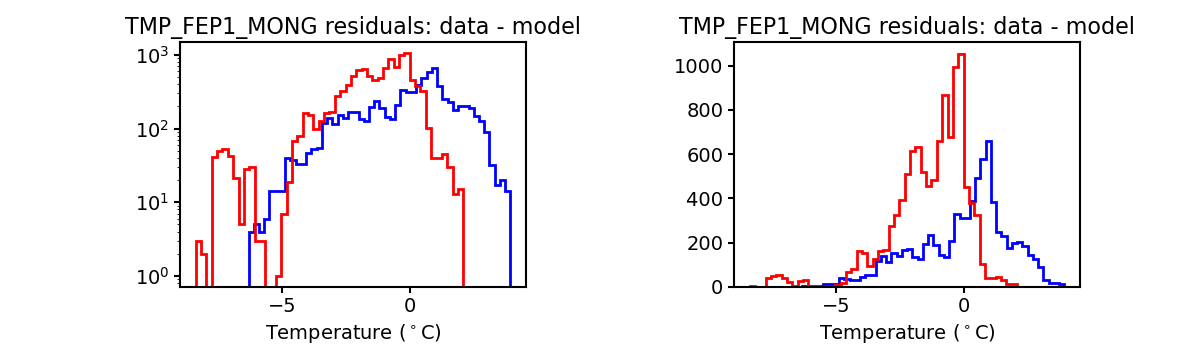

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

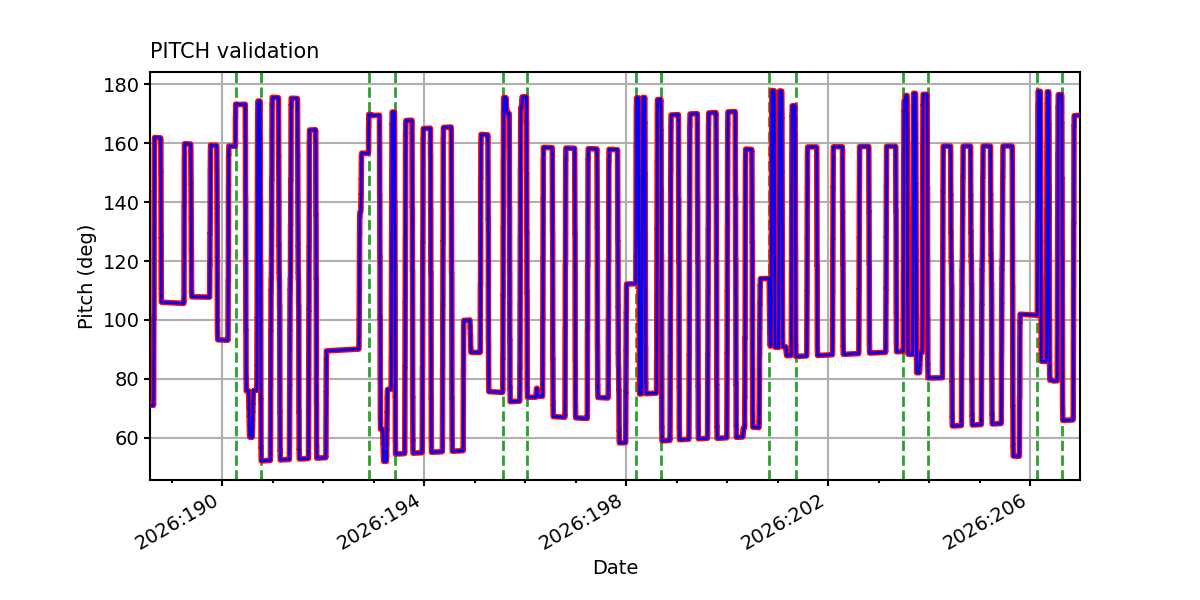

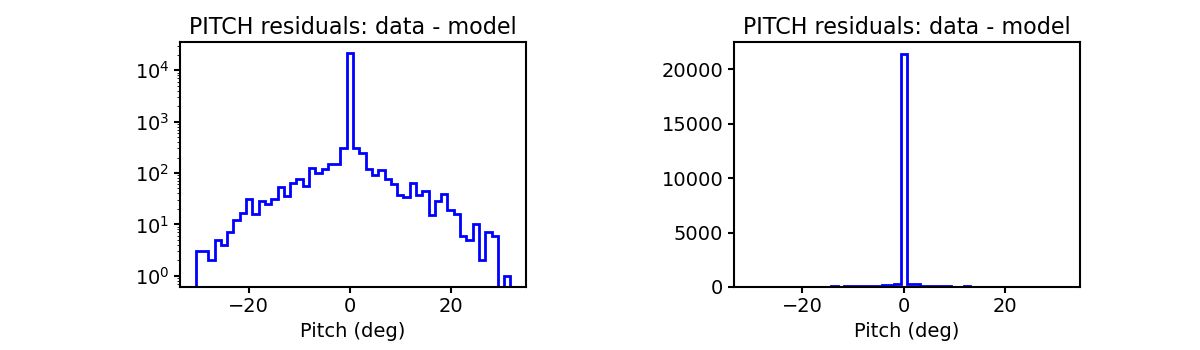

PITCH

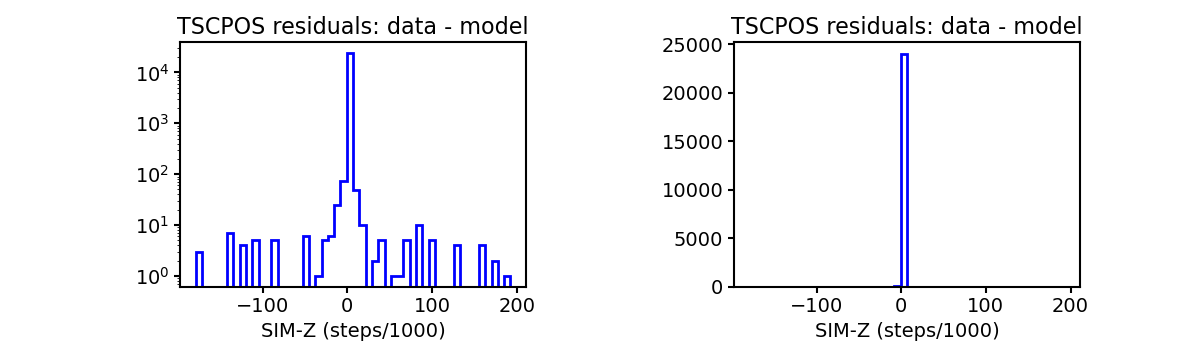

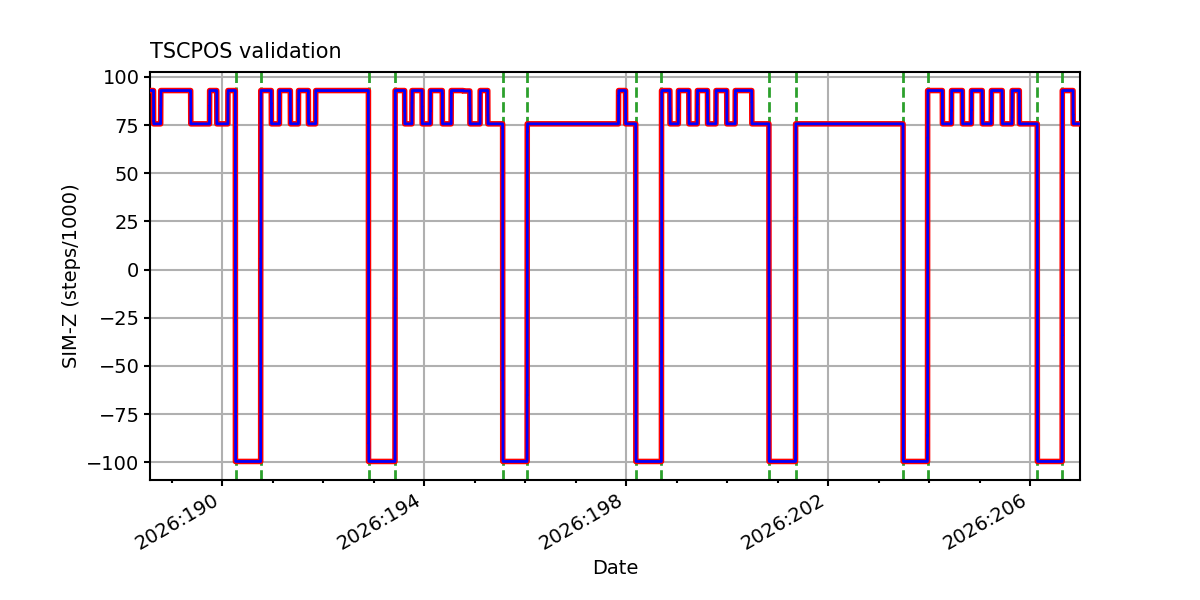

TSCPOS

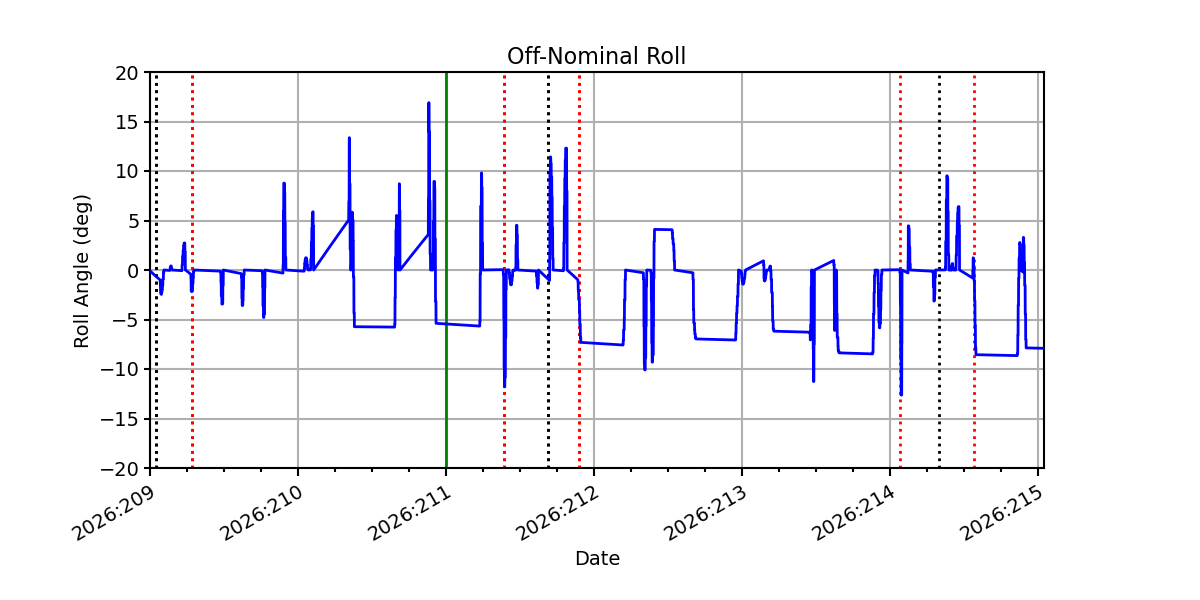

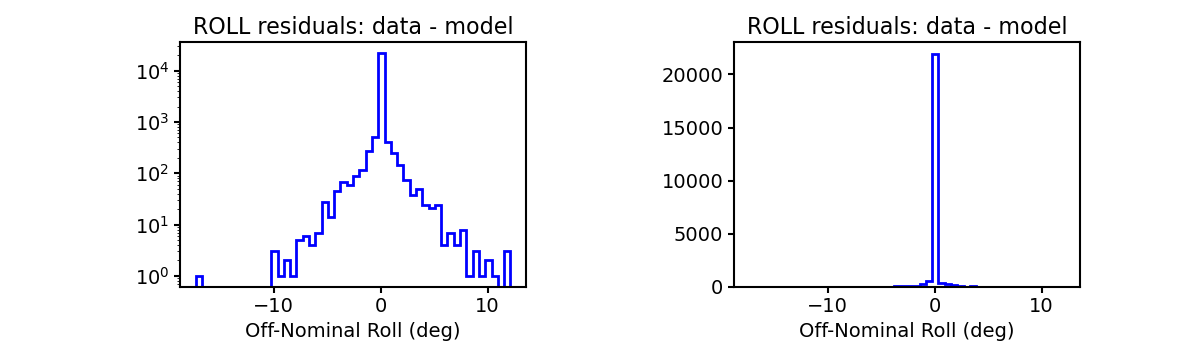

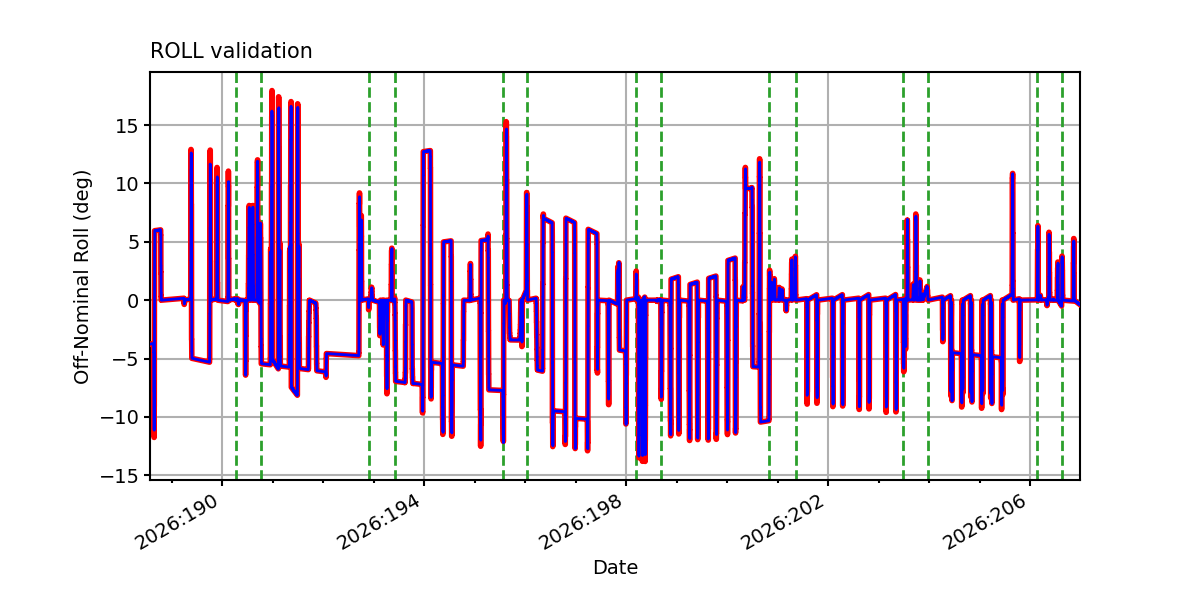

ROLL

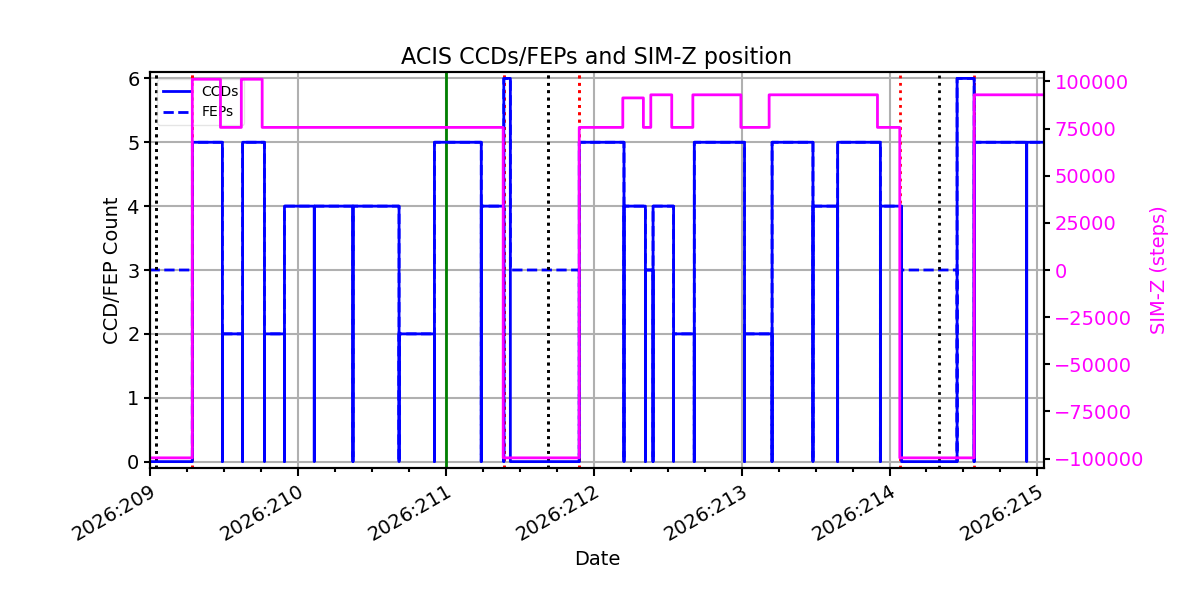

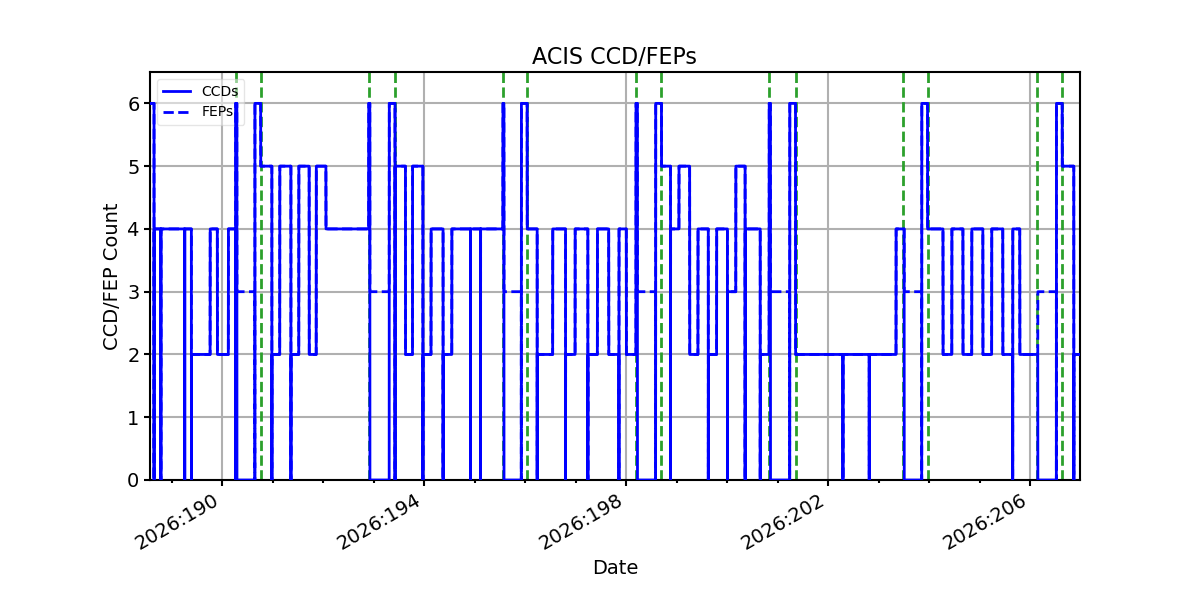

ACIS CCD/FEP Count
