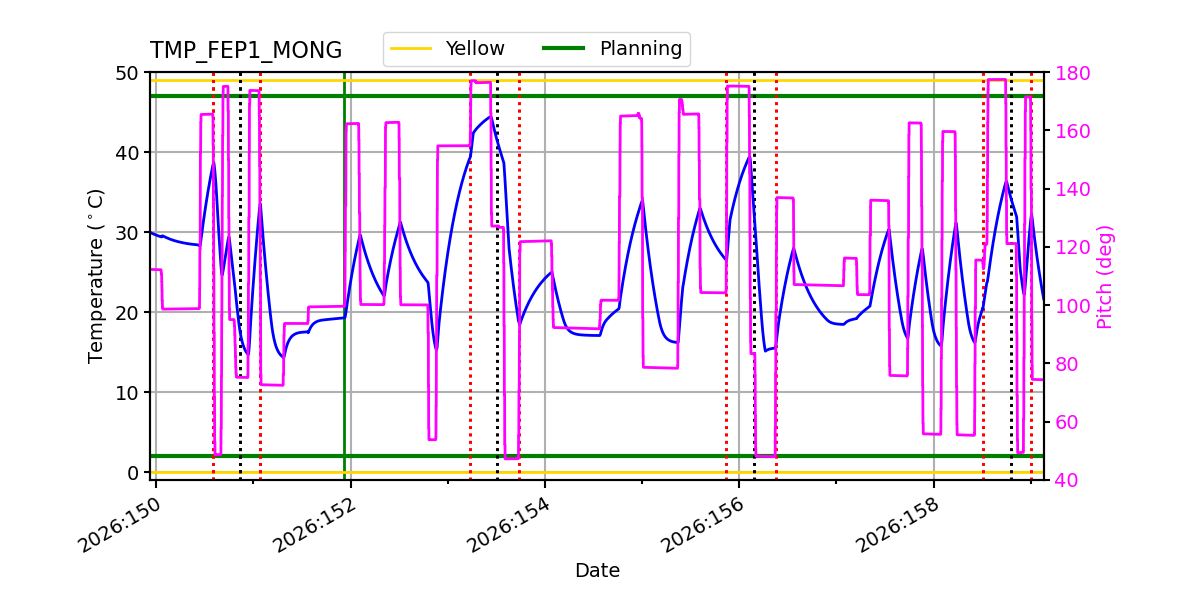

FEP1_MONG Temperatures Check
Summary
| Date start | 2026:151:22:27:10.716 |
| Date stop | 2026:159:03:18:11.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0126/oflsa |
| Run time | Thu May 28 08:18:42 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.64 | -4.82 | -3.93 | -1.40 | 0.49 | 1.45 | 2.22 |
| pitch | -9.249 | -0.397 | -0.004 | -0.000 | 0.004 | 0.168 | 10.239 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.132 | -0.095 | -0.005 | -0.000 | 0.005 | 0.101 | 2.046 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.64 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.4 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.22 | 2.00 |
| PITCH | 1 | -9.249 | 3.00 |
| PITCH | 99 | 10.239 | 3.00 |

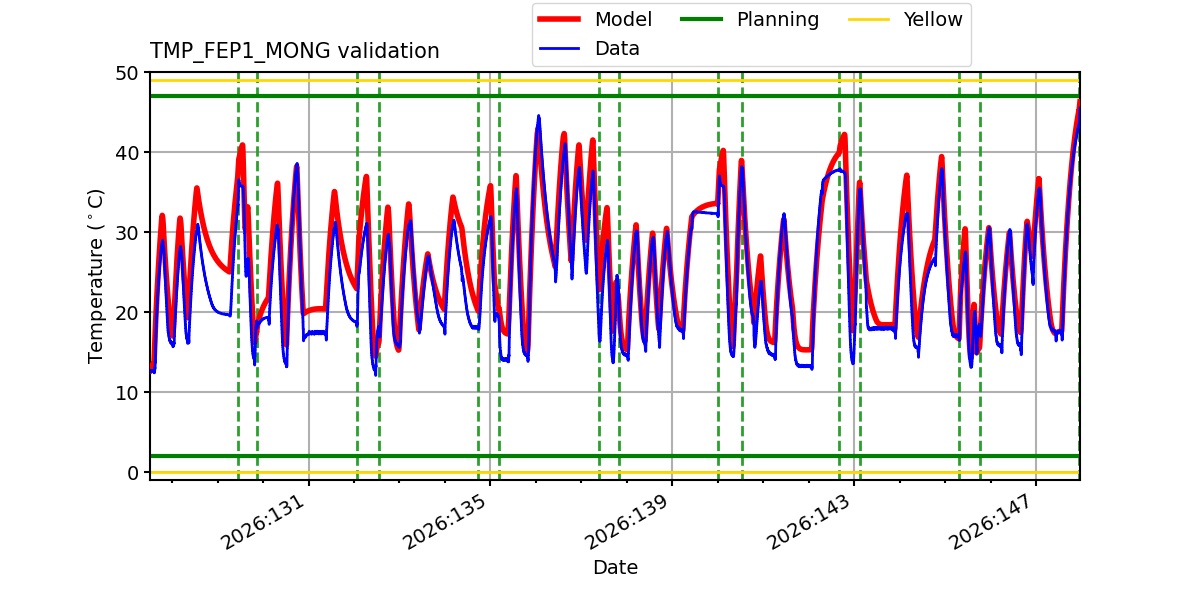

TMP_FEP1_MONG

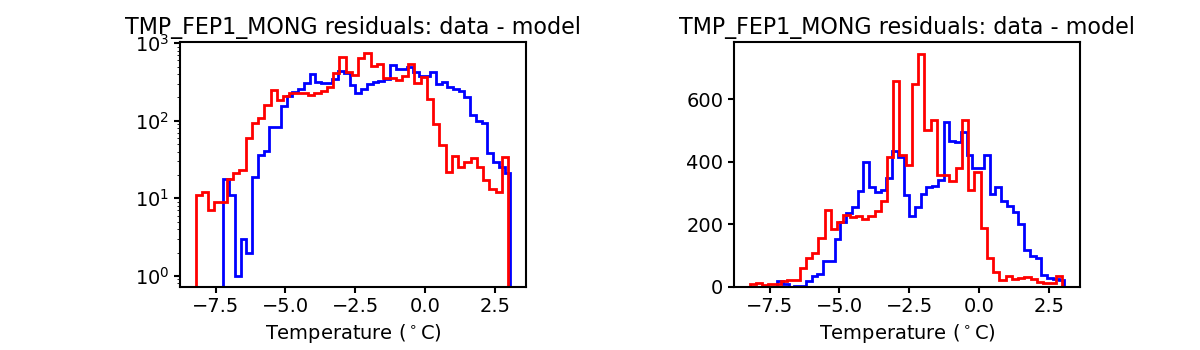

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

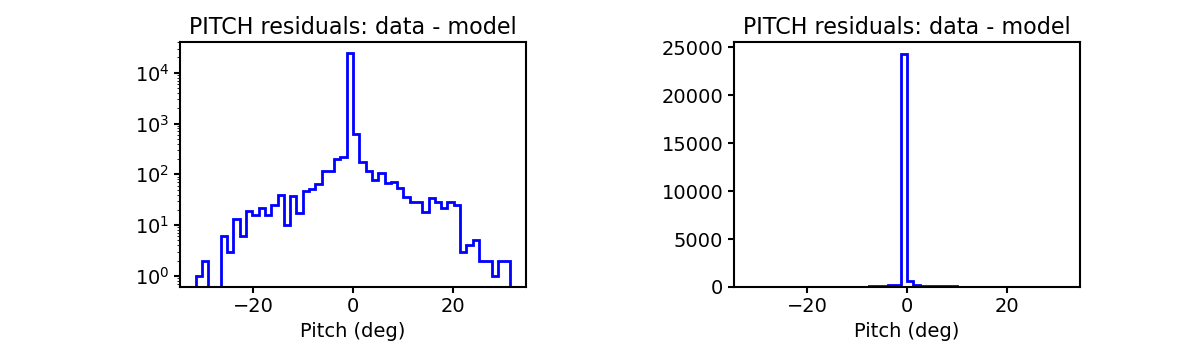

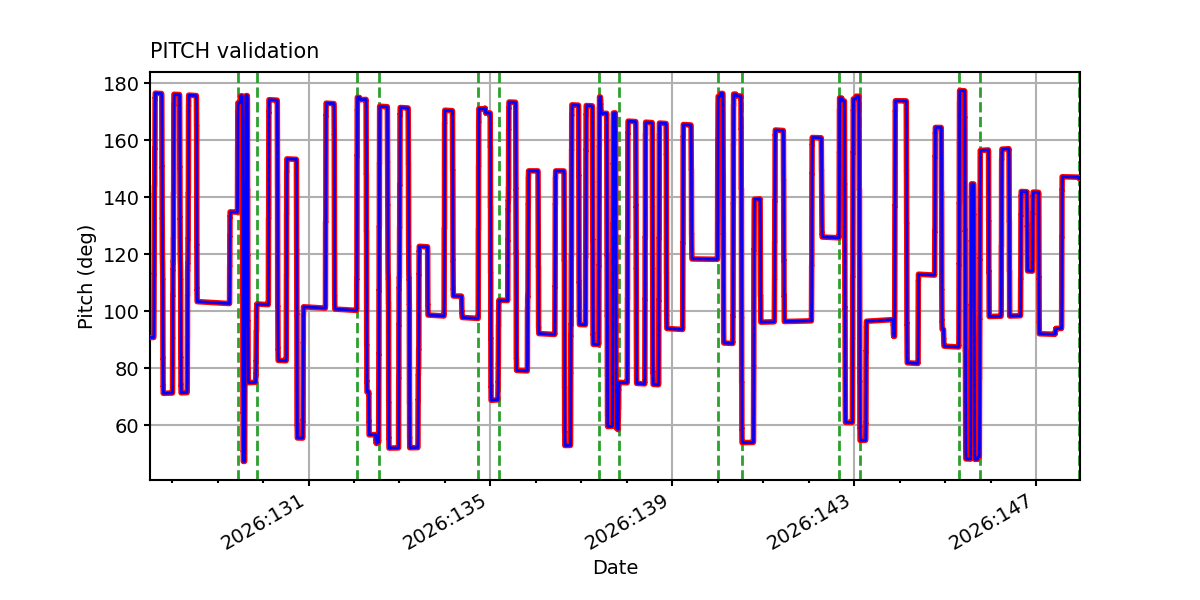

PITCH

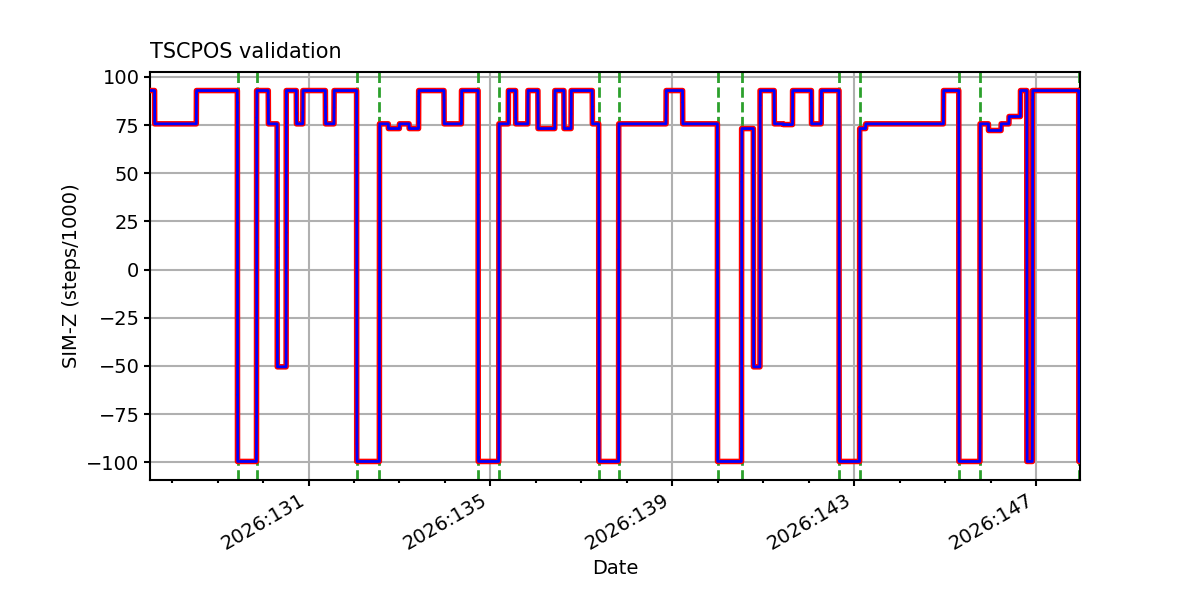

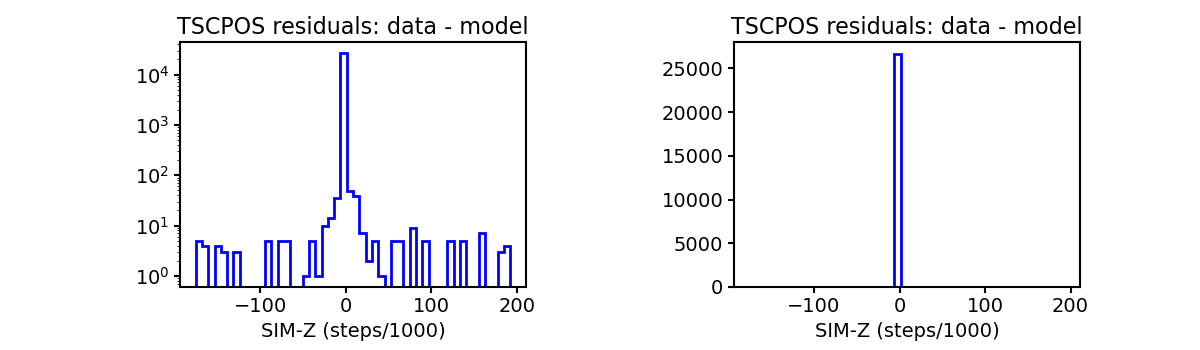

TSCPOS

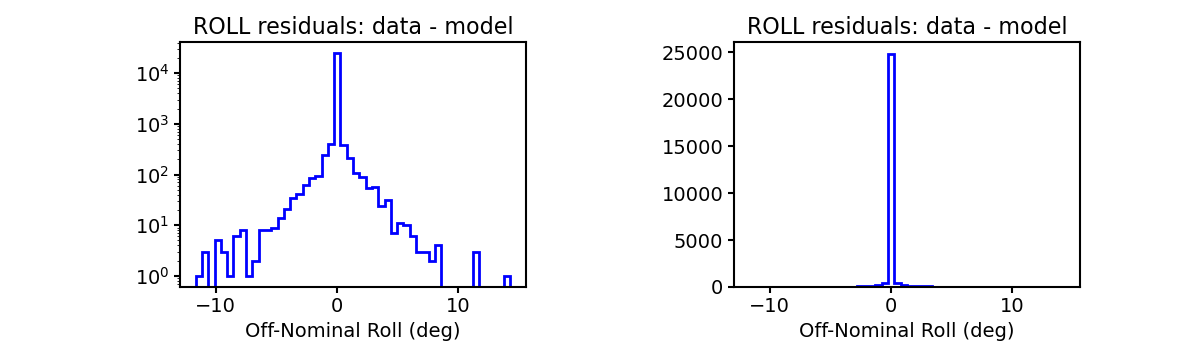

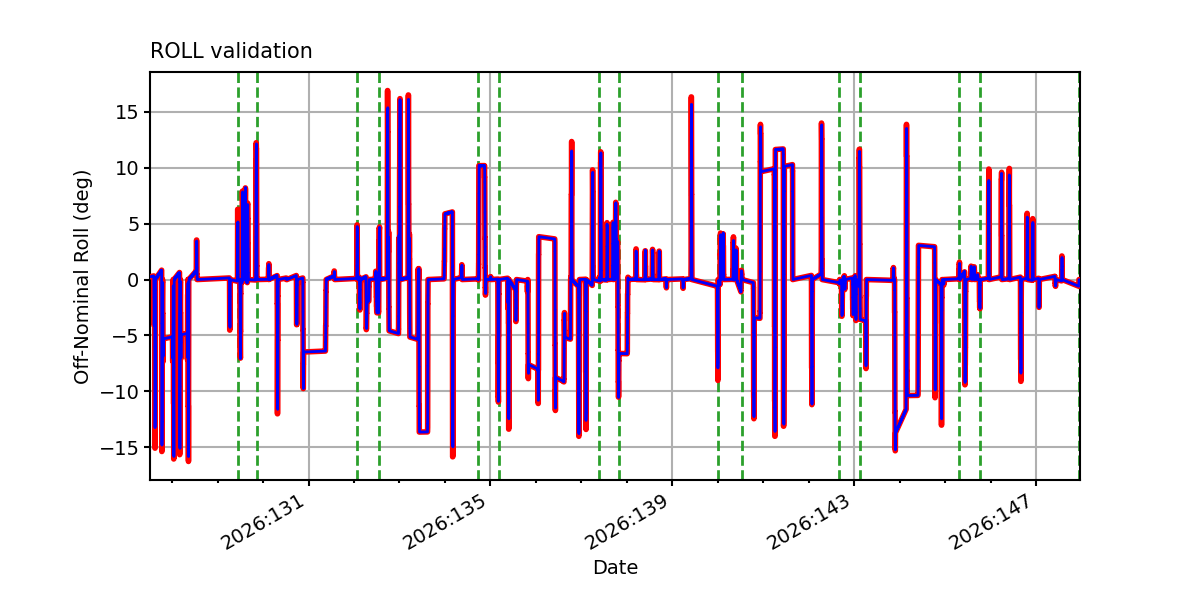

ROLL

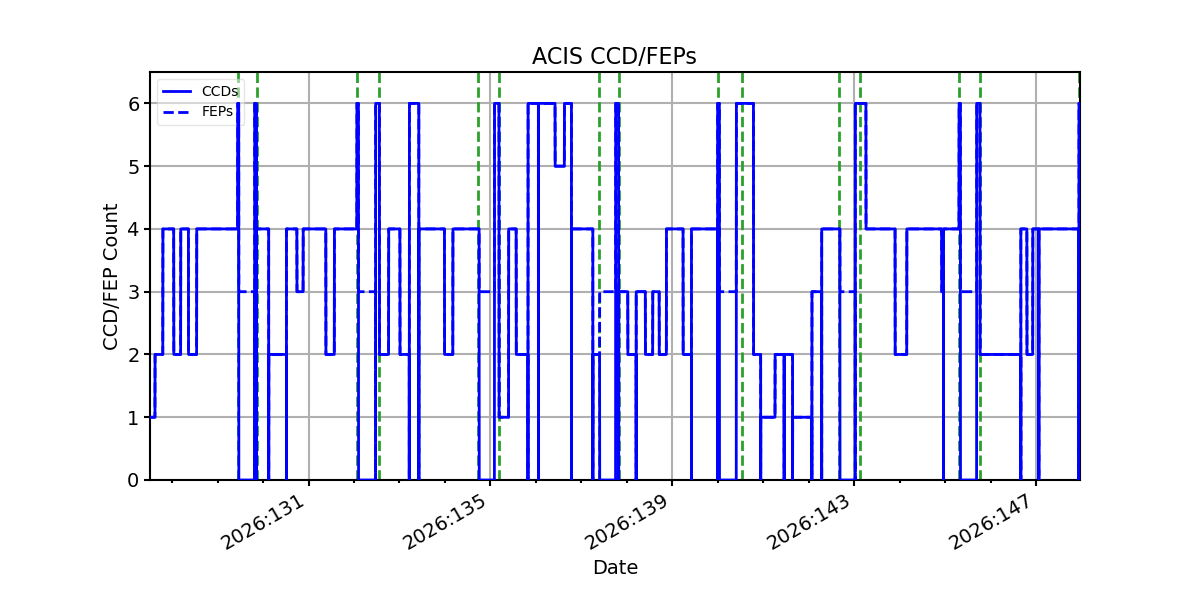

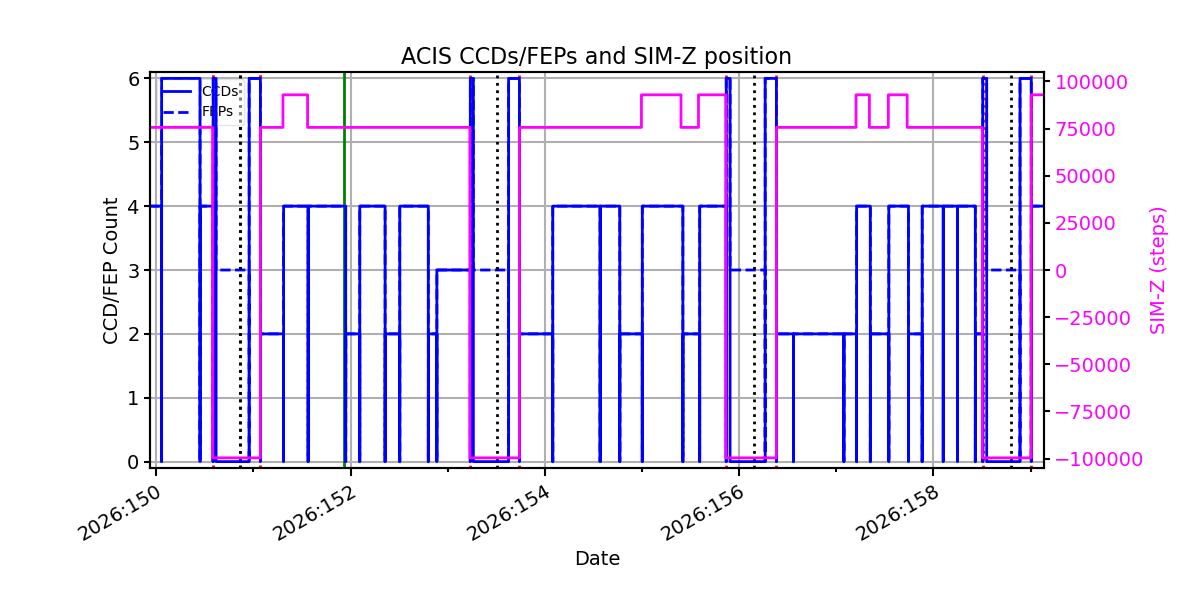

ACIS CCD/FEP Count
