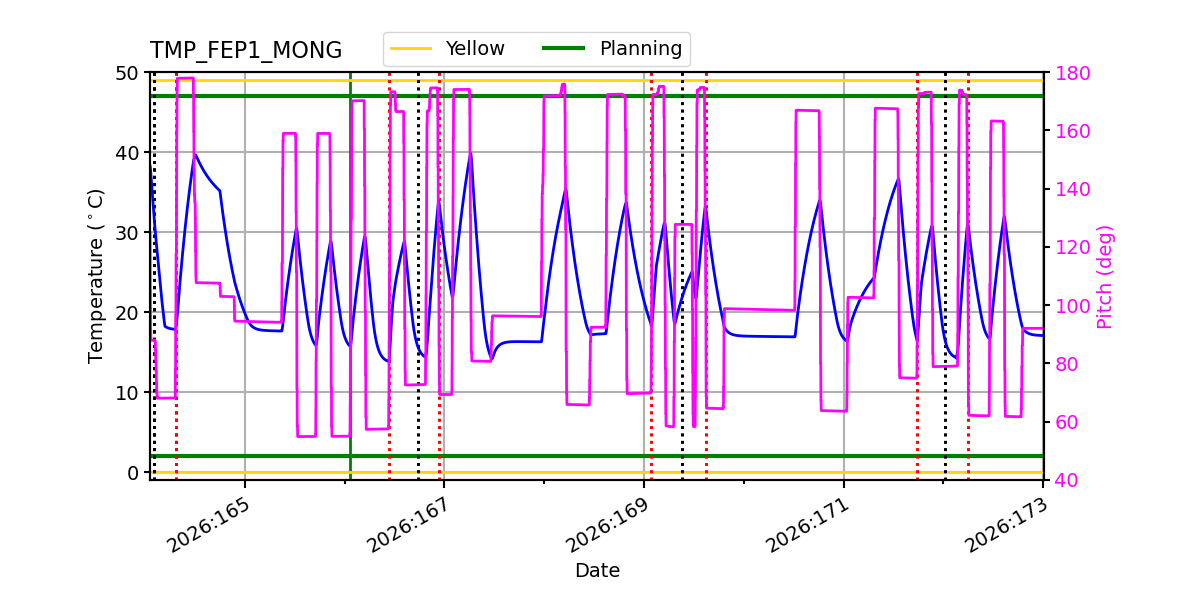

FEP1_MONG Temperatures Check
Summary
| Date start | 2026:166:01:09:48.416 |
| Date stop | 2026:173:00:14:21.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN1526/oflsa |
| Run time | Thu Jun 11 21:46:48 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.23 | -5.51 | -3.44 | -1.17 | 0.62 | 1.99 | 3.38 |
| pitch | -9.748 | -0.163 | -0.004 | 0.000 | 0.004 | 0.352 | 9.412 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.748 | -0.084 | -0.004 | -0.000 | 0.004 | 0.087 | 2.114 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.23 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.17 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.38 | 2.00 |
| PITCH | 1 | -9.748 | 3.00 |
| PITCH | 99 | 9.412 | 3.00 |

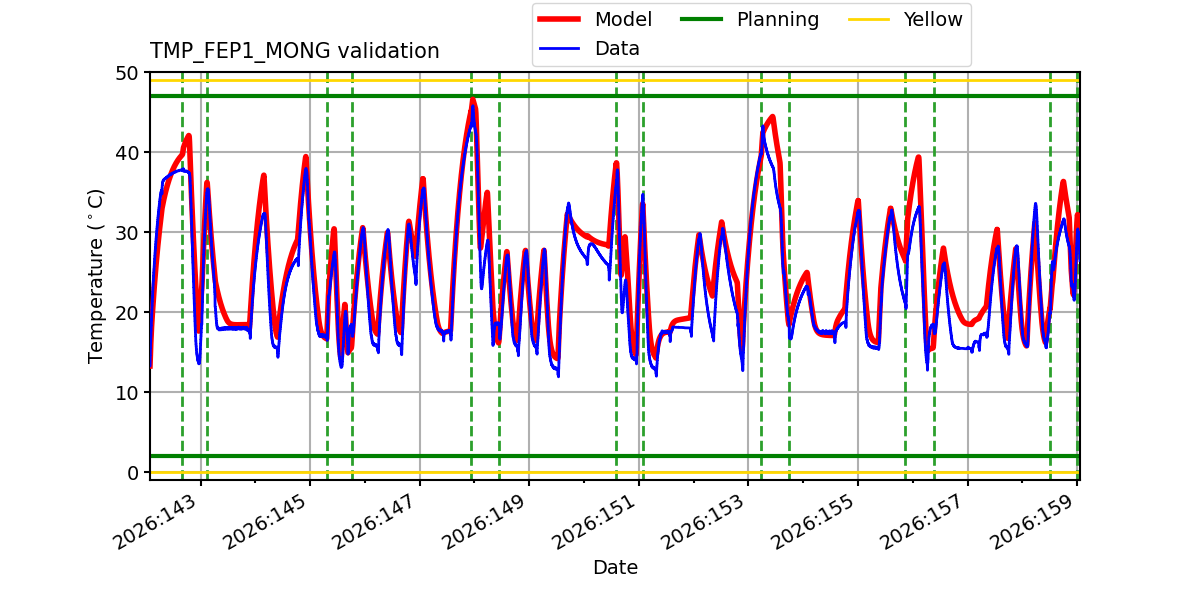

TMP_FEP1_MONG

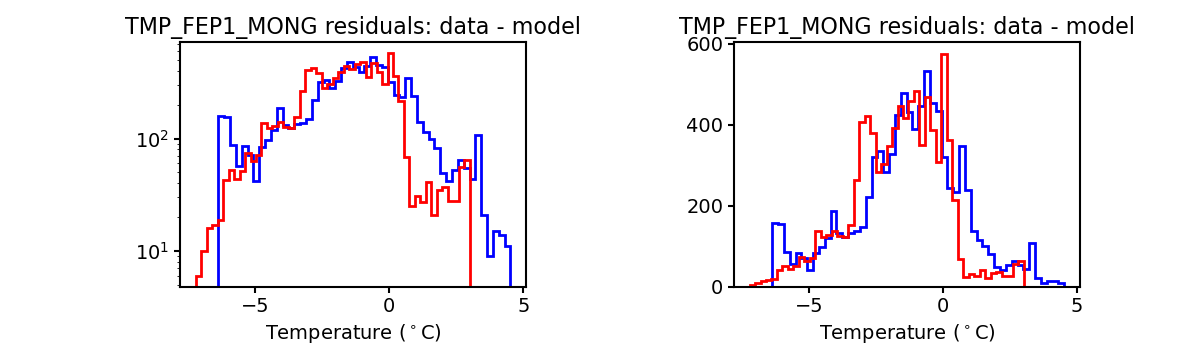

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

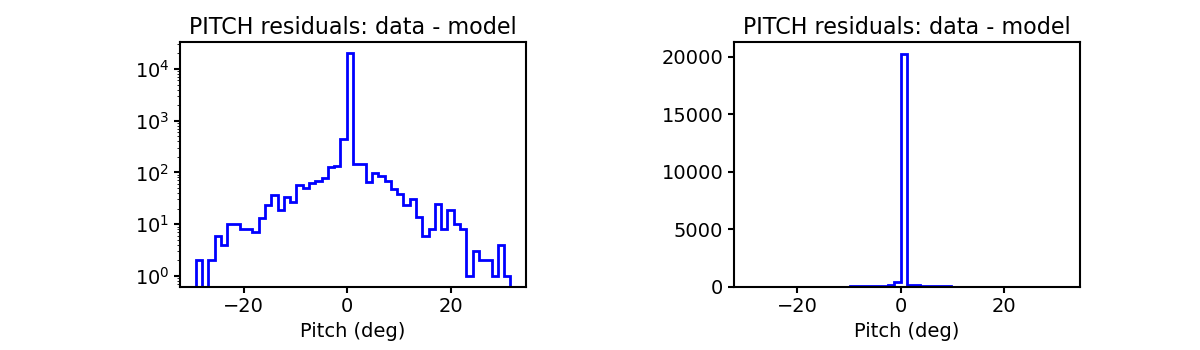

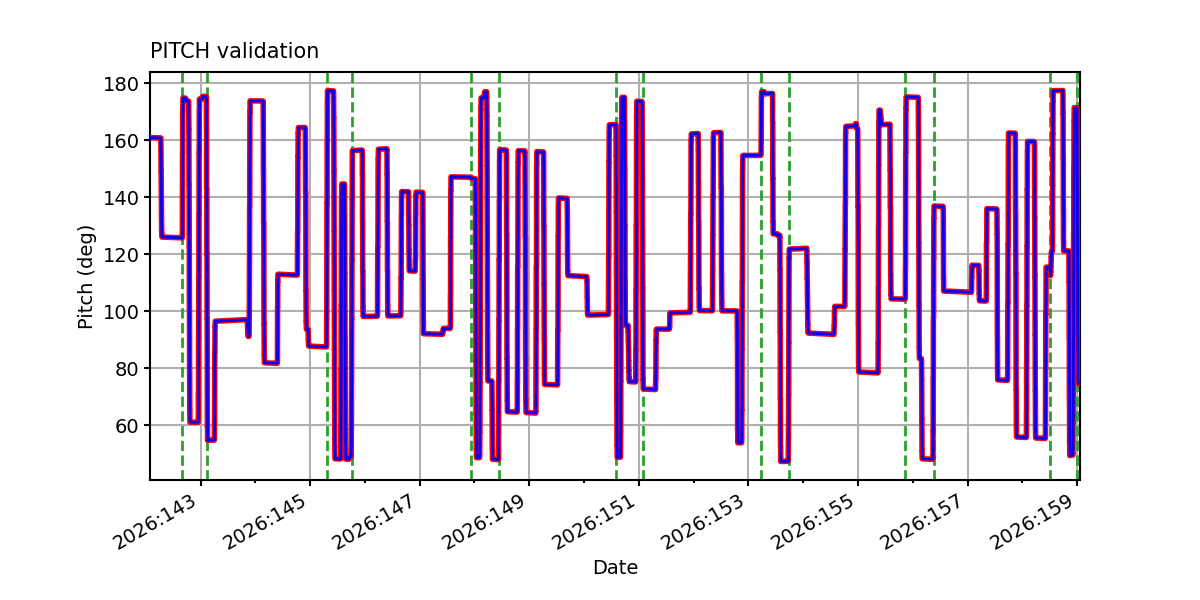

PITCH

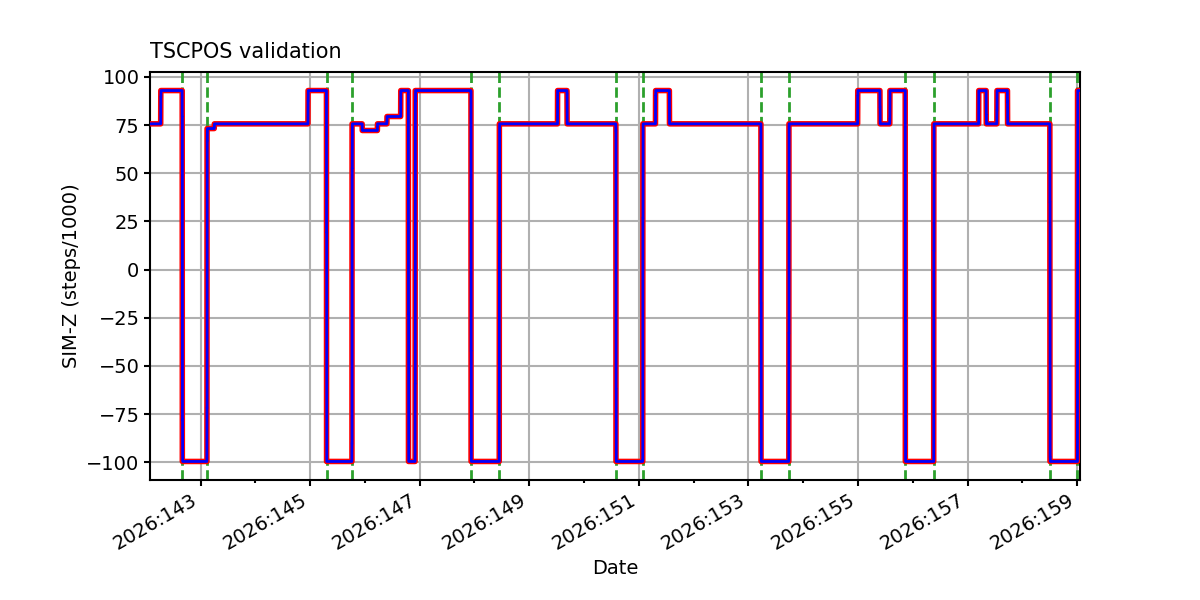

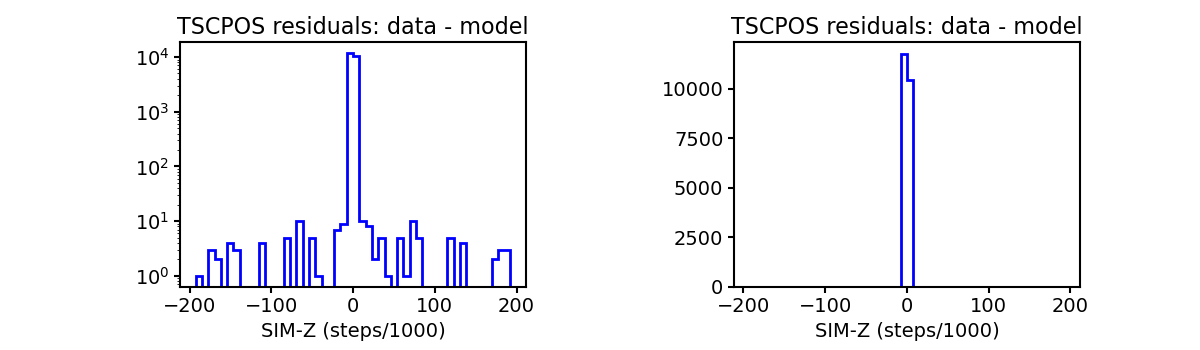

TSCPOS

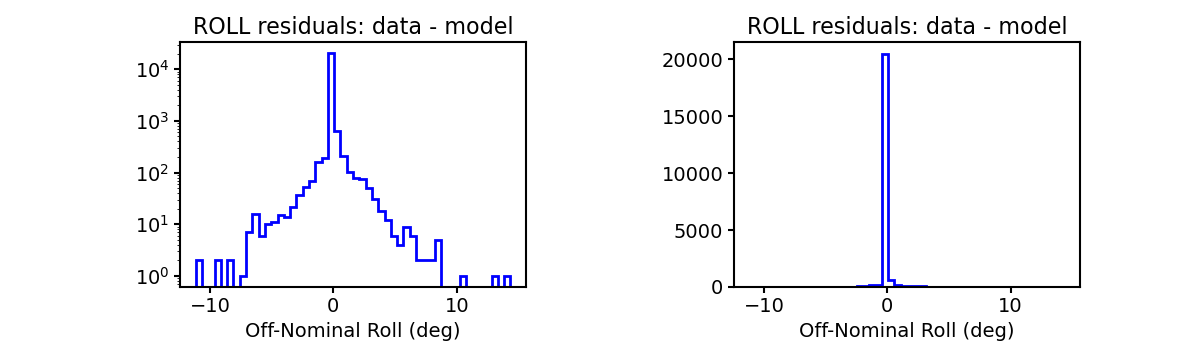

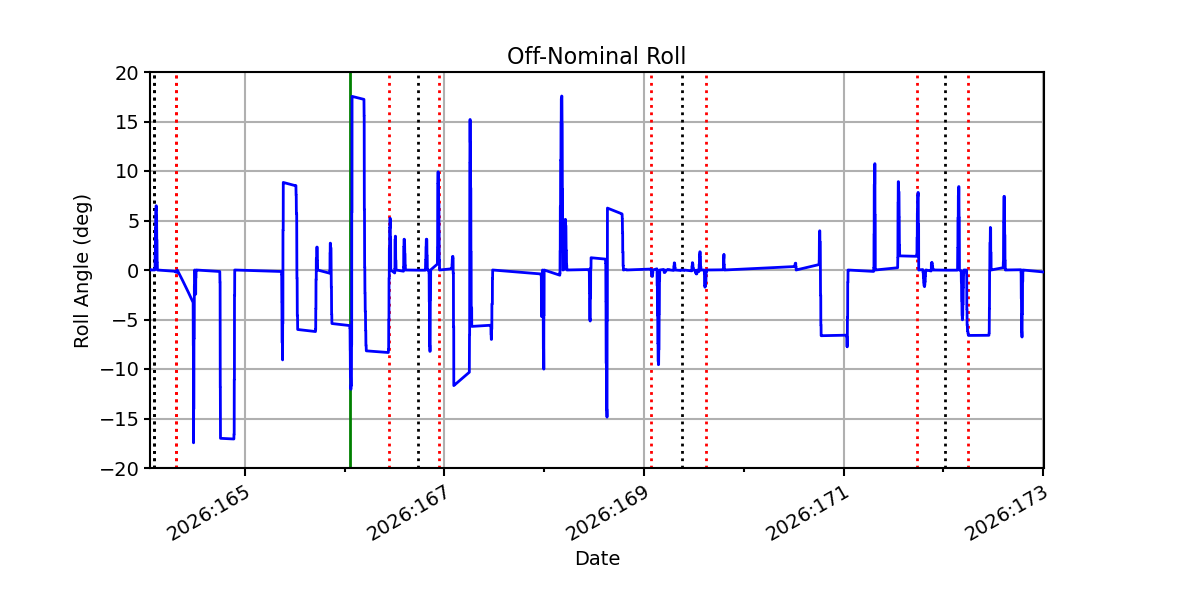

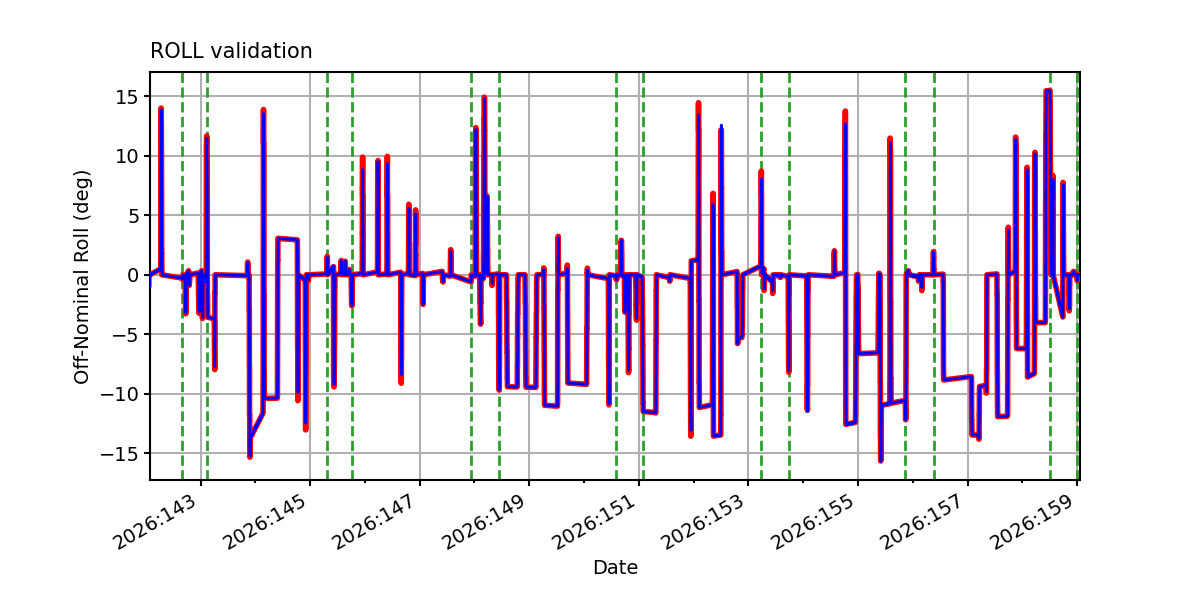

ROLL

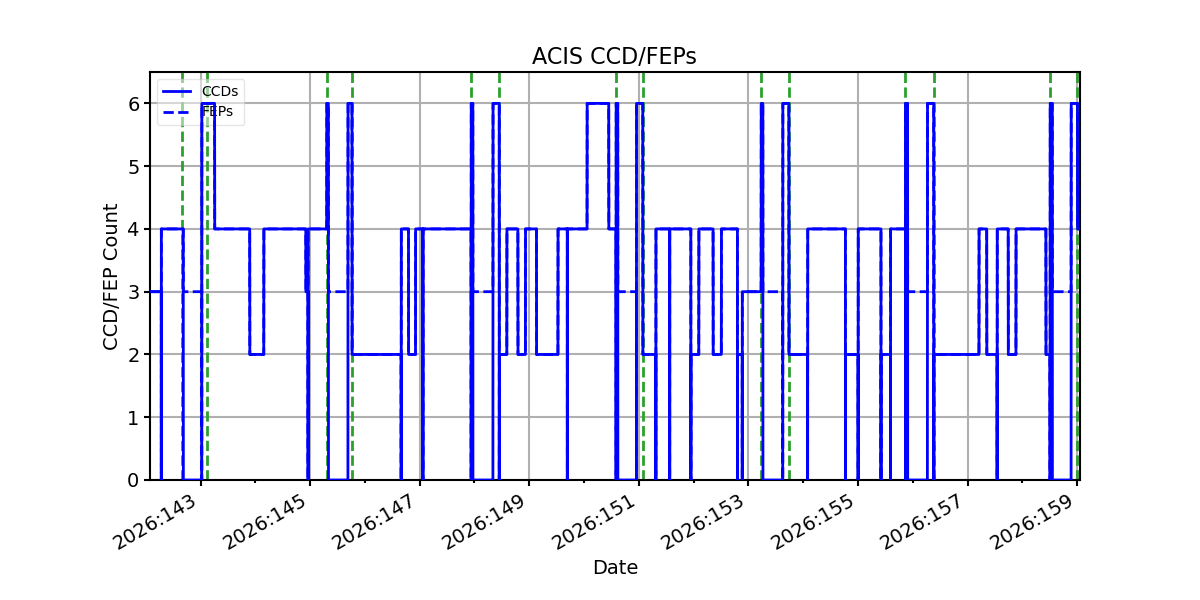

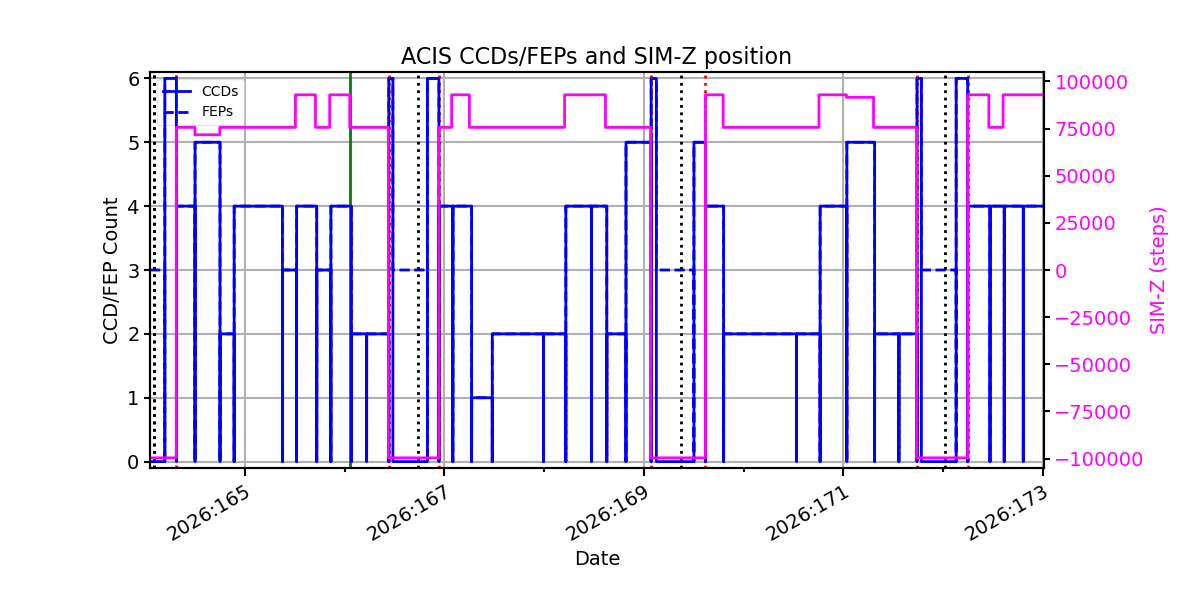

ACIS CCD/FEP Count
