FEP1_MONG Temperatures Check
Summary
| Date start | 2025:174:00:01:24.716 |
| Date stop | 2025:181:00:15:08.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN2325/ofls |
| Run time | Wed Jun 18 08:10:39 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -4.63 | -4.20 | -2.84 | -0.62 | 1.04 | 1.53 | 2.36 |
| pitch | -25.948 | -2.890 | -0.004 | -0.000 | 0.004 | 0.293 | 7.304 |
| tscpos | -143408 | -1 | -1 | 0 | 0 | 0 | 126128 |
| roll | -3.881 | -0.288 | -0.007 | 0.000 | 0.009 | 0.502 | 9.214 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -4.63 | 2.00 |
| TMP_FEP1_MONG | 99 | 2.36 | 2.00 |
| PITCH | 1 | -25.948 | 3.00 |
| PITCH | 99 | 7.304 | 3.00 |
| TSCPOS | 1 | -143408.0 | 2.50 |
| TSCPOS | 99 | 126128.0 | 2.50 |

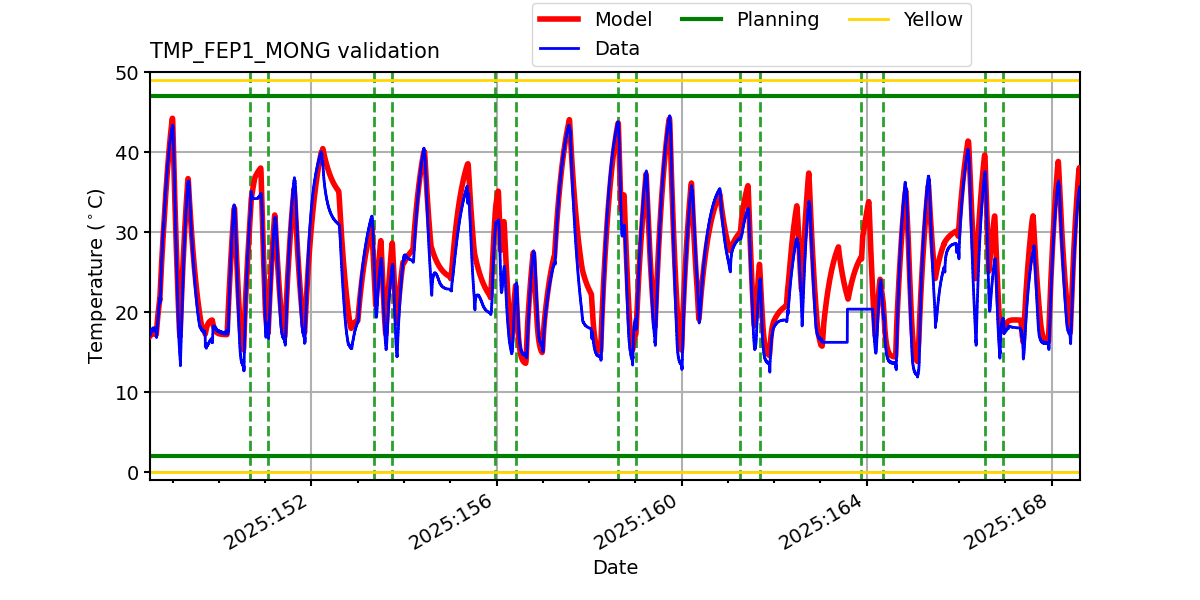

TMP_FEP1_MONG

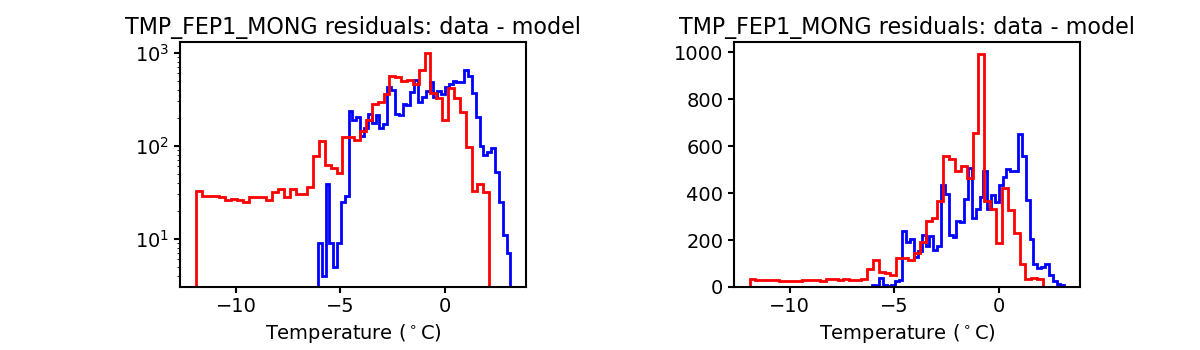

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

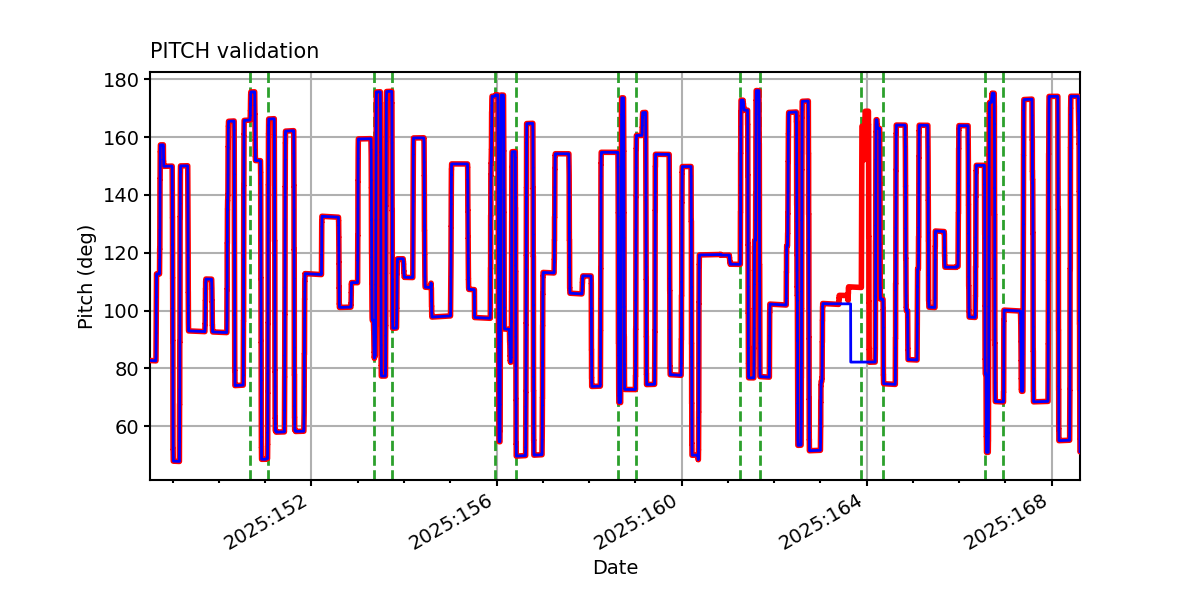

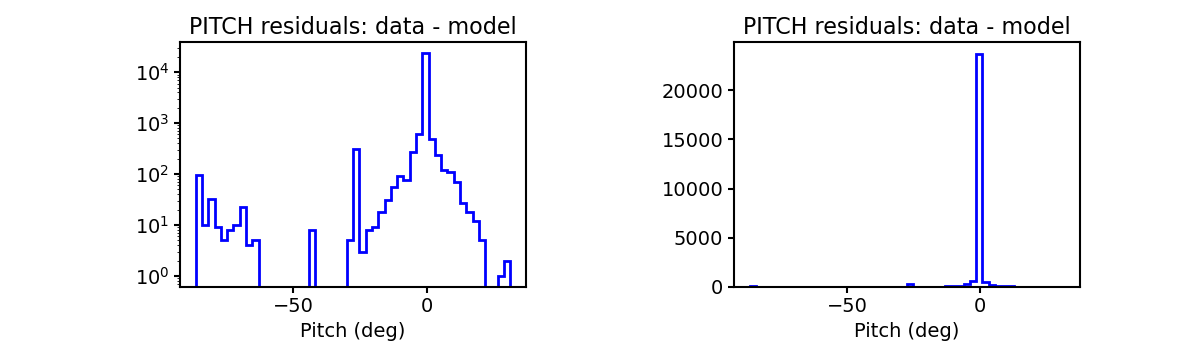

PITCH

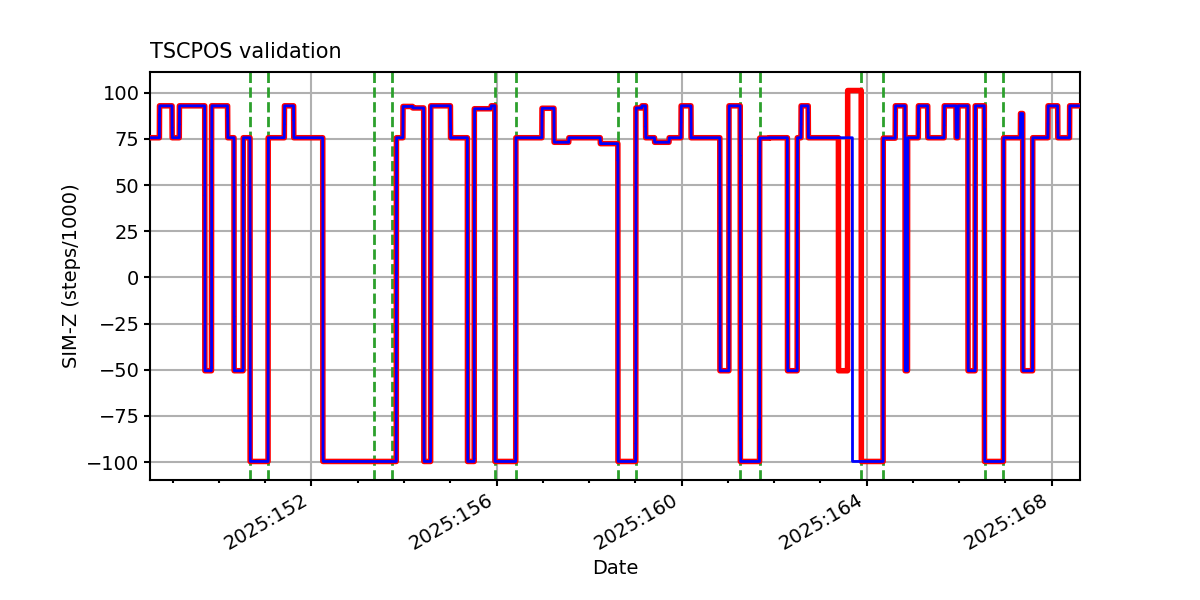

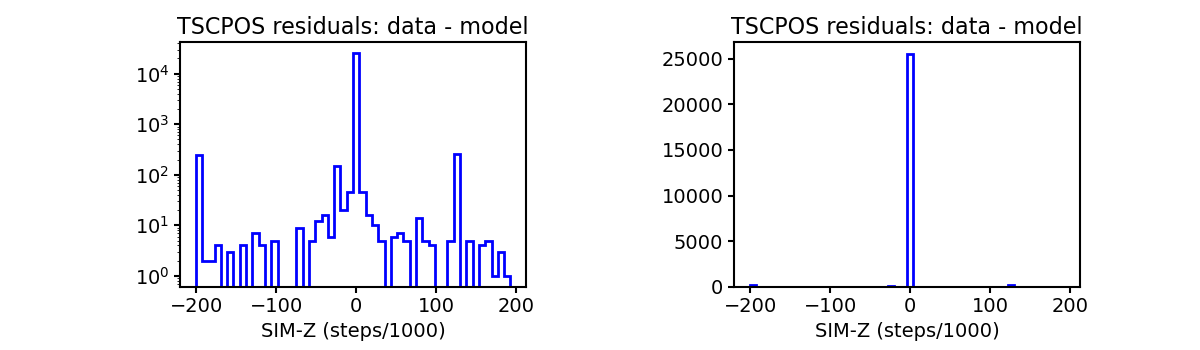

TSCPOS

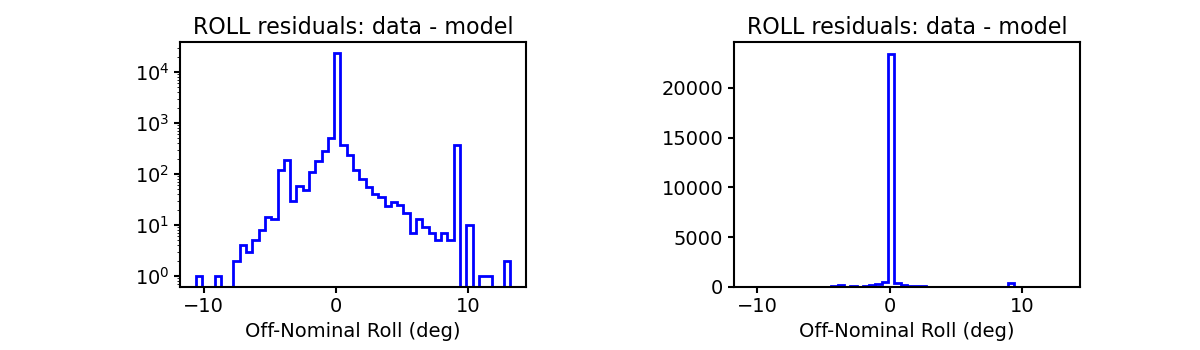

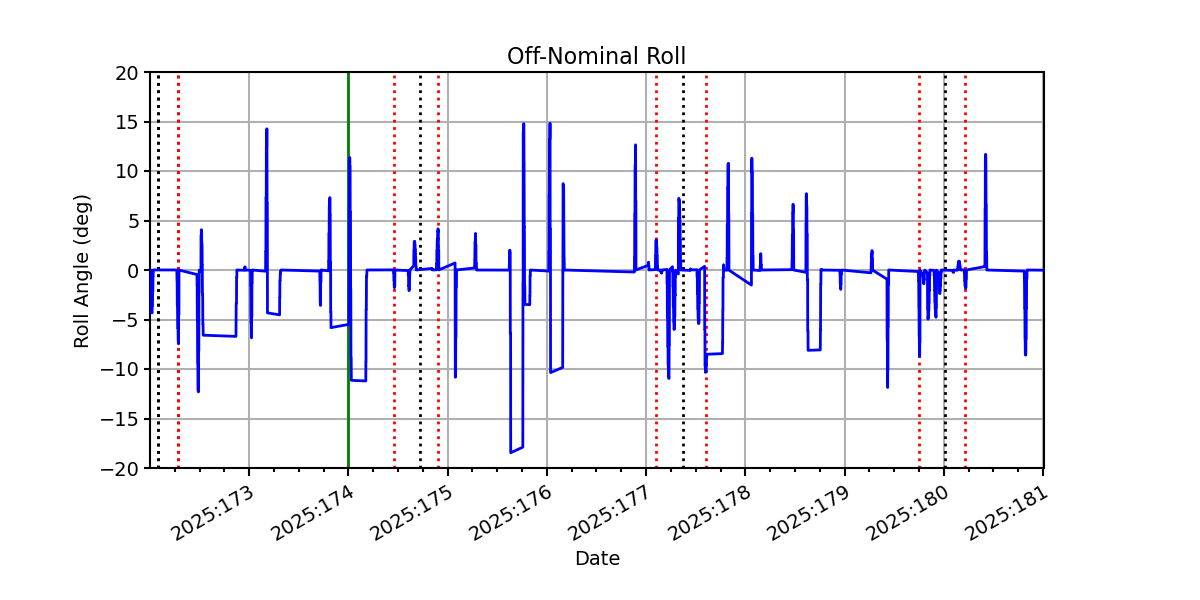

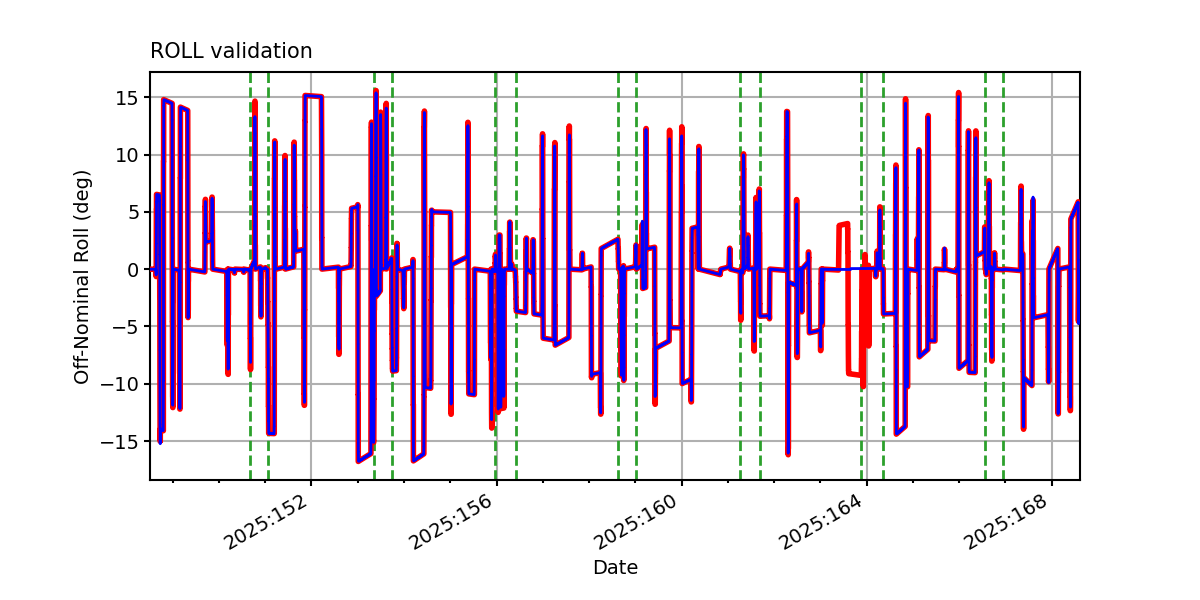

ROLL

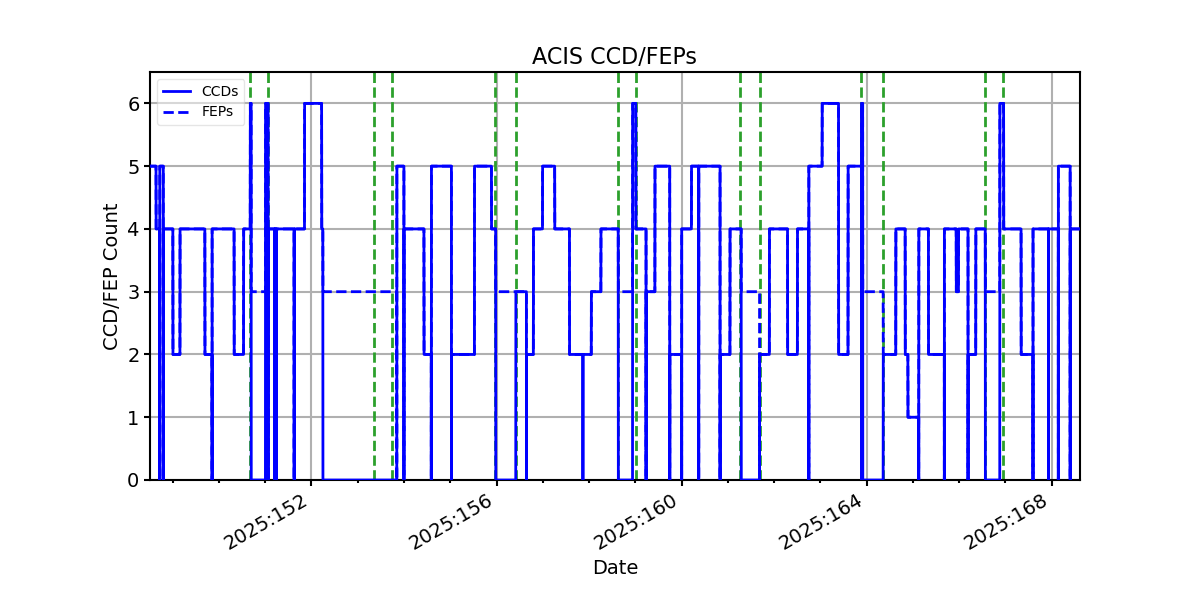

ACIS CCD/FEP Count
