FEP1_MONG Temperatures Check
Summary
| Date start | 2025:181:00:12:08.516 |
| Date stop | 2025:187:17:23:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN3025/ofls |
| Run time | Thu Jun 26 12:08:17 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.92 | -4.73 | -3.64 | -1.48 | 0.71 | 1.30 | 1.79 |
| pitch | -25.945 | -2.870 | -0.004 | -0.000 | 0.004 | 0.161 | 7.289 |
| tscpos | -134637 | -1 | -1 | 0 | 0 | 0 | 126128 |
| roll | -3.862 | -0.201 | -0.006 | 0.000 | 0.009 | 0.289 | 9.213 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.92 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.48 | 1.00 |
| PITCH | 1 | -25.945 | 3.00 |
| PITCH | 99 | 7.289 | 3.00 |
| TSCPOS | 1 | -134637.0 | 2.50 |
| TSCPOS | 99 | 126128.0 | 2.50 |
TMP_FEP1_MONG

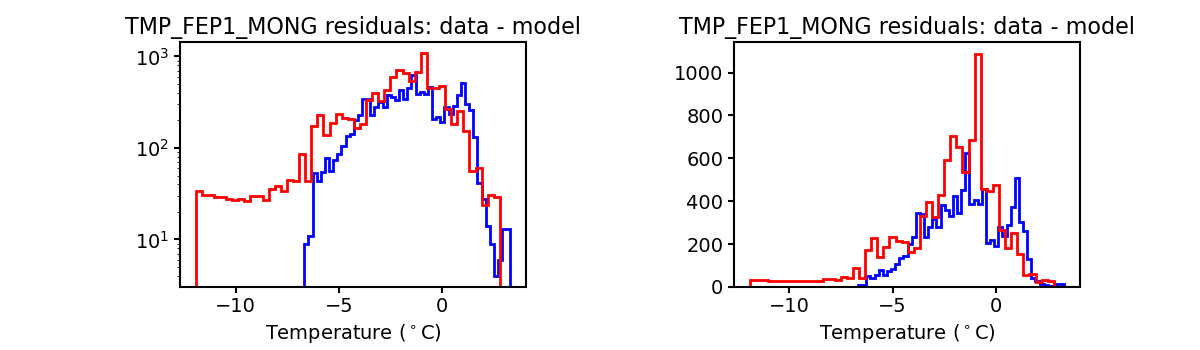

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.
PITCH

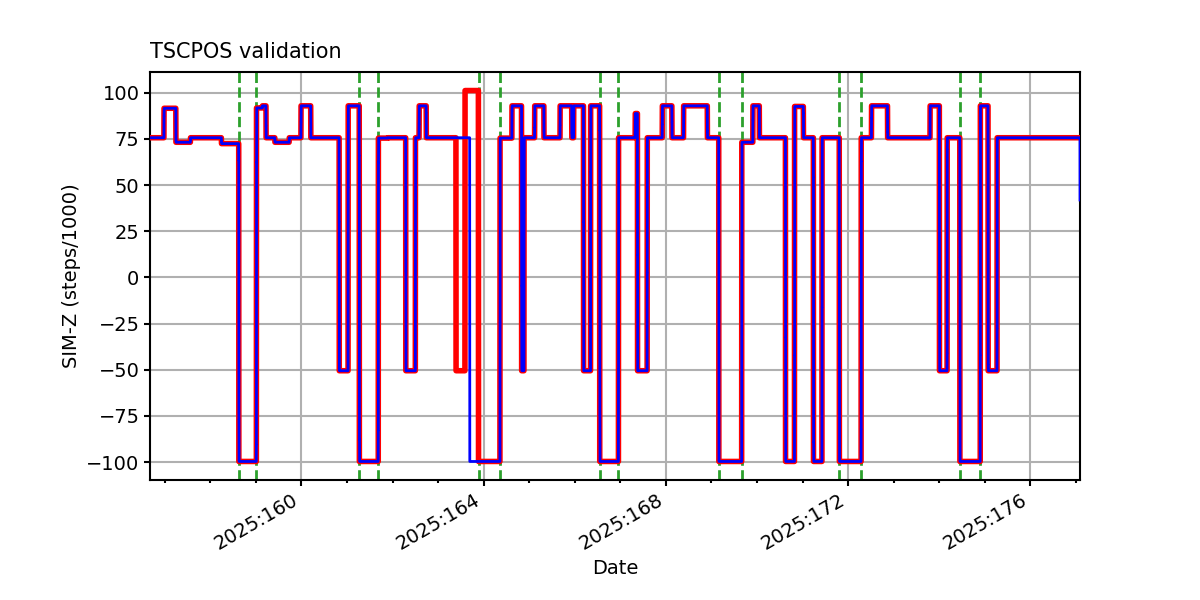

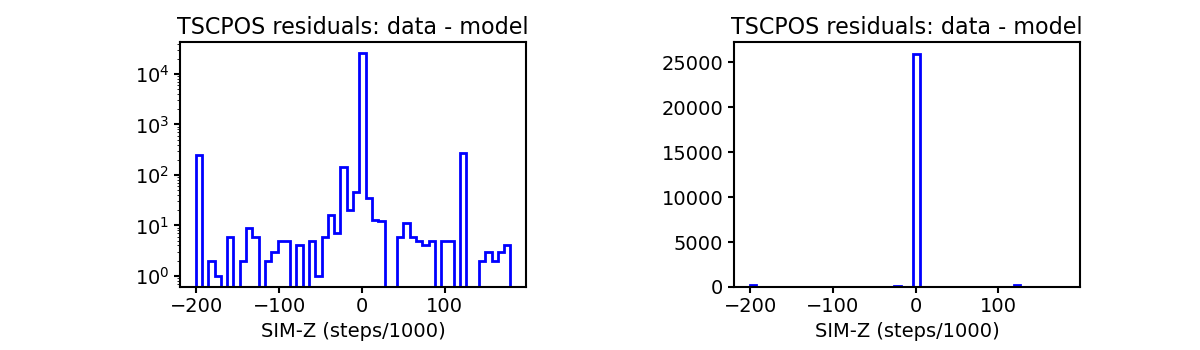

TSCPOS

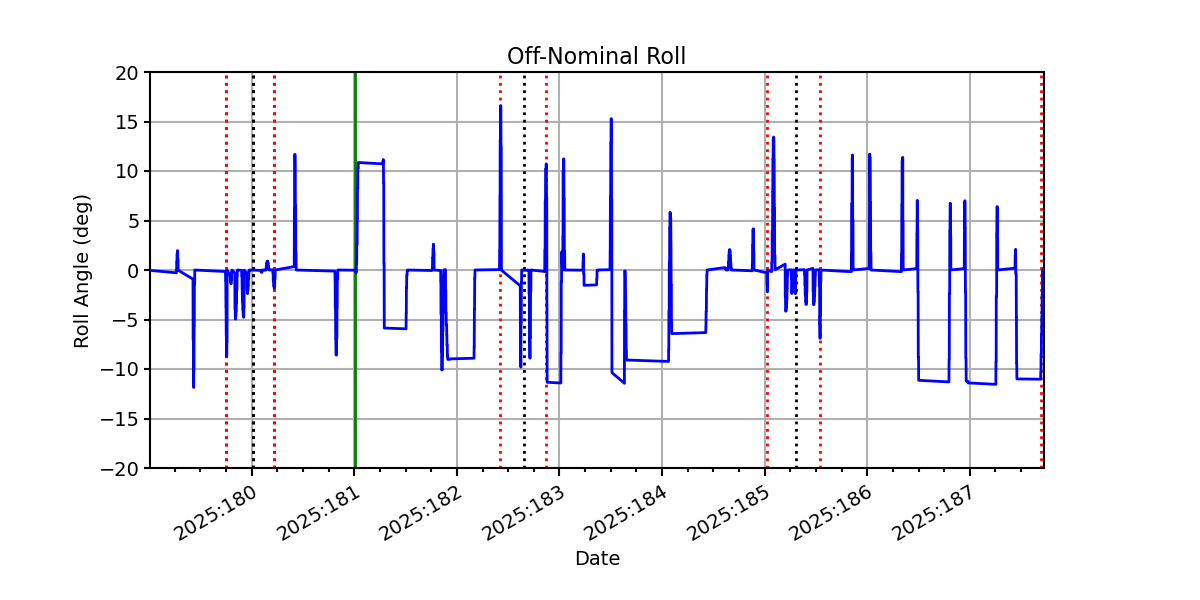

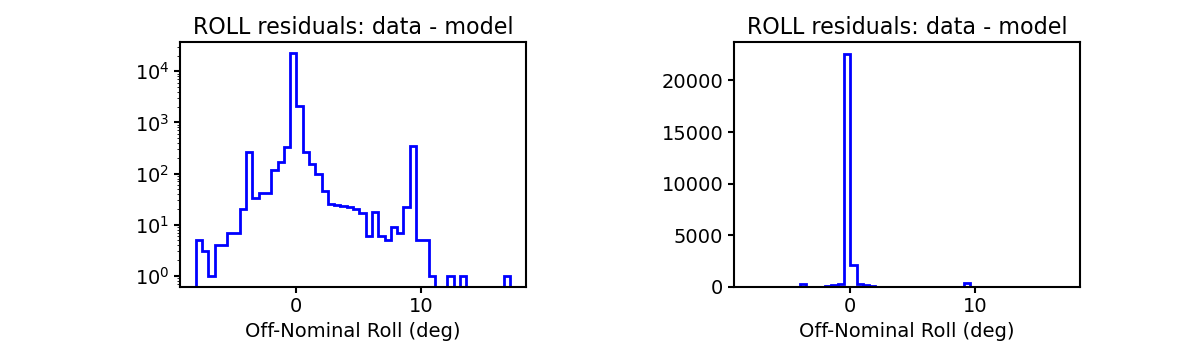

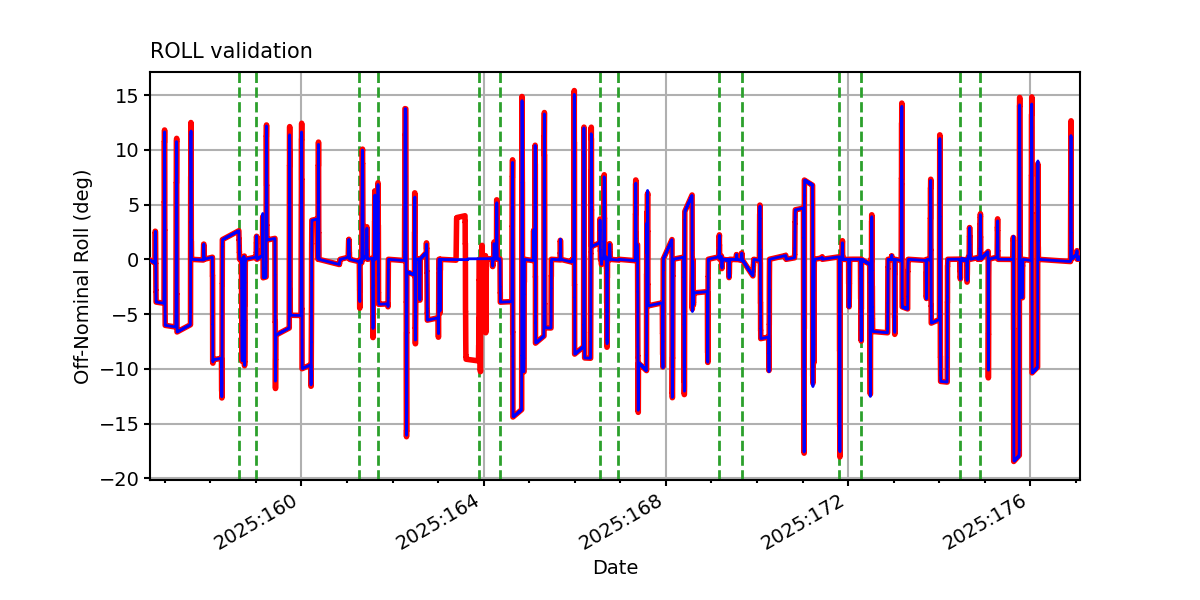

ROLL

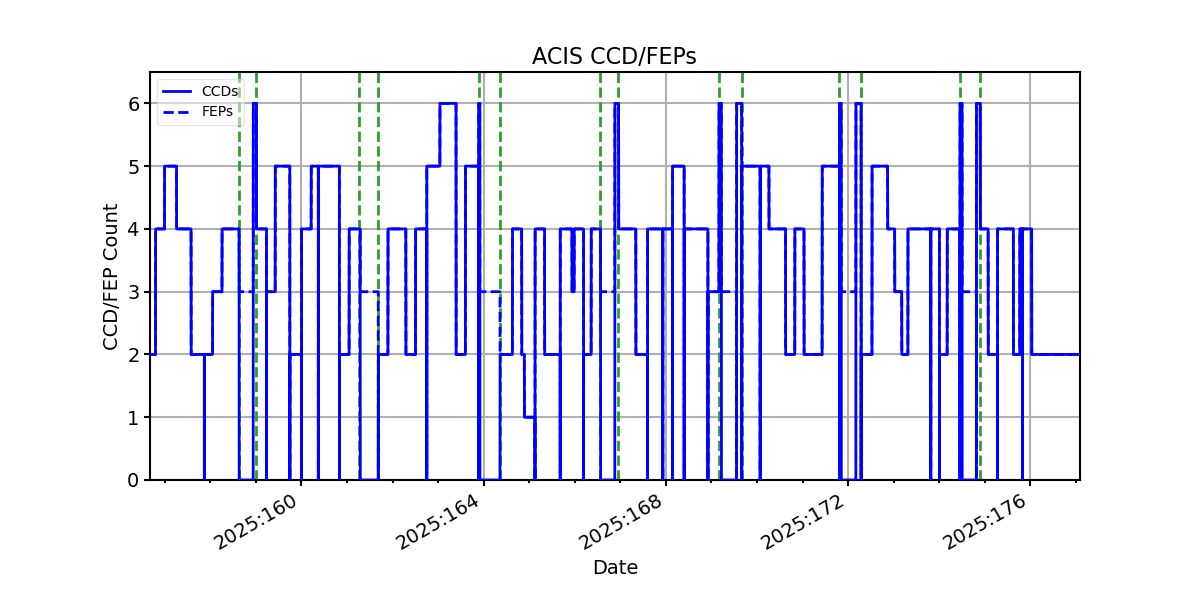

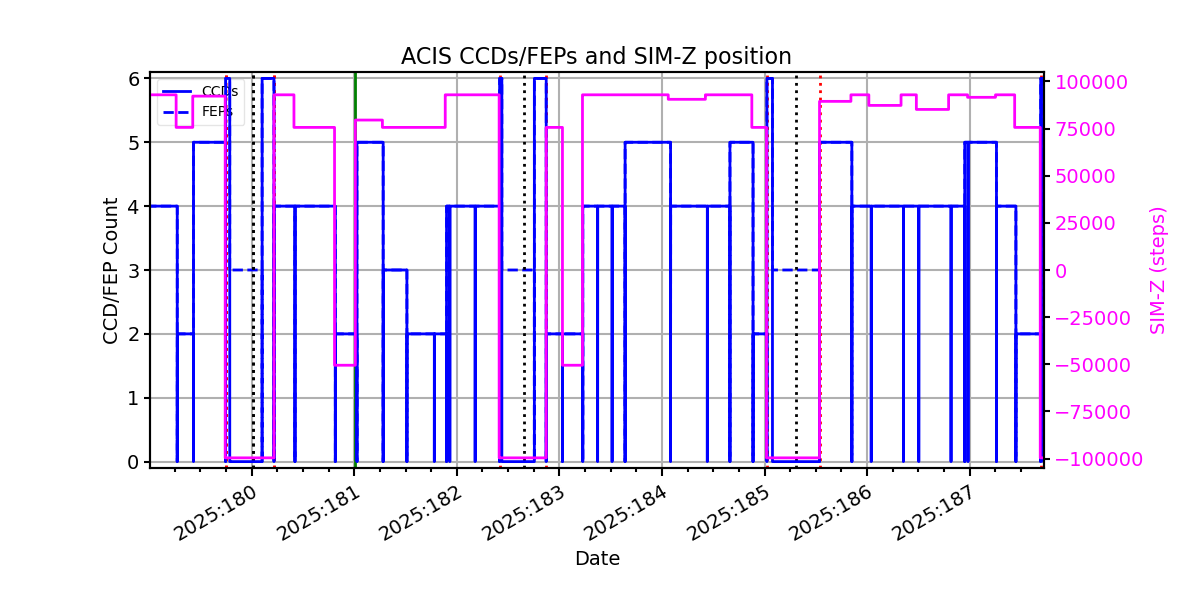

ACIS CCD/FEP Count
