FEP1_MONG Temperatures Check
Summary
| Date start | 2026:060:17:08:00.016 |
| Date stop | 2026:067:21:28:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0226/oflsa |
| Run time | Wed Feb 25 19:58:54 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.49 | -5.00 | -3.79 | -1.57 | 0.49 | 1.91 | 3.18 |
| pitch | -10.619 | -0.683 | -0.004 | -0.000 | 0.004 | 0.515 | 13.163 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.034 | -0.160 | -0.012 | -0.000 | 0.012 | 0.123 | 2.109 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.49 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.57 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.18 | 2.00 |
| PITCH | 1 | -10.619 | 3.00 |
| PITCH | 99 | 13.163 | 3.00 |

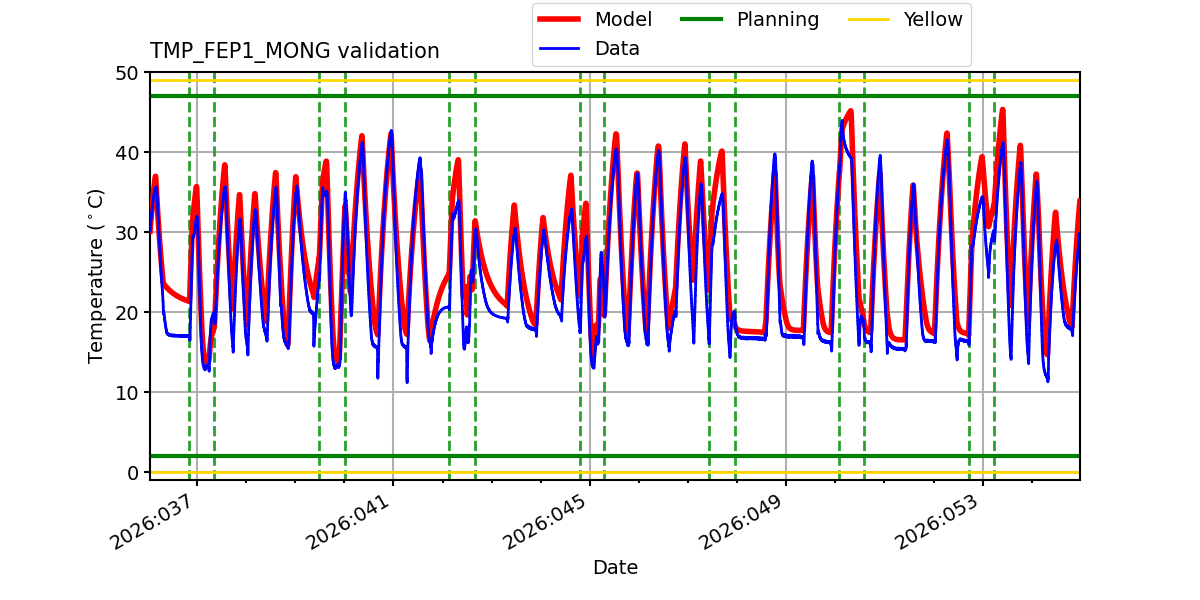

TMP_FEP1_MONG

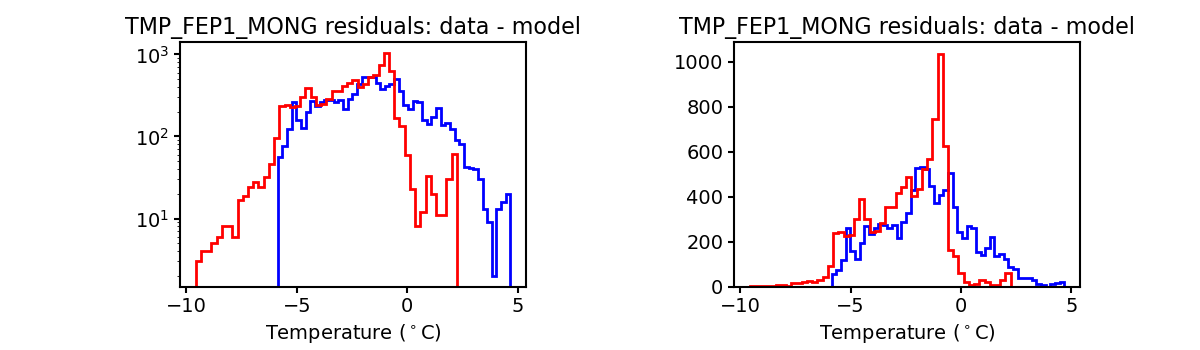

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

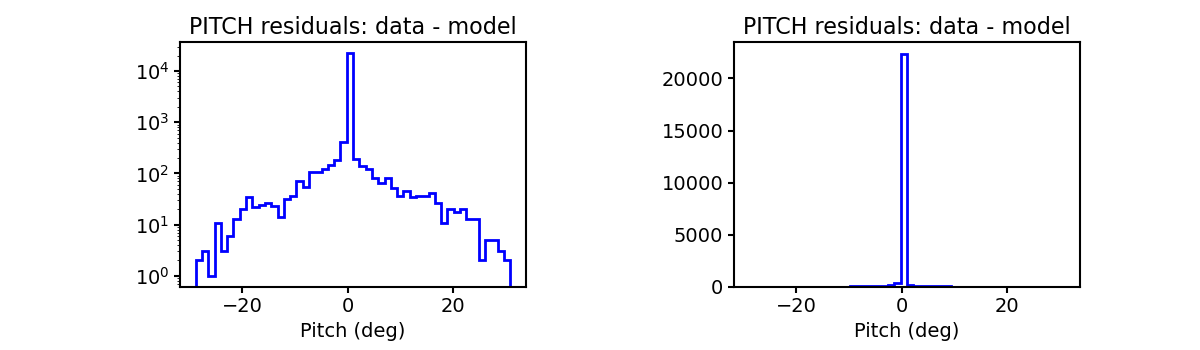

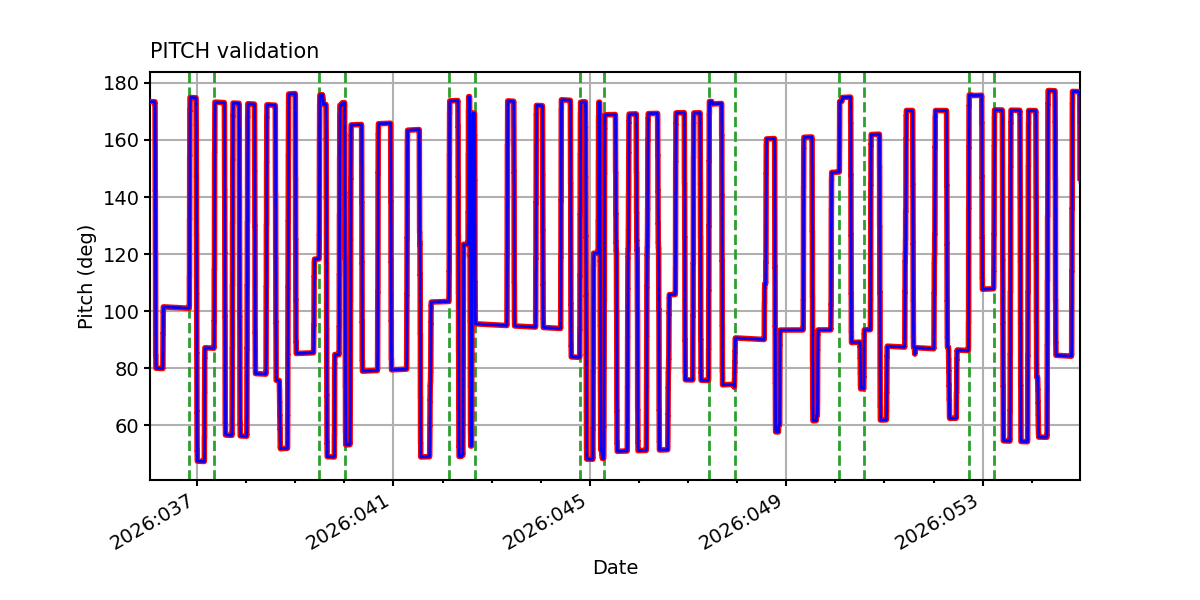

PITCH

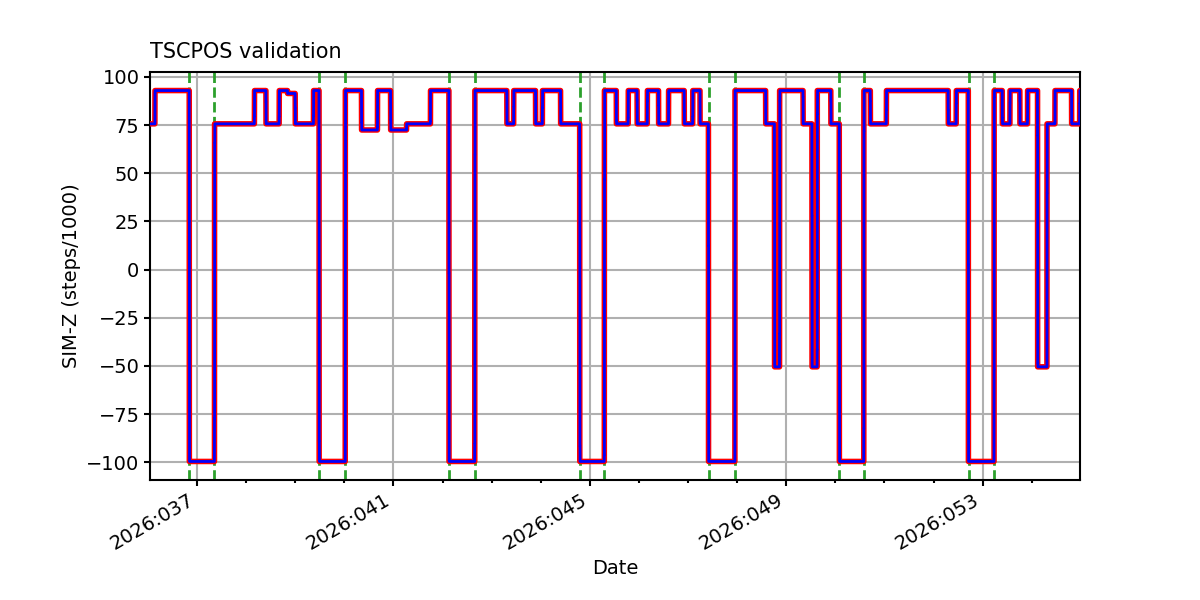

TSCPOS

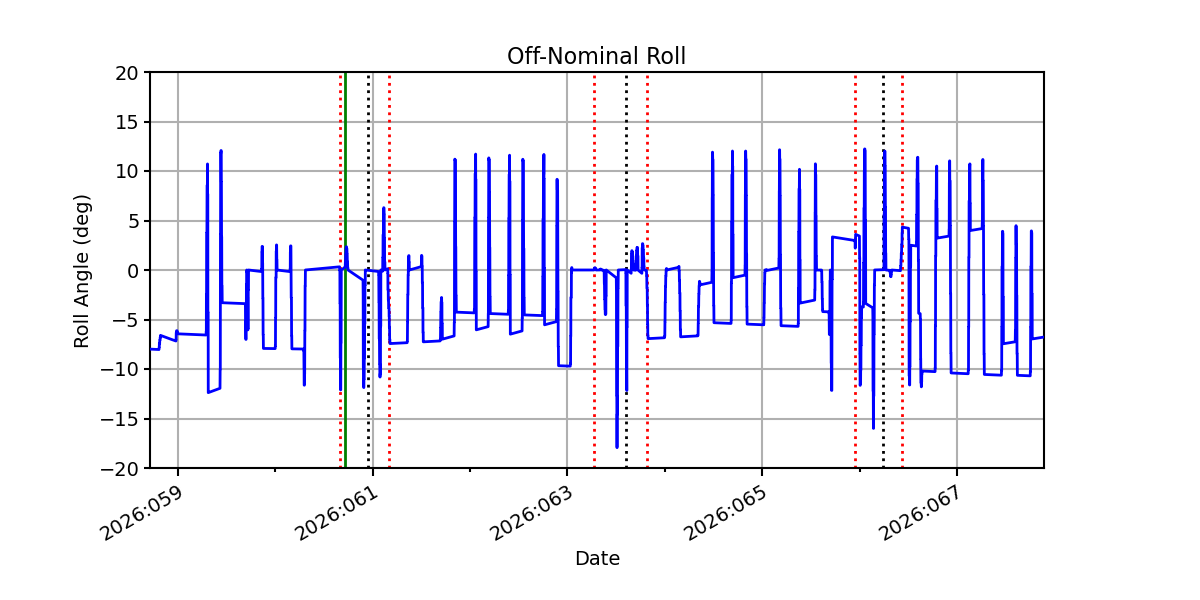

ROLL

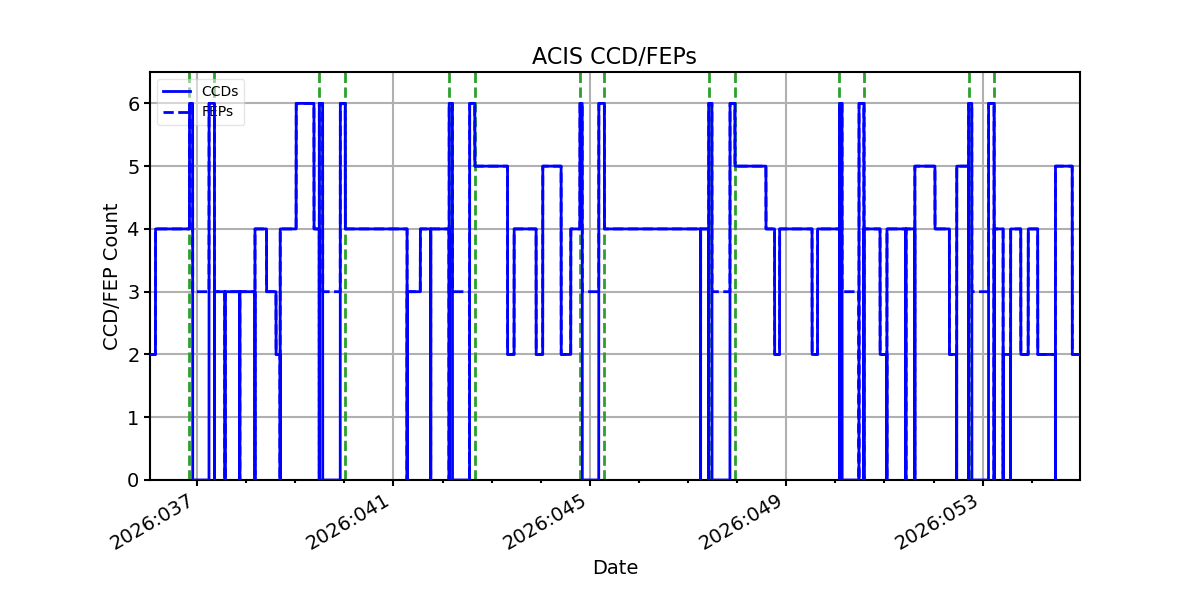

ACIS CCD/FEP Count
