FEP1_MONG Temperatures Check
Summary
| Date start | 2026:075:02:32:52.916 |
| Date stop | 2026:081:20:44:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR1626/oflsb |
| Run time | Fri Mar 13 13:19:14 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.88 | -5.22 | -3.92 | -1.27 | 0.55 | 2.08 | 3.09 |
| pitch | -13.424 | -0.918 | -0.004 | 0.000 | 0.004 | 1.385 | 12.608 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.420 | -0.215 | -0.010 | 0.000 | 0.012 | 0.283 | 2.395 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.88 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.27 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.09 | 2.00 |
| PITCH | 1 | -13.424 | 3.00 |
| PITCH | 99 | 12.608 | 3.00 |

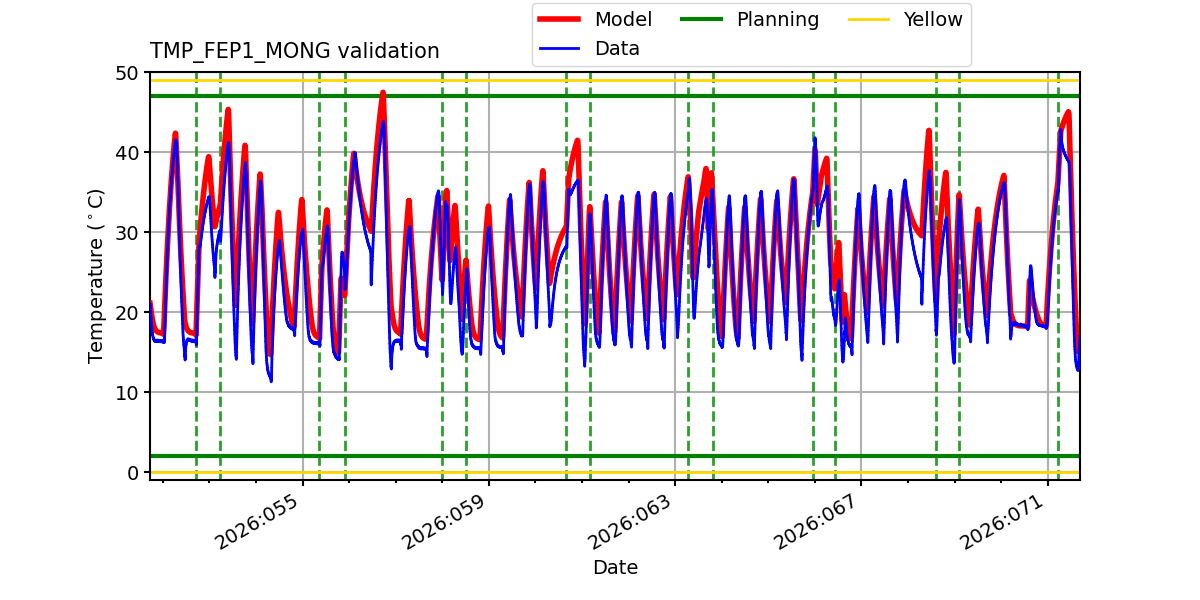

TMP_FEP1_MONG

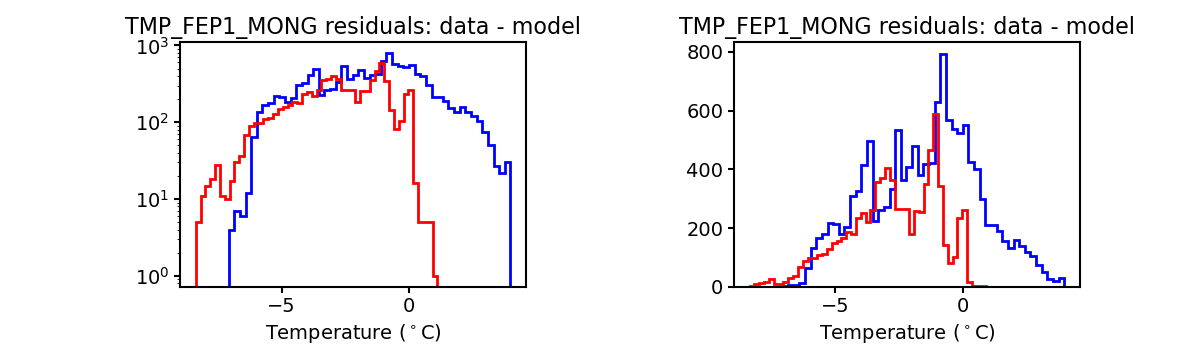

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

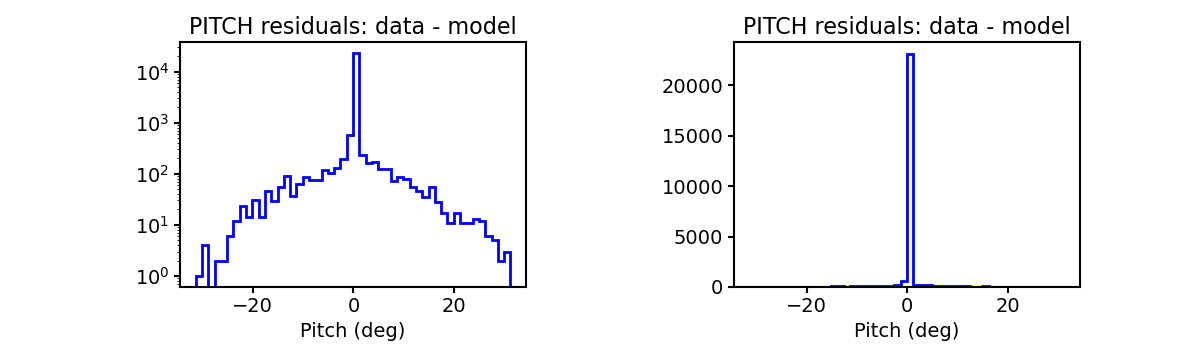

PITCH

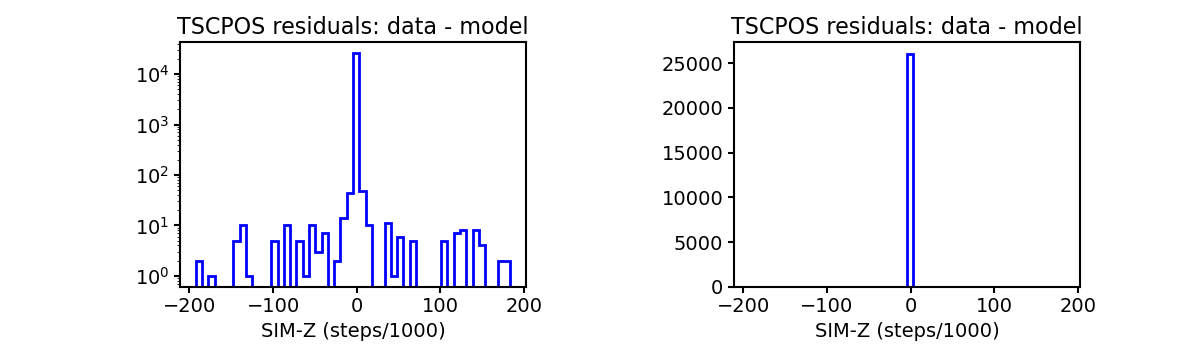

TSCPOS

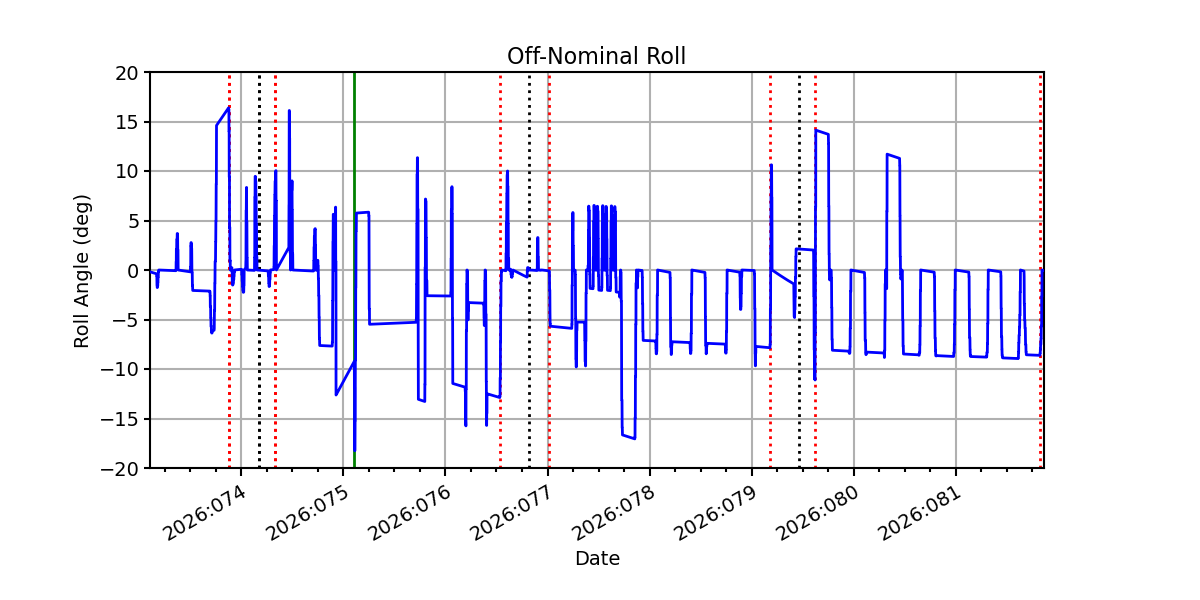

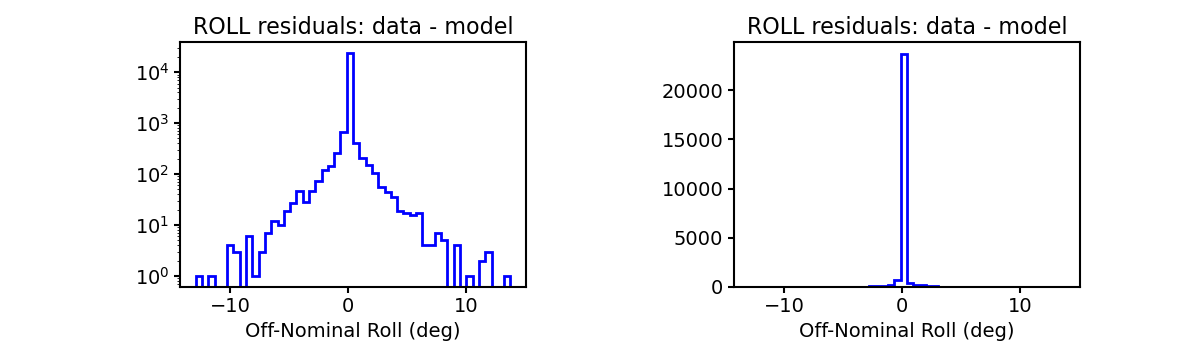

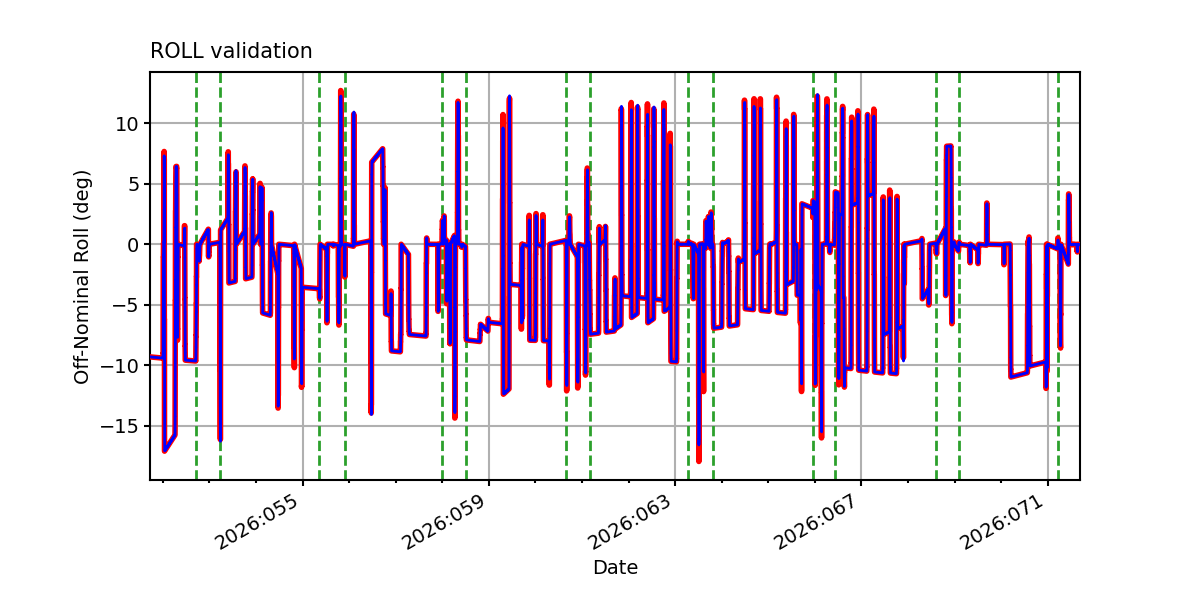

ROLL

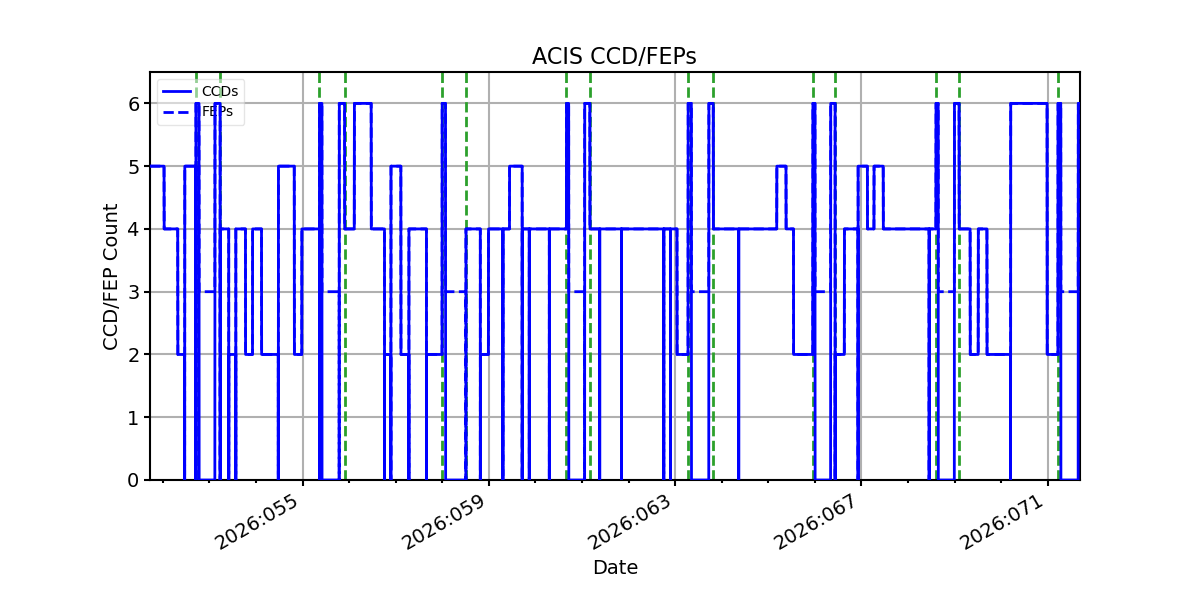

ACIS CCD/FEP Count
