FEP1_MONG Temperatures Check
Summary
| Date start | 2026:083:16:59:59.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2426/oflsa |
| Run time | Sun Mar 22 20:46:49 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.13 | -5.26 | -3.55 | -0.80 | 1.27 | 2.46 | 3.11 |
| pitch | -14.916 | -1.791 | -0.004 | 0.000 | 0.004 | 2.264 | 14.983 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.712 | -0.300 | -0.011 | 0.000 | 0.013 | 0.353 | 2.513 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.13 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.11 | 2.00 |
| PITCH | 1 | -14.916 | 3.00 |
| PITCH | 99 | 14.983 | 3.00 |

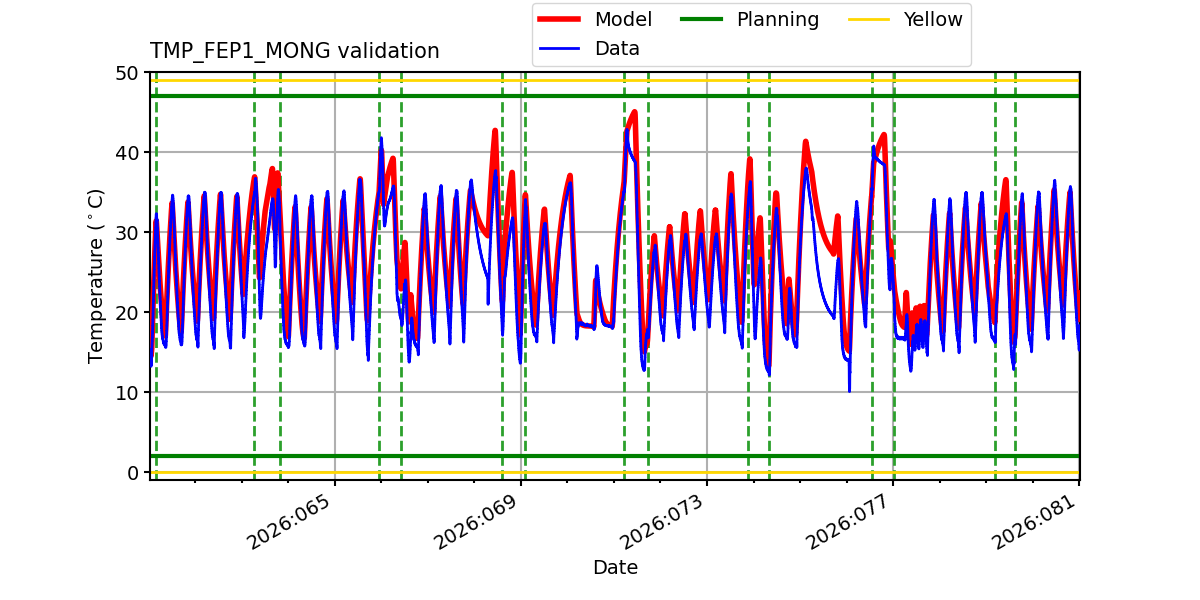

TMP_FEP1_MONG

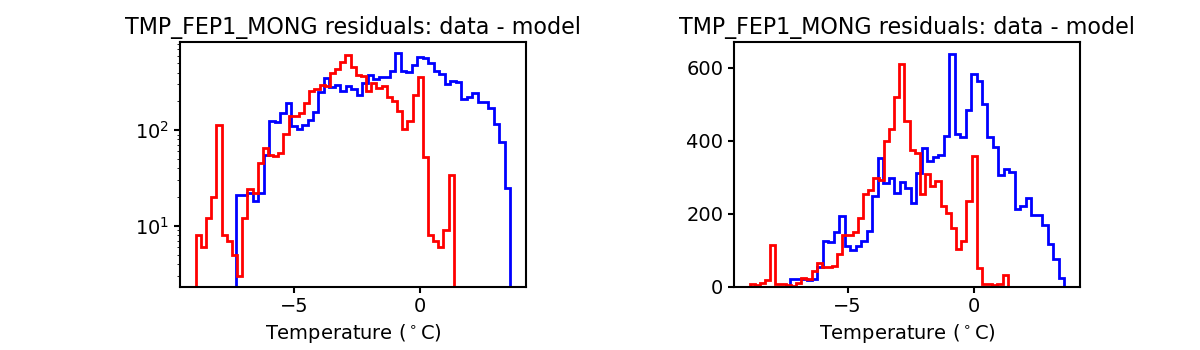

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

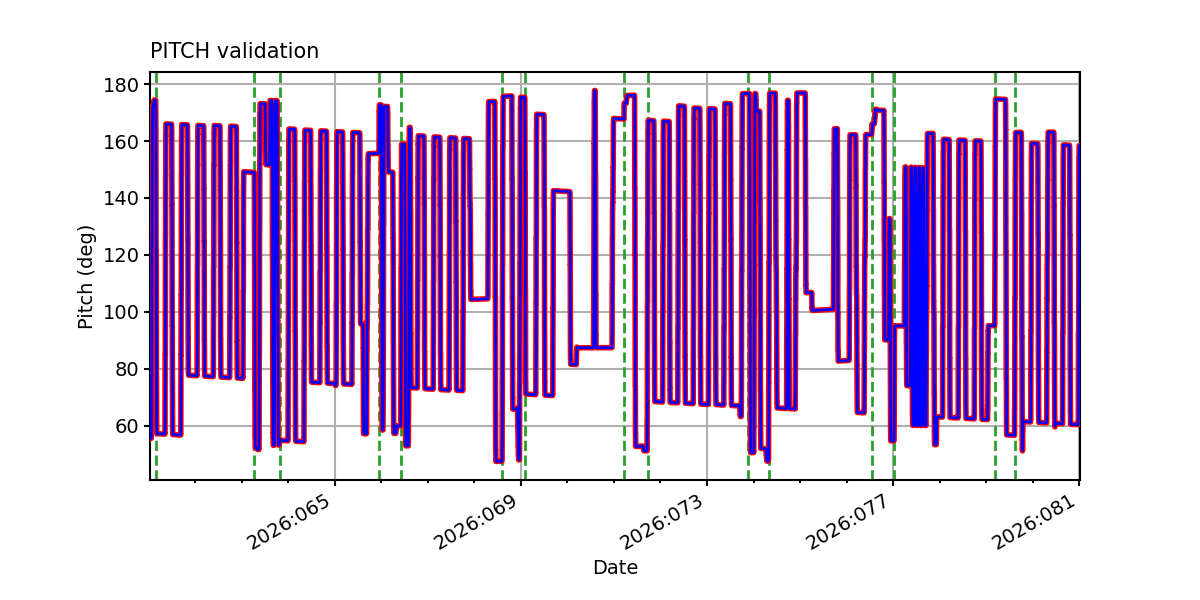

PITCH

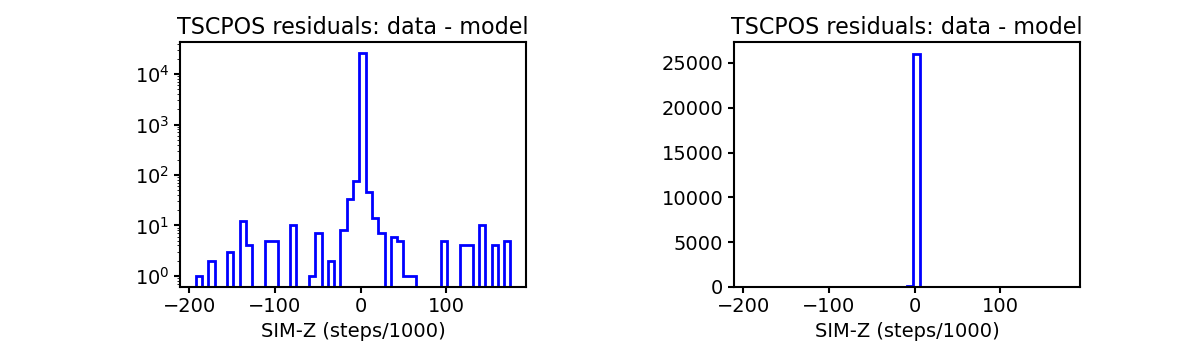

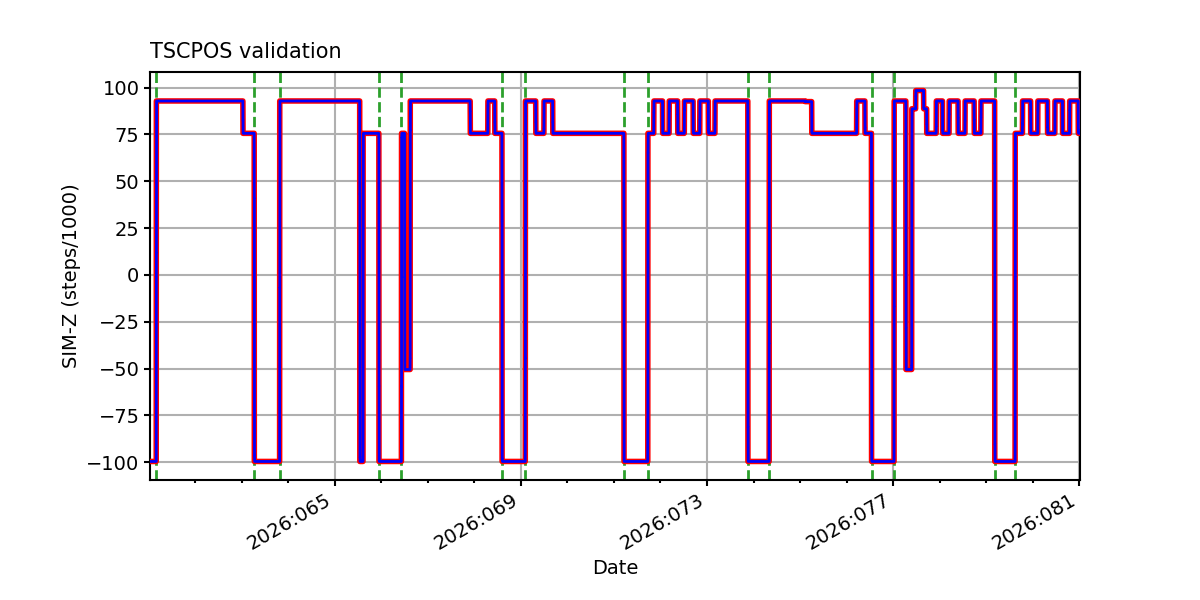

TSCPOS

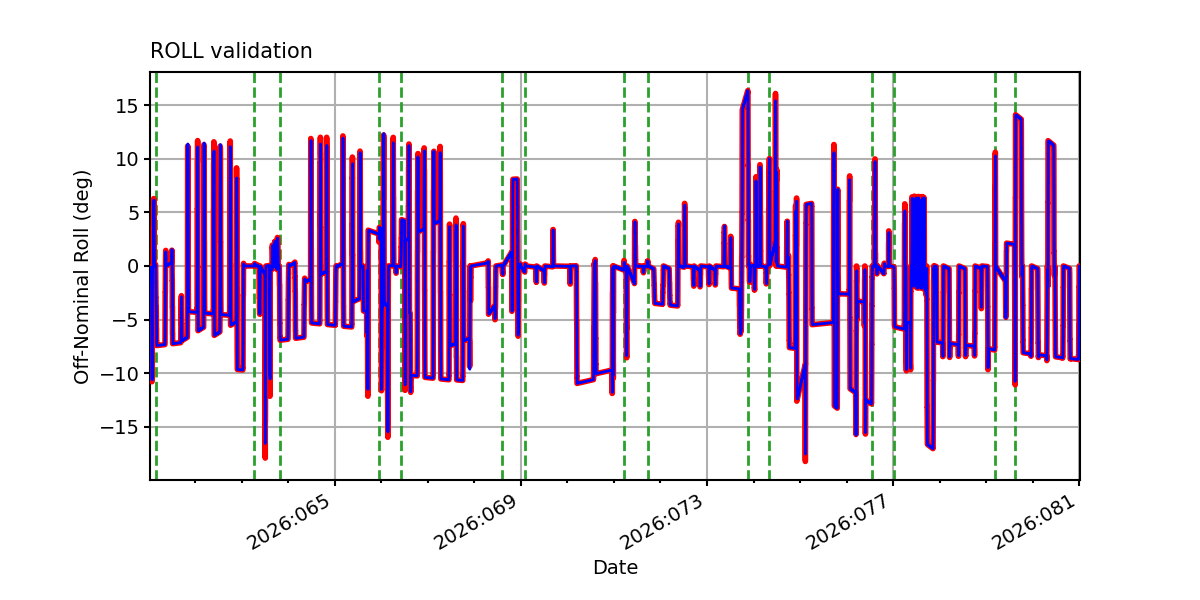

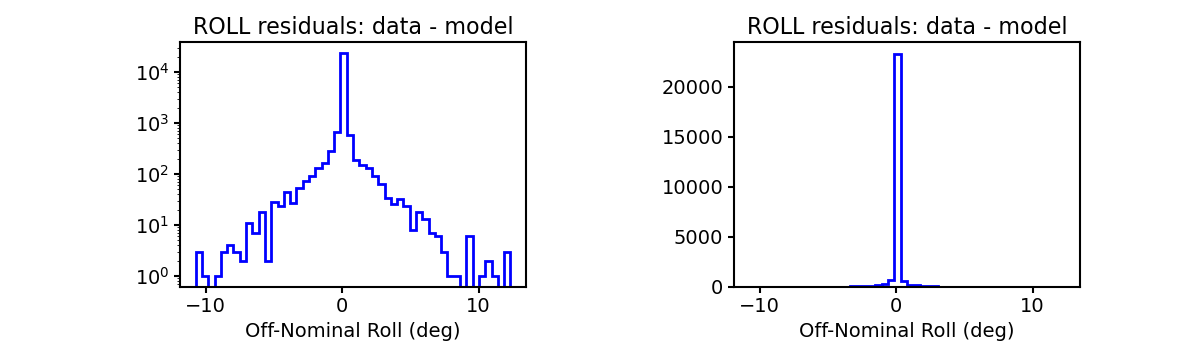

ROLL

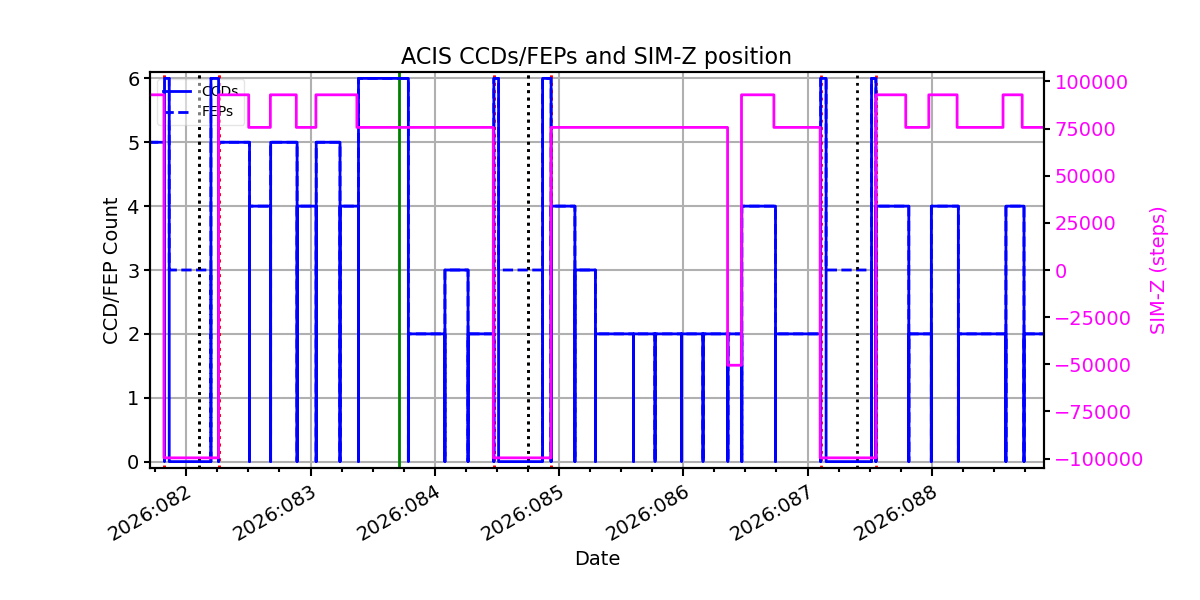

ACIS CCD/FEP Count
