FEP1_MONG Temperatures Check
Summary
| Date start | 2026:088:21:37:04.616 |
| Date stop | 2026:095:21:43:32.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR3026/oflsa |
| Run time | Thu Mar 26 12:43:51 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.15 | -5.15 | -3.37 | -0.81 | 1.34 | 2.55 | 3.24 |
| pitch | -14.685 | -1.622 | -0.004 | 0.000 | 0.004 | 2.071 | 15.104 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.564 | -0.317 | -0.011 | -0.000 | 0.011 | 0.294 | 2.440 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.15 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.24 | 2.00 |
| PITCH | 1 | -14.685 | 3.00 |
| PITCH | 99 | 15.104 | 3.00 |

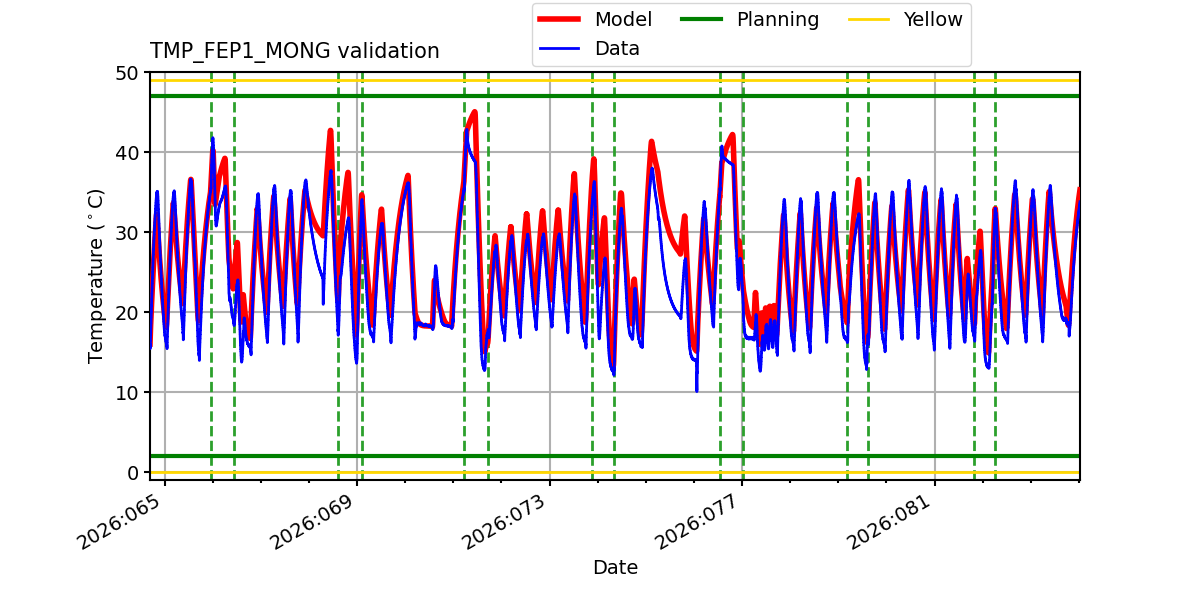

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

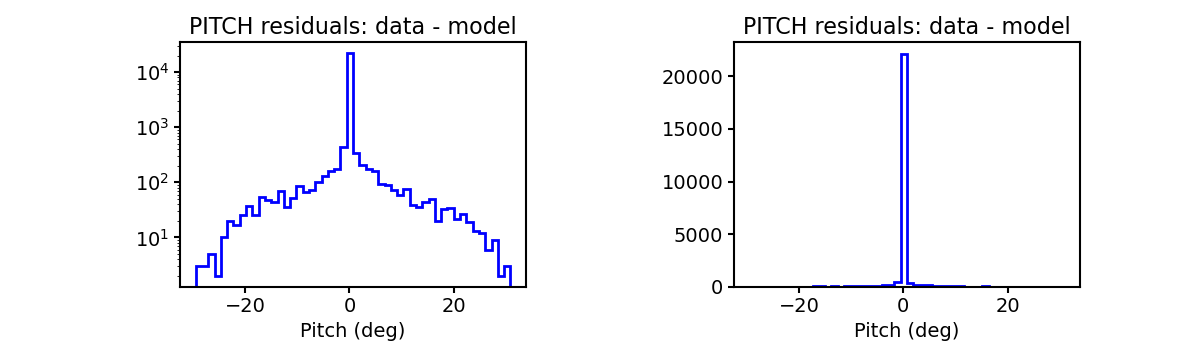

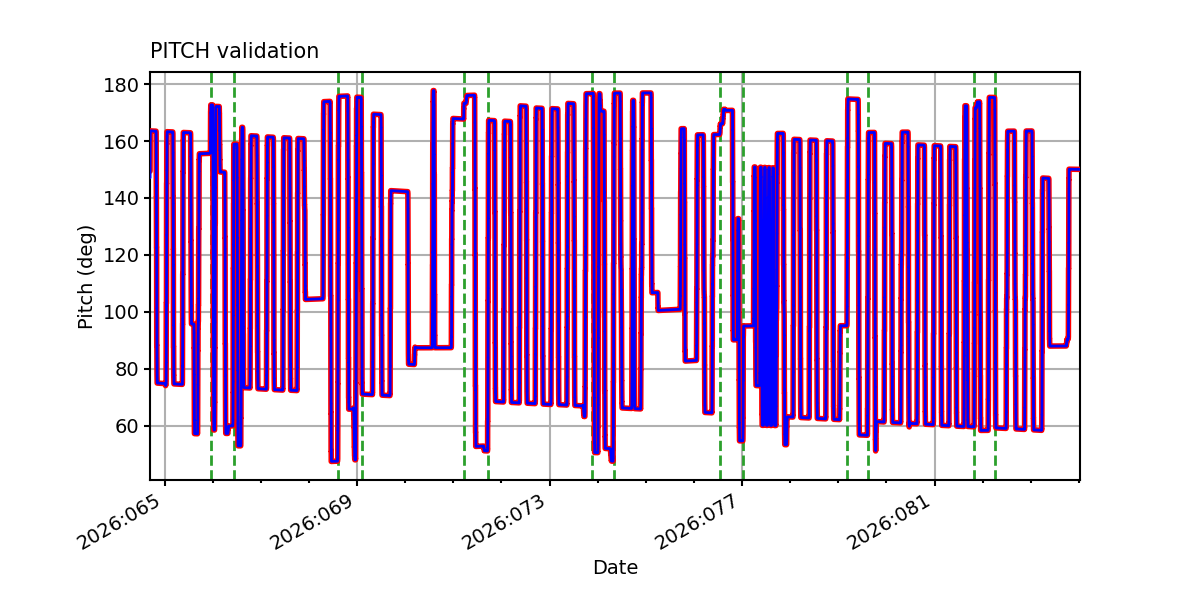

PITCH

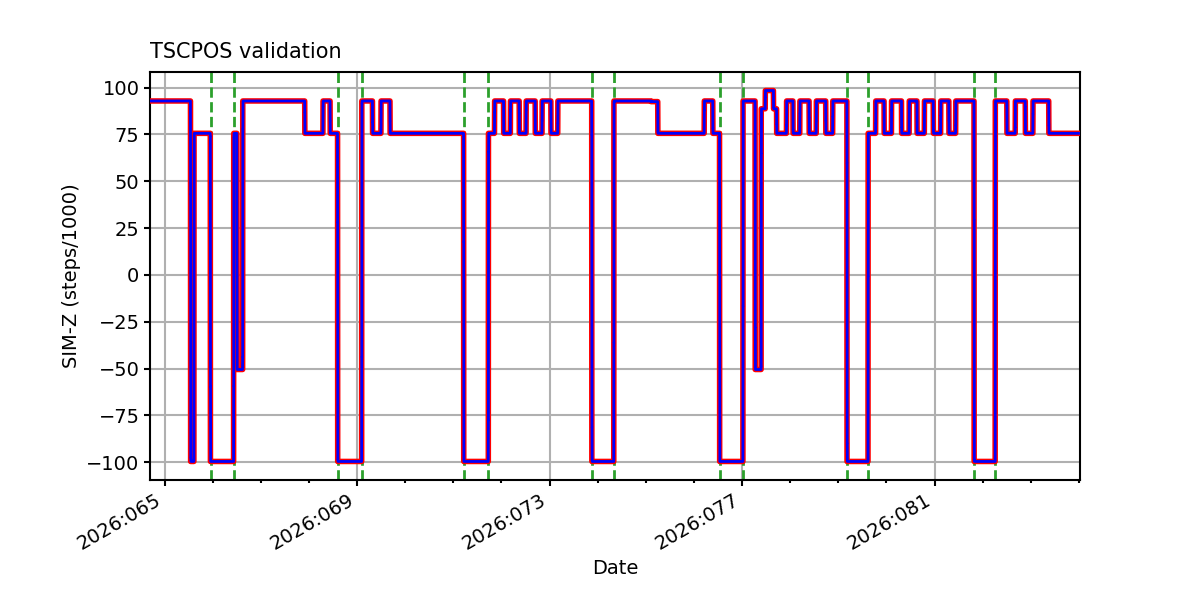

TSCPOS

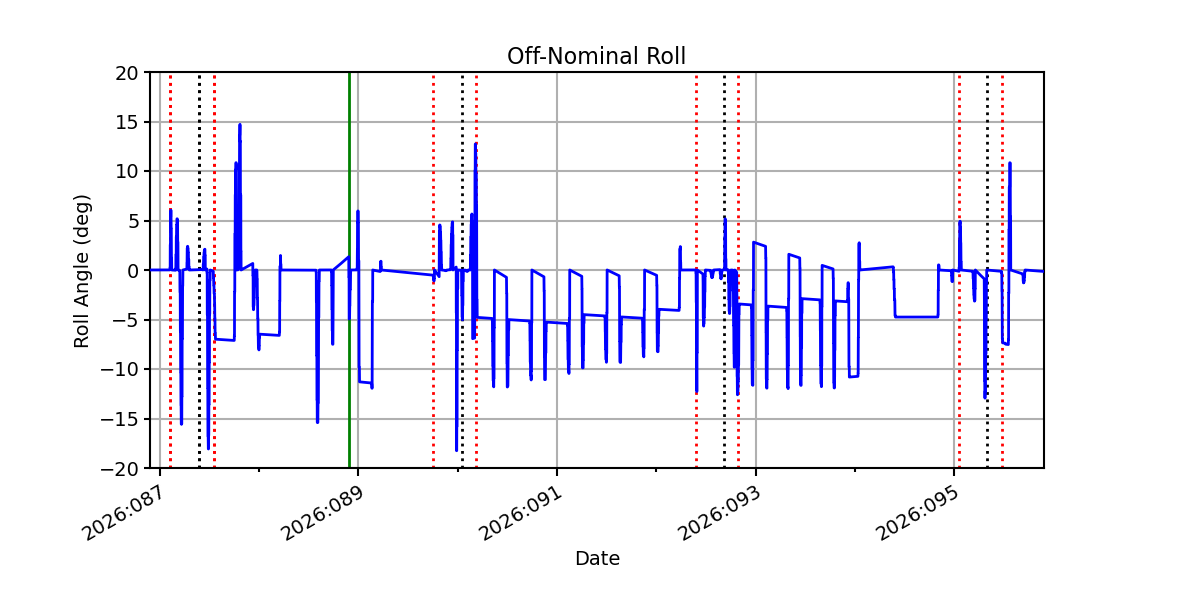

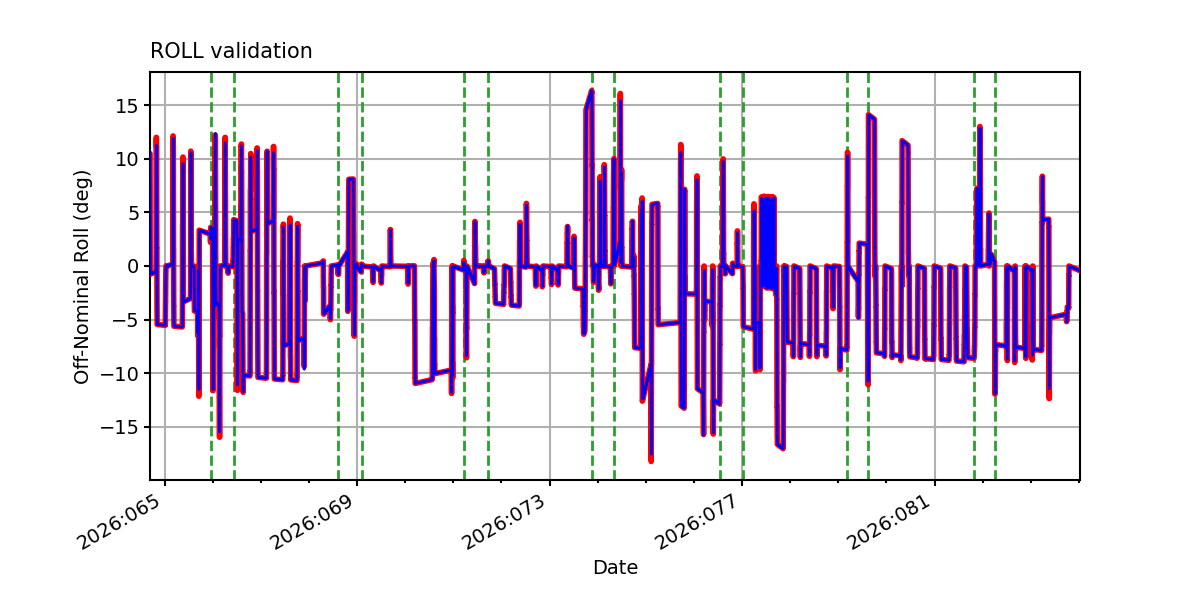

ROLL

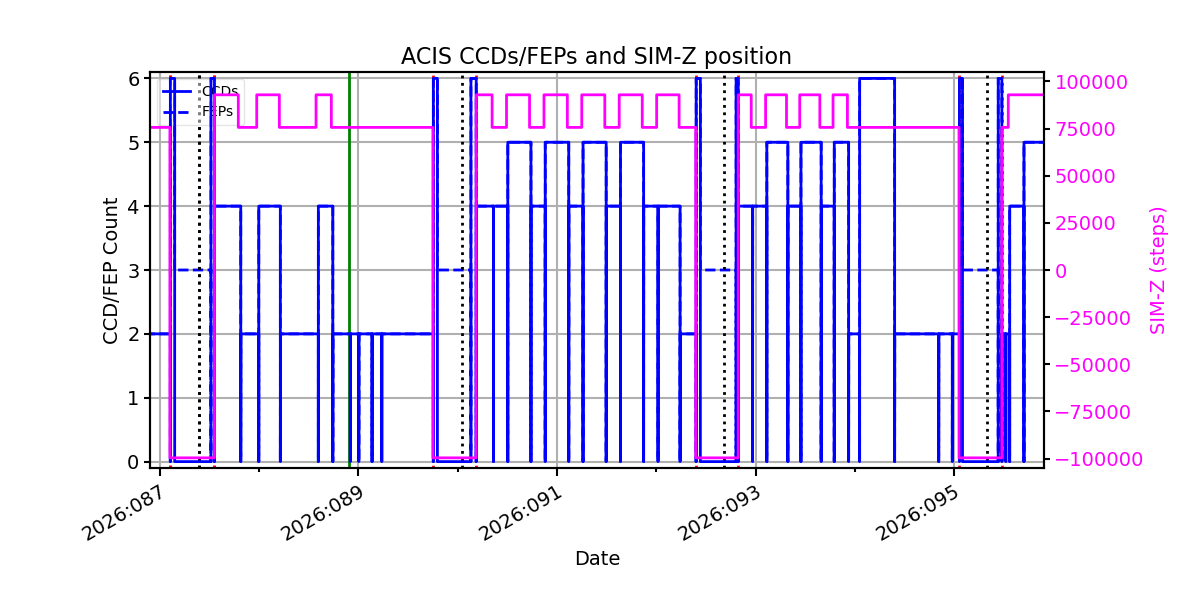

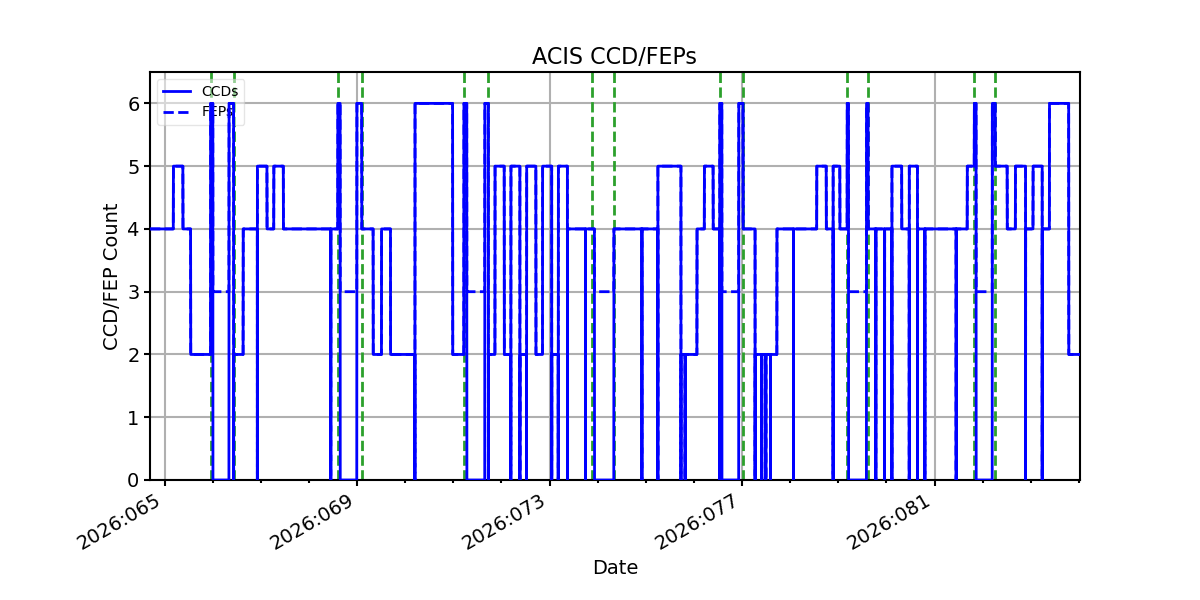

ACIS CCD/FEP Count
