FEP1_MONG Temperatures Check
Summary
| Date start | 2025:131:21:12:39.216 |
| Date stop | 2025:139:00:00:00.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY1225/ofls |
| Run time | Wed May 7 09:46:57 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -4.70 | -3.73 | -2.62 | -0.97 | 1.00 | 2.17 | 3.63 |
| pitch | -7.919 | -0.498 | -0.004 | -0.000 | 0.004 | 0.564 | 8.196 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.796 | -0.116 | -0.004 | 0.000 | 0.005 | 0.152 | 1.827 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -4.7 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.63 | 2.00 |
| PITCH | 1 | -7.919 | 3.00 |
| PITCH | 99 | 8.196 | 3.00 |

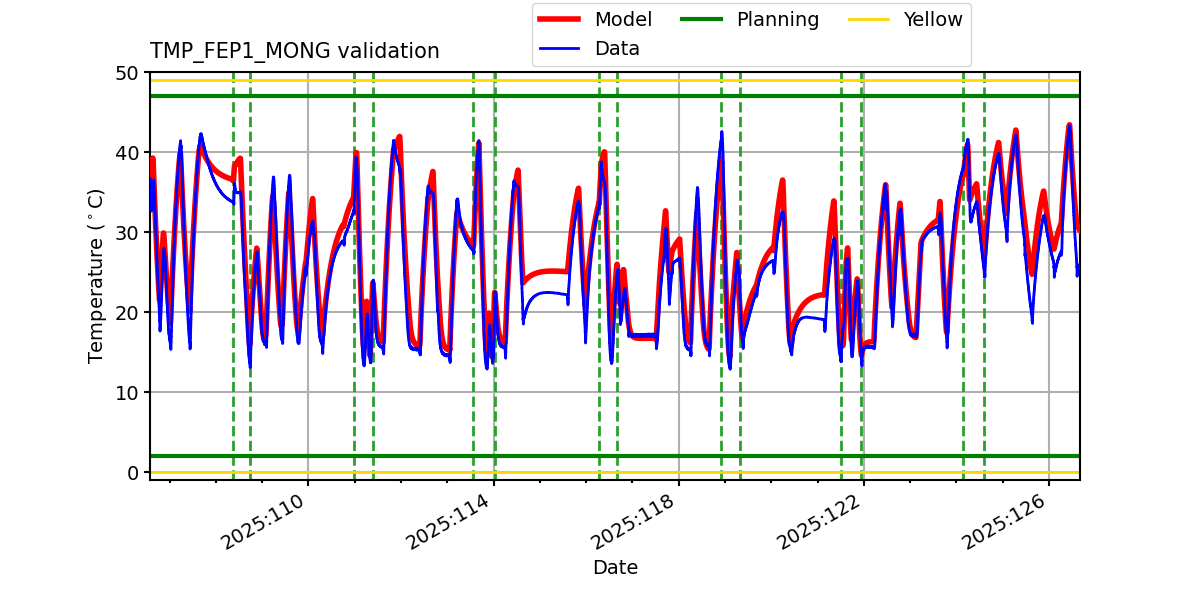

TMP_FEP1_MONG

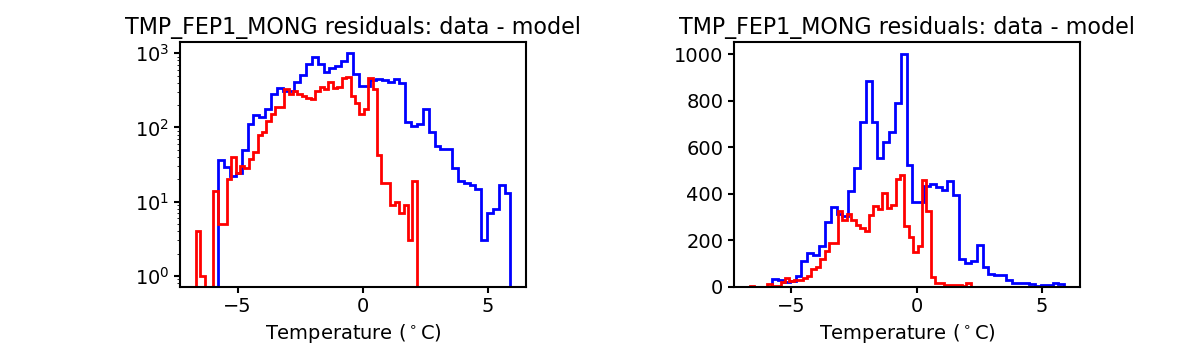

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

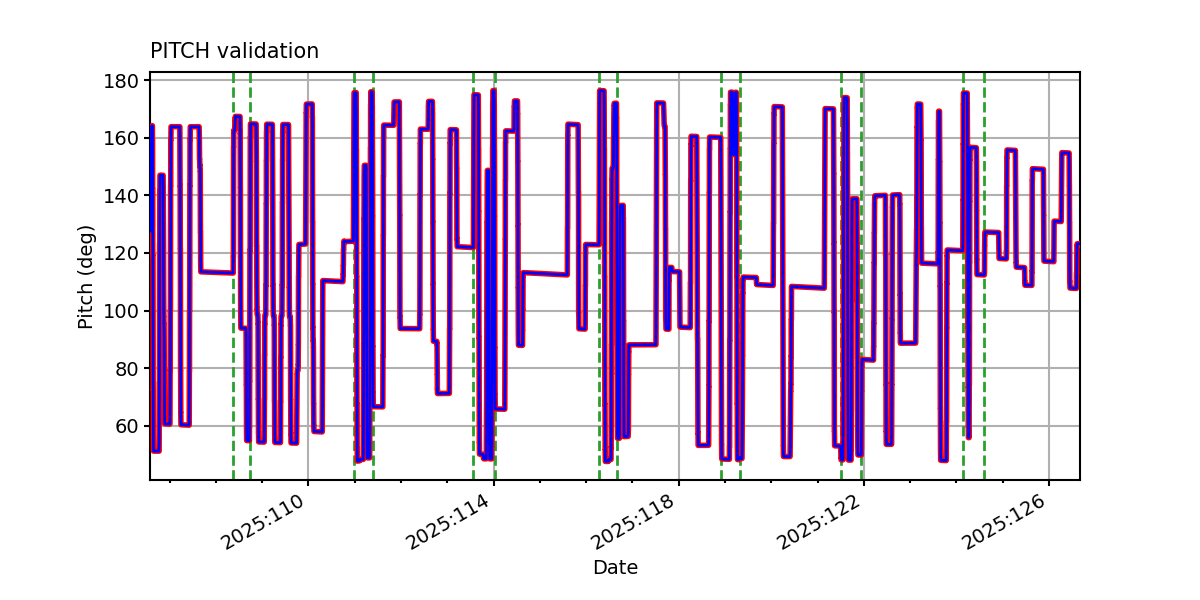

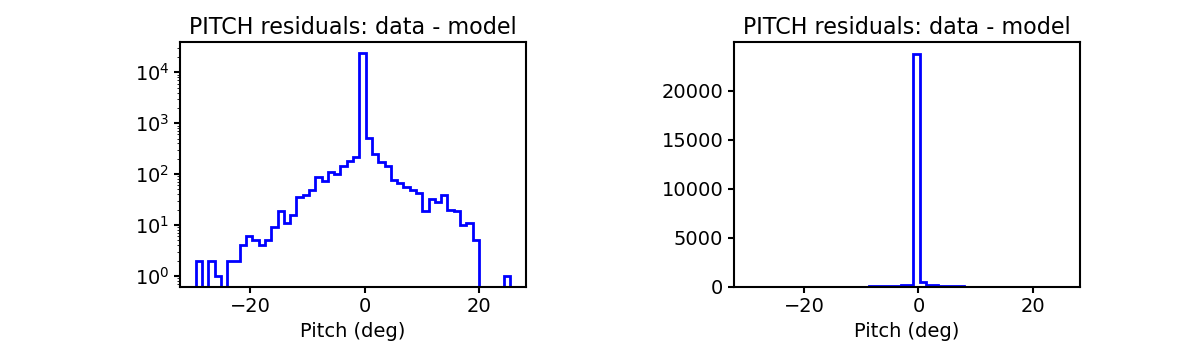

PITCH

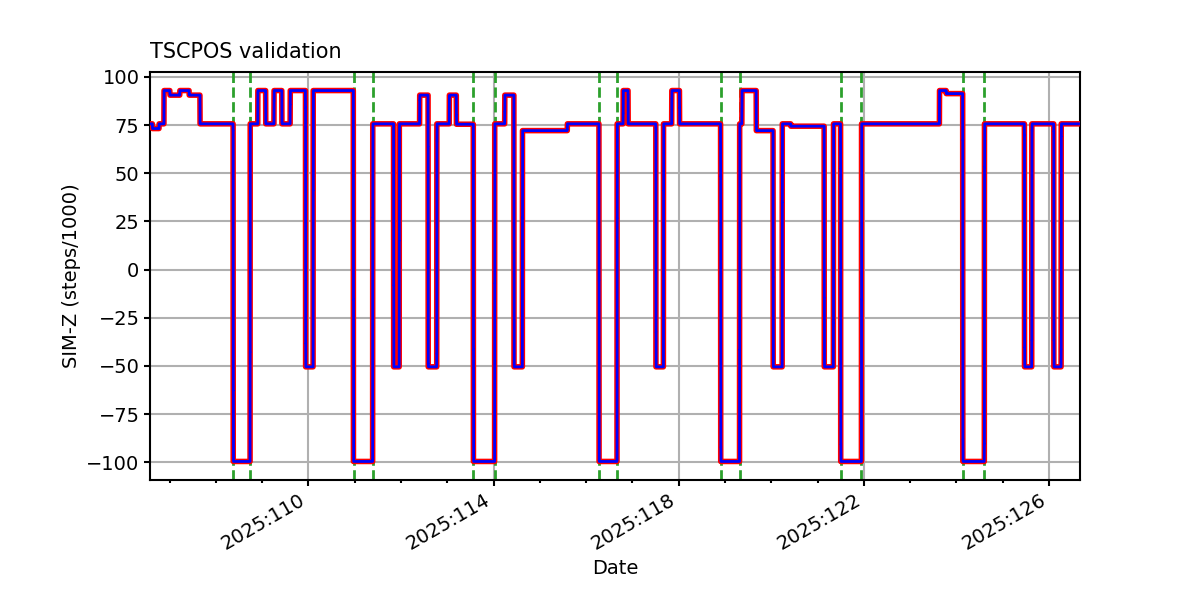

TSCPOS

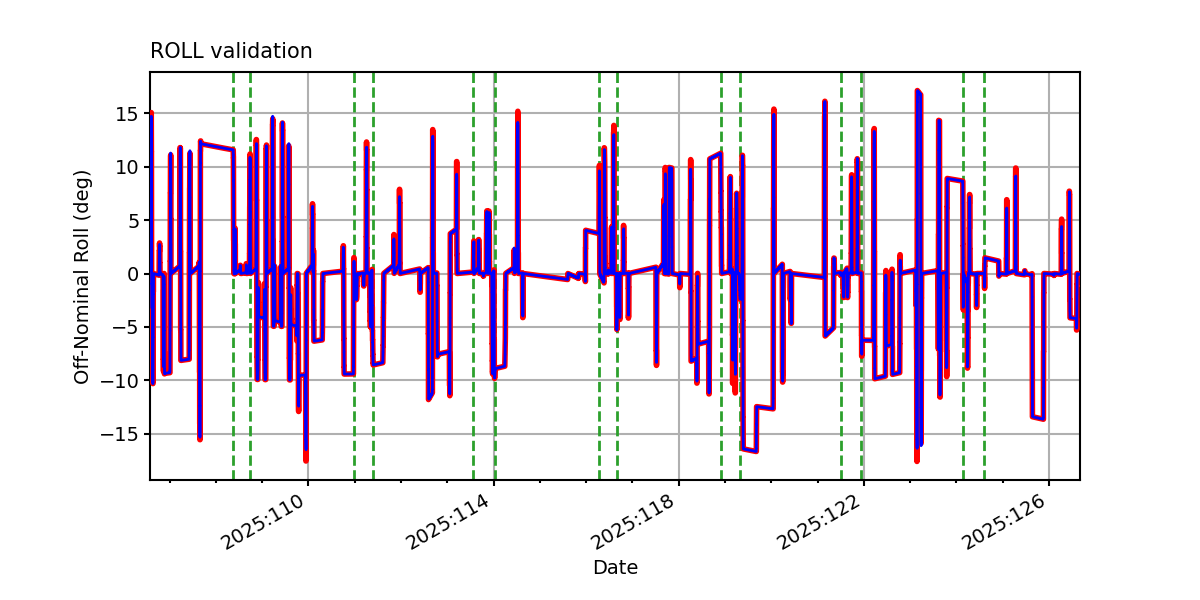

ROLL

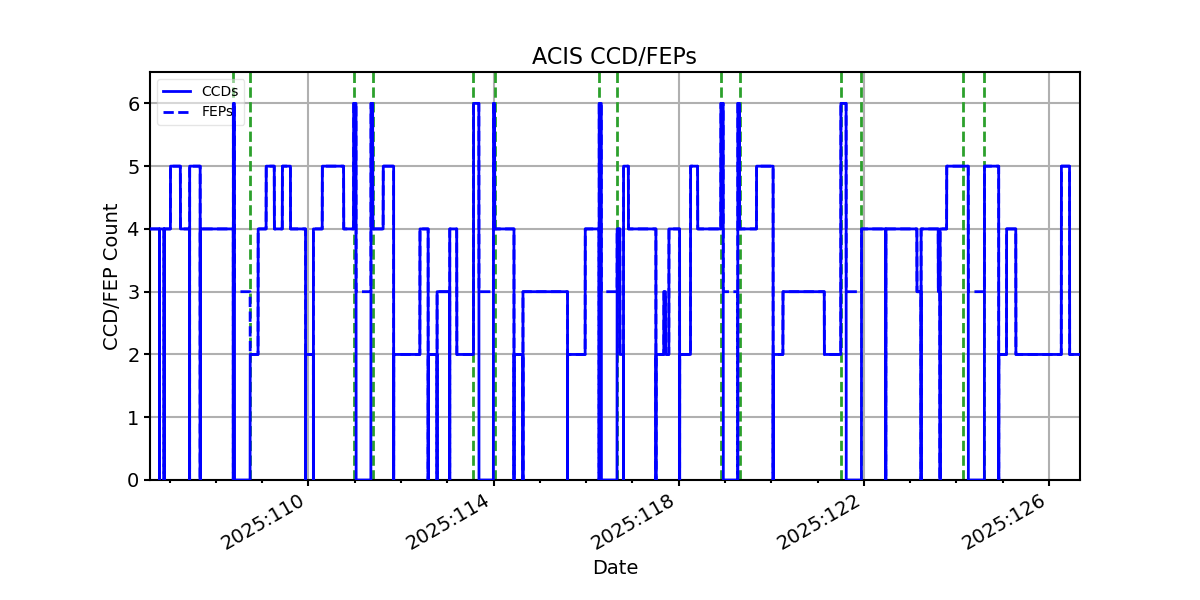

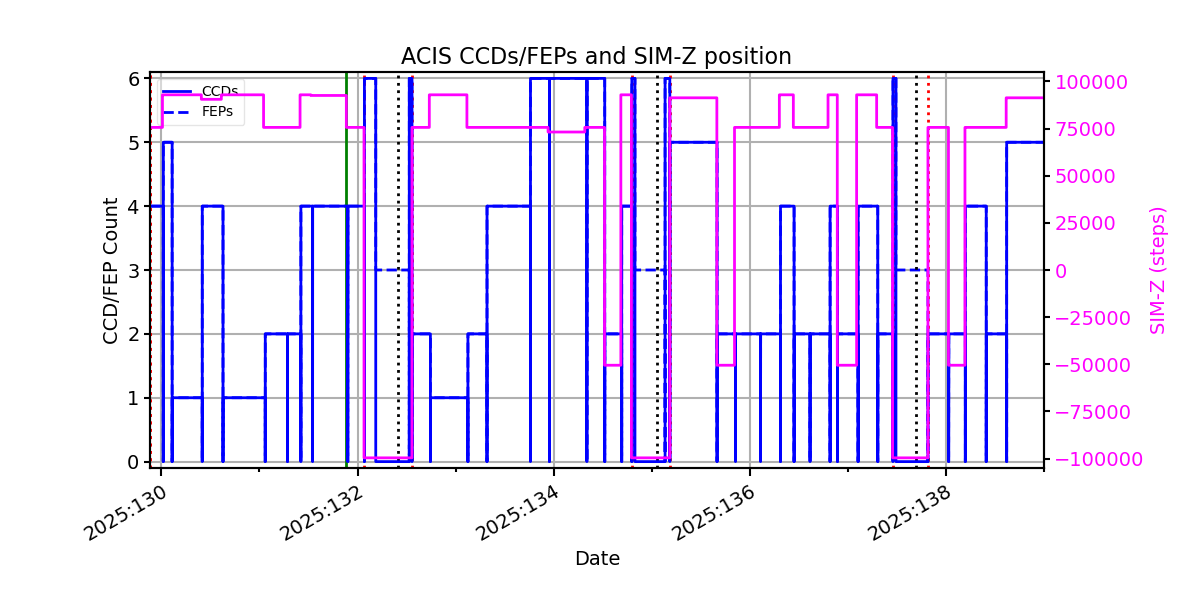

ACIS CCD/FEP Count
