FEP1_MONG Temperatures Check
Summary
| Date start | 2026:137:09:56:04.316 |
| Date stop | 2026:144:21:52:00.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1826/oflsa |
| Run time | Wed May 13 12:11:51 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.83 | -5.69 | -5.13 | -2.94 | 0.35 | 1.37 | 2.50 |
| pitch | -10.704 | -0.415 | -0.004 | -0.000 | 0.004 | 0.174 | 11.526 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.110 | -0.097 | -0.005 | -0.000 | 0.005 | 0.105 | 1.997 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.83 | 2.00 |
| TMP_FEP1_MONG | 50 | -2.94 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.5 | 2.00 |
| PITCH | 1 | -10.704 | 3.00 |
| PITCH | 99 | 11.526 | 3.00 |

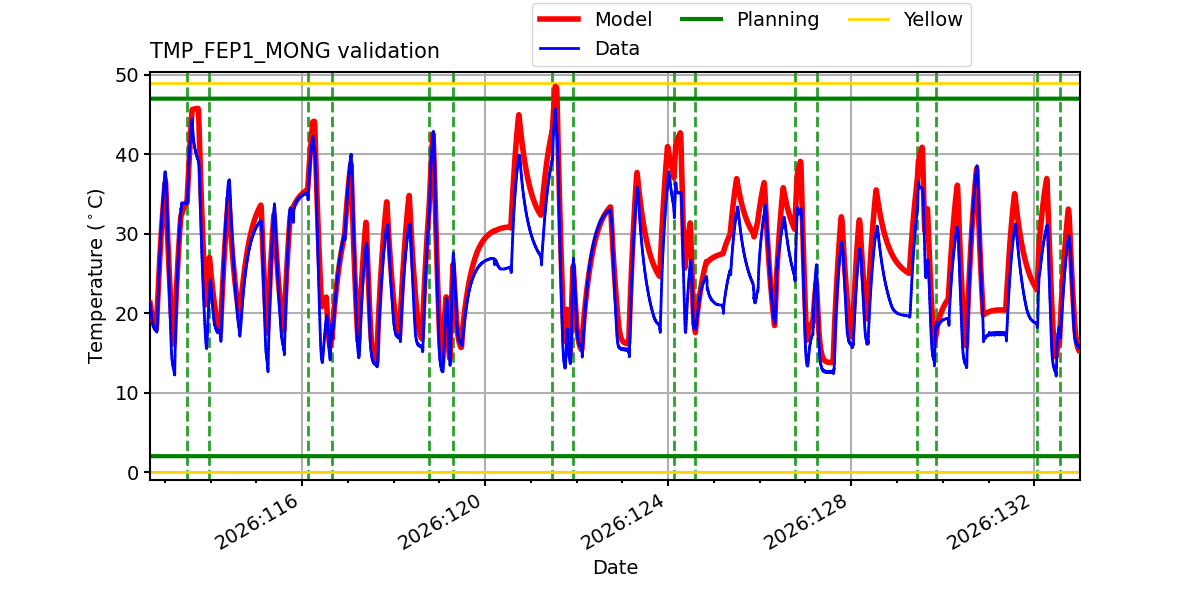

TMP_FEP1_MONG

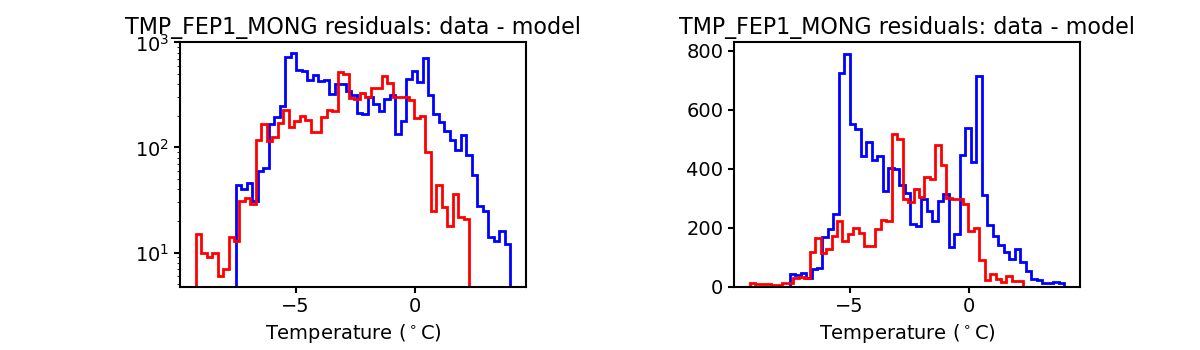

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

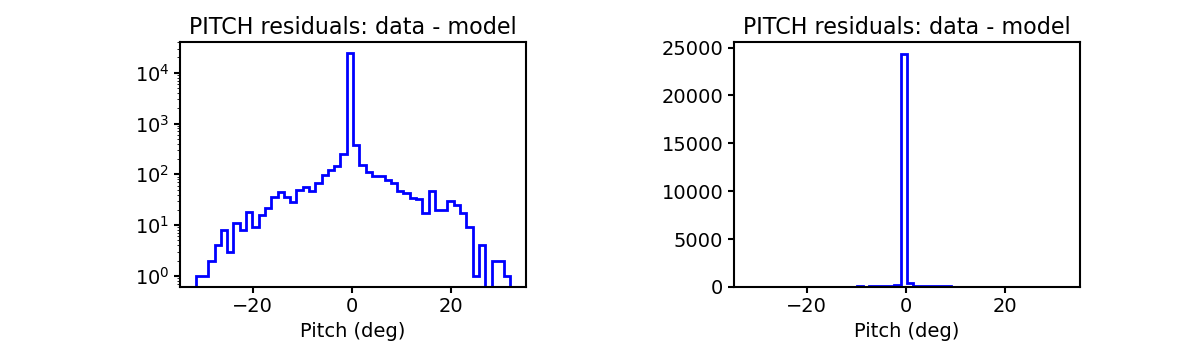

PITCH

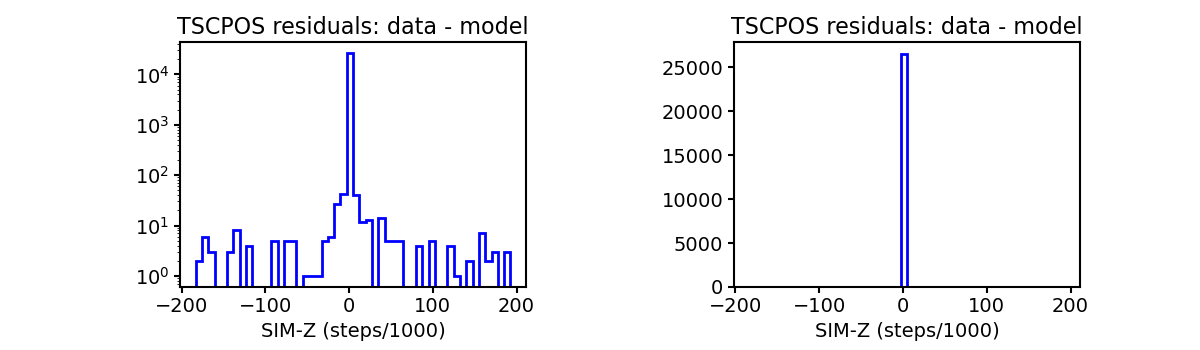

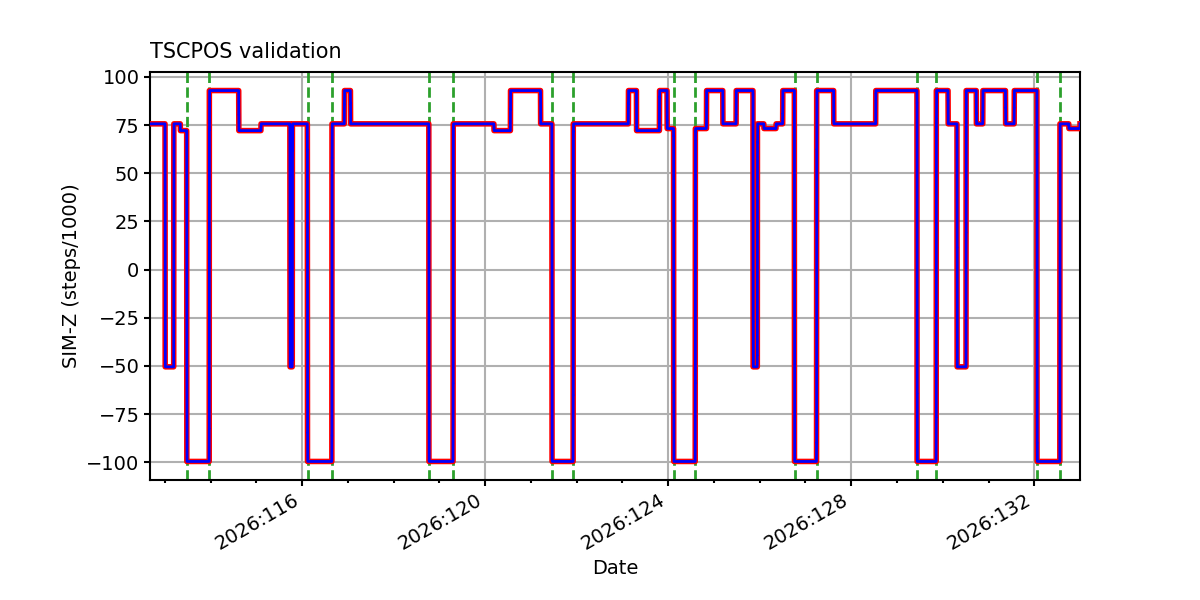

TSCPOS

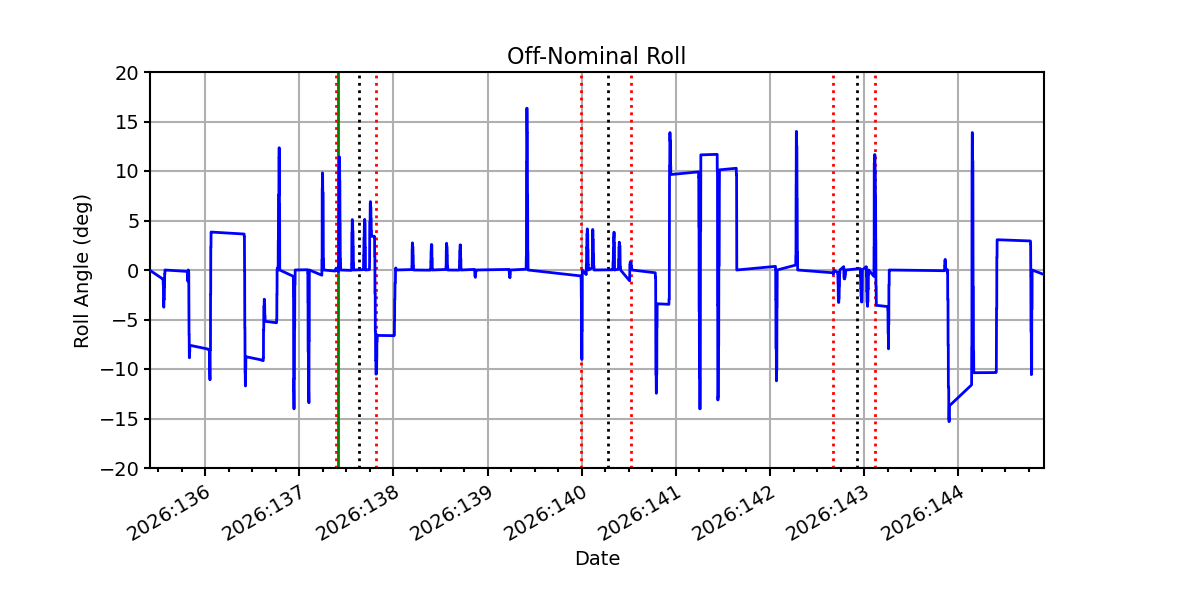

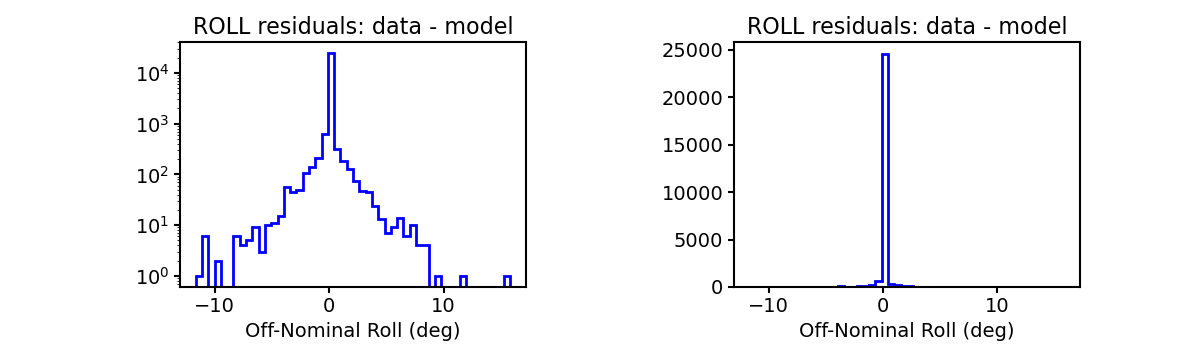

ROLL

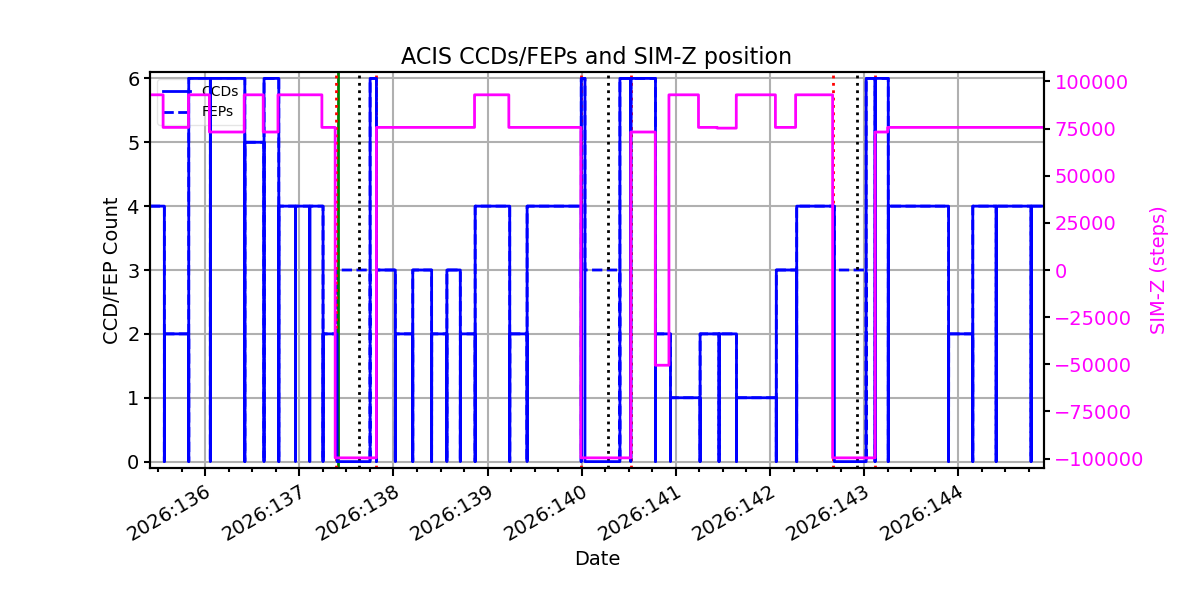

ACIS CCD/FEP Count
