FEP1_MONG Temperatures Check
Summary
| Date start | 2025:306:16:59:00.016 |
| Date stop | 2025:314:01:32:52.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0325/oflsa |
| Run time | Thu Oct 30 14:38:42 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.36 | -6.08 | -3.92 | -1.51 | 0.51 | 1.71 | 2.52 |
| pitch | -13.705 | -0.999 | -0.004 | 0.000 | 0.004 | 1.180 | 13.812 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.056 | -0.163 | -0.009 | -0.000 | 0.009 | 0.197 | 1.992 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.36 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.51 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.52 | 2.00 |
| PITCH | 1 | -13.705 | 3.00 |
| PITCH | 99 | 13.812 | 3.00 |
TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

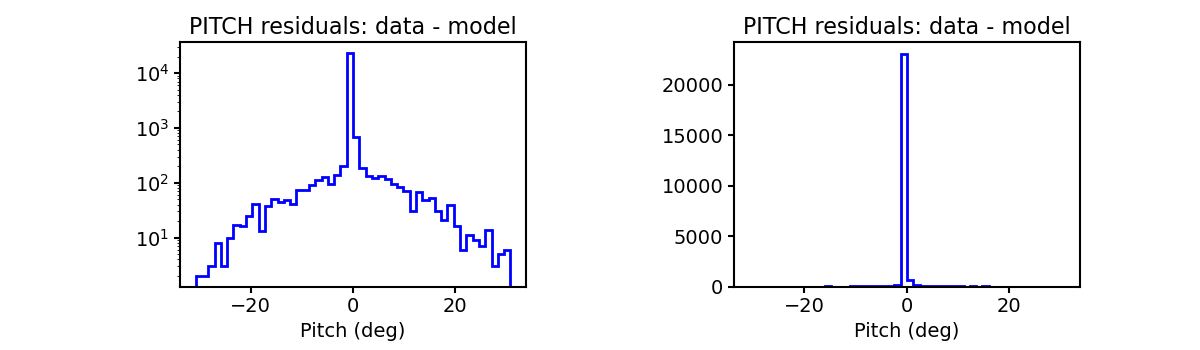

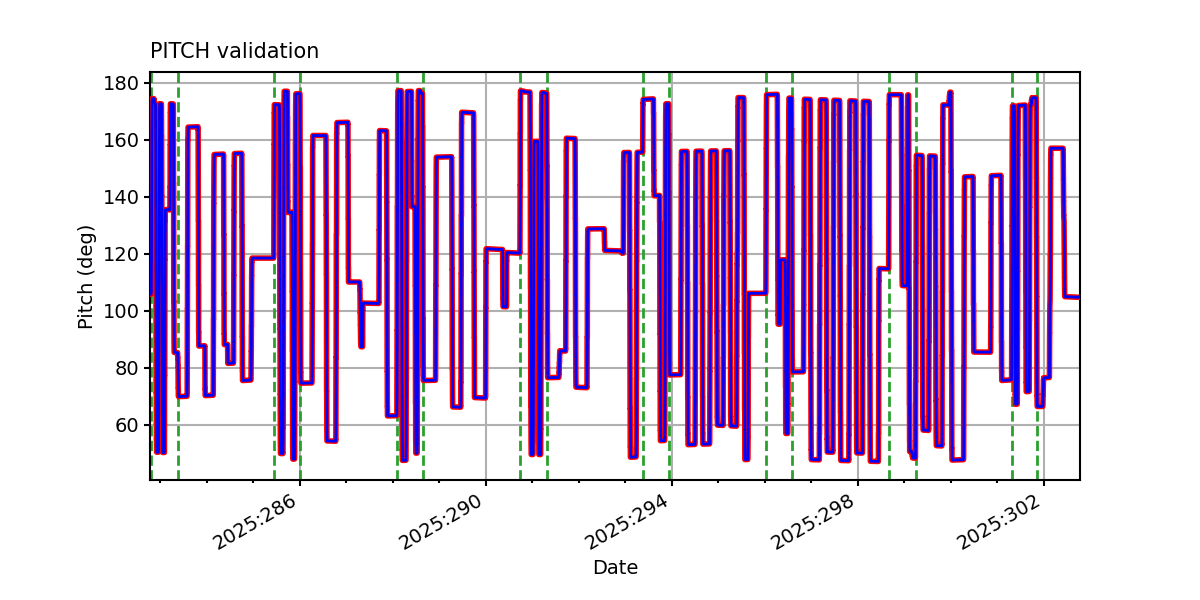

PITCH

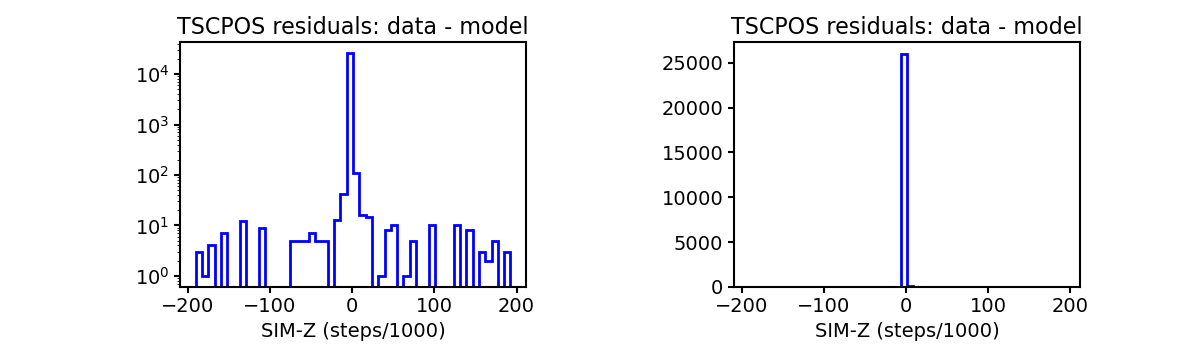

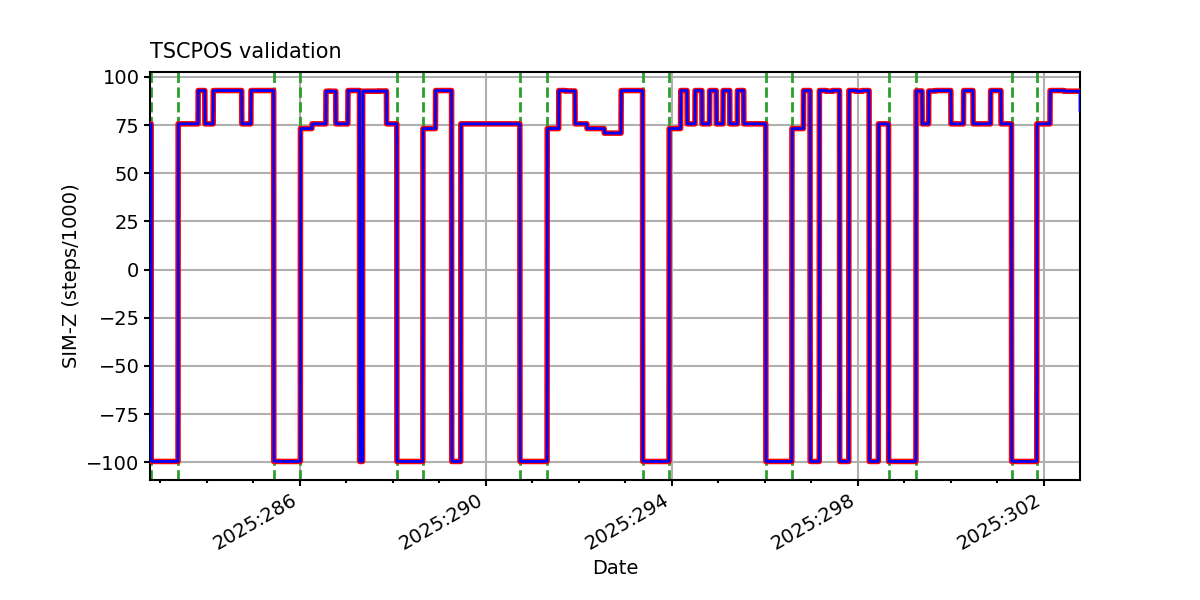

TSCPOS

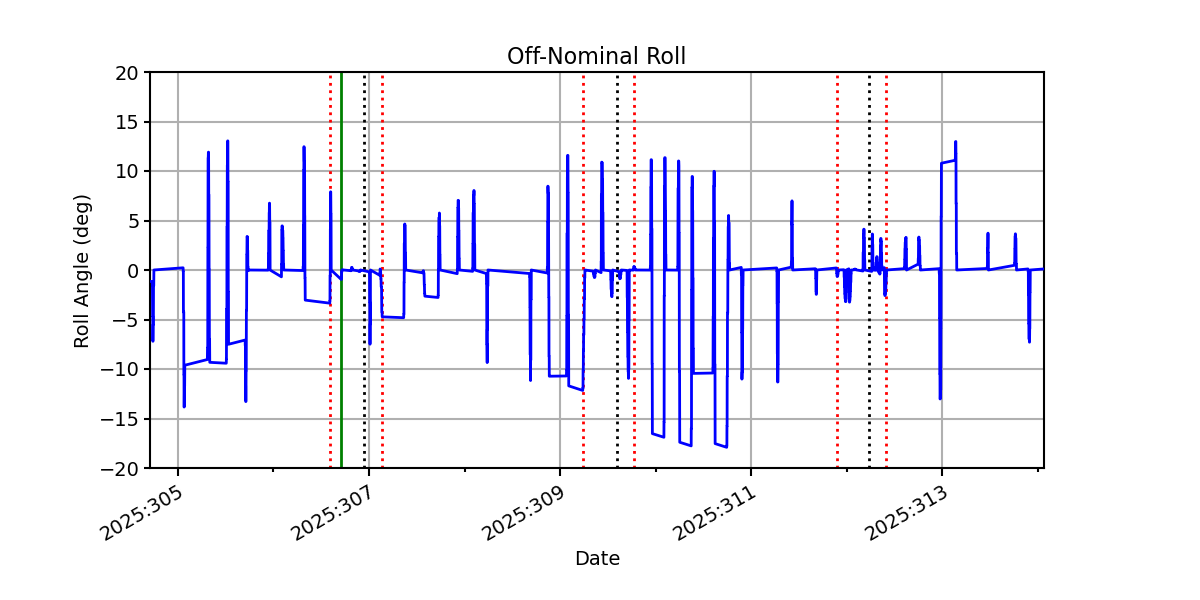

ROLL

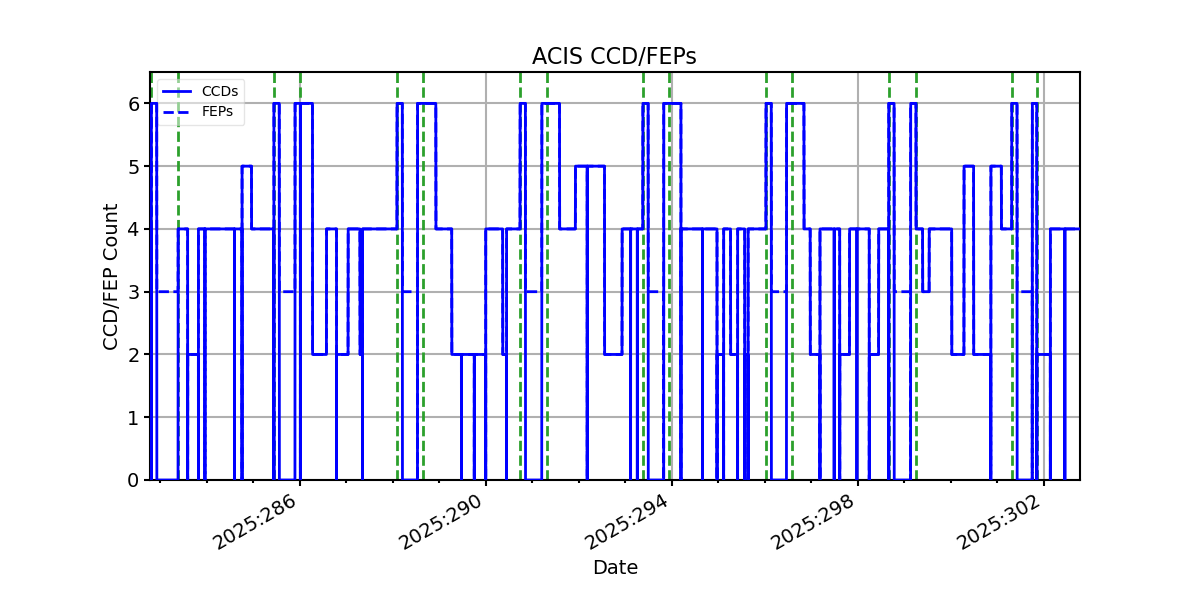

ACIS CCD/FEP Count
