FEP1_MONG Temperatures Check
Summary
| Date start | 2025:309:16:43:00.016 |
| Date stop | 2025:314:01:32:52.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0525/oflsa |
| Run time | Mon Nov 3 18:54:33 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.38 | -6.17 | -4.39 | -1.88 | 0.36 | 1.56 | 2.43 |
| pitch | -12.744 | -0.854 | -0.004 | 0.000 | 0.004 | 0.960 | 12.925 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.175 | -0.172 | -0.008 | -0.000 | 0.008 | 0.167 | 2.178 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.38 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.88 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.43 | 2.00 |
| PITCH | 1 | -12.744 | 3.00 |
| PITCH | 99 | 12.925 | 3.00 |

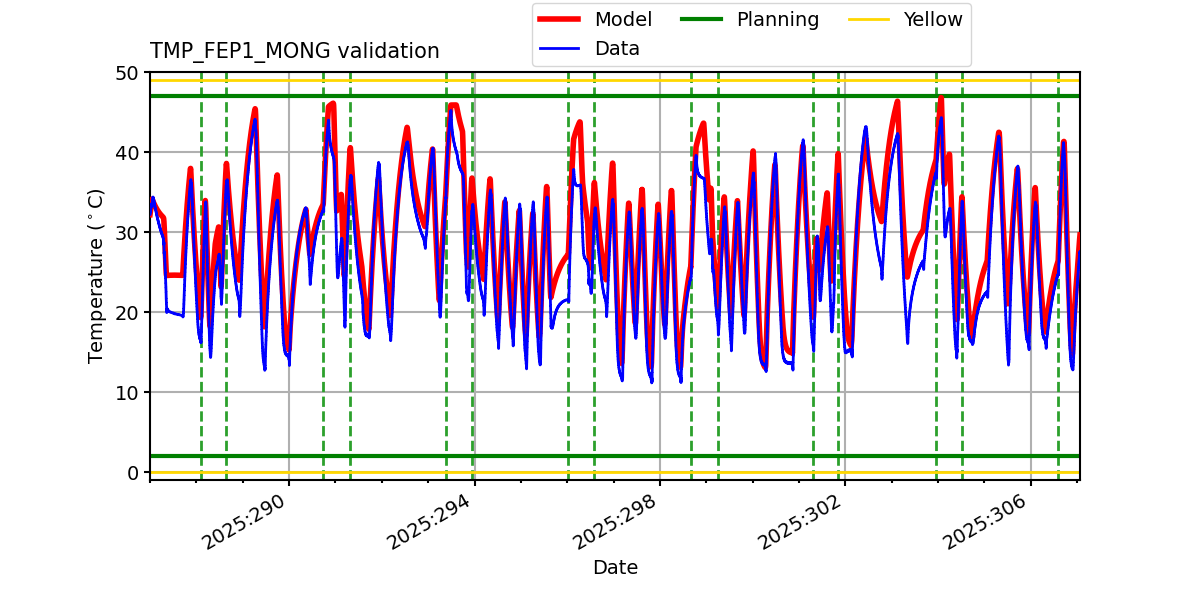

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

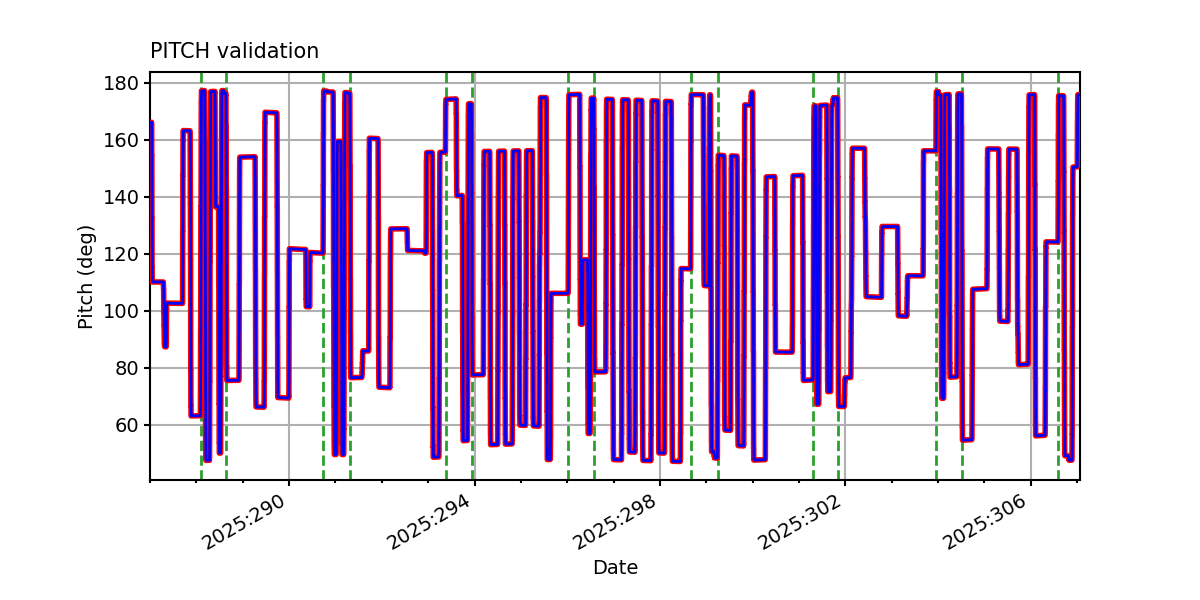

PITCH

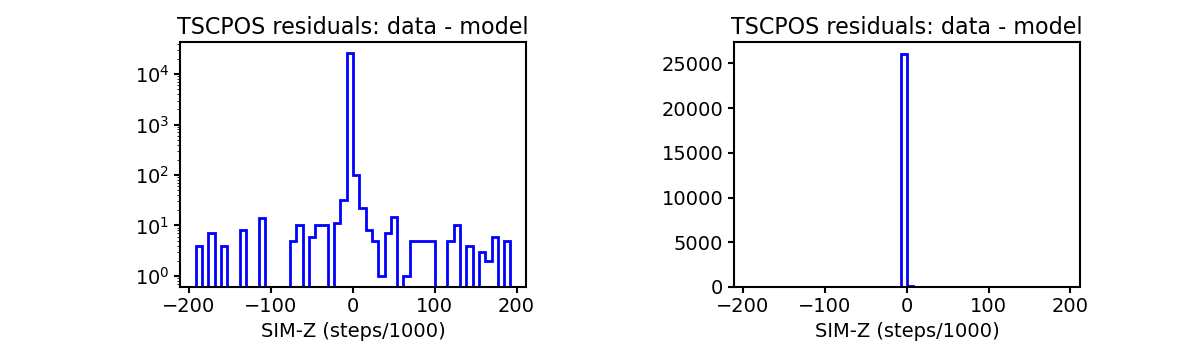

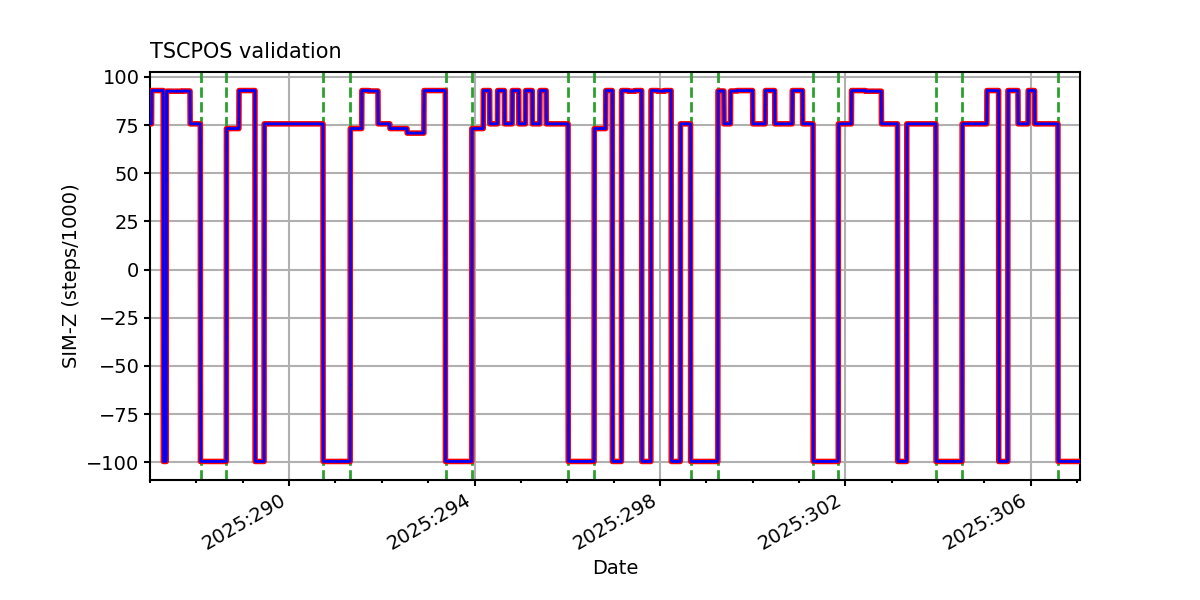

TSCPOS

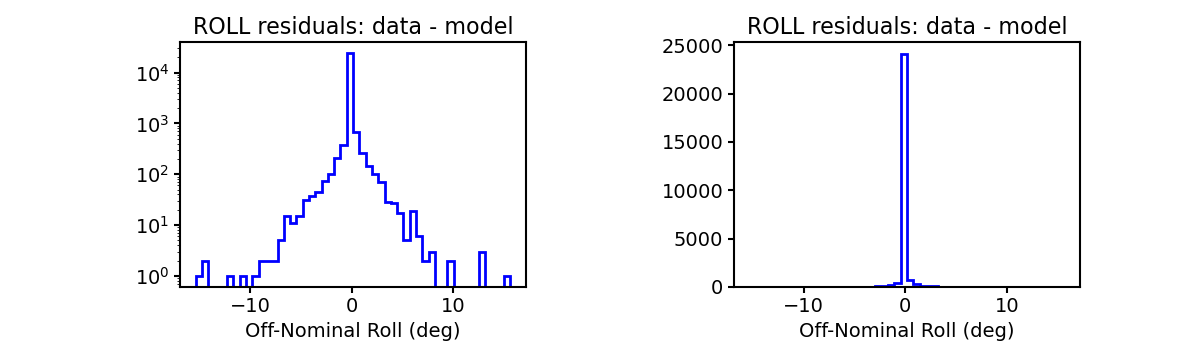

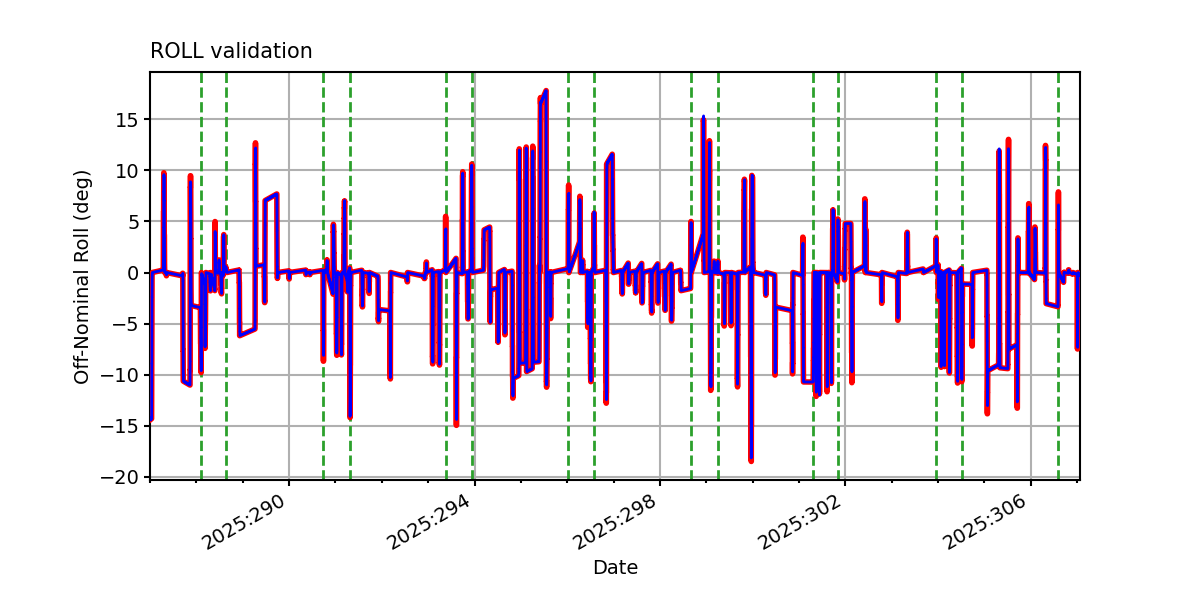

ROLL

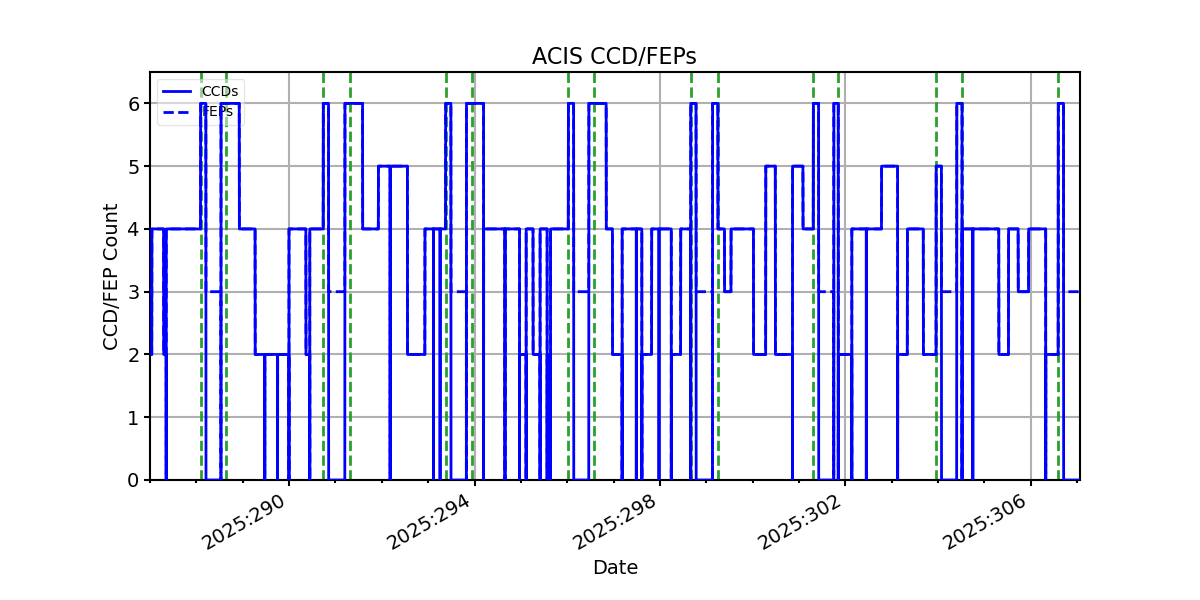

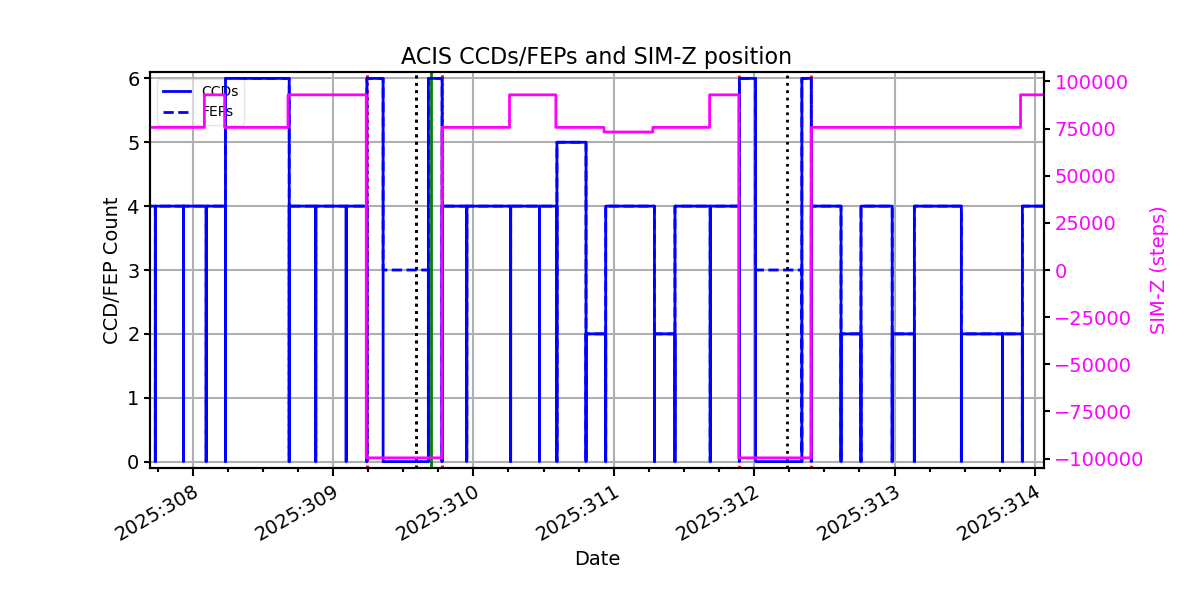

ACIS CCD/FEP Count
