FEP1_MONG Temperatures Check
Summary
| Date start | 2026:277:13:10:00.016 |
| Date stop | 2026:284:19:12:22.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/OCT0526/oflsa |
| Run time | Thu Oct 1 08:50:44 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_MONG Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:282:19:51:38.277 | 2026:282:20:30:18.035 | 2.32 | 47.20 / 47.00 |
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.23 | -3.89 | -1.77 | 0.13 | 2.00 | 3.19 | 4.12 |
| pitch | -13.766 | -1.868 | -0.004 | -0.000 | 0.004 | 1.811 | 14.502 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.374 | -0.294 | -0.010 | 0.000 | 0.010 | 0.289 | 2.452 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.23 | 2.00 |
| TMP_FEP1_MONG | 99 | 4.12 | 2.00 |
| PITCH | 1 | -13.766 | 3.00 |
| PITCH | 99 | 14.502 | 3.00 |

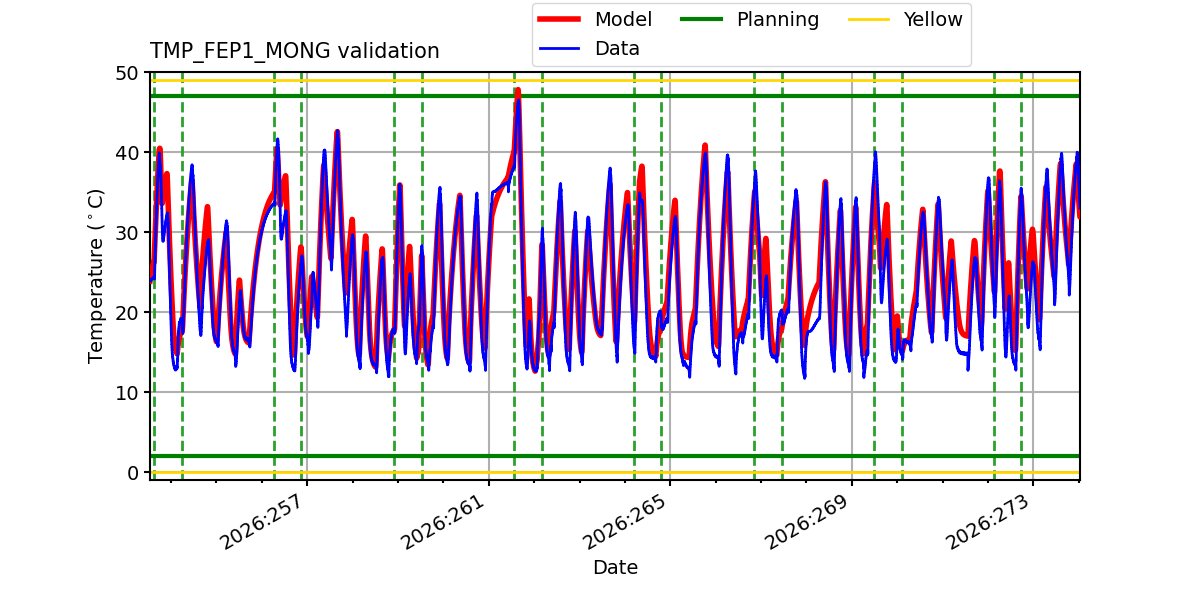

TMP_FEP1_MONG

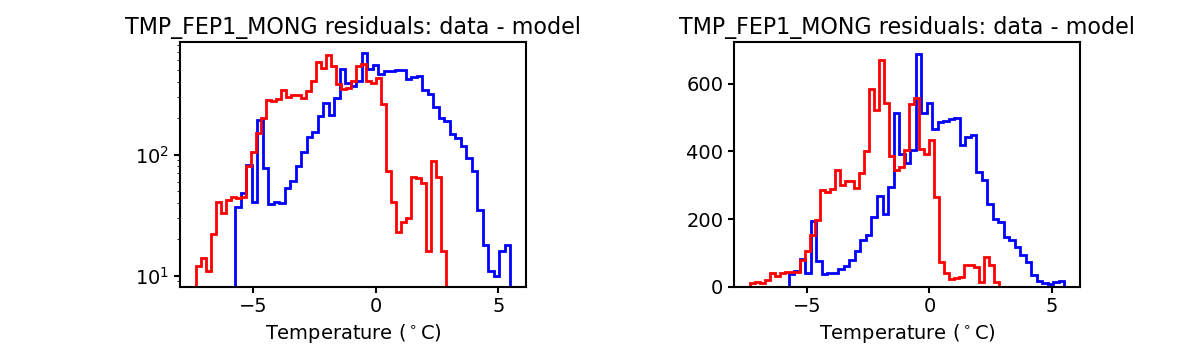

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

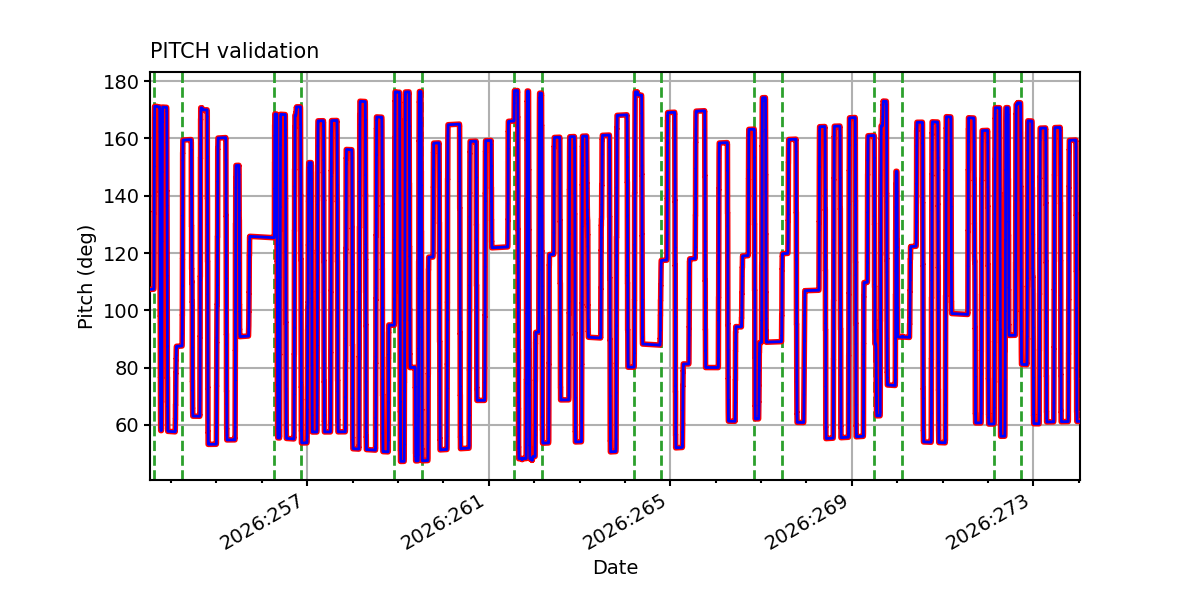

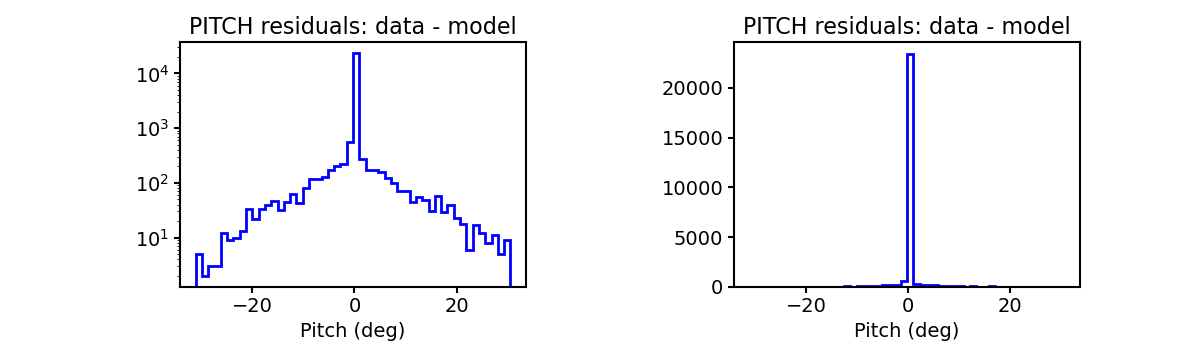

PITCH

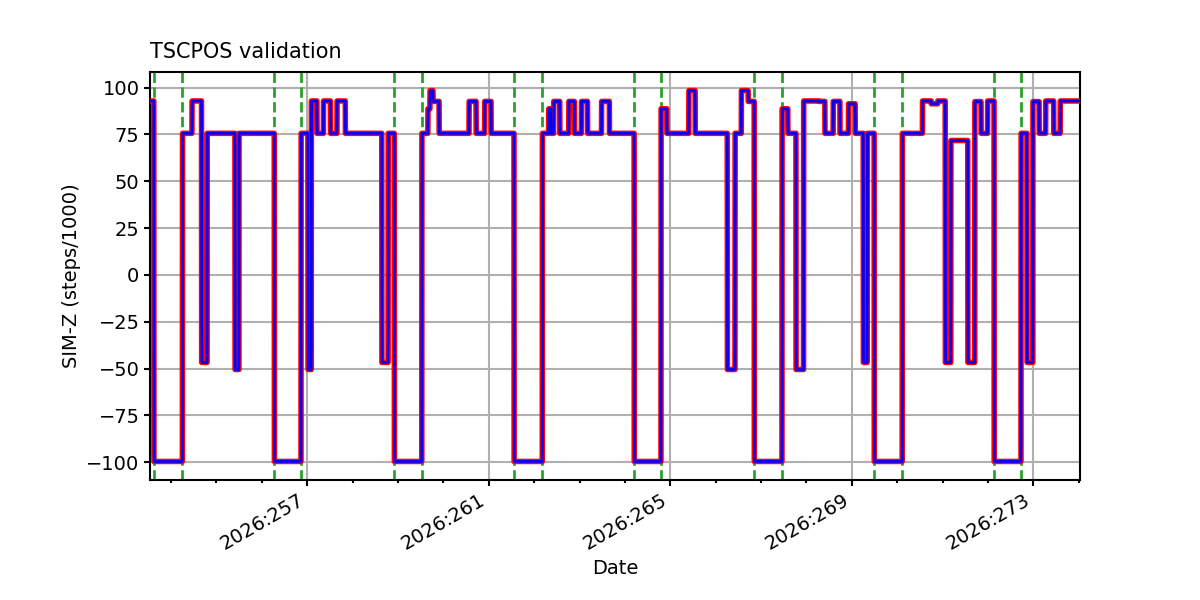

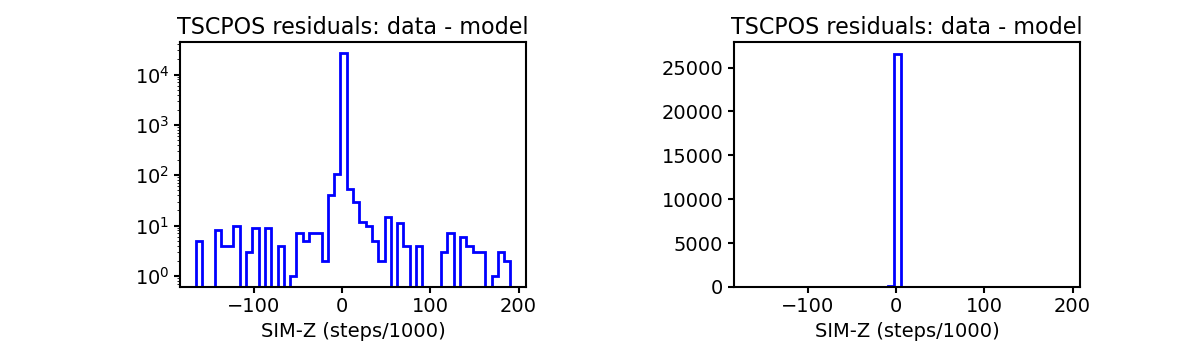

TSCPOS

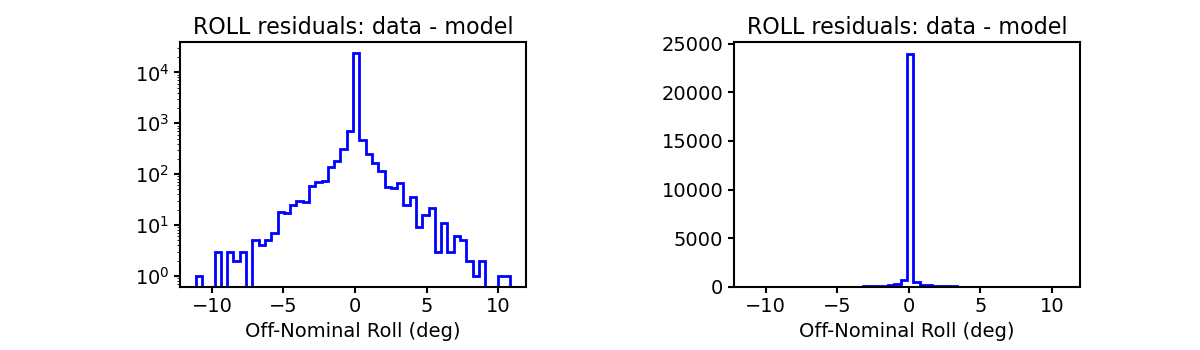

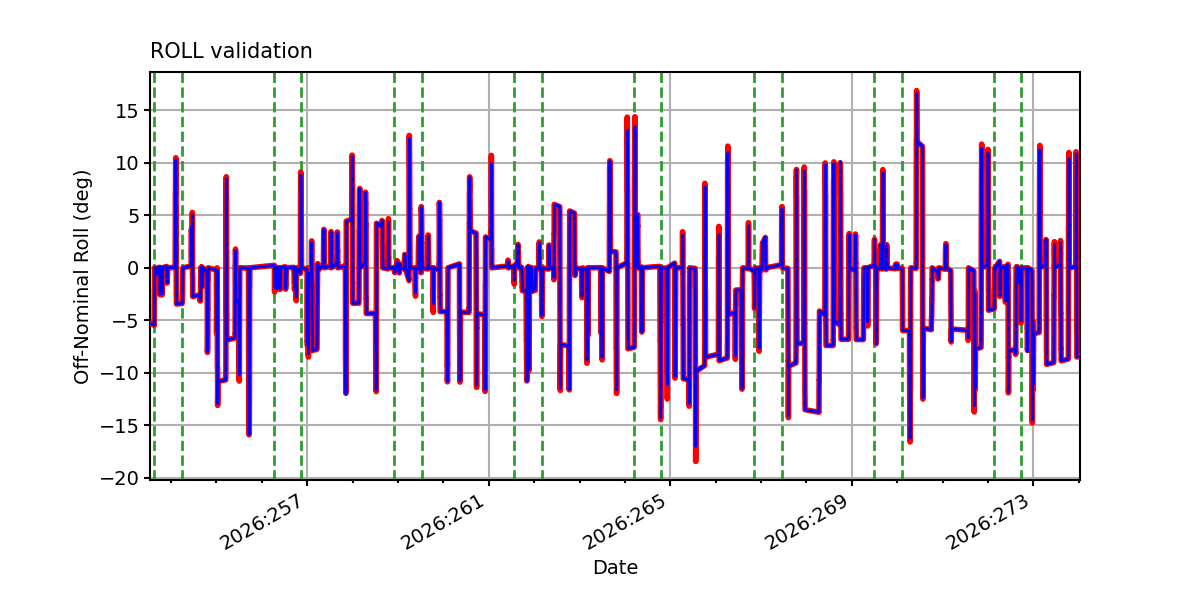

ROLL

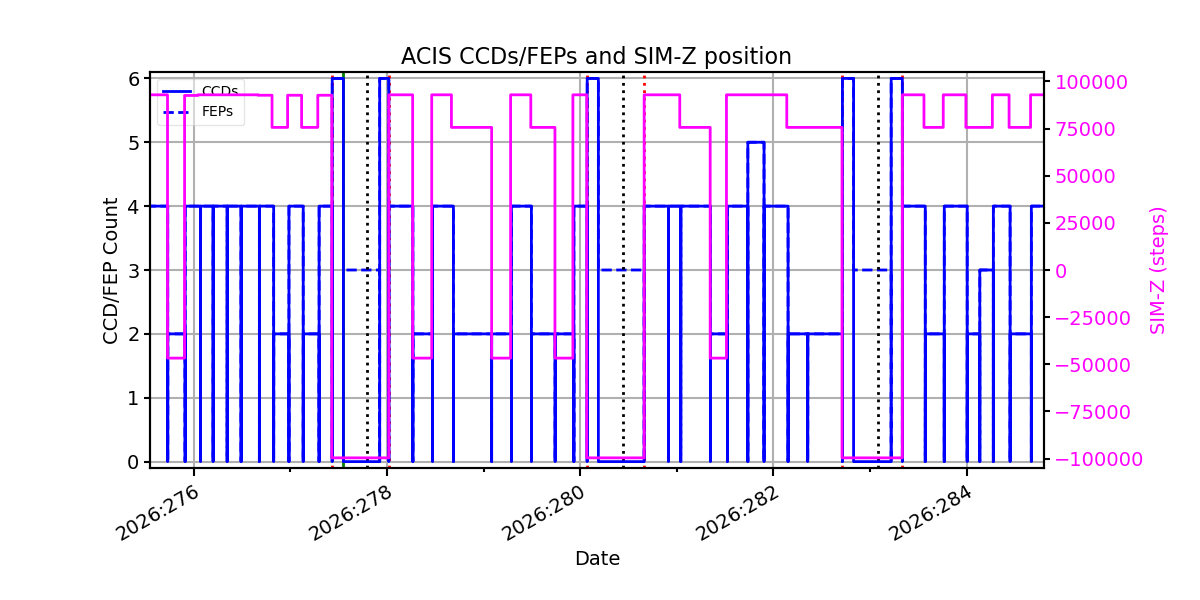

ACIS CCD/FEP Count
