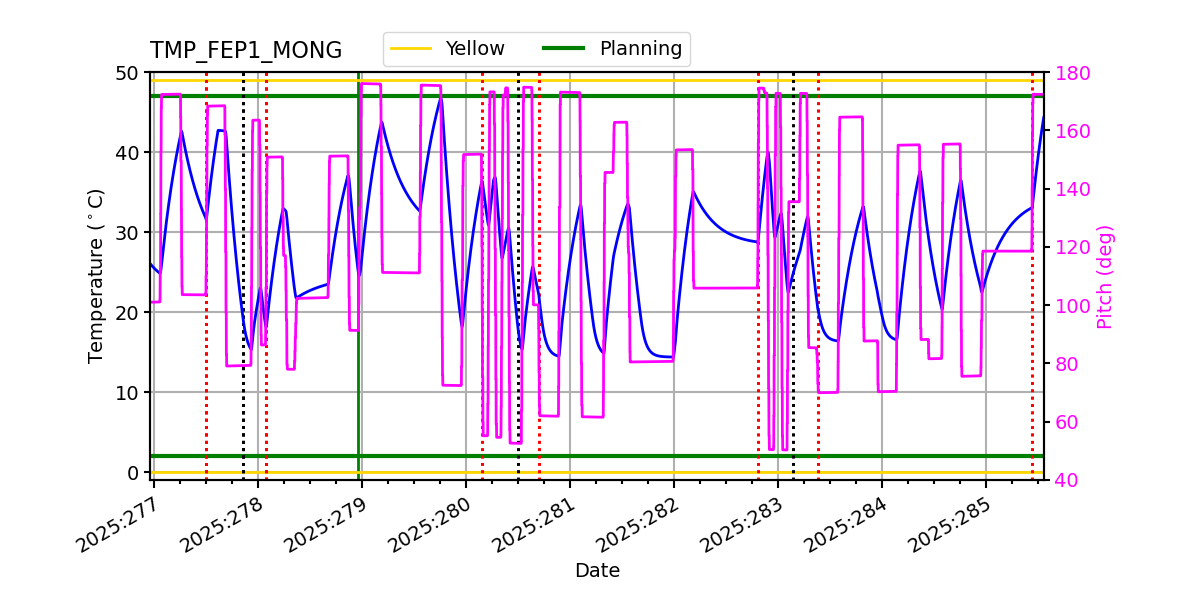

FEP1_MONG Temperatures Check
Summary
| Date start | 2025:278:23:10:04.316 |
| Date stop | 2025:285:13:23:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT0625/oflsa |
| Run time | Thu Oct 2 10:51:14 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -6.67 | -4.97 | -2.43 | -0.07 | 1.49 | 2.81 | 4.01 |
| pitch | -10.656 | -0.853 | -0.004 | -0.000 | 0.004 | 0.996 | 11.999 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.221 | -0.235 | -0.006 | 0.000 | 0.008 | 0.248 | 2.304 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -6.67 | 2.00 |
| TMP_FEP1_MONG | 99 | 4.01 | 2.00 |
| PITCH | 1 | -10.656 | 3.00 |
| PITCH | 99 | 11.999 | 3.00 |

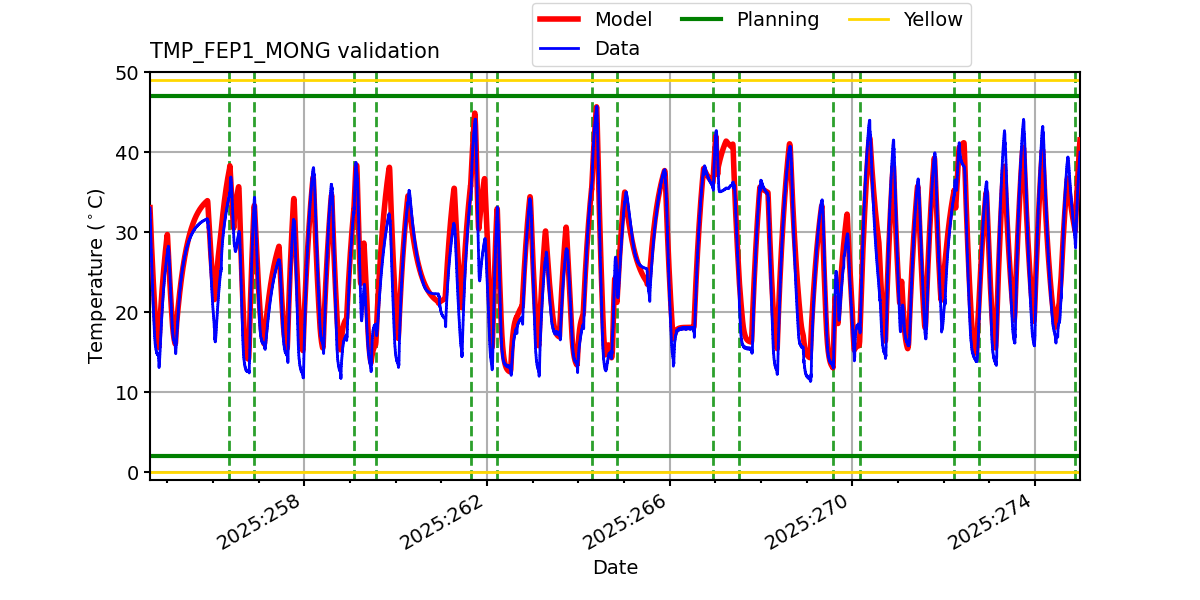

TMP_FEP1_MONG

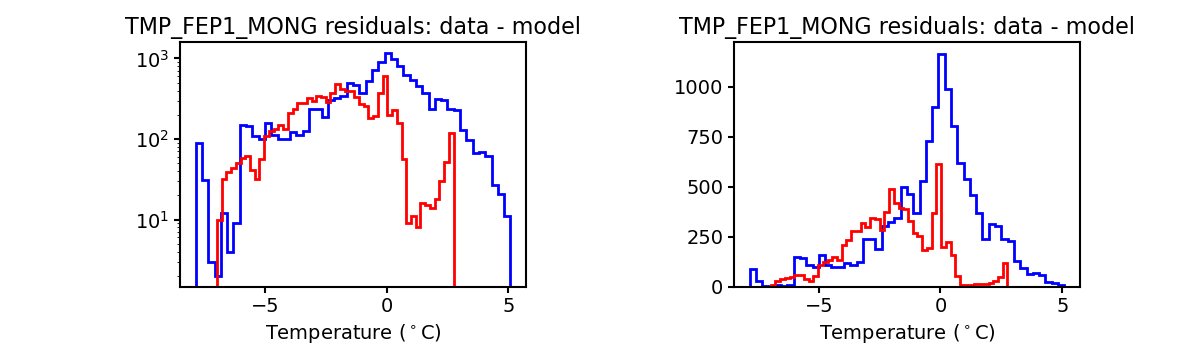

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

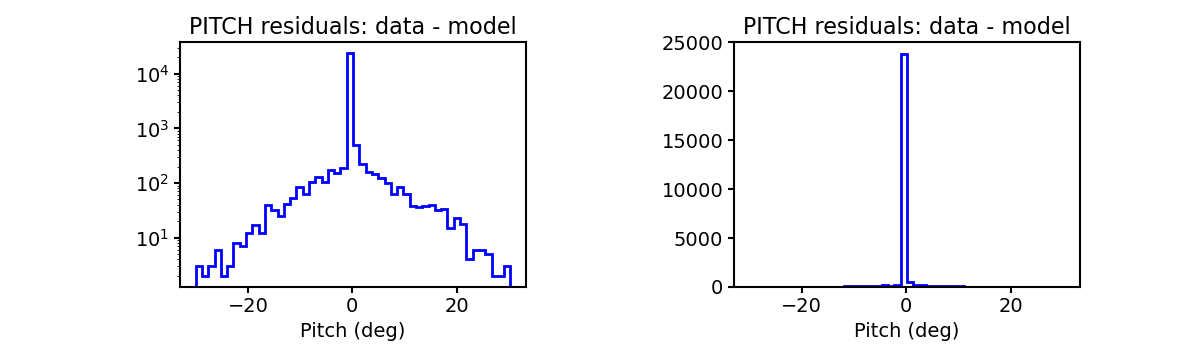

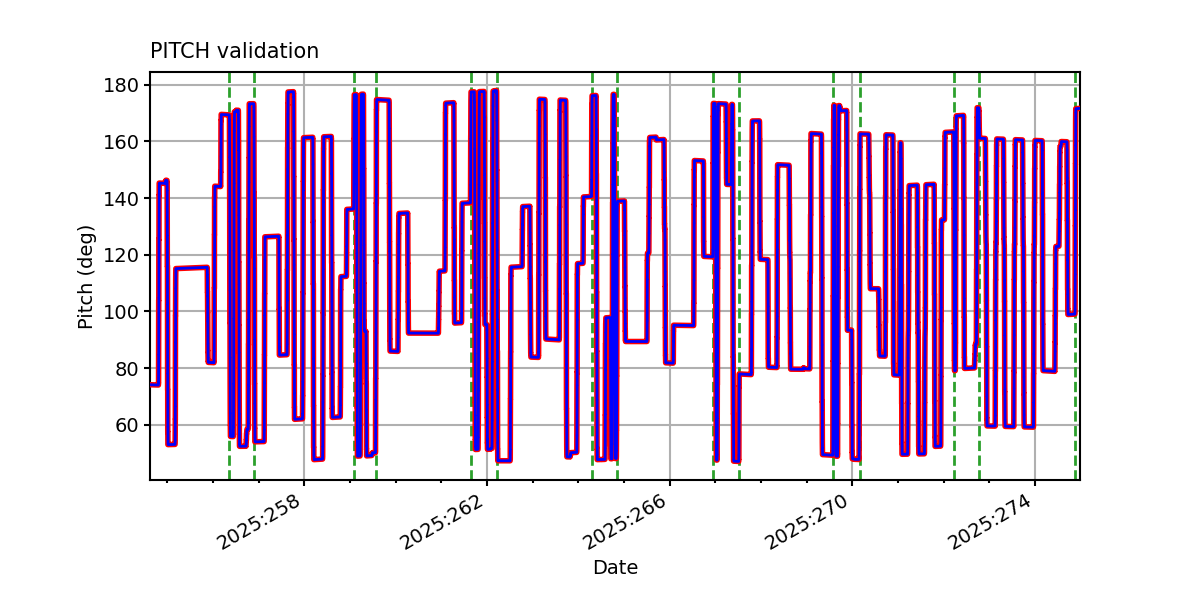

PITCH

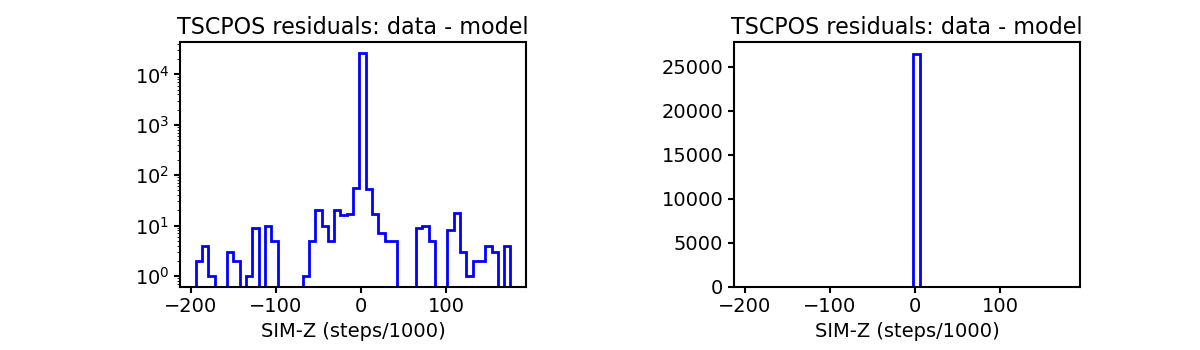

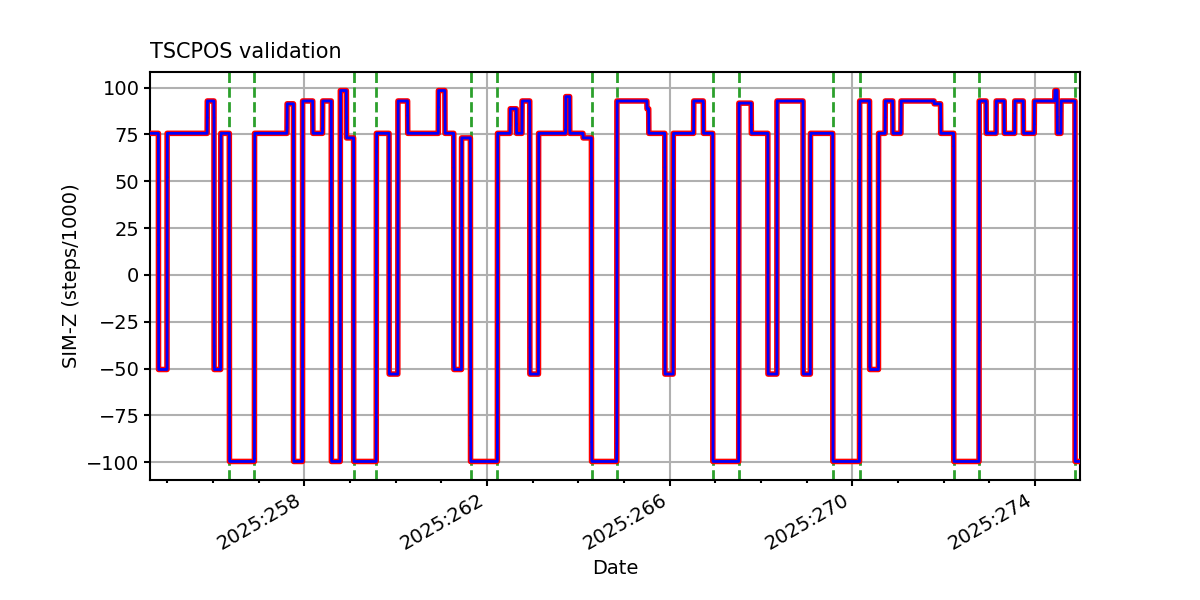

TSCPOS

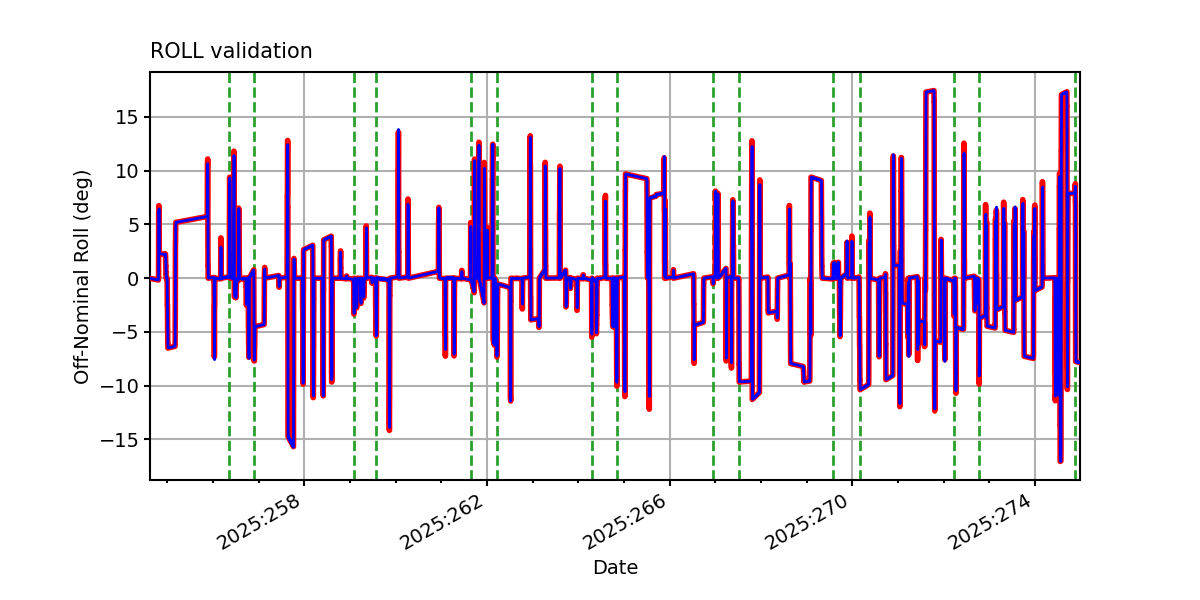

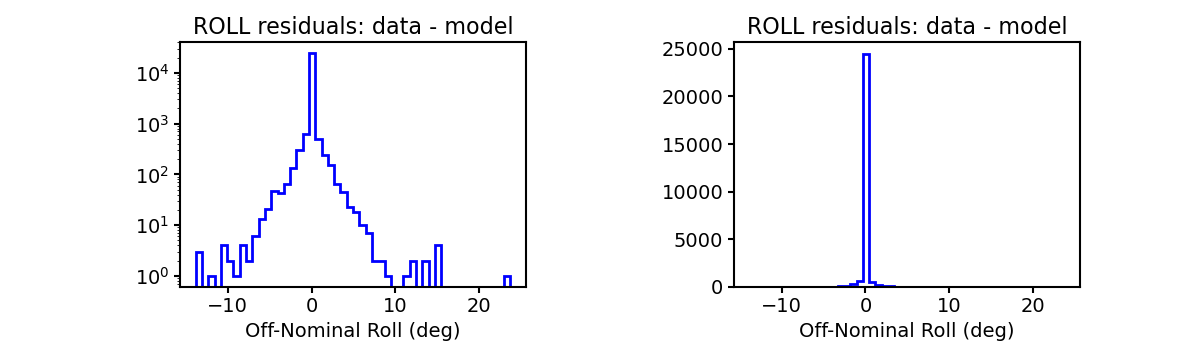

ROLL

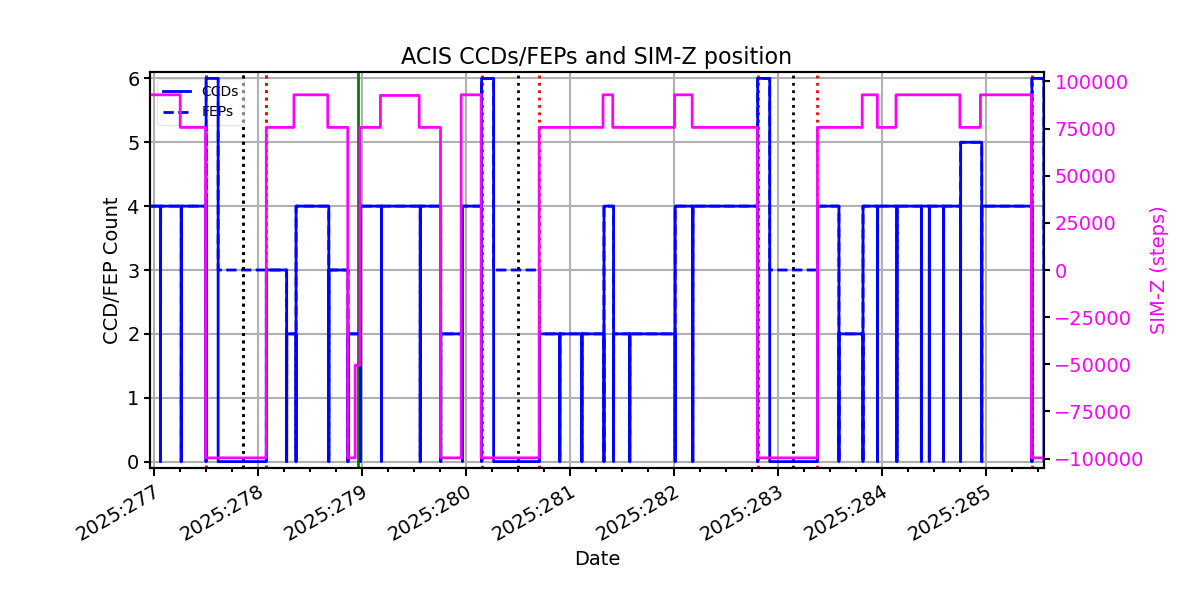

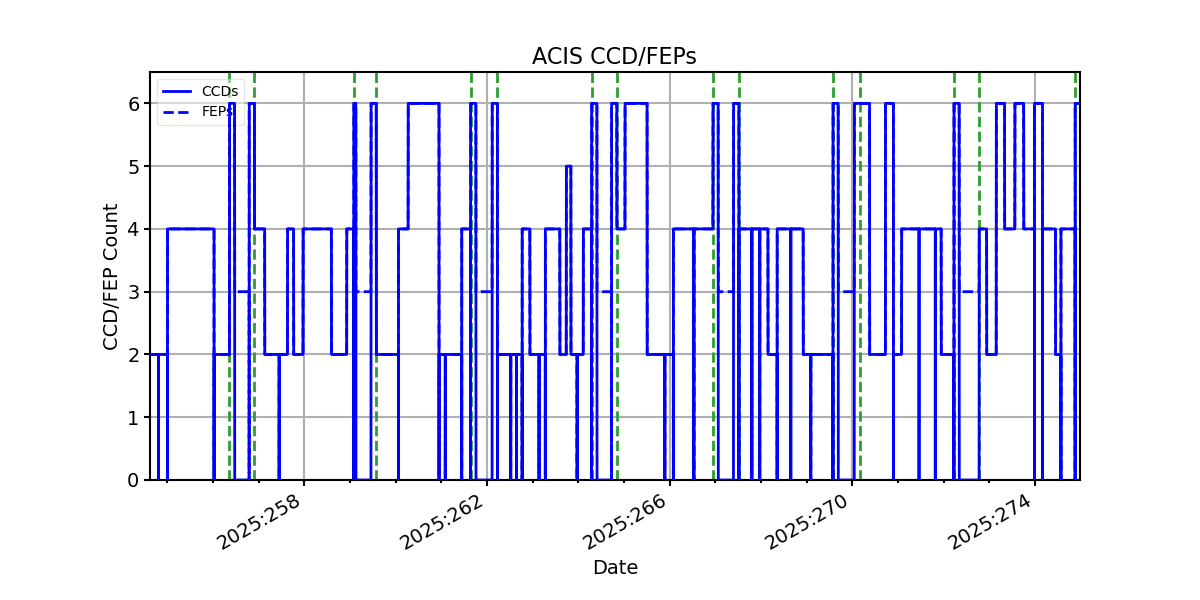

ACIS CCD/FEP Count
