FEP1_MONG Temperatures Check
Summary
| Date start | 2026:284:19:09:22.016 |
| Date stop | 2026:291:23:52:06.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1226/oflsa |
| Run time | Thu Oct 8 08:19:51 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -4.45 | -2.68 | -1.43 | 0.45 | 2.20 | 3.25 | 4.37 |
| pitch | -13.916 | -1.837 | -0.004 | -0.000 | 0.004 | 1.636 | 13.609 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.730 | -0.340 | -0.009 | 0.000 | 0.010 | 0.363 | 2.950 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -4.45 | 2.00 |
| TMP_FEP1_MONG | 99 | 4.37 | 2.00 |
| PITCH | 1 | -13.916 | 3.00 |
| PITCH | 99 | 13.609 | 3.00 |
TMP_FEP1_MONG

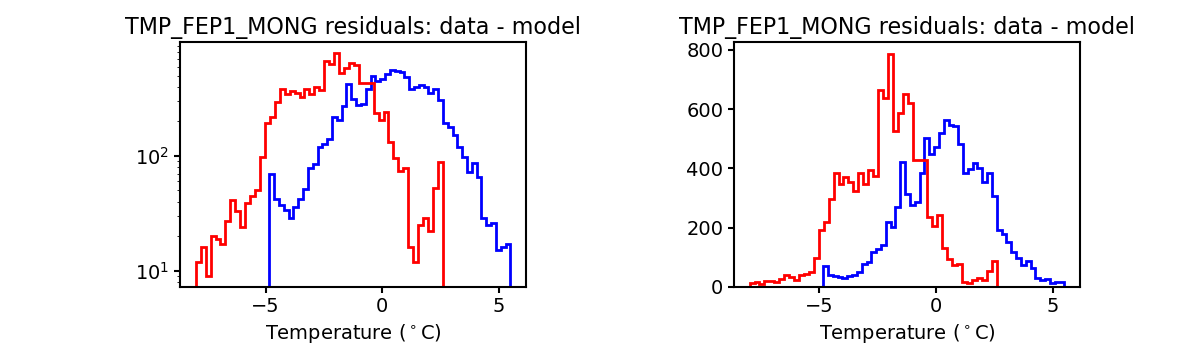

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

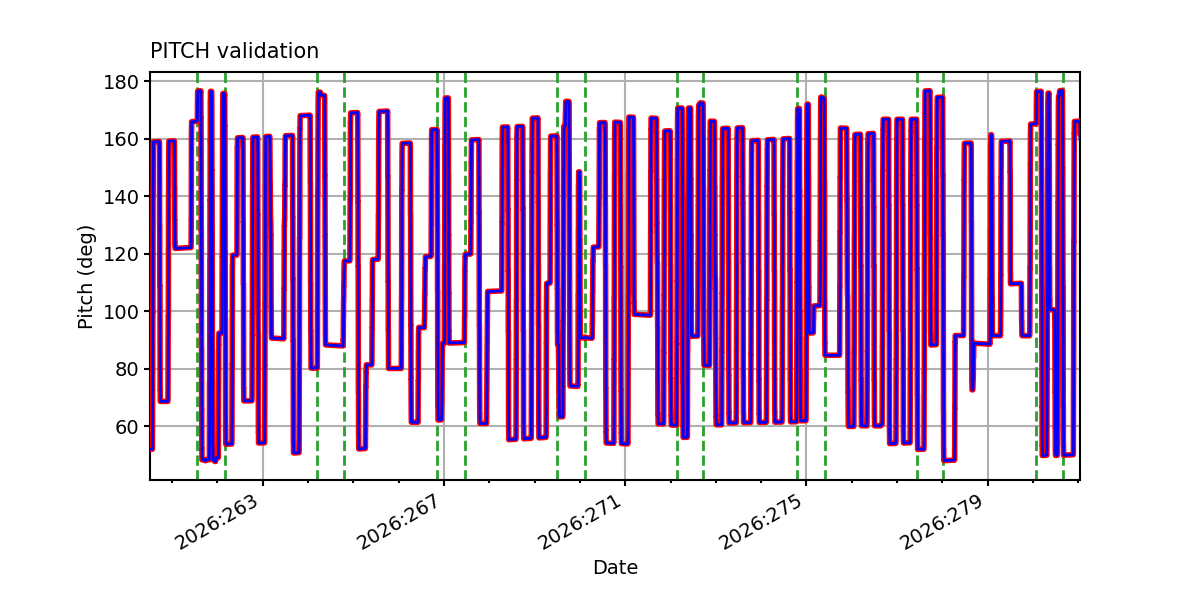

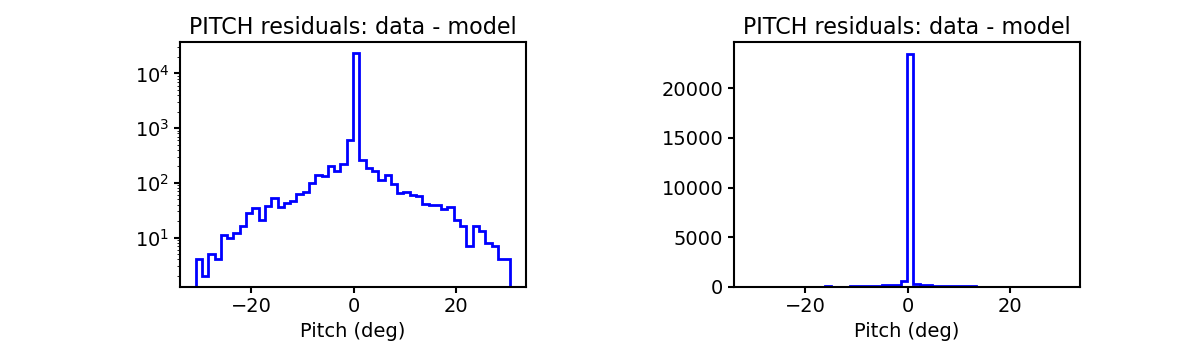

PITCH

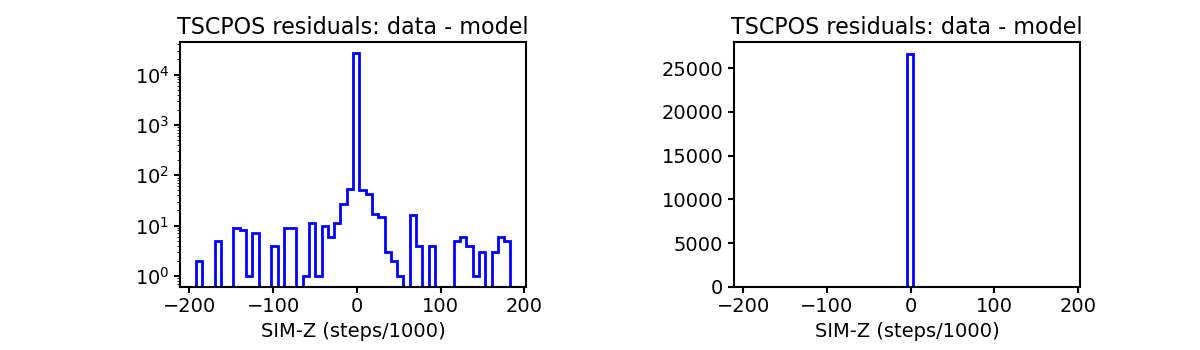

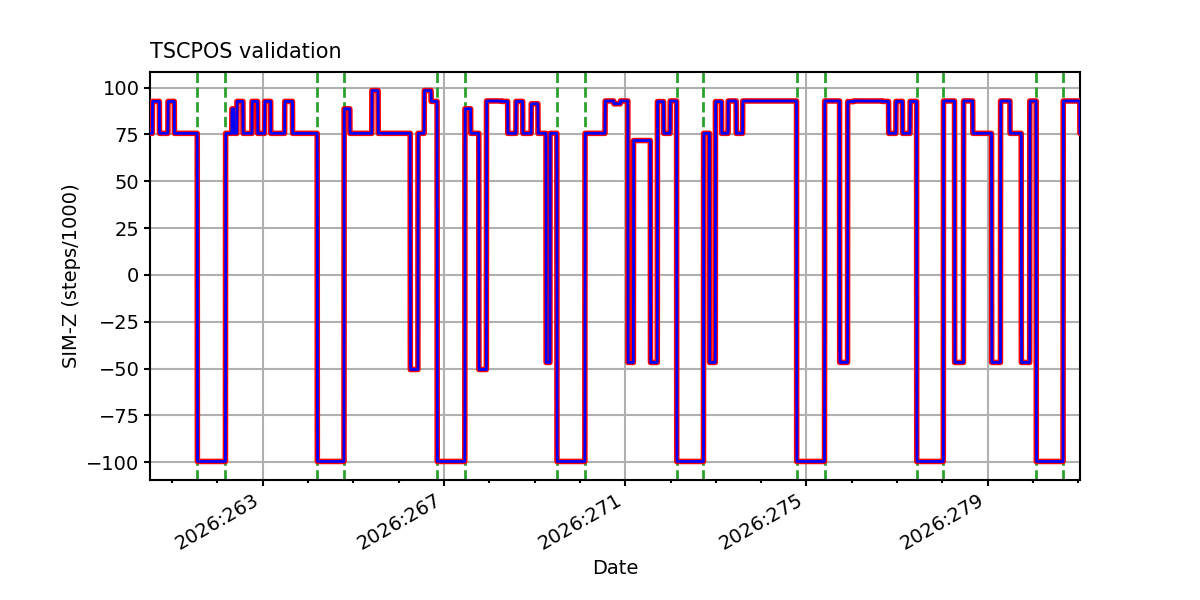

TSCPOS

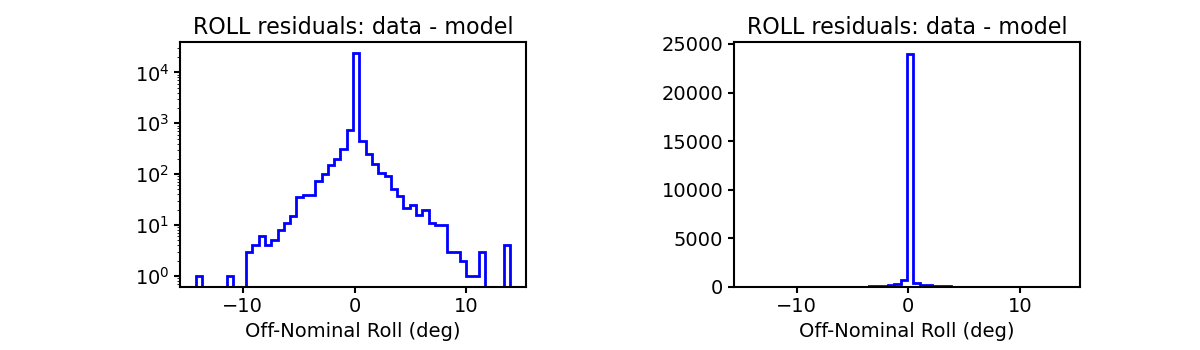

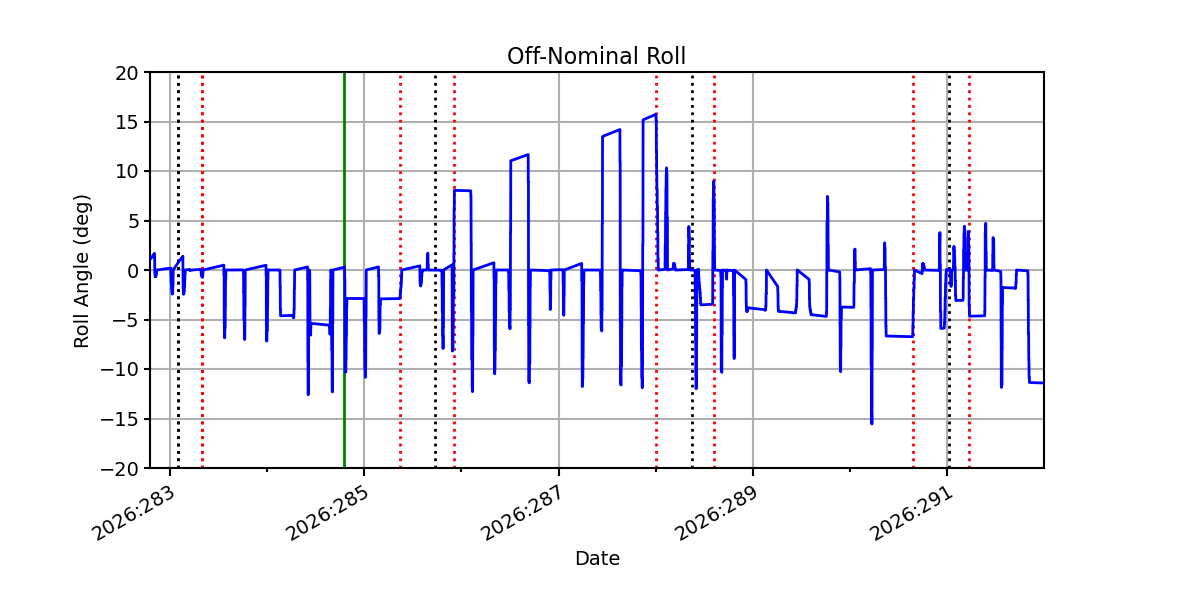

ROLL

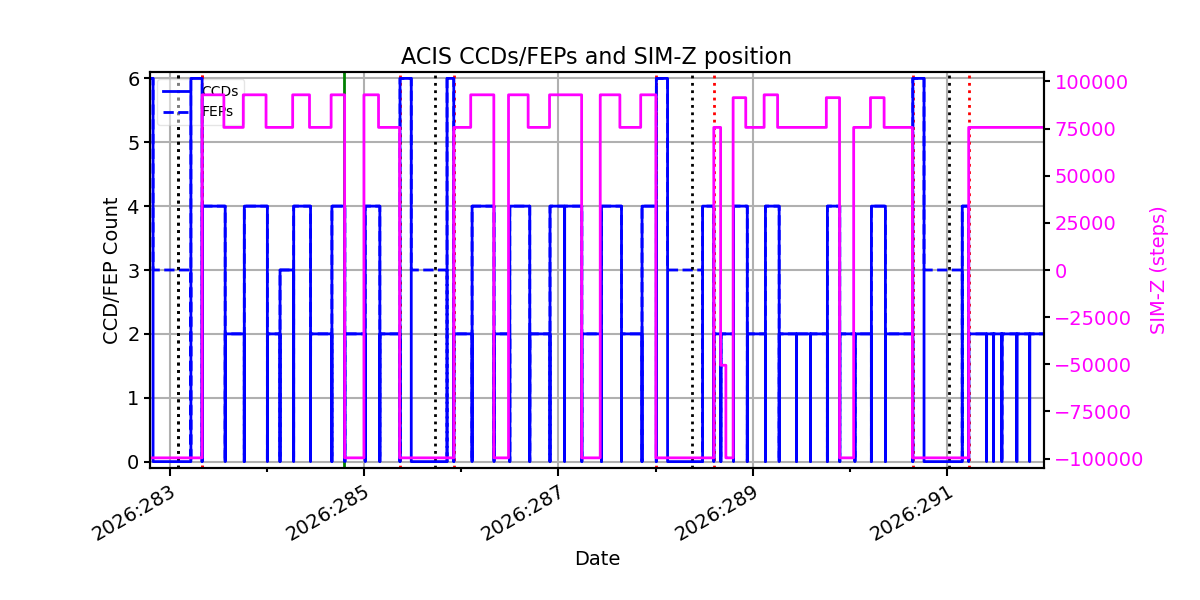

ACIS CCD/FEP Count
