FEP1_MONG Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:22:53 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.02 | -5.90 | -4.09 | -0.97 | 1.22 | 2.68 | 3.89 |
| pitch | -12.274 | -1.354 | -0.004 | -0.000 | 0.004 | 1.341 | 12.567 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.508 | -0.232 | -0.008 | 0.000 | 0.009 | 0.348 | 2.560 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.02 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.89 | 2.00 |
| PITCH | 1 | -12.274 | 3.00 |
| PITCH | 99 | 12.567 | 3.00 |

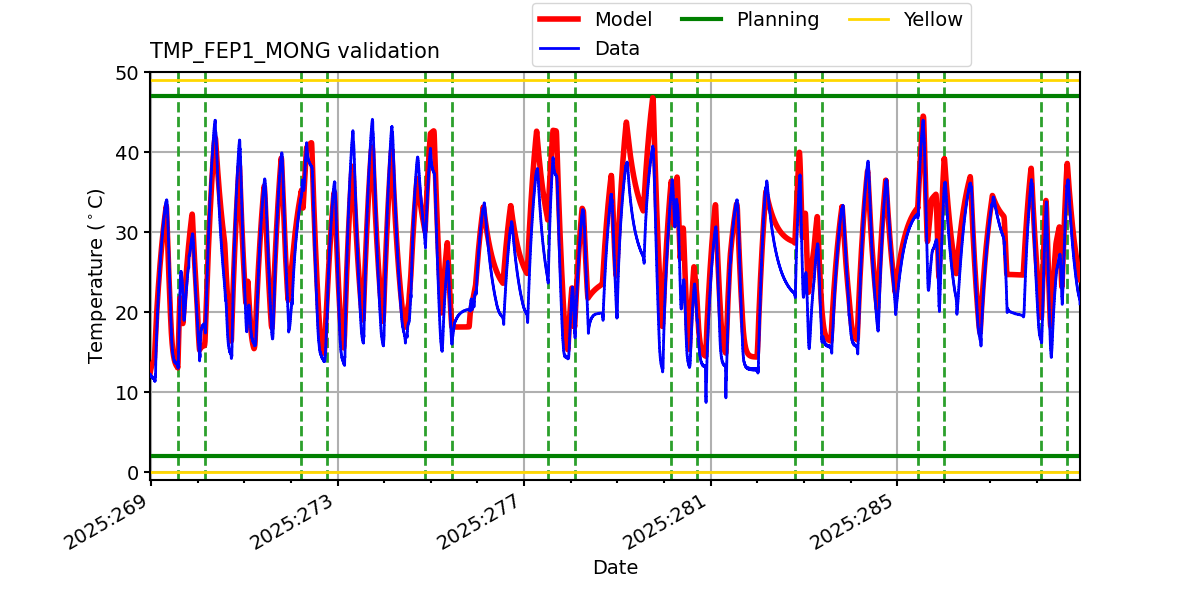

TMP_FEP1_MONG

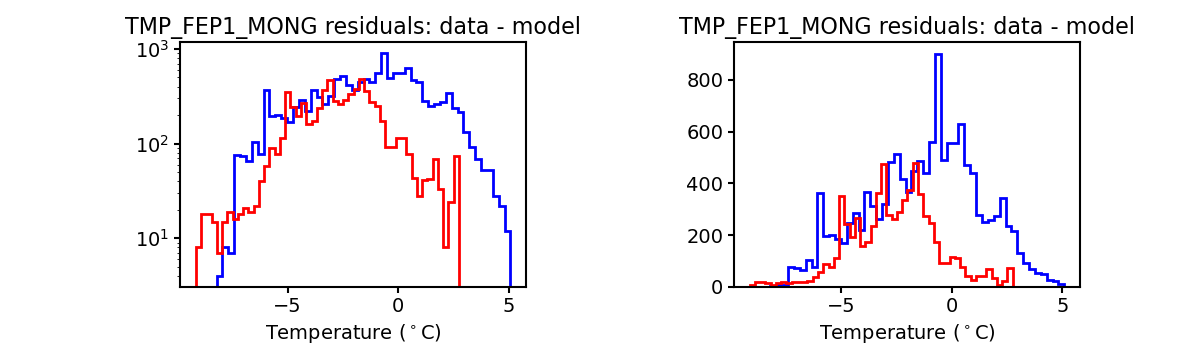

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

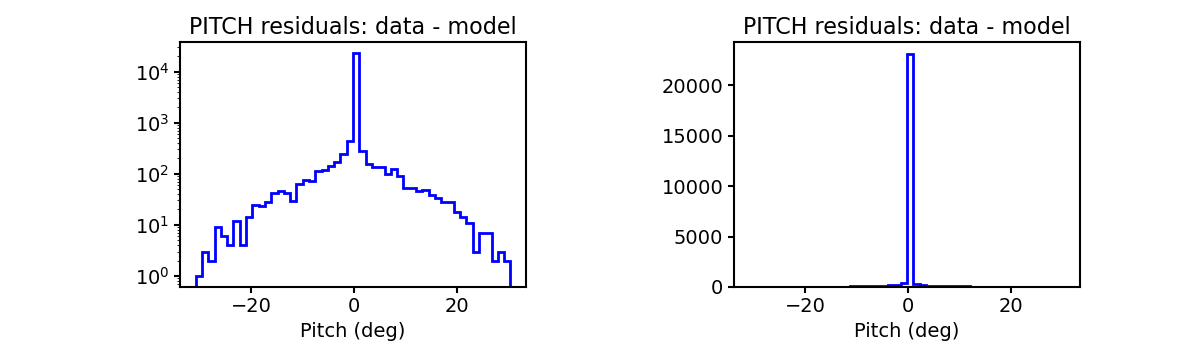

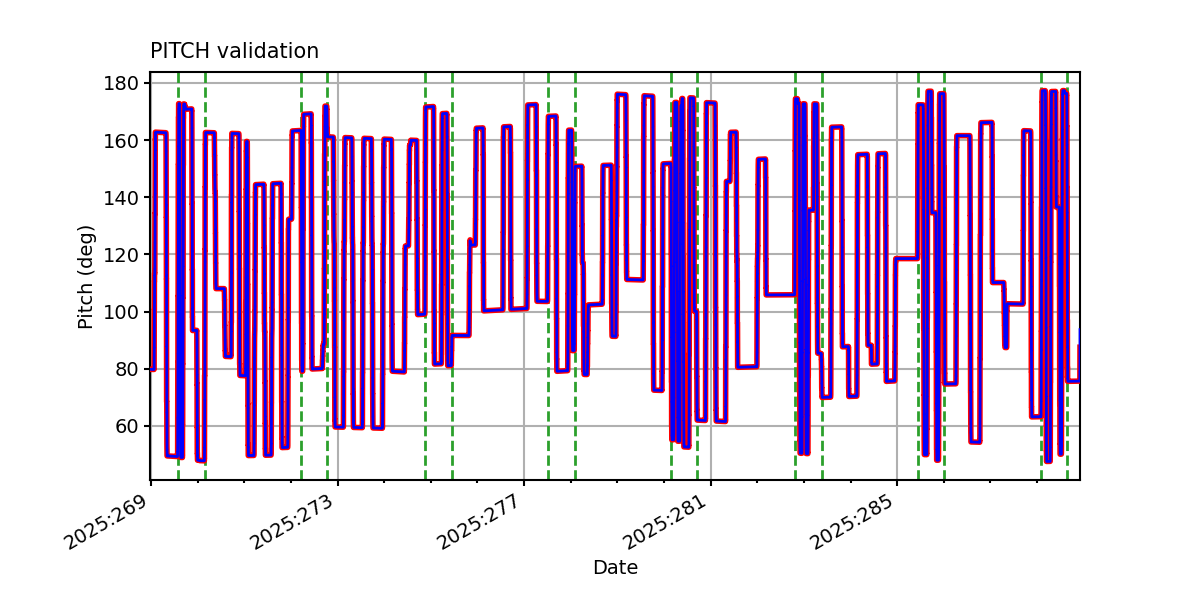

PITCH

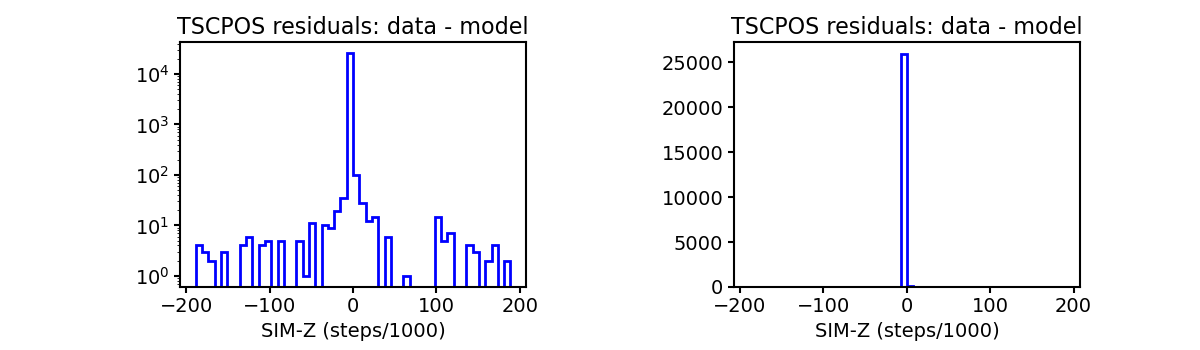

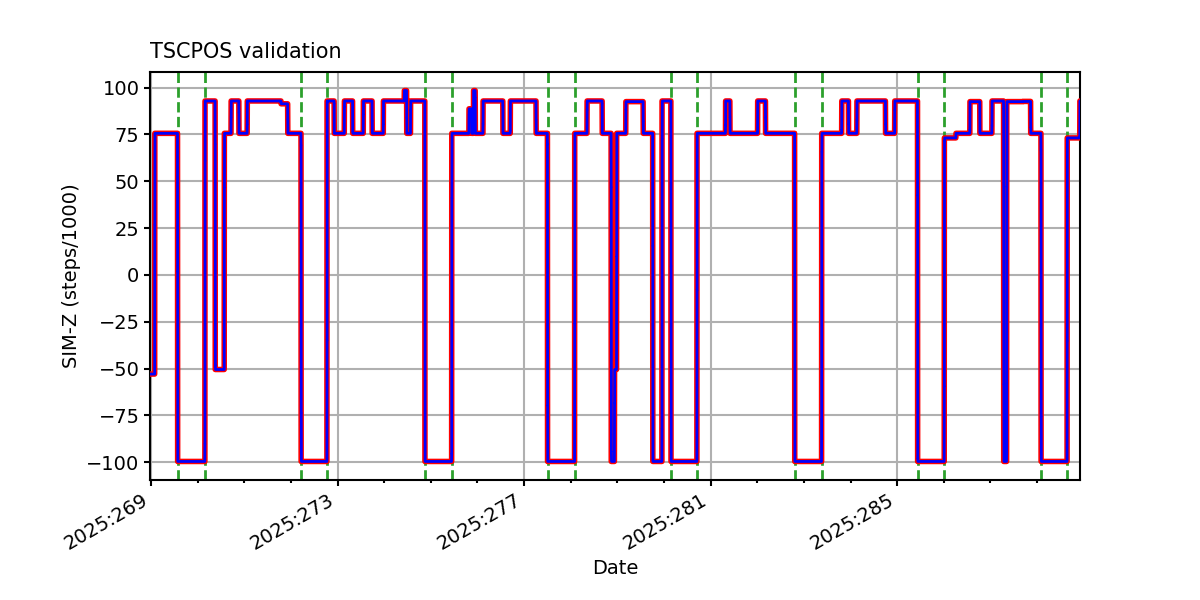

TSCPOS

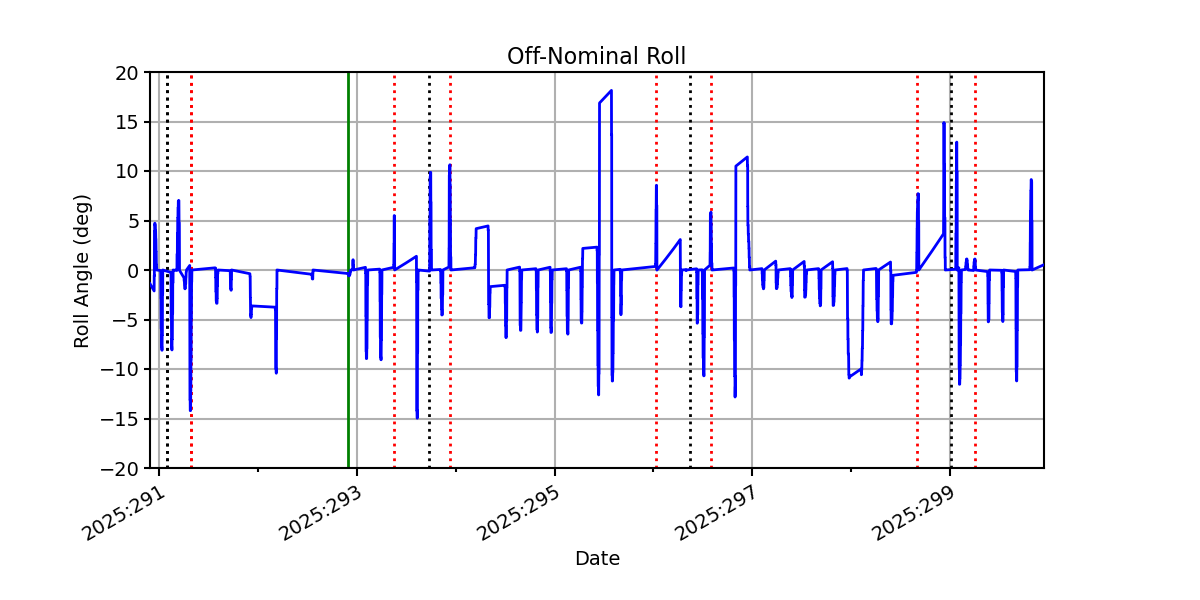

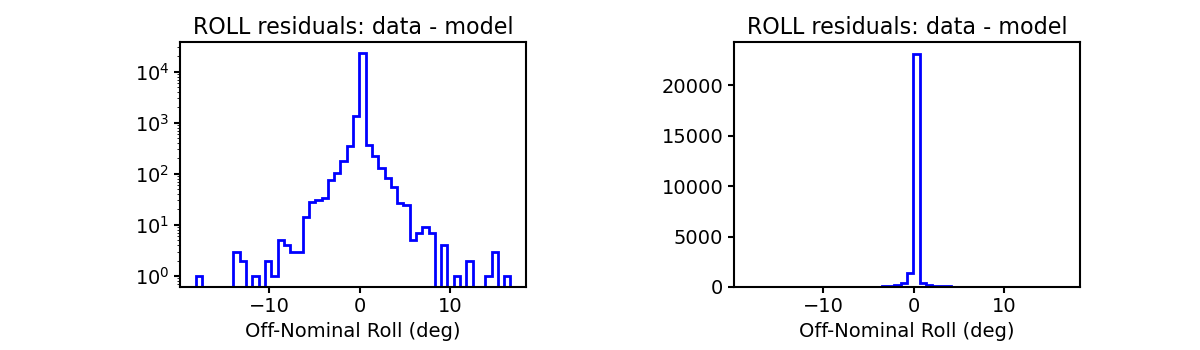

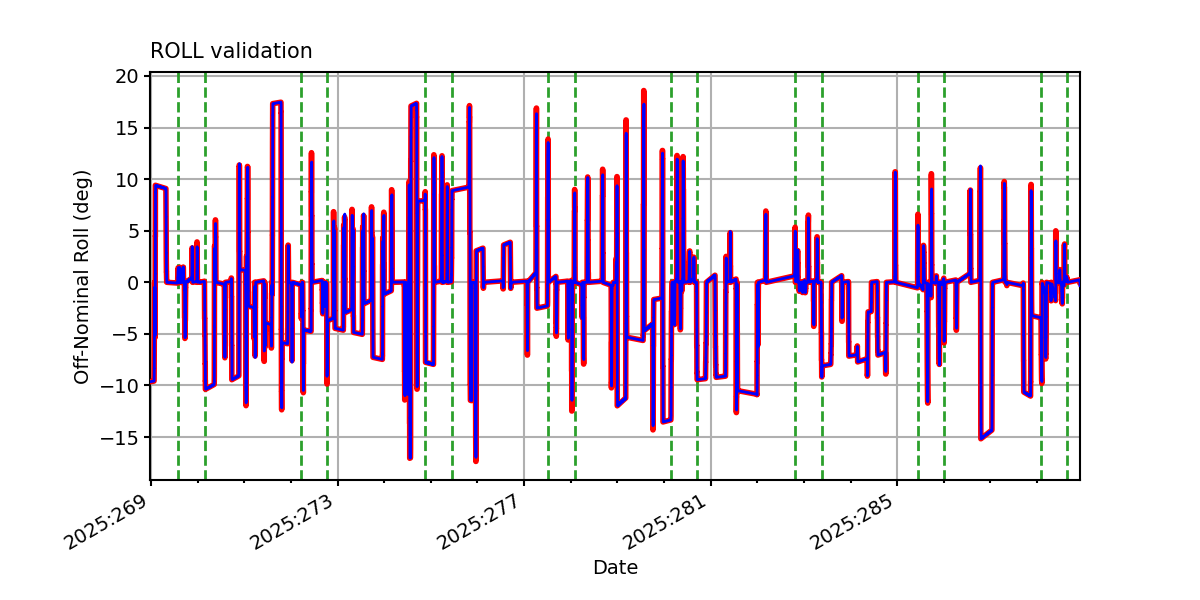

ROLL

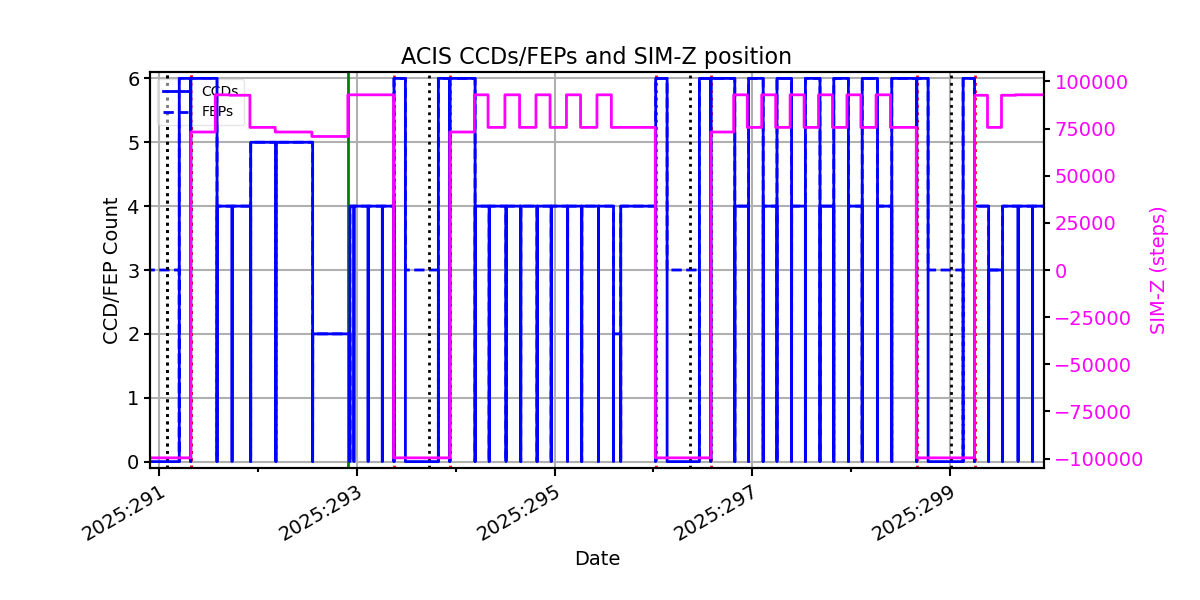

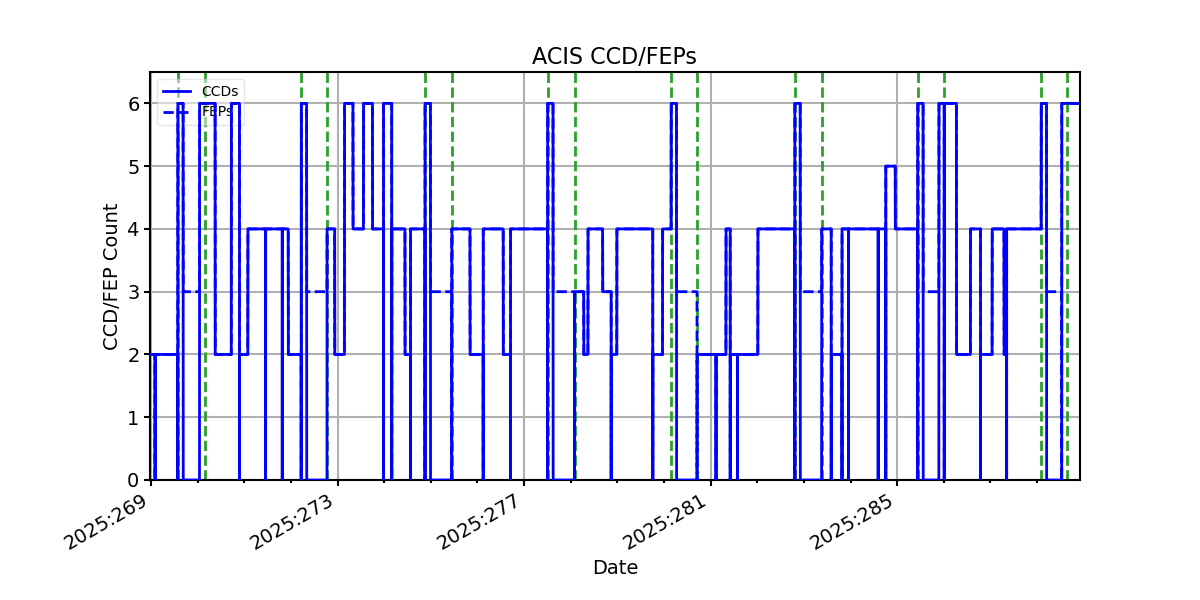

ACIS CCD/FEP Count
