FEP1_MONG Temperatures Check
Summary
| Date start | 2025:294:18:45:00.016 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2125/oflsa |
| Run time | Sun Oct 19 17:16:58 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.06 | -5.94 | -4.24 | -1.43 | 0.73 | 2.40 | 3.72 |
| pitch | -11.516 | -1.259 | -0.004 | -0.000 | 0.004 | 0.955 | 12.240 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.359 | -0.165 | -0.008 | 0.000 | 0.009 | 0.317 | 2.497 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.06 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.43 | 1.00 |
| TMP_FEP1_MONG | 99 | 3.72 | 2.00 |
| PITCH | 1 | -11.516 | 3.00 |
| PITCH | 99 | 12.24 | 3.00 |

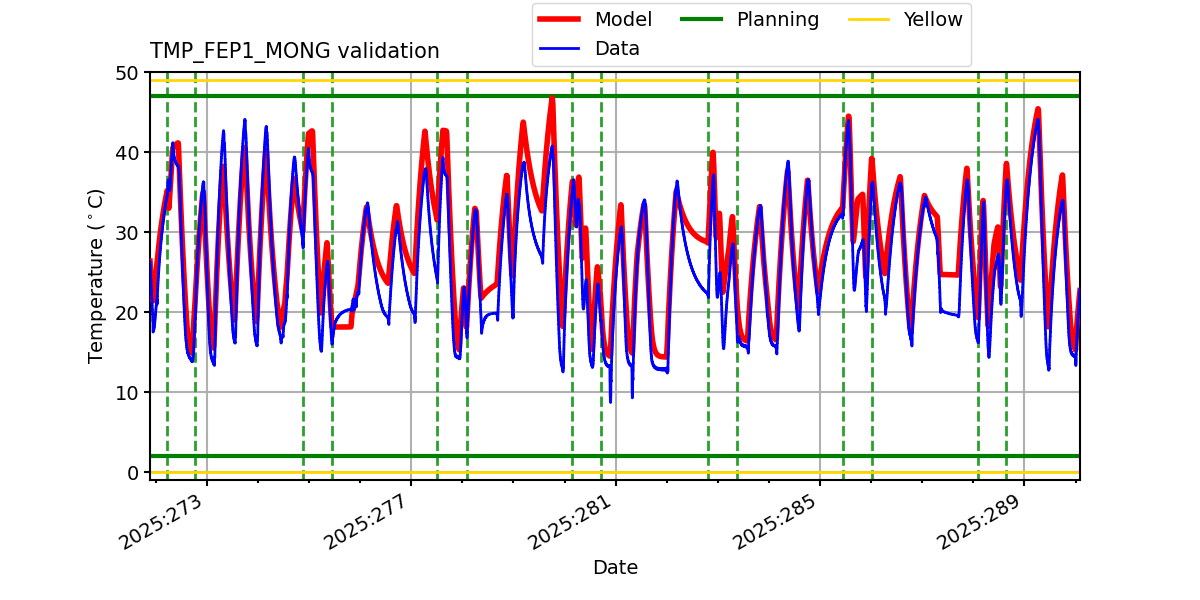

TMP_FEP1_MONG

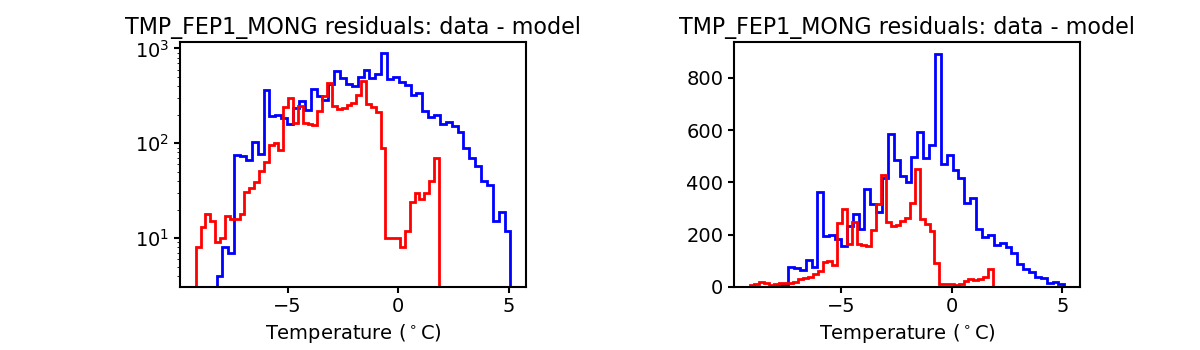

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

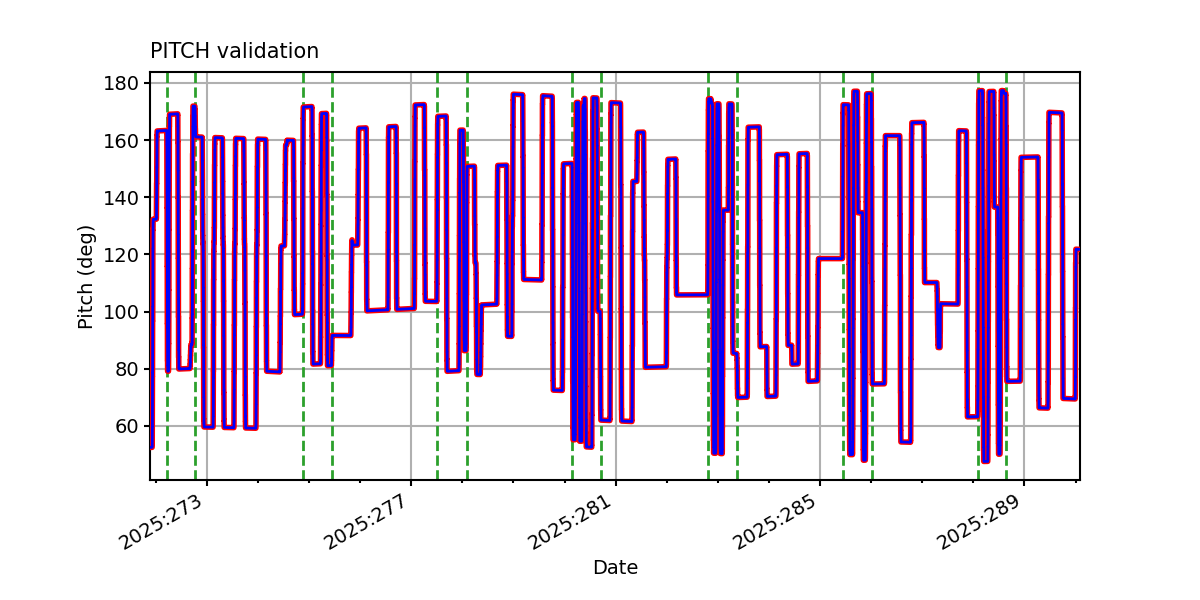

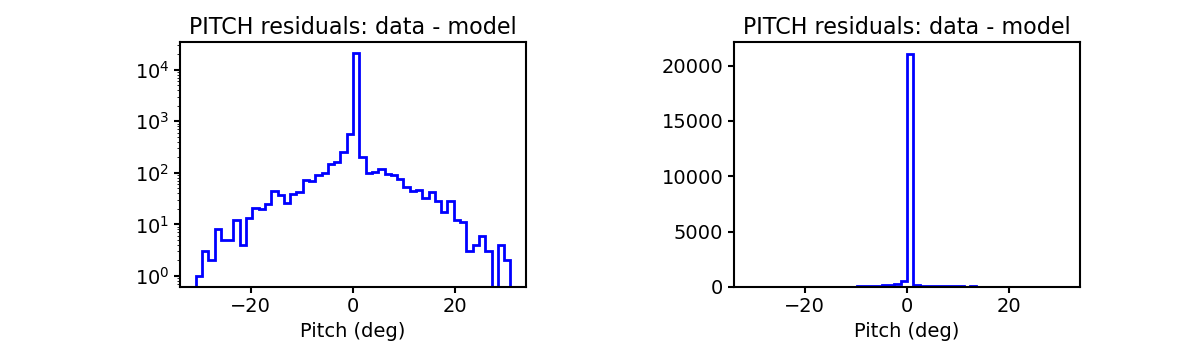

PITCH

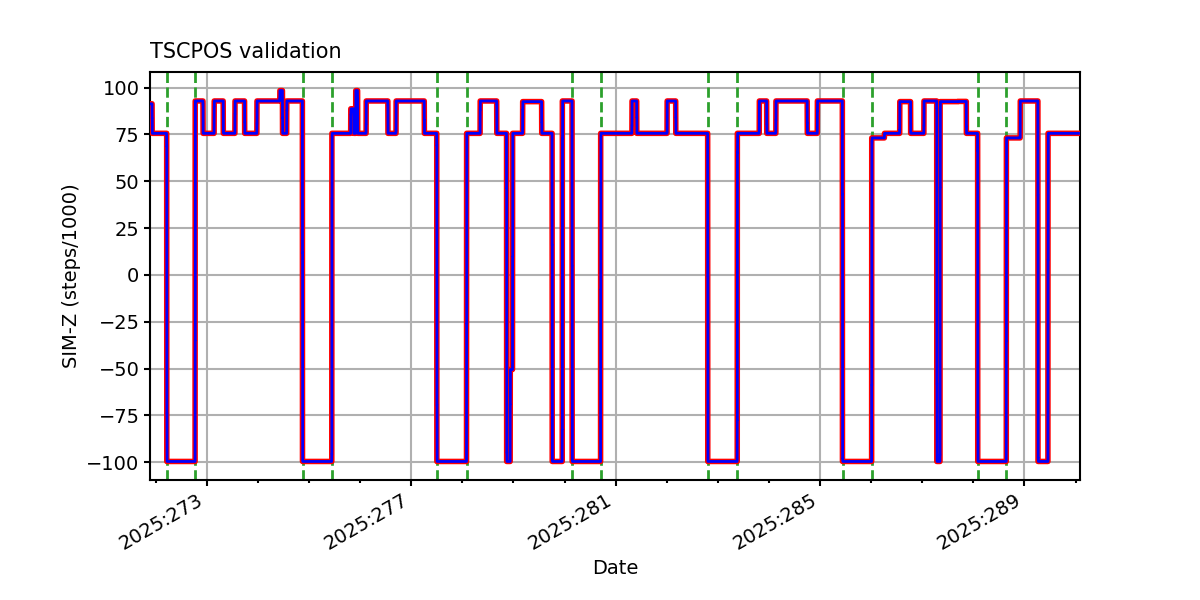

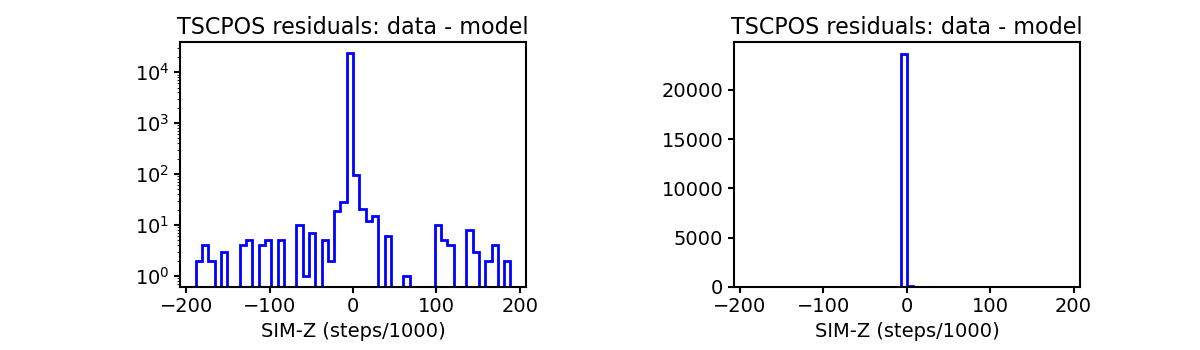

TSCPOS

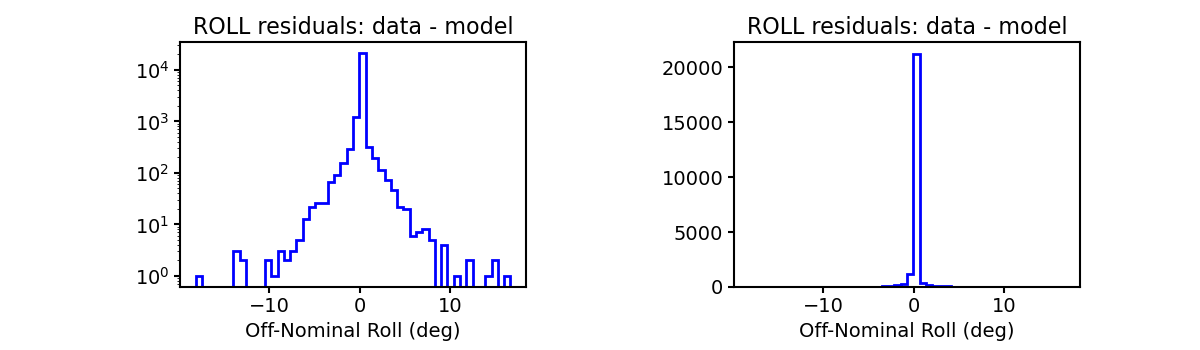

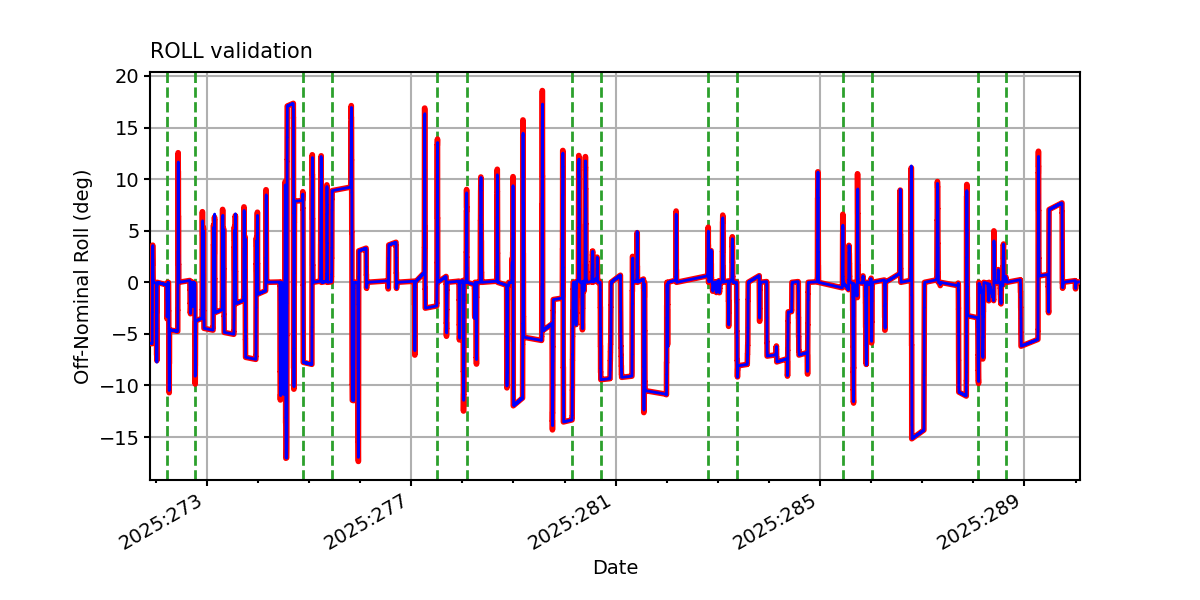

ROLL

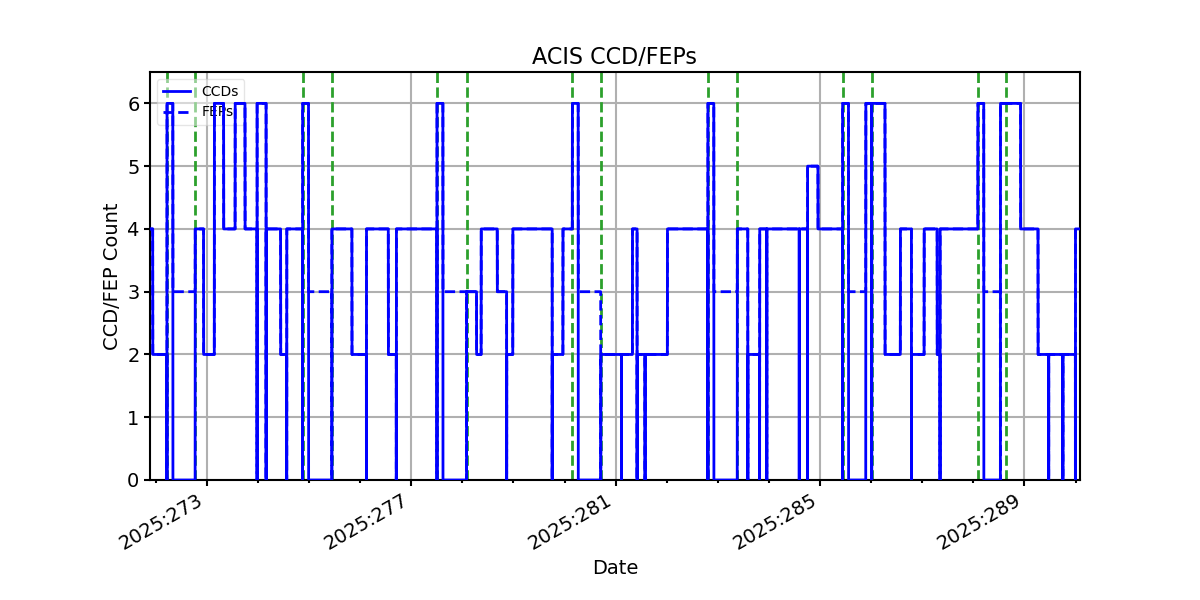

ACIS CCD/FEP Count
