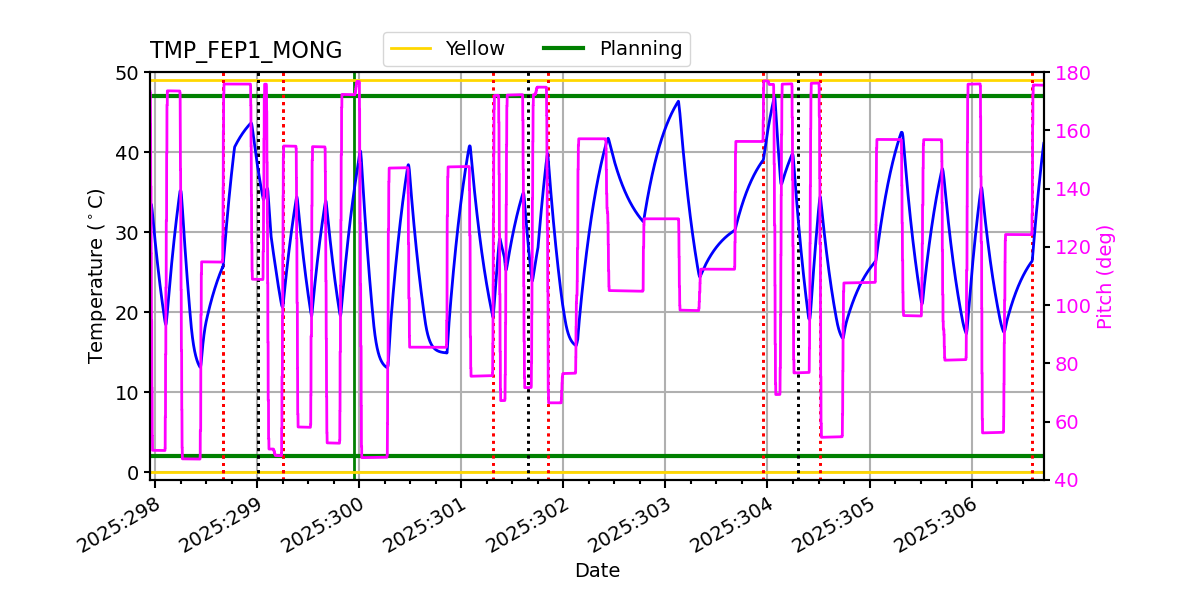

FEP1_MONG Temperatures Check
Summary
| Date start | 2025:299:22:49:08.316 |
| Date stop | 2025:306:17:02:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2725/oflsa |
| Run time | Wed Oct 22 21:30:52 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.14 | -6.01 | -4.58 | -1.87 | 0.02 | 1.05 | 1.96 |
| pitch | -12.169 | -0.986 | -0.004 | -0.000 | 0.004 | 0.868 | 12.858 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.049 | -0.118 | -0.007 | 0.000 | 0.008 | 0.221 | 2.411 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.14 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.87 | 1.00 |
| PITCH | 1 | -12.169 | 3.00 |
| PITCH | 99 | 12.858 | 3.00 |
TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

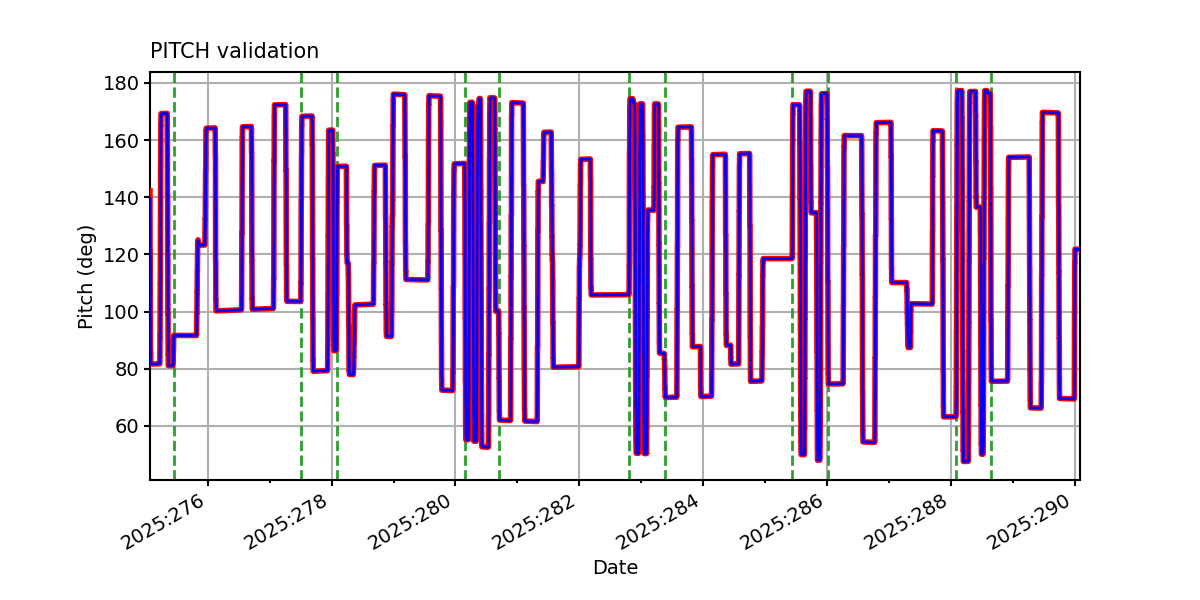

PITCH

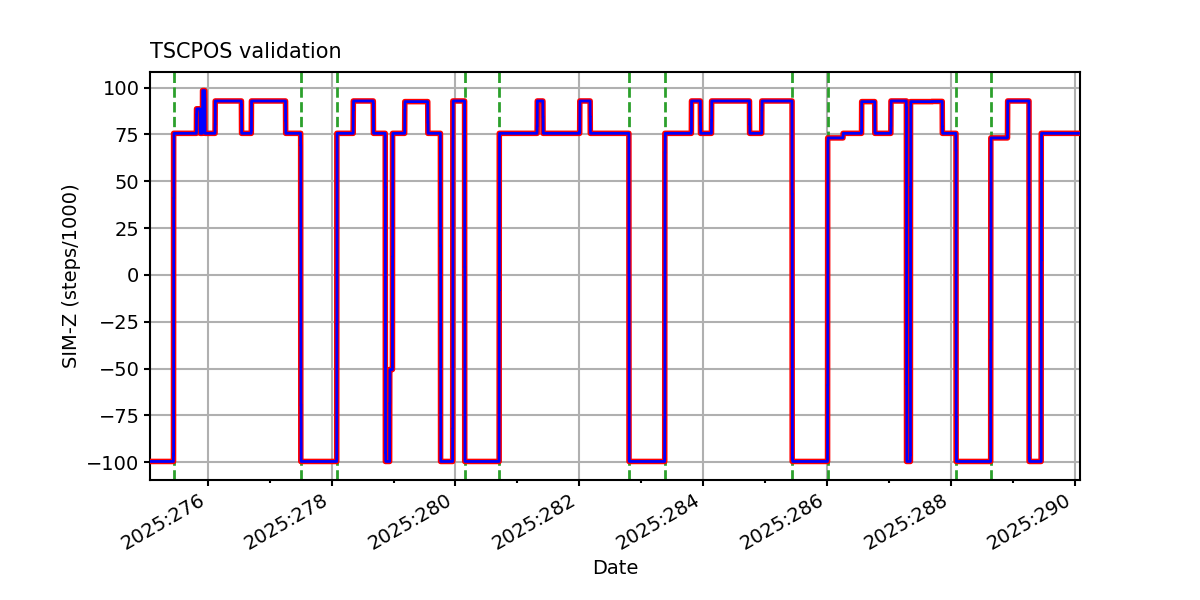

TSCPOS

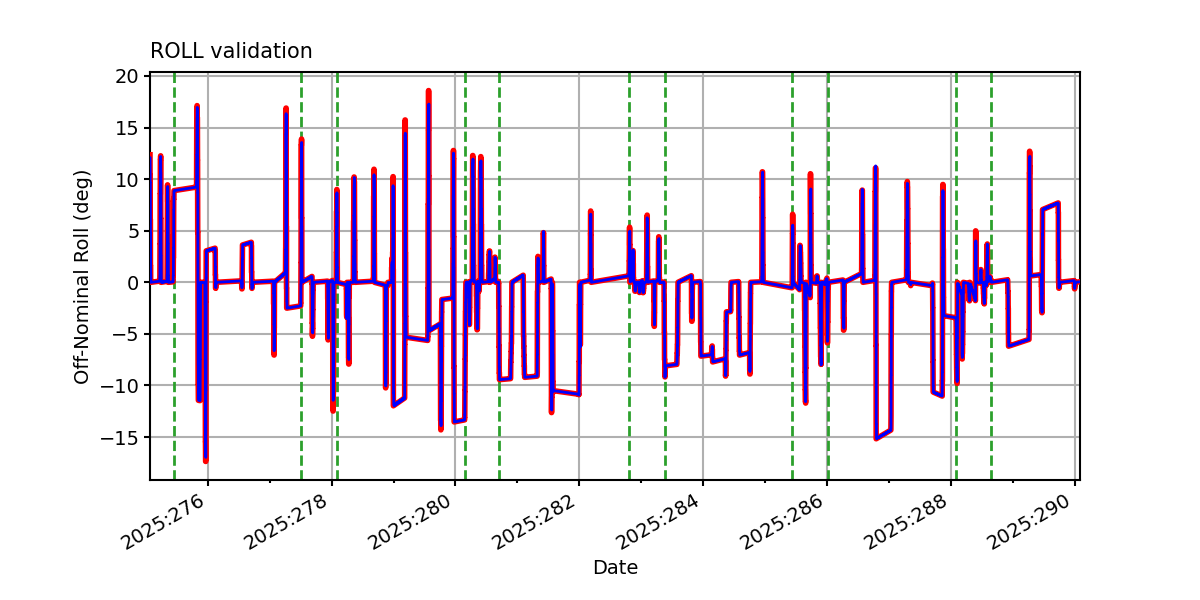

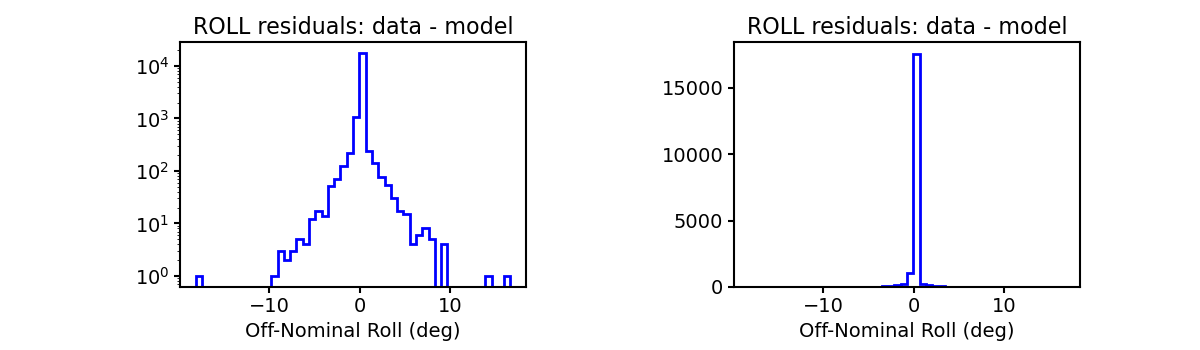

ROLL

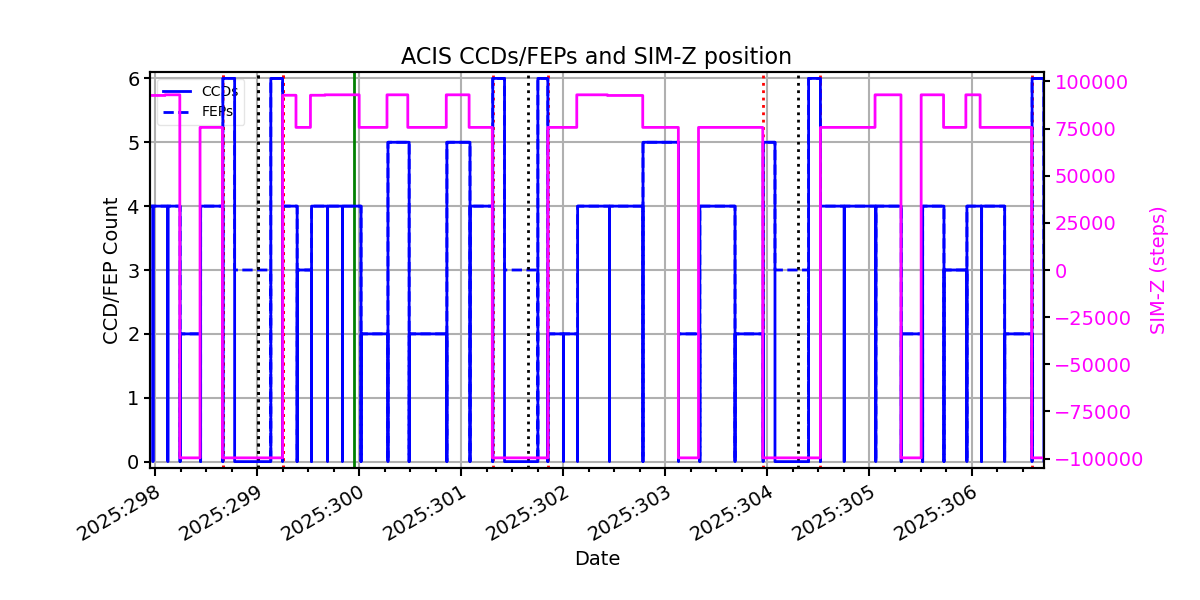

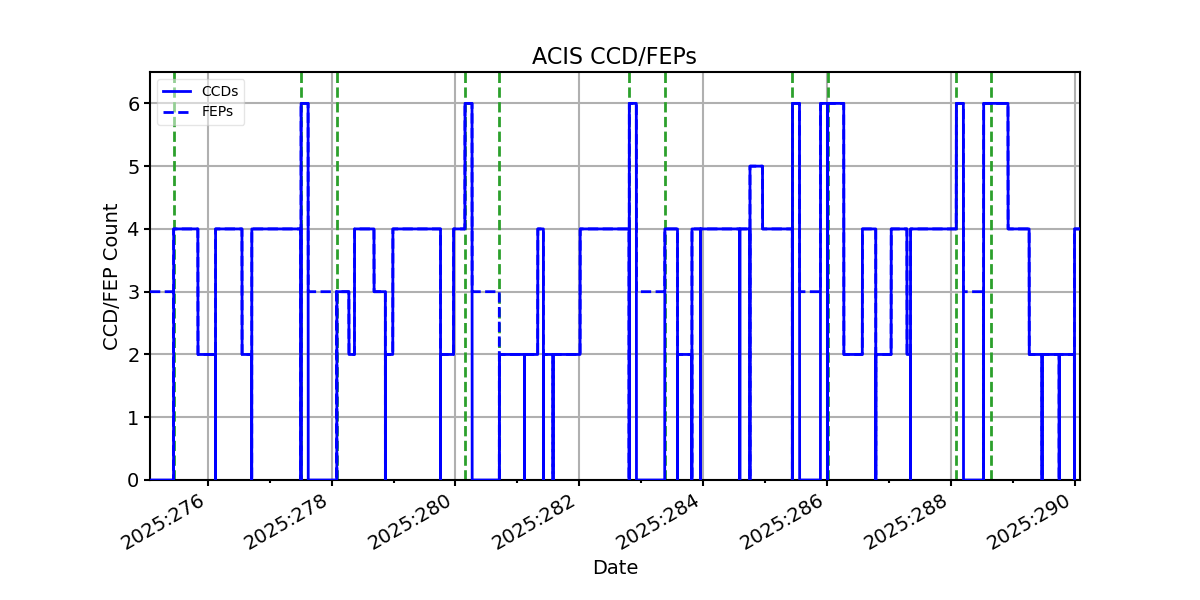

ACIS CCD/FEP Count
