FEP1_MONG Temperatures Check
Summary
| Date start | 2025:244:00:20:40.116 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0125/oflsa |
| Run time | Thu Aug 28 10:30:14 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -4.44 | -3.85 | -2.76 | -1.14 | 0.62 | 1.59 | 2.26 |
| pitch | -9.239 | -0.220 | -0.004 | -0.000 | 0.004 | 0.054 | 10.755 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.678 | -0.070 | -0.005 | -0.000 | 0.005 | 0.066 | 1.818 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -4.44 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.14 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.26 | 2.00 |
| PITCH | 1 | -9.239 | 3.00 |
| PITCH | 99 | 10.755 | 3.00 |

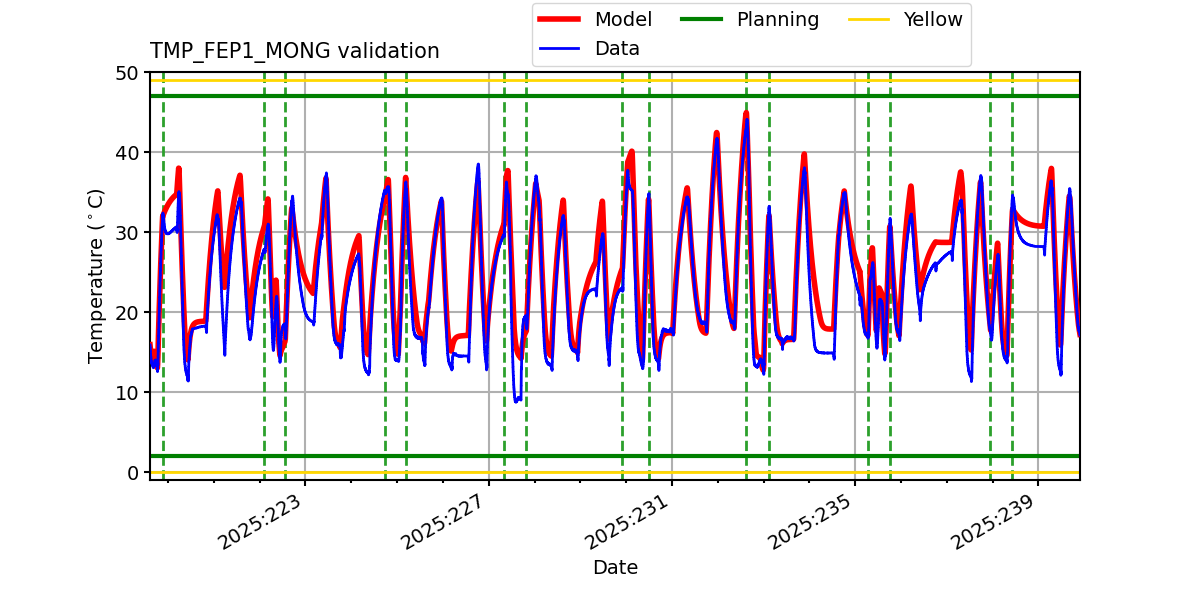

TMP_FEP1_MONG

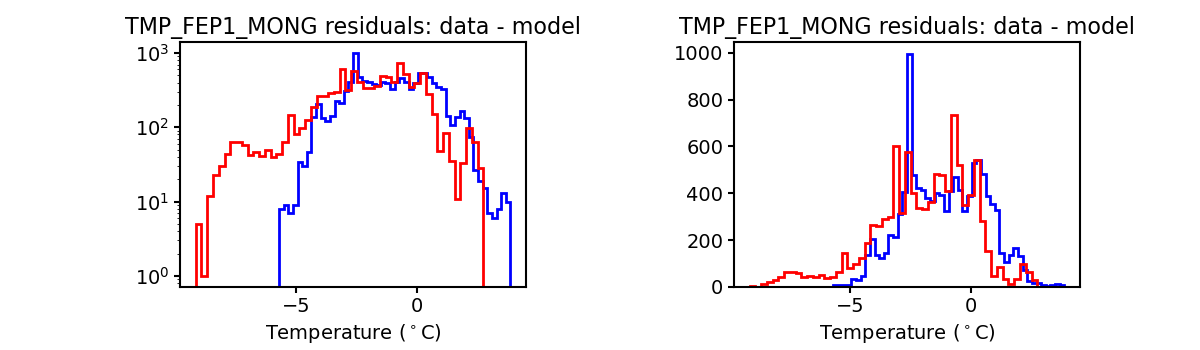

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

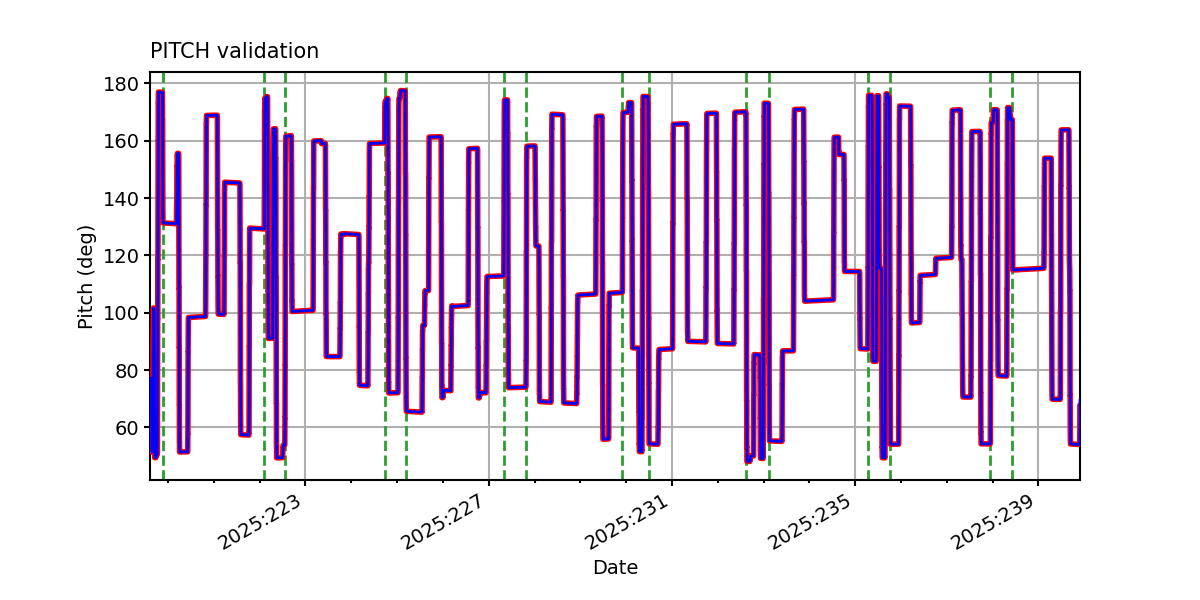

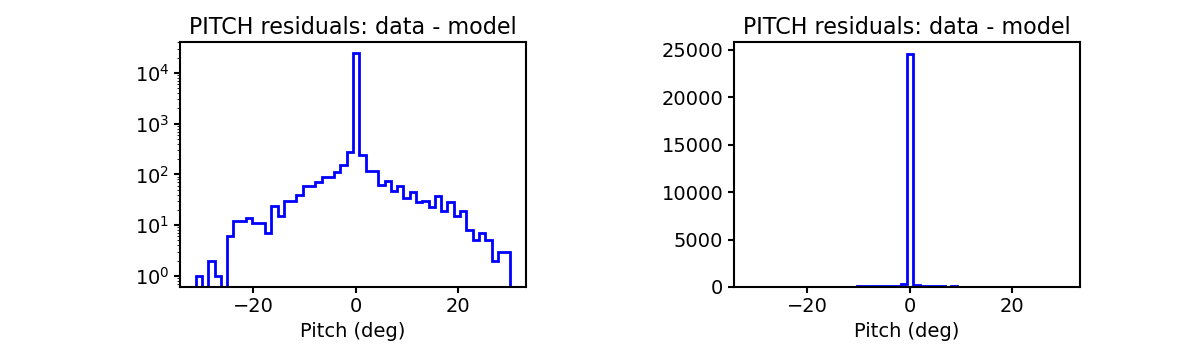

PITCH

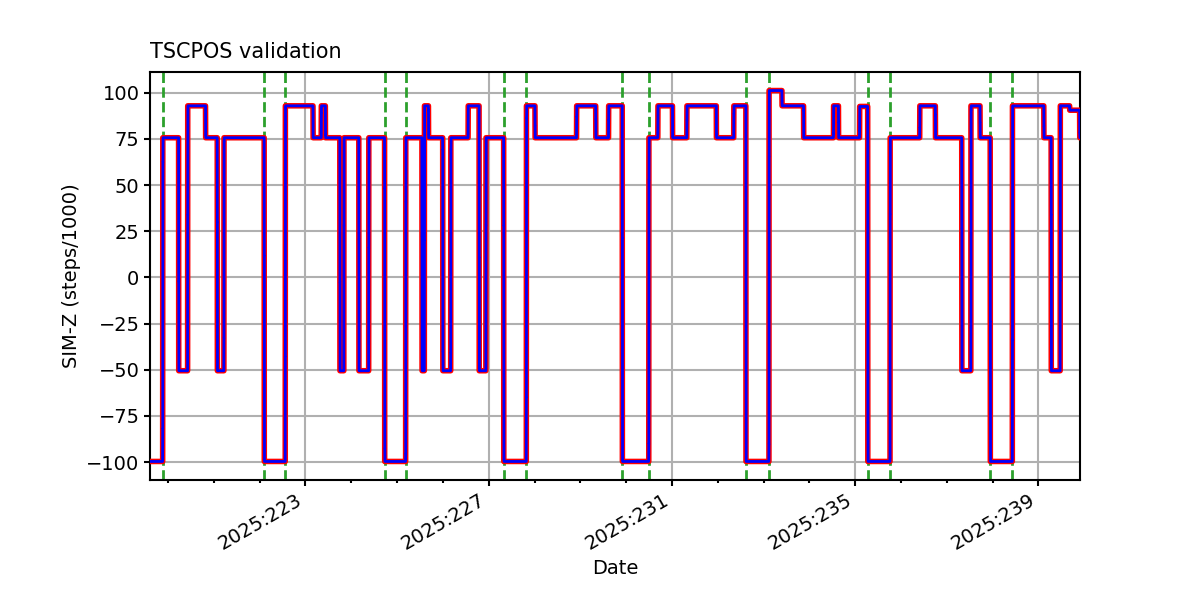

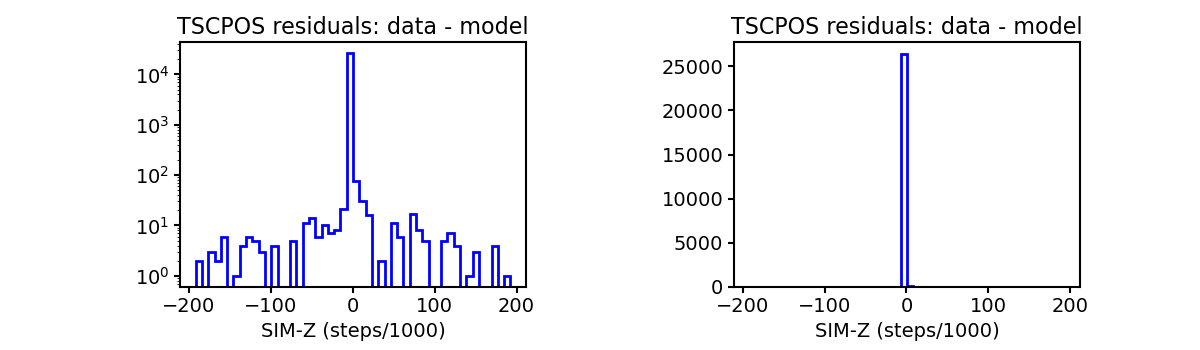

TSCPOS

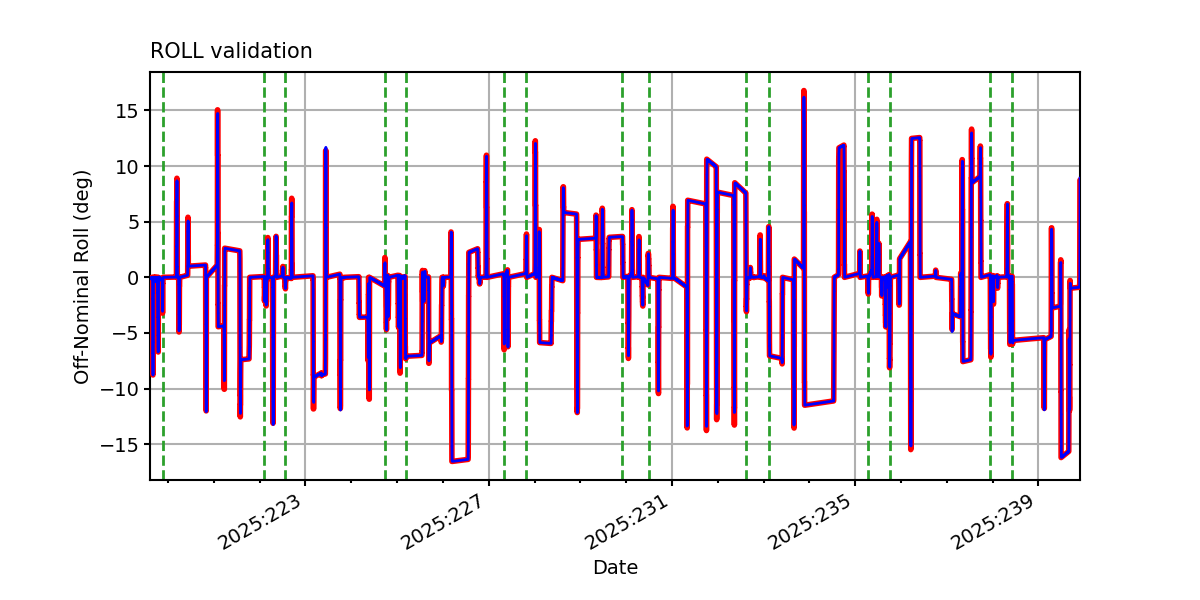

ROLL

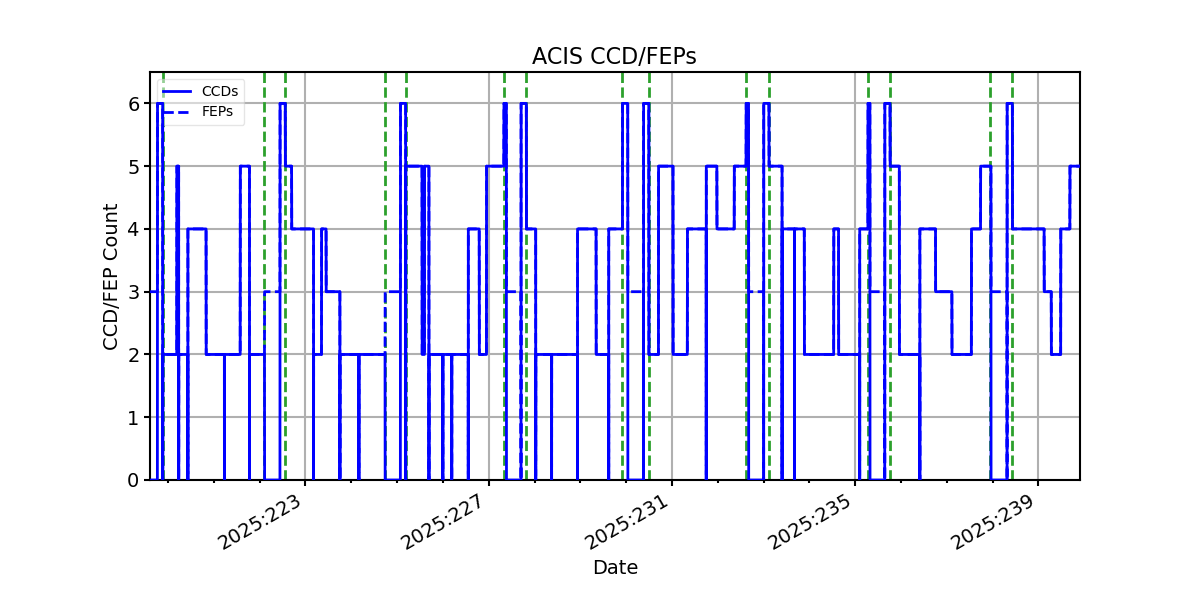

ACIS CCD/FEP Count
