FEP1_MONG Temperatures Check
Summary
| Date start | 2026:250:02:14:56.816 |
| Date stop | 2026:257:02:09:19.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP0726/oflsa |
| Run time | Thu Sep 3 09:56:48 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.23 | -5.84 | -3.90 | -2.04 | -0.04 | 1.31 | 2.27 |
| pitch | -10.707 | -0.386 | -0.004 | 0.000 | 0.004 | 0.475 | 10.350 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -2.050 | -0.145 | -0.005 | -0.000 | 0.004 | 0.127 | 1.724 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.23 | 2.00 |
| TMP_FEP1_MONG | 50 | -2.04 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.27 | 2.00 |
| PITCH | 1 | -10.707 | 3.00 |
| PITCH | 99 | 10.35 | 3.00 |

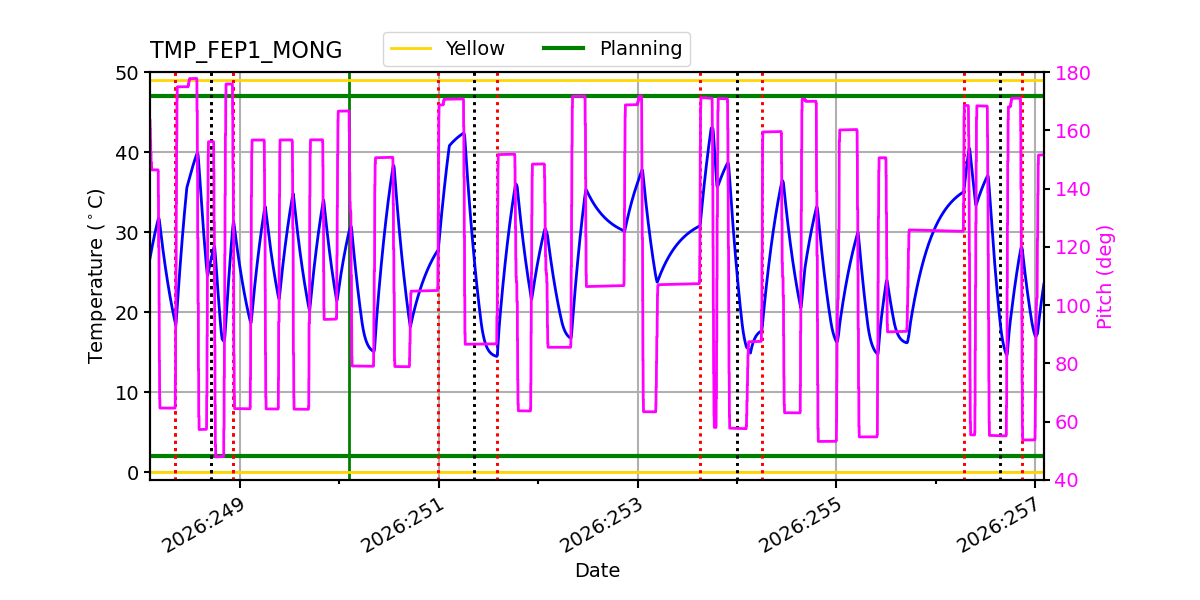

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

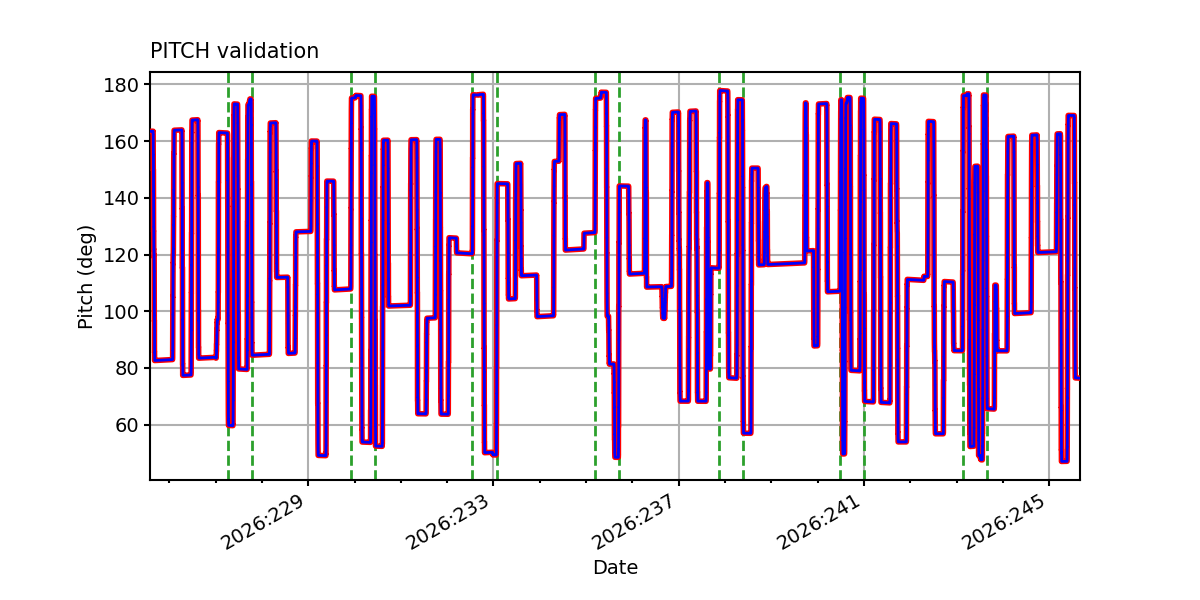

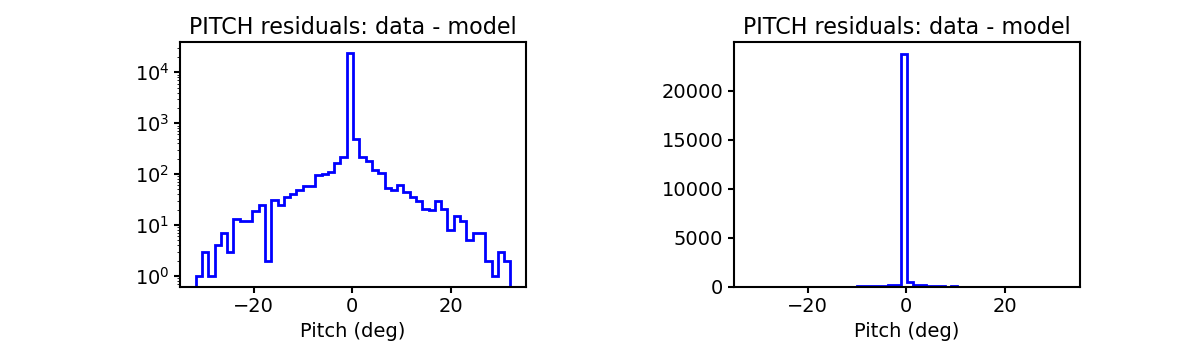

PITCH
TSCPOS

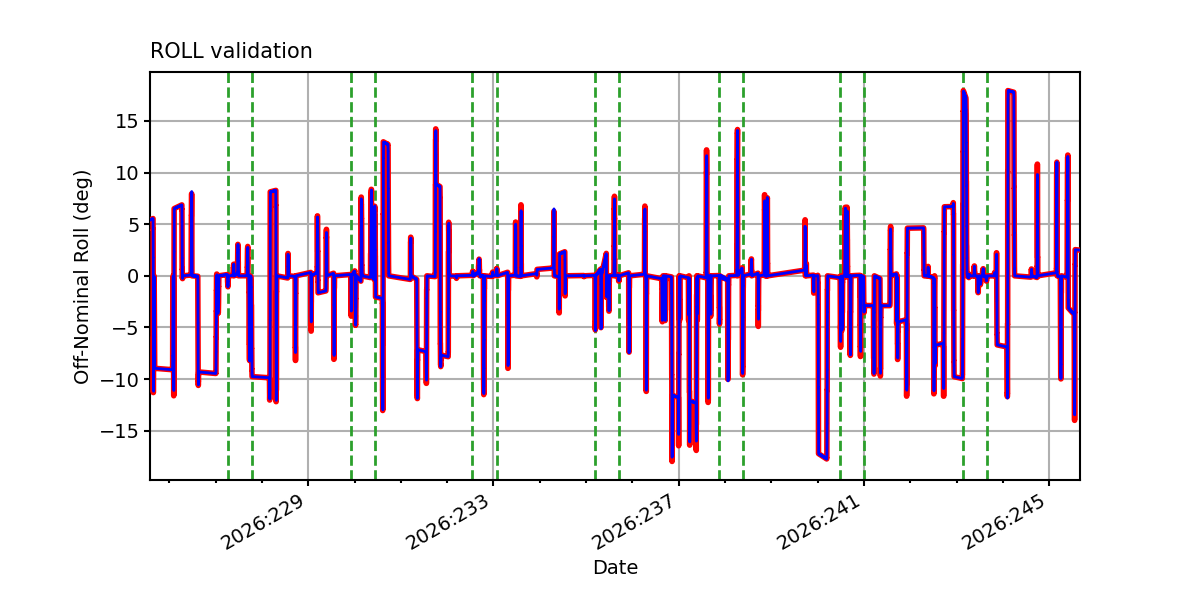

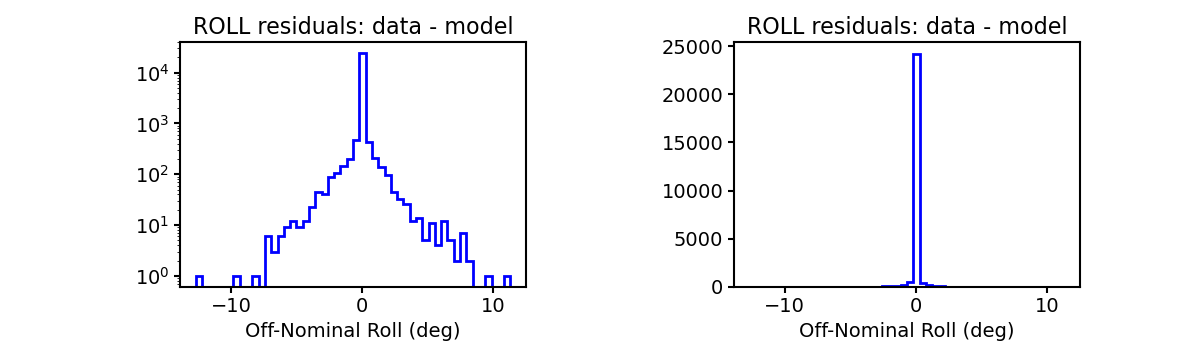

ROLL

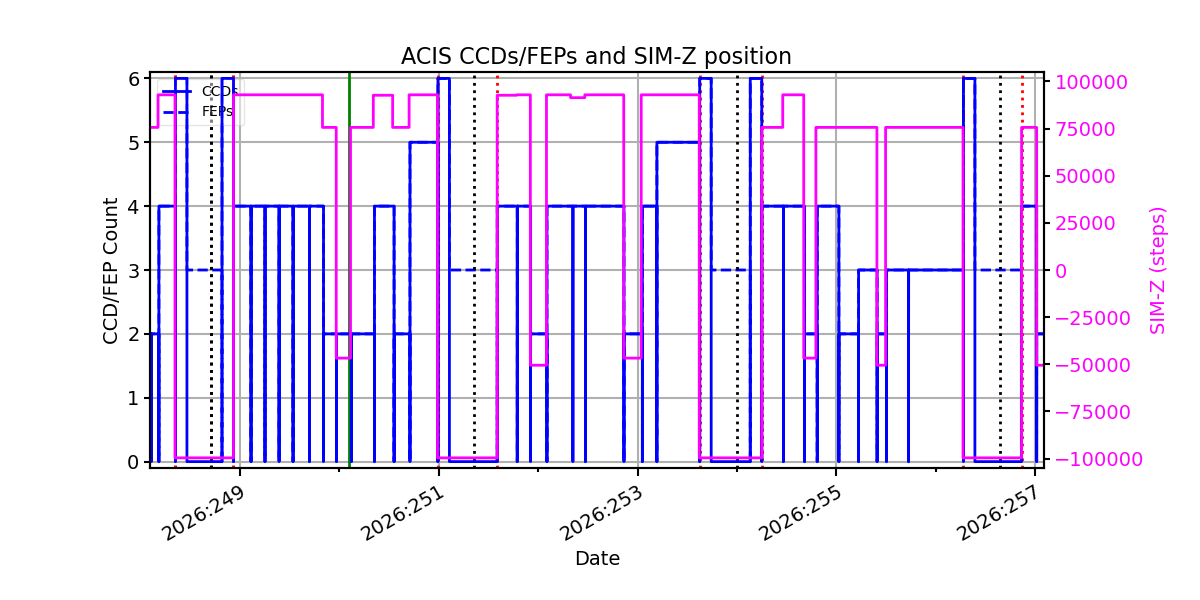

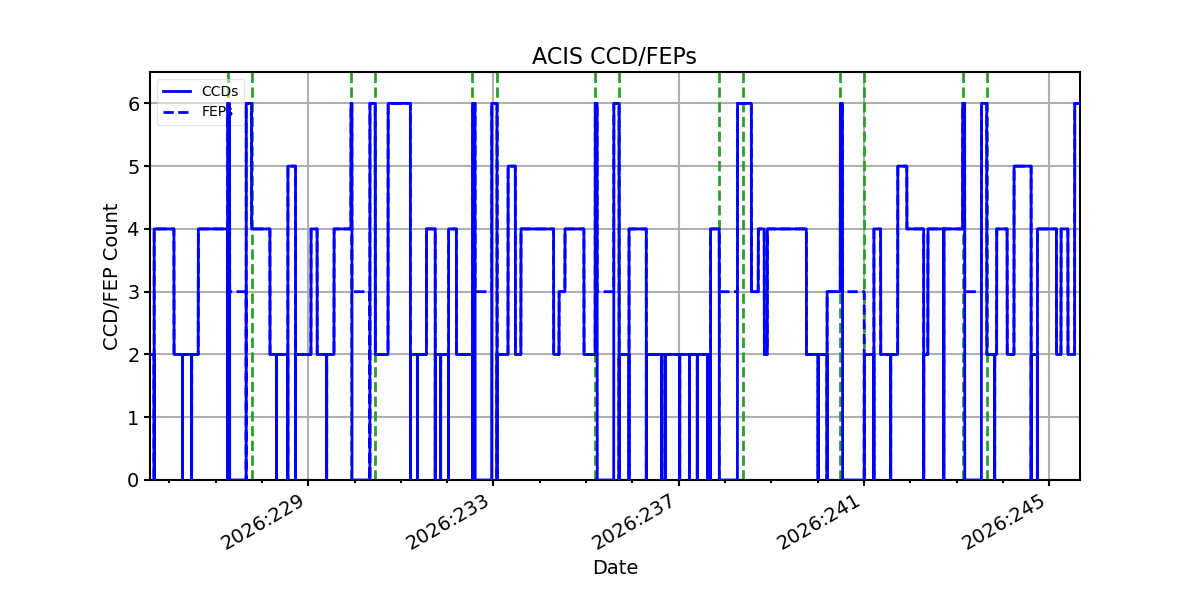

ACIS CCD/FEP Count
